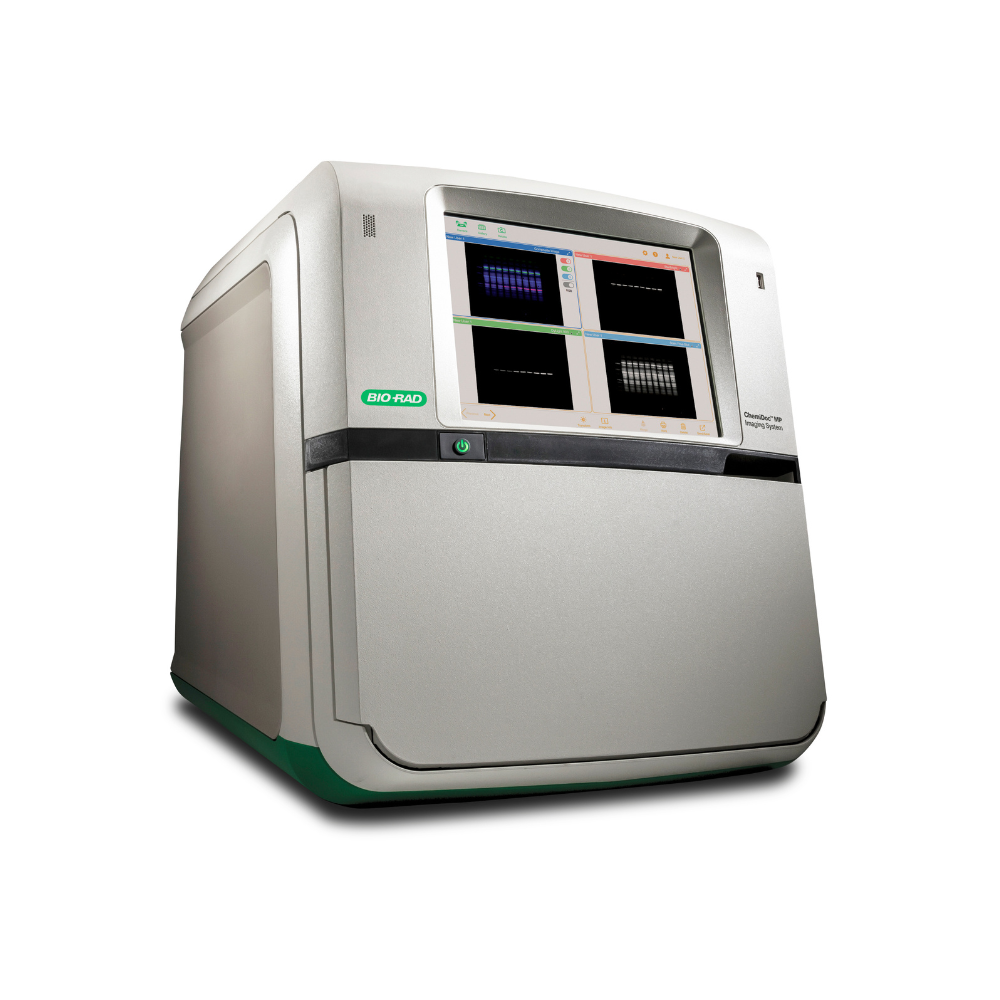

ChemiDoc™ MP Imaging System
Enquire for Price
The ChemiDoc MP Imaging System is a full-feature, best-in-class instrument for imaging and quantifying nucleic acid and protein in gels and western blots. It is capable of imaging fluorescent western blots (RGB, far-red, near-IR), chemiluminescent western blots, all common nucleic acid and protein gel stains, plus stain-free gels. Includes internal computer, 12" touch-screen display, camera, Blot/UV/Stain-Free Sample Tray, Image Lab™ Touch Software, and Image Lab Software
Need a customised solution?
Optional accessories are available for purchase separately. If your order needs a customised configuration, our technical specialists will follow up with full details before your order is finalised. Contact us via the enquiry form or sales@lasec.com.
Installation, training and special delivery
Some products require installation, training, or special delivery (such as tail-lift trucks, extra labour, or hazardous material packaging). If your order needs this, we'll contact you with the additional cost before dispatch, so your final invoice may differ from the listed price.
Ordering from outside South Africa
Online ordering is currently limited to South African customers, but our full range is still available. Log an enquiry or email international@lasec.com and our international sales team will assist you through our traditional sales channels.
DISCLAIMER: All product images are for illustrative purposes only. Actual products may vary slightly in colours, controls, and visible features.
Availability:On Request
SKU
IBRD12003154
BrandBio-Rad
Use the ChemiDoc MP Imaging System for flexible, high-sensitivity multiplex fluorescent and chemiluminescence western blot detection, imaging gels, analysis and documentation. This system is compatible with a wide range of fluorophores, such as StarBright™ Secondary Antibodies, ethidium bromide, SYPRO Ruby, Coomassie, and silver stains.
Features and Benefits
- Sensitive detection - detects RGB and far red/near IR secondary antibodies with low fluorescence background
- Multiplex fluorescent western blotting - detects up to three proteins simultaneously and eliminates the need for stripping and reprobing
- Chemiluminescent western blotting - prolduces images with sensitivity matching x-ray film
- Easy-to-use software - allows quantitation and analysis of gel and blot images, features include automatic selection of optimal light source by application, auto focus, auto exposure, and preview features ensure optimal images. Learn in minutes with on screen help
- Stain-free protein normalization - stain-free imaging permits the normalization of bands to total protein in both in gels and blots; eliminates the need for housekeeping proteins
- Sample Trays and Smart Tray Technology™ - Three sample trays available to cover diverse imaging applications. Smart Tray Technology automatically recognizes the application-specific trays and adjusts imaging parameters and software options accordingly
- Installation/Operational Qualification Kit - Available for ensuring installation and calibration is properly executed for highly regulated laboratory environments
Product Contents
- Imager with 12.1” touch-screen display plus internal computer and camera with Image Lab™ Touch Software
- Blot/UV/Stain-Free Sample Tray for Bio-Rad stain-free gels and blots, fluorescence multiplexing, chemiluminescence detection, ethidium bromide and SYPRO Ruby
- Image Lab Desktop Software to install on your computer
| Automation Capabilities | |
|---|---|
| Smart Tray Technology™ | Automatic recognition of application-specific tray and adjustment of imaging parameters and software options |
| Autofocus | Precalibrated focus for any zoom setting or sample height |
| Auto-exposure | Two user-defined modes (rapid or optimal auto-exposure) for all blot and gel imaging applications |
| Image flat fielding | Dynamic; precalibrated and optimized for each application |
| Hardware | |
| Touch-screen functionality | Multitouch capability (2 points) 12.1" display |
| Maximum image area (W x H) | 21 x 16.8 cm |
| Detector | Cooled CCD, 6 megapixels |
| Dynamic range | >4 orders of magnitude |
| Illumination sources | Trans-UV, 302 nm excitation Epi-white Trans-white (requires White Sample Tray) Trans-blue, 450–490 nm excitation (requires Blue Sample Tray) Epi-blue, 460–490 nm excitation Epi-green, 520–545 nm excitation Epi-red, 625–650 nm excitation Epi-far red, 650–675 nm excitation Epi-near IR, 755–777 nm excitation |
| Filter and application | 590/110 nm standard filter to perform protein and DNA gel and blot imaging Chemiluminescence filter 518–546 nm filter for blue-excitable fluorophores and stains 577–613 nm filter for green-excitable fluorophores and stains 675–725 nm for red-excitable fluorophores and stains 700–730 nm filter for far red-excitable fluorophores and stains 813–860 nm for near IR-excitable fluorophores and stains |
| Data output | 16-bit or 8-bit: SCN, TIFF, JPEG files |
| Instrument weight | 35 kg (78 lb) |
| Instrument size (L x W x H) | 61 x 51 x 53 cm |
| Operating voltage | 100–250 V |
| Operating temperature | 10–28°C |
| Operating humidity | 10–85% relative humidity (non-condensing) |
| Brand | Bio-Rad |
|---|
