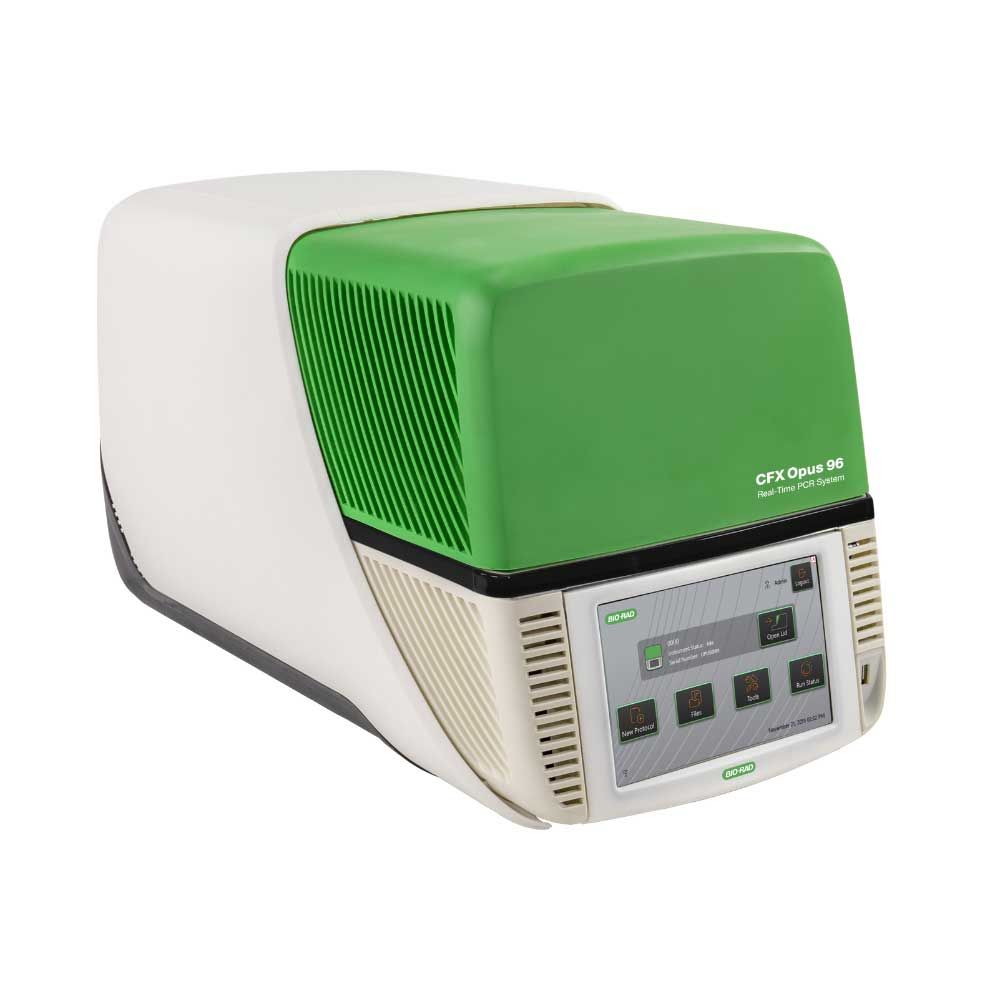

96-well, 5-color plus FRET, network-connected real-time PCR detection system, includes CFX Opus 96 base unit, cables.
CFX Opus is the newest real-time PCR system in Bio-Rad's robust CFX family. The CFX Opus 96 Real-Time PCR System can analyze 96 wells and offers a number of new features, including:
Applications and Uses for the CFX Opus Real-Time PCR Systems
Thermal Cycler | |
---|---|
Maximum ramp rate, °C/sec | 5 |
Average ramp rate, °C/sec | 3.3 |
Heating and cooling method | Peltier |
Lid, °C | 30–110 |
Temperature | |
Range, °C | 4–100 |
Accuracy, °C | ±0.2 of programmed target at 90°C |
Uniformity, °C | ±0.3 well-to-well after 10 sec of arrival at target |
Gradient | |
Operational range, °C | 30–100 |
Programmable span, °C | 1–24 |
Optical Detection | |
Excitation | 6 filtered LEDs |
Detection | 6 filtered photodiodes |
Range of excitation wavelengths, nm | 450–684 |
Range of emission wavelengths, nm | 510–730 |
Sensitivity | Detects 1 copy of target sequence in human genomic DNA |
Dynamic range | 10 orders of magnitude |
Scan Time | |
All channels, sec | 12 |
FAM/SYBR® Green only, sec | |
Software | |
Operating system | Windows 10 |
Multiplex analysis | Up to 5 targets per well |
System | |
Sample capacity, wells | 96 |
Sample size, µl | 1–50 (10–50 recommended) |
Communication interface | USB 2.0 |
Electrical approvals | IEC, CE |
Dimensions (W x D x H), cm/in | 33x56x36 / 13x22x14 |
Weight, kg/lb | 22/48 |
Brand | Bio-Rad |
---|
