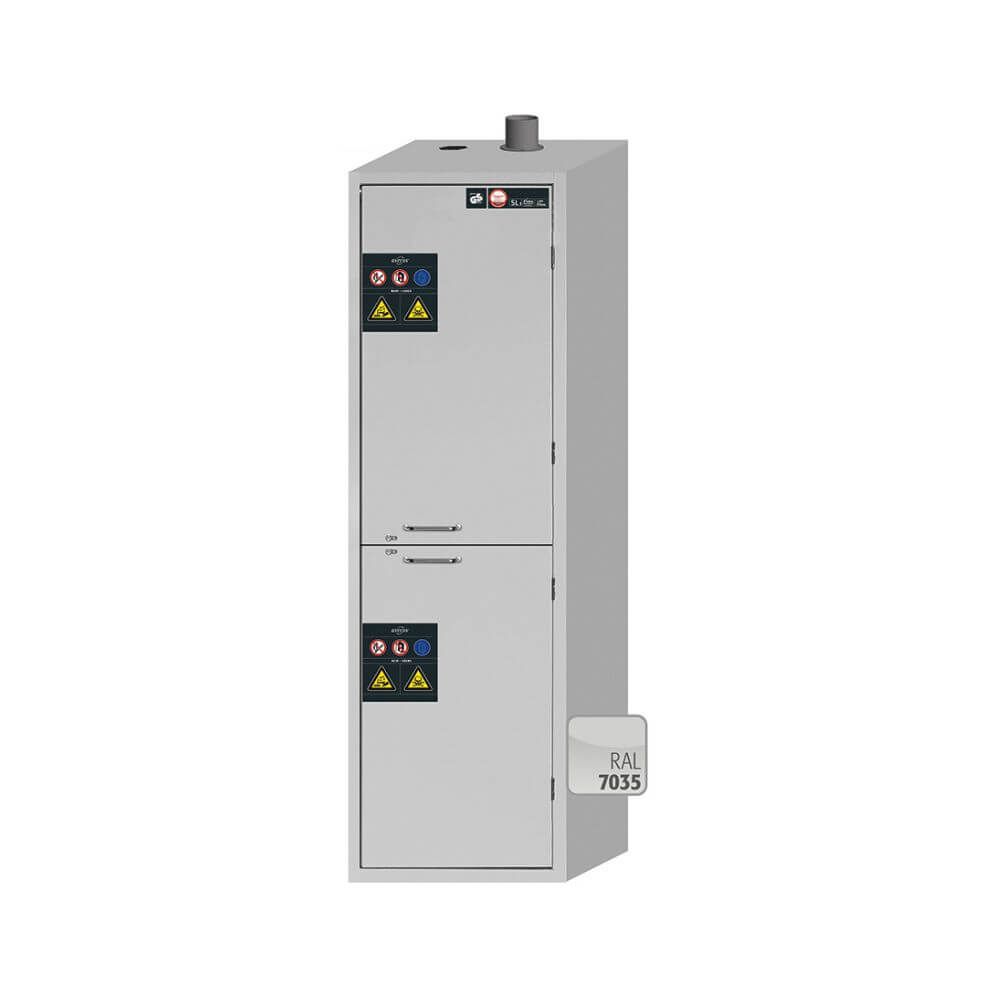

Cabinet for Acids and Alkalis SL-CLASSIC Model SL.196.060.MH.R

Safety Storage Cabinets for Acids and Alkalis

SL-LINE

The SL-LINE model line offers tall, corrosion-resistant safety storage cabinets specifically designed for the safe, separated storage of aggressive, non-flammable hazardous substances, particularly acids and alkalis. These cabinets are intended for use in laboratories and work areas in accordance with TRGS 510, DGUV Information 213-850, and the German Ordinance on Hazardous Substances (GefStoffV).

Constructed from high-quality materials, each cabinet features a powder-coated sheet steel body and an interior composed of melamine resin and flame-retardant speciality boards. The design includes two hermetically separated storage compartments, divided either vertically or horizontally, for the safe segregation of incompatible substances. Integrated aeration and ventilation systems, along with metal-free, corrosion-resistant air ducts, ensure optimal containment and long-term durability.

Product Overview: SL-LINE Cabinets for Acids and Alkalis

SL-LINE cabinets meet stringent safety and mechanical performance standards while offering modular and ergonomic storage solutions. Key product features include:

Sturdy Construction: Tall cabinet with a powder-coated sheet steel exterior and an interior made from chemically resistant melamine resin and flame-retardant composite materials.

Safe, Segregated Storage: Two hermetically divided compartments with the option for vertical or horizontal partitioning allow for the safe, separate storage of acids and alkalis.

Ventilation System: Integrated air ducts (DN 75) are prepared for connection to a technical exhaust system to extract hazardous vapours, thereby preventing the formation of harmful atmospheres.

Corrosion Resistance: All air-handling components are free of metal, ensuring high resistance to corrosive vapours and long-term chemical durability.

Manufacturer Warranty: Covered by a specialised warranty for quality and performance. [For further information, click here.]

Regulatory Compliance:

• GS-tested for verified safety
• Conforms to EN 16121 and EN 16122 standards for storage furniture
• Fully compliant with TRGS 510, DGUV-I 213-850, and the Ordinance on Hazardous Substances

Key Features and Benefits

Robust Construction and Durability

Each cabinet is built to withstand harsh environments through the use of flame-retardant and corrosion-resistant materials. The design ensures longevity and structural integrity under continuous use.

Optional Hydrofluoric Acid Storage

A separately lockable compartment for hydrofluoric acid is optionally available. This compartment includes a corrosion-resistant sump made of polypropylene, enhancing user safety and chemical containment.

Customisable Interior Equipment

Optionally available with polyethylene (PE) tray shelves (capacity: 33 L) or bottom collecting sumps (capacity: 68 L), suitable for bulk packaging.

Ventilation Safety

The cabinet's ventilation system ensures safe extraction of vapours from aggressive substances. By preventing the accumulation of harmful gases, it contributes to workplace safety and regulatory compliance.

Cylinder Locking System

Doors are equipped with a secure cylinder lock and can be integrated into existing master key systems for centralised access control.

Optional Metal Cladding

For aesthetic and functional integration into existing lab facilities, metal cladding is available upon request.

Compatibility with Laboratory Layouts

• The cabinet is designed to fit beneath fume cupboards, optimising space in compact lab environments.
• Optional castors with plinth allow for mobility, and attachment covers facilitate height adjustment to align with various laboratory furniture systems.

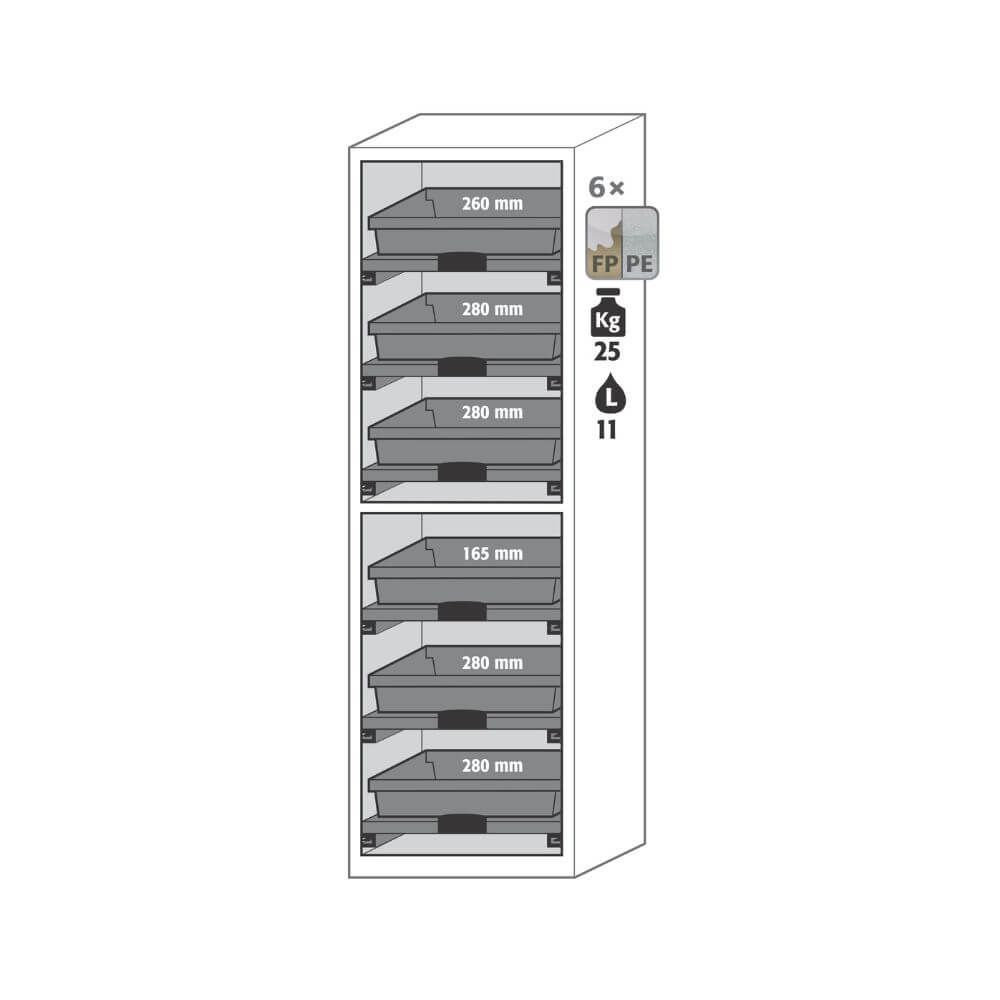

Pull-Out Shelving System

• Equipped with pull-out shelves featuring highly resistant plastic sumps.
• Provides a clear, accessible overview of all stored chemicals.
• In the event of leakage, the sump tray can be easily removed, emptied, and cleaned.

Why Choose the SL-LINE Model

The SL-LINE series provides a comprehensive solution for the safe and compliant storage of aggressive, non-flammable hazardous substances. Its dual-compartment design, high chemical resistance, robust construction, and customizable features make it ideally suited for modern laboratories, chemical storage rooms, and industrial settings. With full adherence to international safety and performance standards, SL-LINE cabinets offer reliable protection for both personnel and facilities.

Frequently Asked Questions

Q: What is the SL.196.060.MH.R cabinet designed for?

A: It is a free-standing safety cabinet built for the segregated storage of aggressive substances like acids and alkalis, using a horizontal partition to separate incompatible materials.

Q: Is the cabinet fire-resistant?

A: No. This model is not designed for flammable liquids but is constructed from chemically resistant, flame-retardant materials for safe acid/alkali storage.

Q: What interior equipment is included?

A: 6 × pull-out shelves with plastic sumps (11 L capacity, 25 kg load each)

Q: Is the cabinet ventilated?

A: Yes. It includes DN 75 air ducts prepared for connection to an exhaust system, with a recommended air exchange of 14 m³/h.

Q: What materials are used in construction?

A: The exterior is powder-coated sheet steel. The interior features melamine resin and flame-retardant boards for corrosion and chemical resistance.

Q: Is the cabinet lockable?

A: Yes, it features a cylinder lock and can be integrated into master key systems for centralised access control.

Q: Can it store hydrofluoric acid?

A: Yes, an optional, separately lockable compartment with a polypropylene sump is available for hydrofluoric acid storage.

Q: Are custom accessories available?

A: Yes. Optional polyethylene tray shelves, larger sumps, metal cladding, mobility castors, and height-adjustable covers are all available upon request.

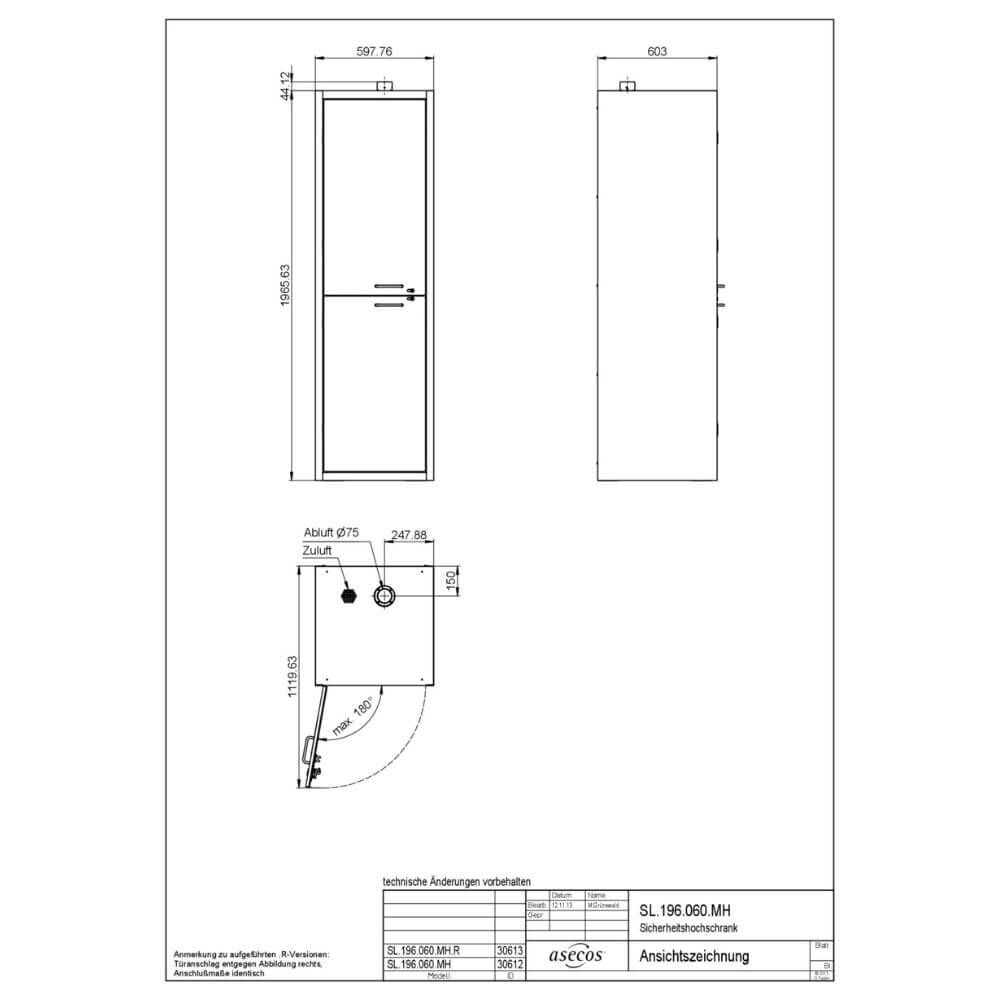

Q: What are the cabinet’s dimensions?

• External: 597 × 603 × 1965 mm (W × D × H)
• Internal (Top): 485 × 570 × 914 mm
• Internal (Bottom): 485 × 570 × 833 mm

Q: Does it comply with safety standards?

A: Yes. The cabinet is:

• GS-certified
• Compliant with EN 16121/16122
• Meets TRGS 510, DGUV 213-850, and the Ordinance on Hazardous Substances

Q: What is the total load capacity?

• Total load: 300 kg
• Distributed load: 444 kg/m²
• Max drawer load: 25 kg per shelf
