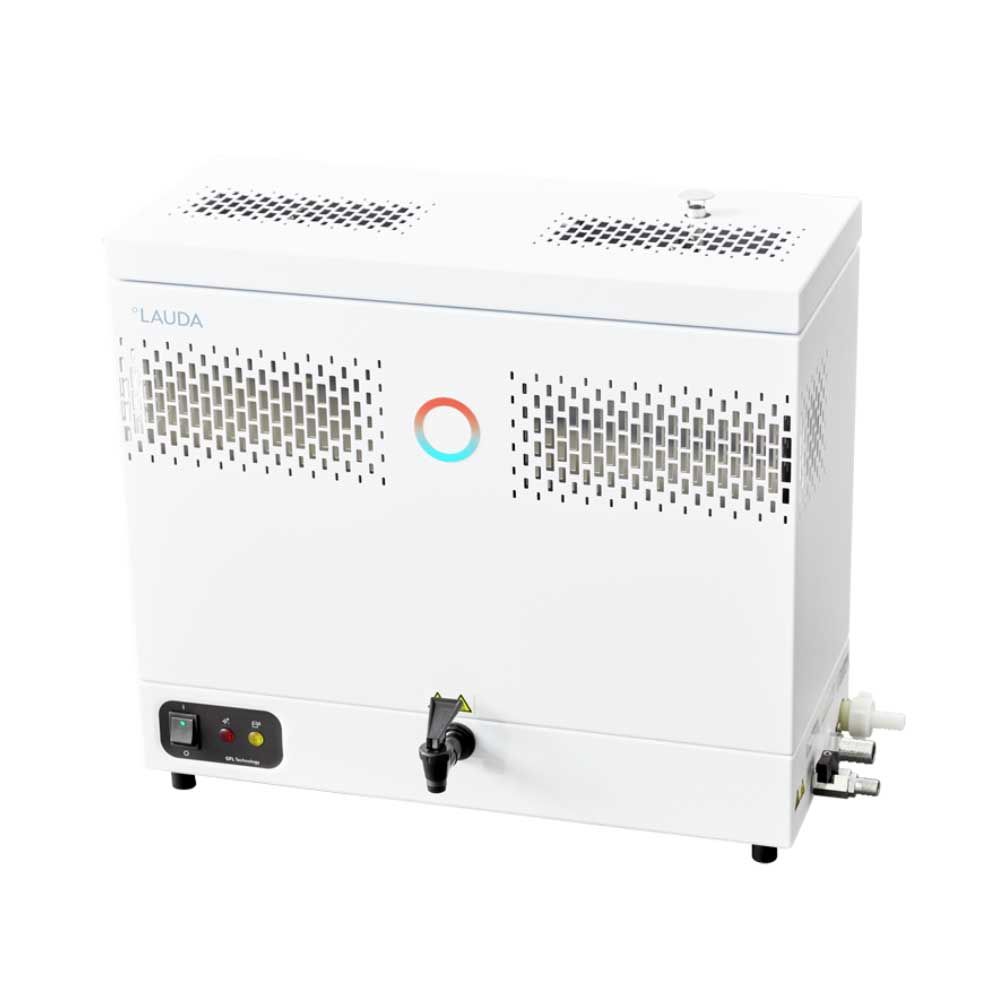

Puridest PD 4 R Water Still, L003014

Puridest PD 4 R Water Still, L003014

Enquire for Price
  • Water Still for single distillation (fully automatic) with storage tank, suitable for both bench and wall mounting
  • Condenser (cooling coil) inside the storage tank, easily exchangeable.
  • Water saving through automatic water cut-off. Unnecessary water consumption will be avoided.
  • Electronic contamination monitoring of the still with distillation stop and visual cleaning instruction
  • Heating element, evaporator, storage tank and condenser made of stainless steel.
  • The distillate storage tank accepts twice the hourly capacity of the still
  • Solenoid valve to control the water supply
  • Evaporator easily accessible for cleaning purposes.
  • Automatic refill of the storage tank after distillate removal, controlled by electronic level detection
  • Housing made of galvanised sheet steel, powder-coated
  • Distillate withdrawal through drain cock with continuous and touch position.
  • Economical energy consumption by distillation of the heated cooling water.
  • CO2 degassing through the outlet in the condenser.
  • Thermostatic low water cut-off
  • Double-walled housing
  • Hose sold separately
  • Note: This equipment requires professional installation by a qualified technician, which may involve additional costs not included in the purchase price.
Availability:On Request
SKU
ILAUL003014
BrandLAUDA

The maxim of the Puridest stills is quality and simplicity. They provide high-quality distillate - ultra-pure, low-gas, germ and pyrogen-free for dilution of reagents, sets of samples and much more. Commissioning and operation of the stills are extremely simple. LAUDA Puridest stills do not require any specialists for commissioning and maintenance and do not place any high demands on the raw water that is to be connected. Ultra-pure water is extracted by simply pressing a button.

Ultra-pure water can be extracted directly after connection to the raw water and power supply. LED indicators for operating status and cleaning requirement are standard equipment. Depending on the device, the cleaning cycle runs manually or semi-automatically.

The only maintenance required is removing pollutants from the still. Dispensing with complex service work and cleaning as well as the repeated procurement of consumables makes these devices a simple and reliable solution that can be used anywhere in the world.

Features and Benefits

  • Device protected by water shortage protection in all models
  • Energy savings through distillation of the heated cooling water
  • Devices only require power and raw water
  • No more expensive cartridges, adsorbents and regular regeneration of ion exchangers

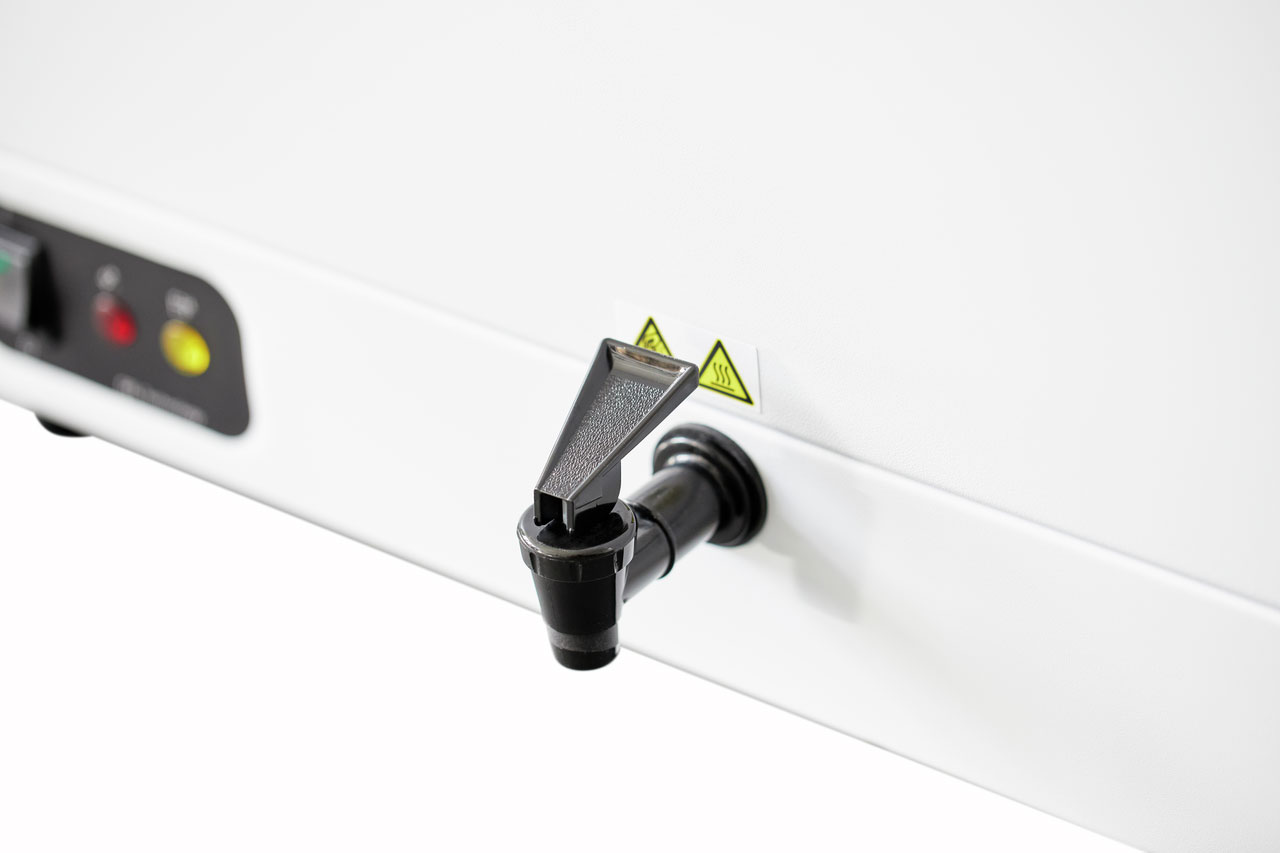

LAUDA_Puridest_P4R_Detailbild-2

Distillate withdrawal through the drain cock with continuous and touch position.

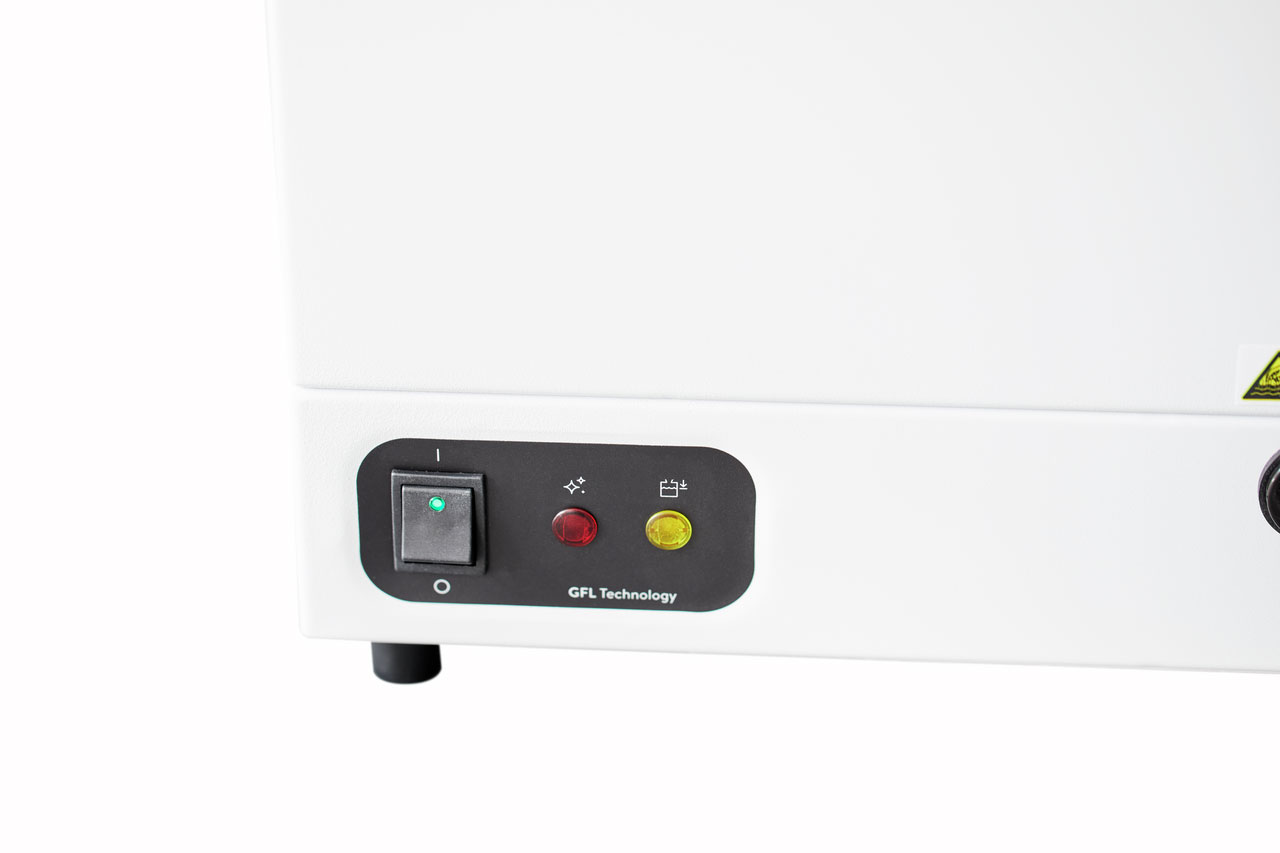

LAUDA_Puridest_P4R_Detailbild-1

LED indicators for operating status and cleaning requirement are equipped as standard.

Technical data (according to DIN 12876)
Conductivity stage 1 /25 °C2.3 µS/cm
Production output4 L/h
Tank volume8 L
Heater power max.3 kW
Max. power consumption3 kW
Cooling water flow rate0.8 L/min
Pressure difference cooling water min.3 bar
Maximal pressure cooling water7 bar
Dimensions (WxDxH)620 x 330 x 460 mm
Weight21 kg
Ambient temperature range10 ... 40 °C
Power supply230 V; 50/60 Hz
Power plugPower cord with angled plug (CEE7/7)
