The GENO™ II T (formerly Pico T2) is a compact, deionized, “all-in-one” water purification system from Avidity Science that provides general laboratory water with many unique features:
Introduction to GENO™ II T
The Geno™ II T utilizes proven water purification technologies to provide Type 2 (Deionized) water on demand. Call for water from the integral 35 L reservoir via the dispense tap on the front of the machine to obtain the product you need when required.
Key Features of the GENO™ II T
The Geno™ II T is a high-quality water system, manufactured in the UK to ISO9001:2015 certification. It is a complete, “all-in-one” water purification system which provides general laboratory water with many unique features. It has low energy consumption, generates minimal water waste, and maximises the use of your laboratory space.
Applications for Type 2 / Deionized Water
Handing You The Control
The intuitive touch-screen control panel gives you instant access to the data you need. Check up on the quality of the water and how many litres are available in the tank without taking your gloves off.
Maintaining Quality at a Lower Cost
The economic benefits of the Geno™ II T continue throughout the life of the product. Replacement of the modules has been designed with ease in mind, meaning that the user can carry out basic and essential maintenance tasks themselves. It is recommended that a full mechanical service be completed by an Avidity Science-trained Service Partner on an annual basis to maintain the integrity of components.
Additional Information
All models in the range are supplied with the first set of consumables, meaning they are ready to plug and go.

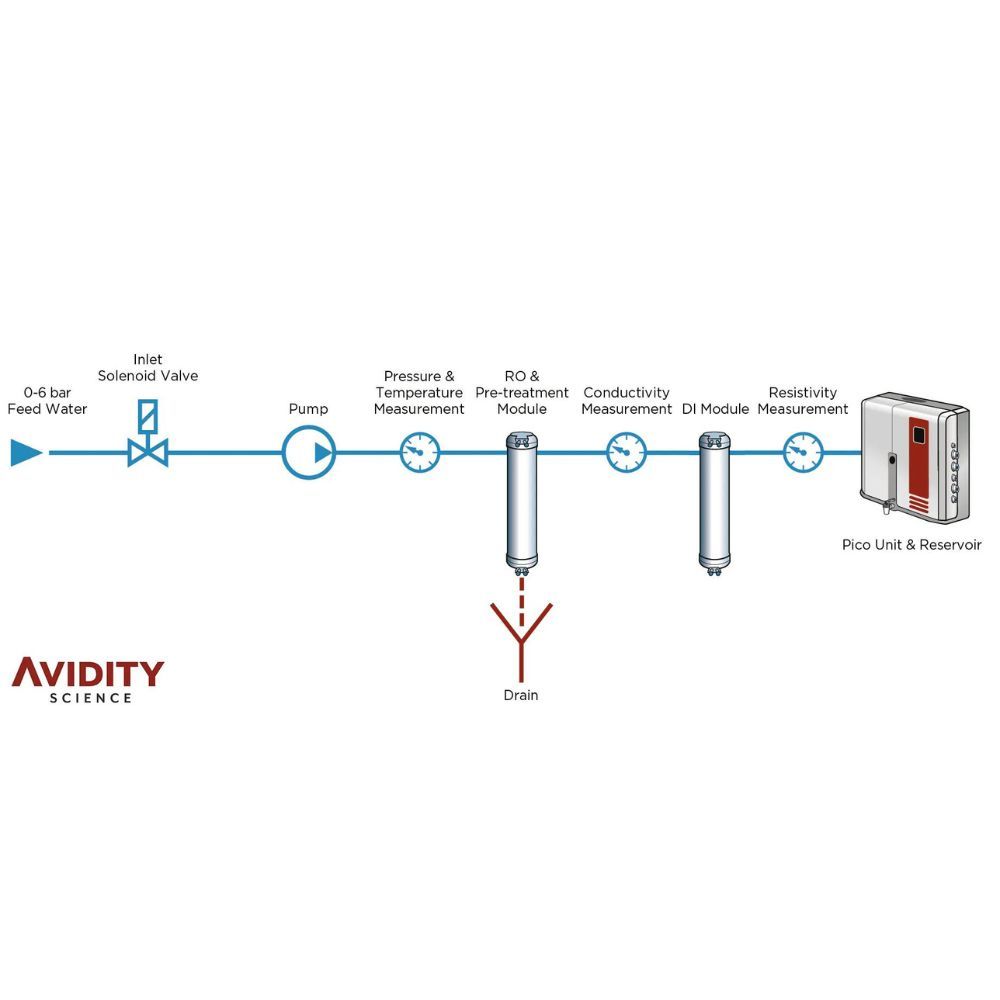

The Deionisation (DI) / Ion Exchange Process and How It Works
The Deionisation (DI) / Ion Exchange Process removes ions from water, usually RO water, with the use of synthetic cation and anion resins. The ions are removed from the water through a series of chemical reactions. These reactions occur as the water passes through the ion-exchange resin beads. Gradually, all unwanted ions are exchanged for hydrogen and hydroxyl ions, which combine to form pure water.
PRODUCT WATER QUALITY
MODEL | MAKE-UP FLOW RATE (@15 °C / 59 °F) | WATER QUALITY (@25 °C / 77 °F) | INORGANICS REJECTION RATE** | TOC REDUCTION*** | RECOMMENDED MAX DAILY USAGE* |
---|---|---|---|---|---|
GENO II T 10 | 10 L/hr | 1-15 MΩ/cm | ≥ 98 % | 96 % | 80 L/day |
Geno II T 20 | 20 L/hr | 1-15 MΩ/cm | ≥ 98 % | 96 % | 160 L/day |
*Based on make-up rate of 8 hr/day excluding DI resin capacity
**On UV model and depending on feedwater impurities
***Depending on feed water quality
SYSTEM REQUIREMENTS
FEED WATER | ||
---|---|---|
Pressure | Bar / PSI | 0.1 - 6 / 1.45 - 87 |
Conductivity | μS/cm | < 1400 |
Temperature | °C / °F | 4 - 30 / 39.2 - 86 |
Hardness as CaCO3 | ppm | < 400 |
Free Chlorine | ppm | < 2 |
Colloid Index | SDI | < 3 |
pH Value | - | 4 - 10 |
Iron (Total Fe) | ppm | < 0.1 |
UNIT SPECIFICATIONS
ALL MODELS | |
---|---|
Dimensions (HxWxD) | 500 x 485 x 330 mm / 19.7 ” x 19.1 ” x 13 ” |
Installed Weight | 20 kg / 44.1 lbs |
Power Supply | 100 - 240 V ~ ; 50/60 Hz; 1.5 A (max) |
Power Supply Output | 24 VDC, 2.7 A, 64.8 W (max) |
Operating Temperature | 4 °C - 35 °C (max) / 39.2 °F - 95 °F (max) |
Storage Temperature | 4 °C - 35 °C (max) / 39.2 °F - 95 °F (max) |
UTILITIES AND SERVICES
REQUIREMENTS | |
---|---|
Water Supply | Isolated cold-water feed |
Drain Type | Sink/Tundish/Standard up-stand with suitable trap |
Drain Flow | > 3 L/min |
Brand | Avidity Science |
---|
