CO2 Backup System for Haier Ultra-Low and Blizzard Units
Special Price
R 22,597.50
Regular Price
R 24,468.73
- Model: HBX-IC
- Cabinet Type: Horizontal
- Power Supply (V/Hz): 115/60;208～230/60; 220～240/50
- Certificate: CE; UL
- Temperature Range (°C): -40~-70
- Refrigerant: CO2
Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.
This unit requires installation by a trained engineer. Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.
- Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.
Availability:In stock
Only 1 left
SKU
IHAIHBX-IC
BrandHaier Biomedical
Product Overview

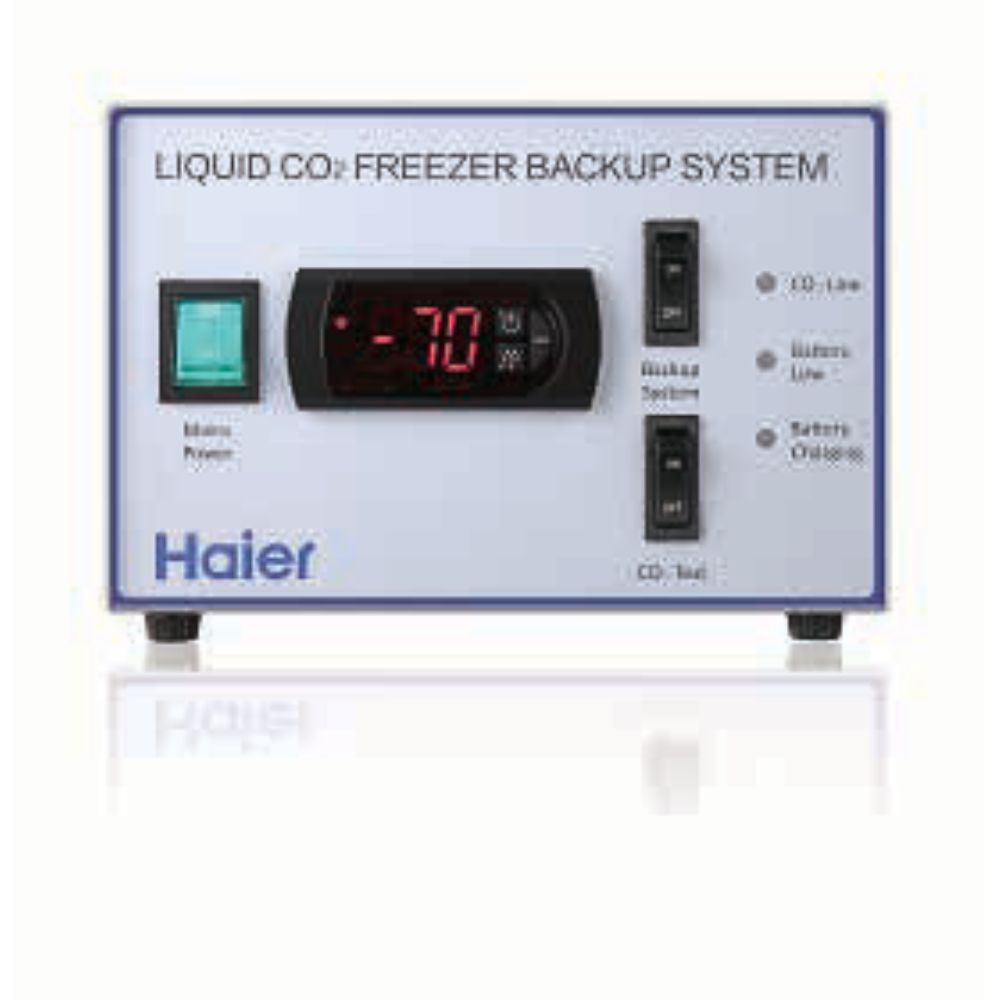

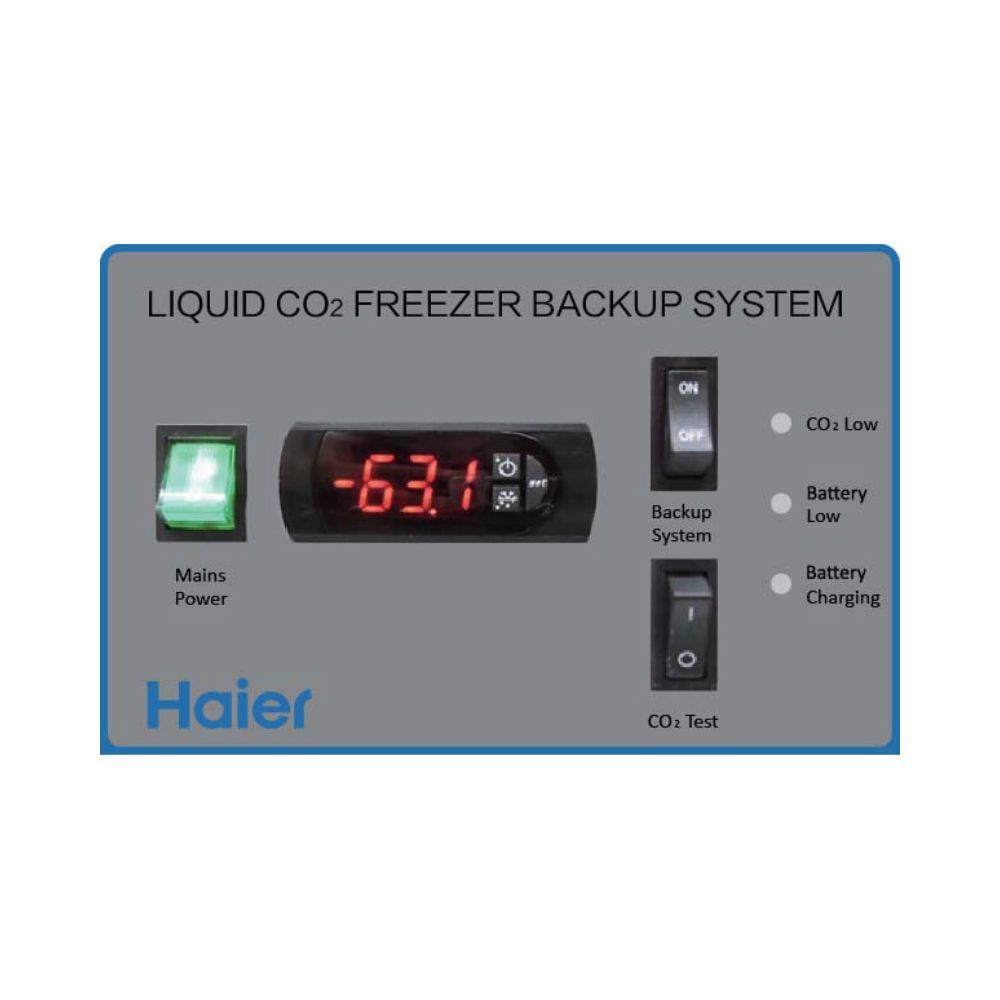

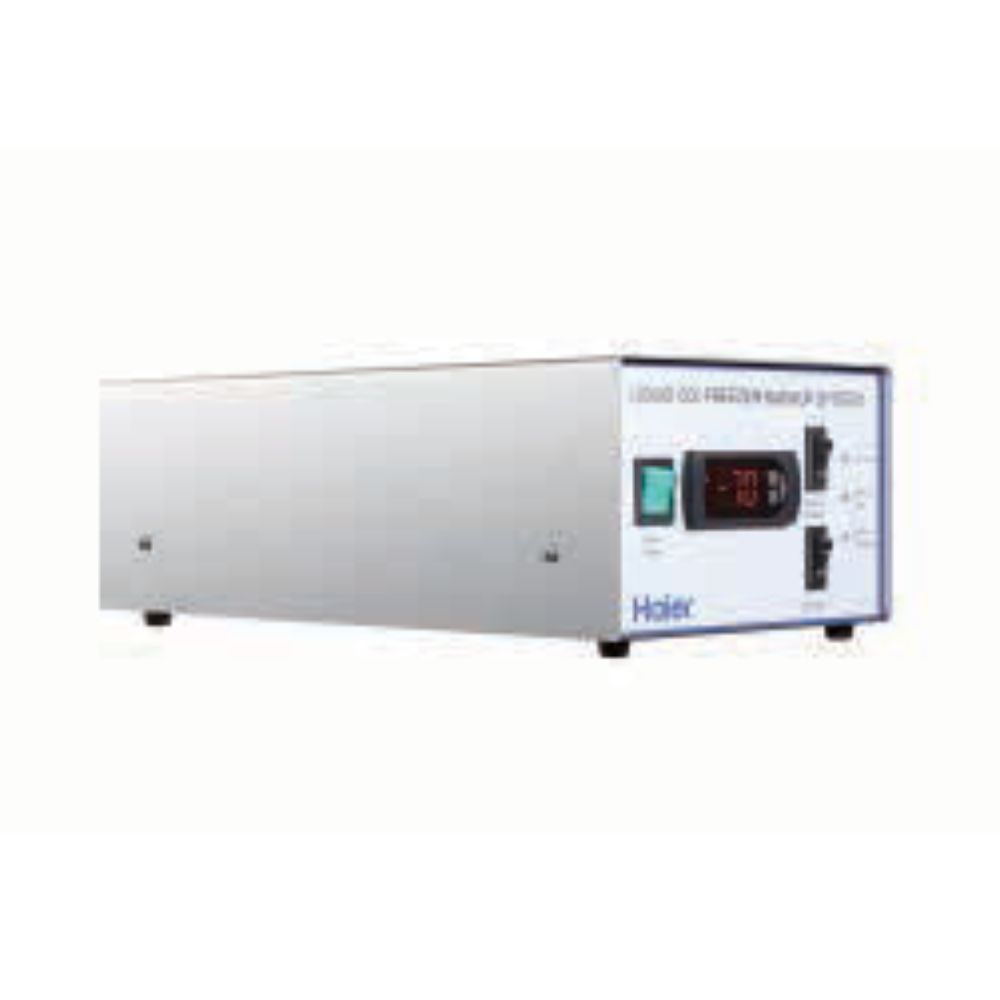

The CO₂ Backup System is a compact, lightweight solution designed for easy installation and reliable performance. Its small footprint makes it ideal for laboratories where space is limited. With user-adjustable temperature settings and a simple, intuitive interface, it is easy to programme and operate. The system offers flexibility and can be installed on any ULT freezer equipped with a port hole. Additionally, the CO₂ injection pipe is designed with an integrated filter to prevent blockage, ensuring continuous and efficient operation of the backup system.
Advantages
- Compact footprint; lightweight and easy to install
- User-adjustable temperature settings
- Simple to programme and operate

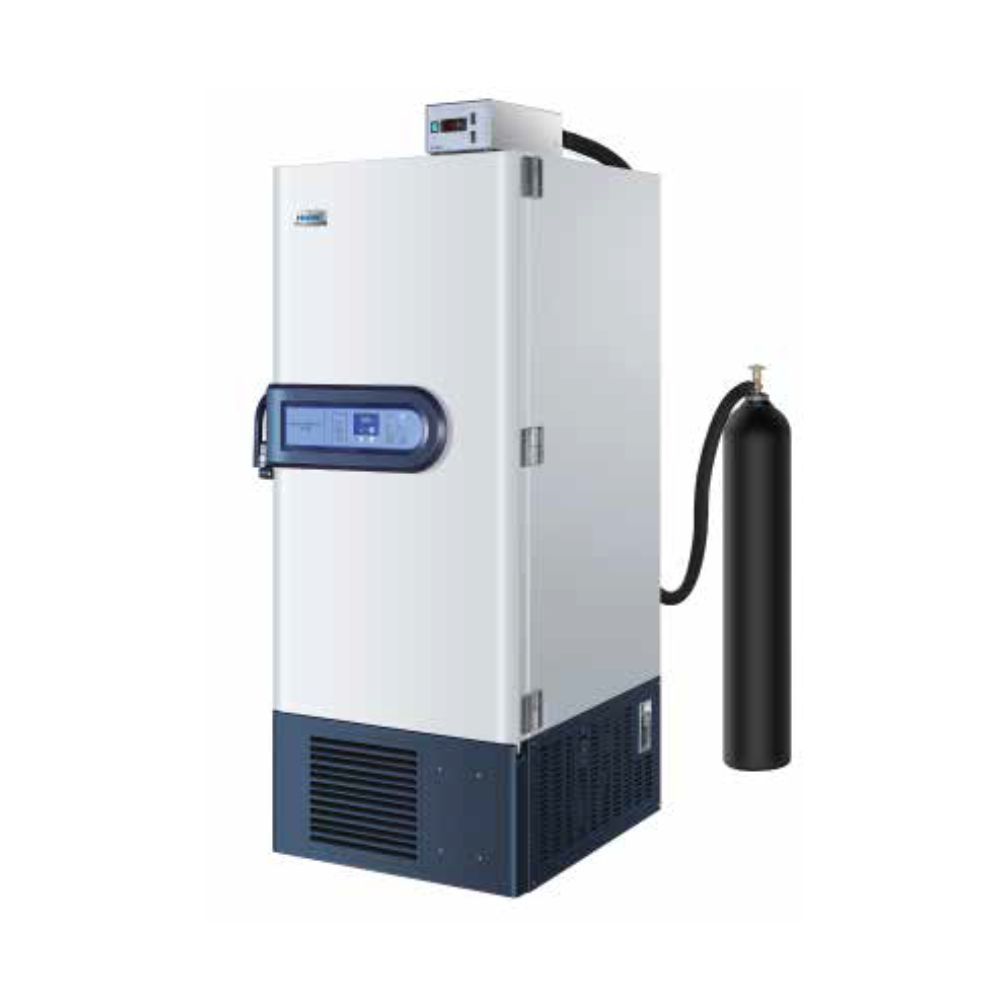

- Flexible installation — compatible with any ULT freezer equipped with a port hole
Safety
- Liquid CO₂ test button ensures the backup system is functioning correctly
- Low CO₂ alarm alerts the user when the liquid CO₂ level is low
- Ultra-low noise level compressors for a quieter working environment
Reliability
- Stainless steel outer casing for enhanced durability and a refined appearance
- Stainless steel input pipe design provides flexibility and easy positioning of the CO₂ cylinder
- Long-lasting battery supports up to 48 hours of operation during power interruption
| Technical Data | |
|---|---|
| Cabinet Type | Horizontal |
| Climate Class | N |
| Cooling Type | Direct Cooling |
| Refrigerant | CO2 |
| Performance | |
| Cooling Performance (°C) | -70 |
| Temperature Range (°C) | -40~-70 |
| Control | |
| Controller | Thermostat |
| Display | LED |
| Electrical Data | |
| Power Supply (V/Hz) | 220~240/50 |
| Power (W) | 20 |
| Electrical Current (A) | 0.15 |
| Dimensions | |
| Net/Gross Weight (approx) | kg: 10.5/13 lbs: 23.1/28.7 |
| Exterior Dimension (W*D*H) | mm: 200*400*160 in: 7.8*15.7*6.3 |
| Packing Dimension (W*D*H) | mm: 370*530*330 in: 14.6*20.9*13 |
| Functions | |
| CO2 Margin Insufficient Alarm | Y |
| Low Battery Alarm | Y |
| Sensor Error Alarm | Y |
| Main Power Off Alarm | Y |
| Charge Indicator | Y |
| CO2 Injection Test Button | Y |
| Accessories | |
| Feet | 4 |
| Other | |
| Certificate | CE, UL |
*Haier Biomedical reserves the right to change products and specifications without prior notice.
