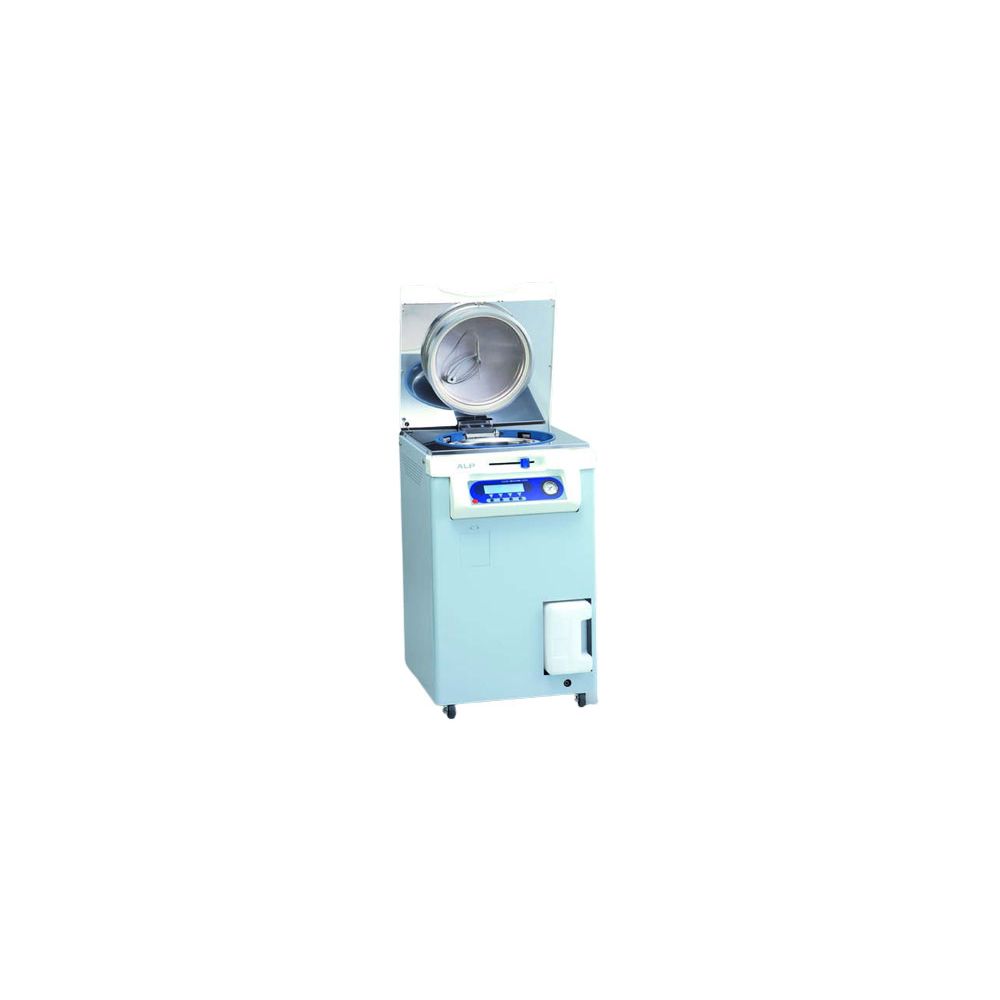

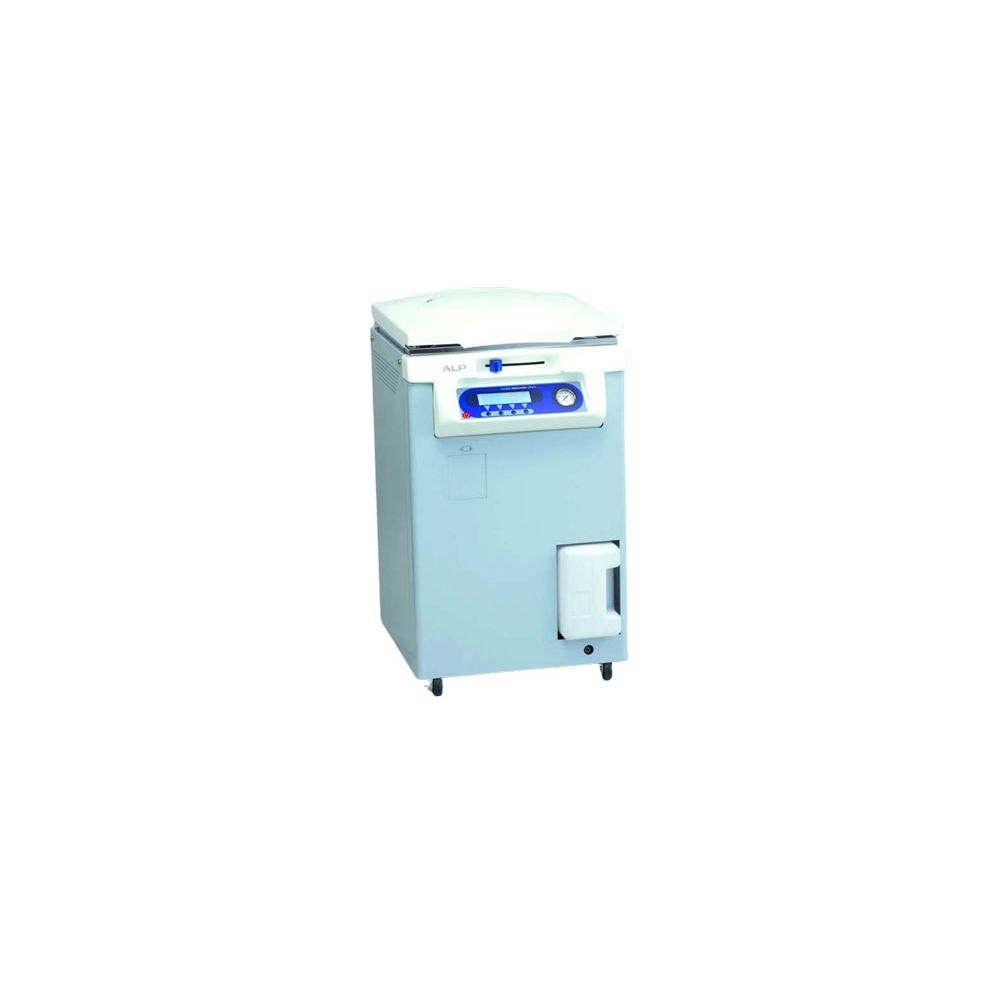

CLG-40LDVP Laboratory Autoclave with Baskets and Vacuum Pump Drying Function, 105L
Enquire for Price
Model: CLG-40LDVP; Pre-vacuum~Vacuum drying
Chamber(Usable inner dia. x depth): ф400x832mm
Capacity (Liters): 105L
Operating temperature: Sterilization: 100~137°C; Dissolution: 40~99°C; Warming: 40~60°C
Maximum operating pressure: 0.25MPa
Sterilization/Dissolution/Warm time: Sterilization/Dissolution: 0min.~48hrs. 00min.(& continuous), Warming: 0min.~48hrs.00min.
Air exhaust system: Gravity substitution: Pulse air purge by temp. & press. sensing, or timed free steam (Time: adjustable), selectable
Operation language: English
Memorized programs: 15(16···DVP) programs available by operation pattern and data
Vacuum Pump: Water sealed vacuum pump
Pre-vacuum: Triple pulse vacuum system
Vacuum drying: Alternate operation of vacuum and suction, or continuous vacuum operation
Heating method: Electrically heated chamber outside
Drying temperature range: 60 to 150°C
Drying time: 0min.~100hrs.00min.
Suction air filter: 0.2µm micro cartridge filter
Start timer: Able to set operation-start by calendar ··· month, day, hour, and minute.
Drain valve: Automatic valve & manual valve
Auto. water supply: Automatic water supply system from city-water-faucet by level sensor & controller
Pre-heat system: To shorten the come-up time, 40 ~ 75°C. Provided only with auto. water supply
Exhaust air filter: PTFE membrane filter (Bore 0.2µm) in stainless housing on the front outer panel
Safety devices: 0.270MPa
Hydrostatic test: 0.499MPa
Pressure gauge: - 0.1~0.6MPa
Pressure sensor: -0.1~0.5MPa
Material of chamber: SUS304 Stainless steel
Material of enclosure: Steel with melamin resin/Heat-resistant plastic
Power requirement: AC220/ 230 / 240V , Single phase, 50 / 60Hz
Current rating: 21A
Heat output: 4.0/4.1/4.3kW
Outer dimensions (WXDXH)/Weight: 620 X760 x 1160mm/133kg
Stainless wire basket: ф380X400MM
Standard accessories: Drain hose & water supply hose
- Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.
Availability:On Request
SKU
IALPCLG-40LDVP
BrandALP Co. Ltd.
A premium, high-performance steam-sterilizer autoclave with a cycle similar to the steam-flush pressure-pulse (SFPP), which removes air from the load rapidly by repeatedly alternating a steam flush and a pressure pulse above atmospheric pressure, for sterilizing challenging loads. It has an interactive liquid crystal display, a double interlock system, conversation style operation on the LCD screen with multi-functions (one-touch switching between the detailed and enlarged screen), and more safety. For Laboratory use.
Features:
- Lid Interlock
- Upward Opening Lid
- Electro-Mechanical Lock
- LCD Display of Conversation style
- Precise Combined Control by Temperature and Pressure for Saturated Steam
- Front-loading Exhaust Bottle (for CLG models)
- Cooling Fan as standard
- Warming & Dissolving of Culture Medium
- Start-Timer by Calendar
- Temperature Sensor Entry Port as standard
- Pre-Vacuum(-DVP models)
- Vacuum Drying(-DVP models)
| Brand | ALP Co. Ltd. |
|---|
