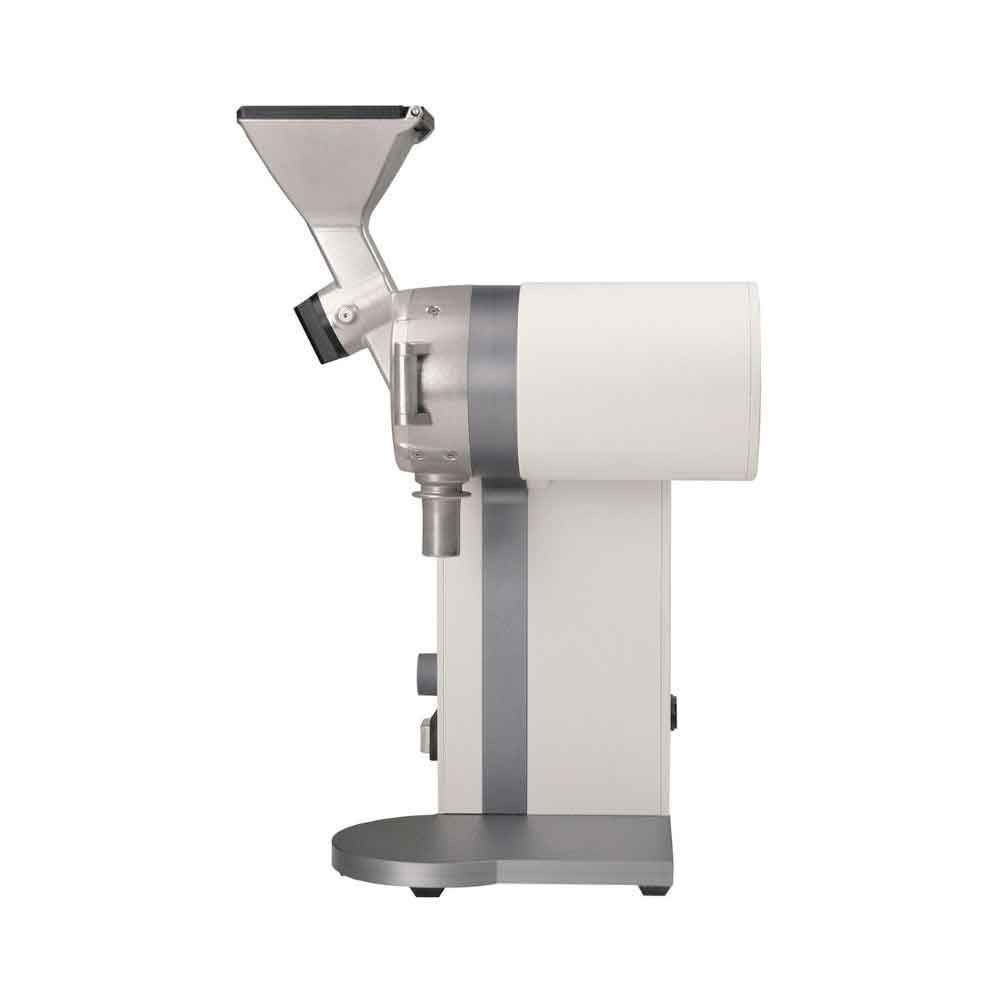

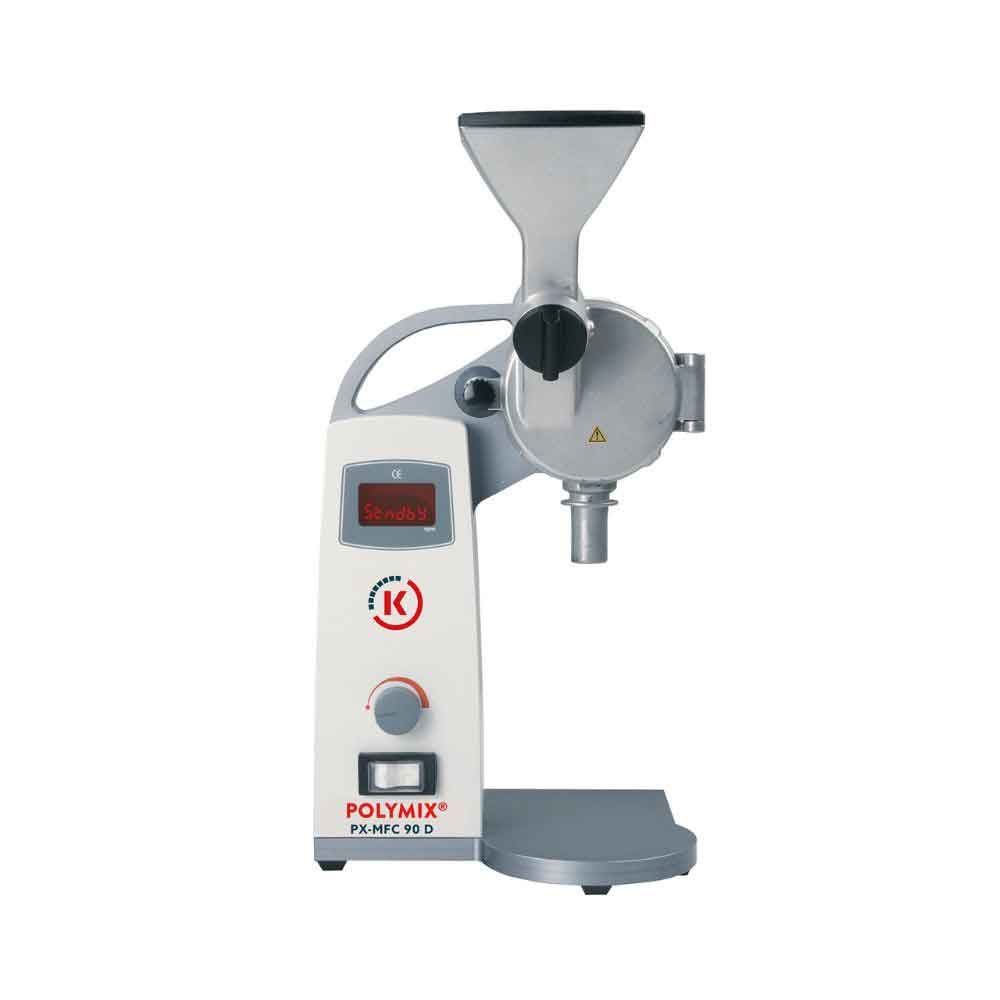

The Blade Grinding Laboratory Mill is designed for dry sample preparation and comes with an EU power cable. The package includes a blade grinding attachment with an internal extractor, a 2.0 mm sieve, a tool set, and a rack designed to hold 12 intercepting tubes (230 V).

For analysis or quality control, it's essential to have finely ground samples. With easy-to-change grinding attachments and sieves, this mill can process a wide range of samples. Its straightforward operation, enhanced user safety, and efficient grinding capabilities are just a few of its many advantages.

Blade Grinding Attachment

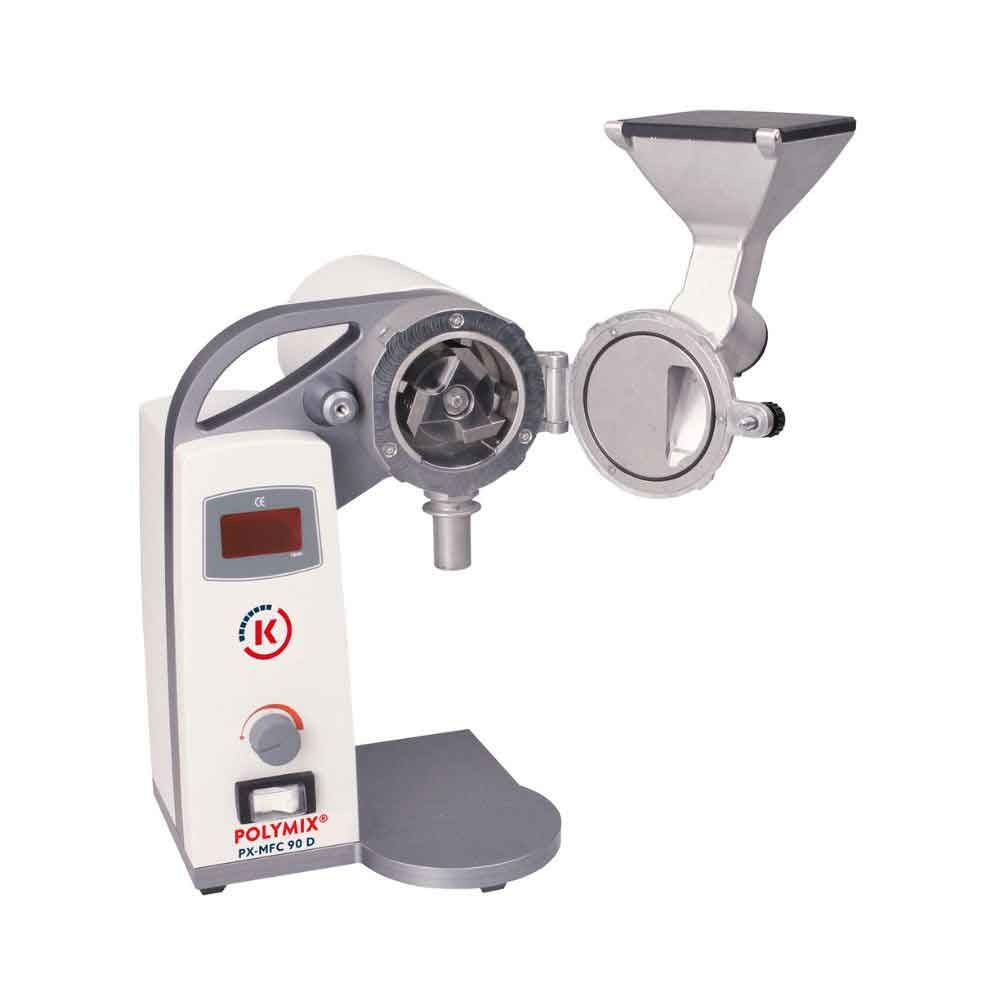

It consists of a rotor with three hardened cutting knives and a stator with three cutting bars. During the cutting process, the sample is spun around the grinding chamber and cut until the desired particle size has been achieved. The ground sample passes through the sieve into the collection container. Particles that are larger than the sieve diameter remain in the mill and can be removed by opening the grinding chamber.

Ideal for processing of dry, stringy, fibrous and fat-free materials such as: Wood, bark, roots, leaves, straw, corks, dried fruit, dried fat-free meat, fish fins, fish bones, feathers, leather, leather skin, wool, cotton, linen, paper, coals, turf, grass, dried resins, synthetic materials, fiber glass, plastic pellets, various textiles, felt, etc.

Results are crucial

Attainable particle sizes: < 40µm (depending on product)
Sieve kernel sizes: 1/5 of sieve diameter is the approximately attainable kernel size, e.g., sieve 0.2mm/5 = 0.04mm (40µm)
Grinding attachment variants: hammering or blade from hardened stainless steel. Hammer grinding attachment: brittle samples. Blade grinding attachment: stringy, fibrous samples

Users and application ranges*

Grinding of solids for general sample preparation
Grinding samples for dry analysis or analysis in liquids
Sample preparation in content analysis
Sample preparation for quality control
Pollutant analysis (e.g. ground samples, food stuffs, etc.)

*This list provides a small selection of possible applications.

Funnel volume	300ml

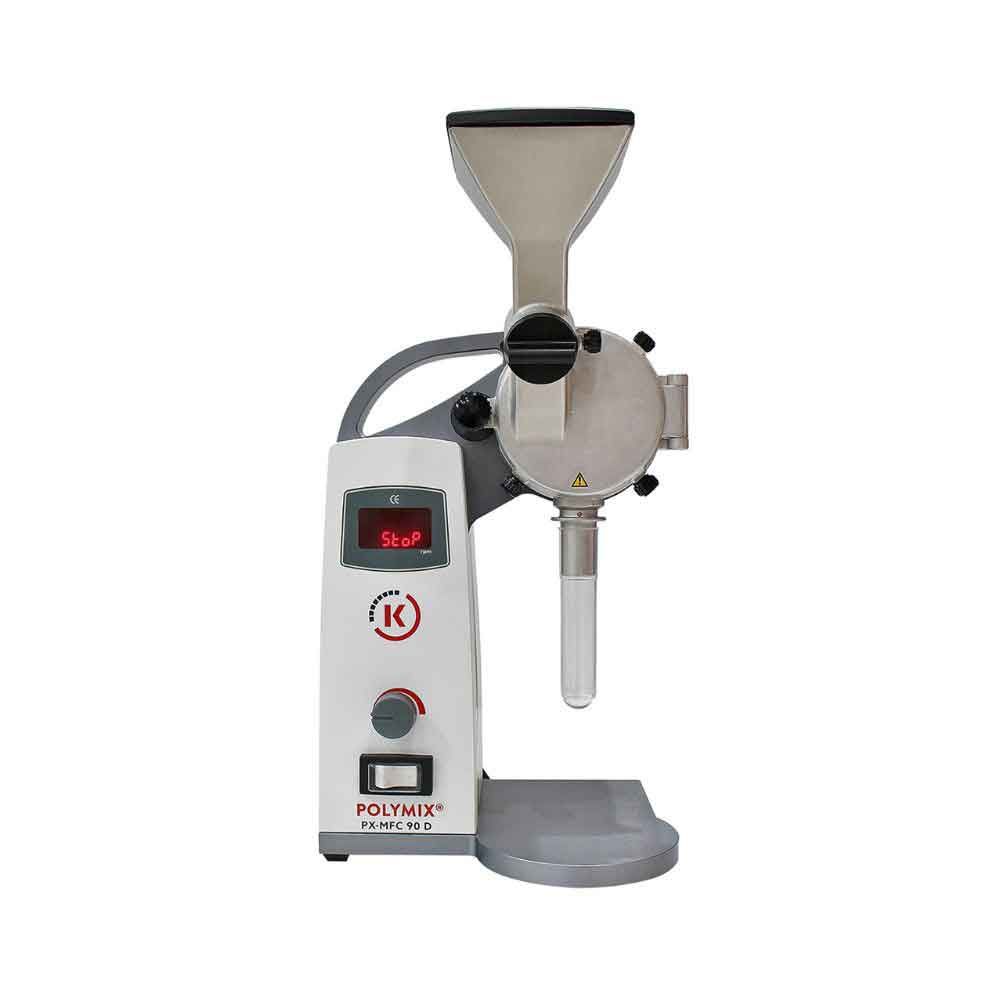

Product discharge	For collection tubes with norm grinding NS29
Sieves	0.2 to 6mm mesh size
Grinding attachments (convertible)	Hammer grinding attachment Blade grinding attachment
Motor	Wear-free three-phase motor Gearless direct drive Security system auto-off
Drive power	1000W
Speed range	50 to 6000 rpm
Sound level (without load)	70 dB(A) for 6000 rpm
Supply voltage	100 – 230 V ± 10%, 50Hz /60Hz
Maximum relative humidity	80% during storage 80% during operation
Operating temperature	0 – 40 °C
Protection class acc. to DIN	IP 20
Dimensions (L x W x H)	325 x 251 x 480 mm
Weight	12kg
Standard EMC	IEC/EN 61000-6-2 /EN 61000-6-3
Safety Norm	IEC/EN 61010-2-51
