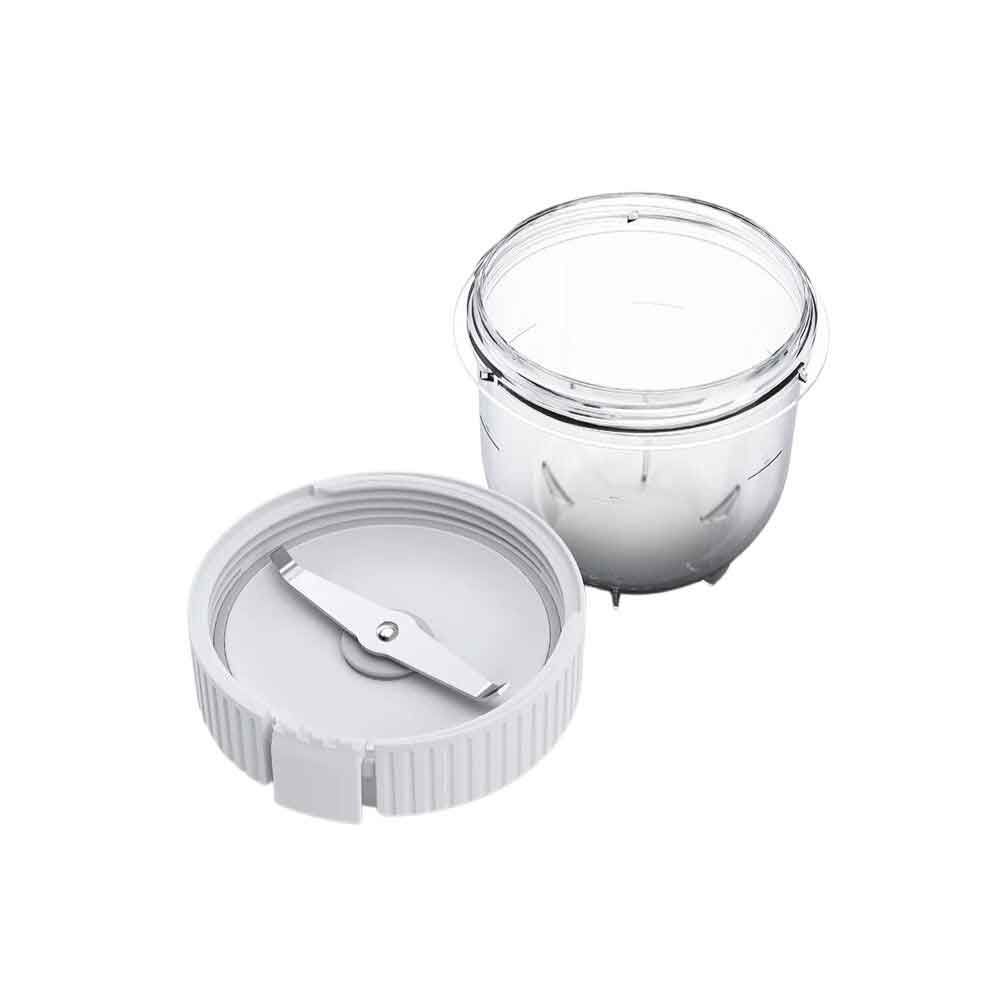

Crushing without cross-contamination is achievable using the MultiDrive control package. This package includes autoclavable disposable tubes, MT 150, and the necessary TC 1 protective housing for dry samples. The MT 150 is a disposable tube equipped with a stainless-steel beater. Made from plastic, this milling tube is autoclavable, ensuring effective prevention of cross-contamination even with repeated use. An integrated RFID chip both stores and limits the lifespan of the milling tube. The delivery includes 5 spare seals; replacing the seal can extend the lifespan of the grinding chamber. It's essential to note that the disposable tube is specifically designed to be operated with the TC 1 protective housing, which is also included in the package.

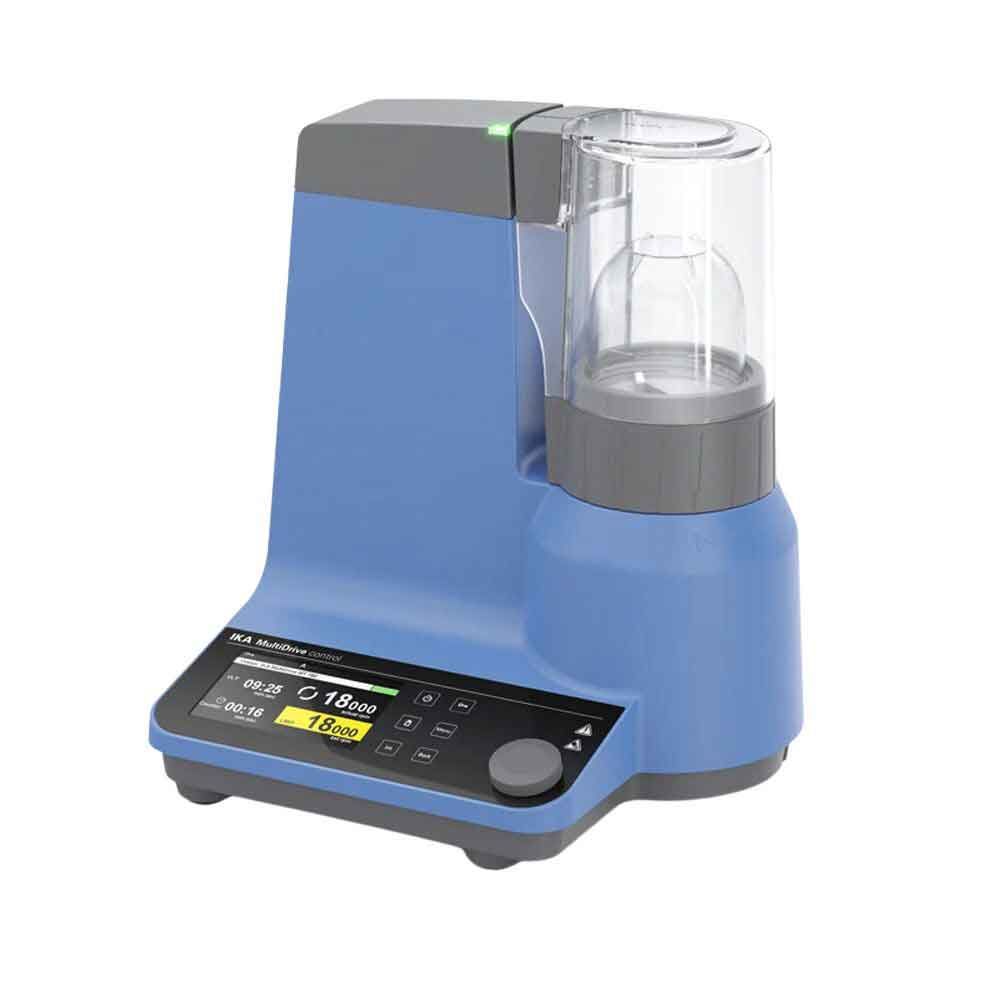

The MultiDrive universal crusher is versatile and capable of handling both coarse and fine crushing tasks due to the variety of vessels available. It also features a USB interface for effortless operation and documentation.
Features and Benefits
High performance: Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output.
Interval operation: The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending.
Integrated cooling: The integrated cooling system in the milling cup allows for indirect heat dissipation, ensuring that the coolant and sample remain separate.
TFT-display: A clear TFT-display ensures user-friendly operation.
Temperature measurement: MultiDrive control offers temperature measurement and vessel recognition using RFID. A temperature limit can be set for temperature-sensitive materials, or for specific planned reactions to protect against overheating.
Weighing function: The weighing function is also integrated into the user-friendly workflow of the IKA MultiDrive control. Weighing is performed before crushing using the same mixing cup, so that no transfer of contents is required.
Process type | batch |
Operating principle | cutting/impact/blending/dispersing |
Motor rating input | 1000 W |
Motor rating output | 800 W |
Speed range | 3000 - 20000 rpm |
Speed deviation | ±5 % |
Power-ON time | 5 min |
Power-OFF time | 10 min |
Motor principle | Brushless DC |
Display | TFT |
RFID reader/writer unit | yes |
Temperature display | yes |
Temperature measurement resolution | 0.1 K |
Accuracy of temperature measurement | ±1 K |
Temperature limit min. | -50 °C |
Temperature limit max. | 120 °C |
Monitoring maintain time | yes |
Weighing function | yes |
Weighing range | 5 - 4000 g |
Weighing resolution | 1 g |
Load capacity weighing function max. | 4 kg |
Weighing accuracy | ±(0.3%+2) g |
Vessels detection | yes |
Ramp programming | yes |
Dimensions (W x H x D) | 300 x 350 x 250 mm |
Weight | 8.5 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 31 |
USB interface | yes |
Bluetooth interface | yes |
Voltage | 220 - 240 V |
Frequency | 50/60 Hz |
Power input | 1000 W |
Brand | IKA |
---|
