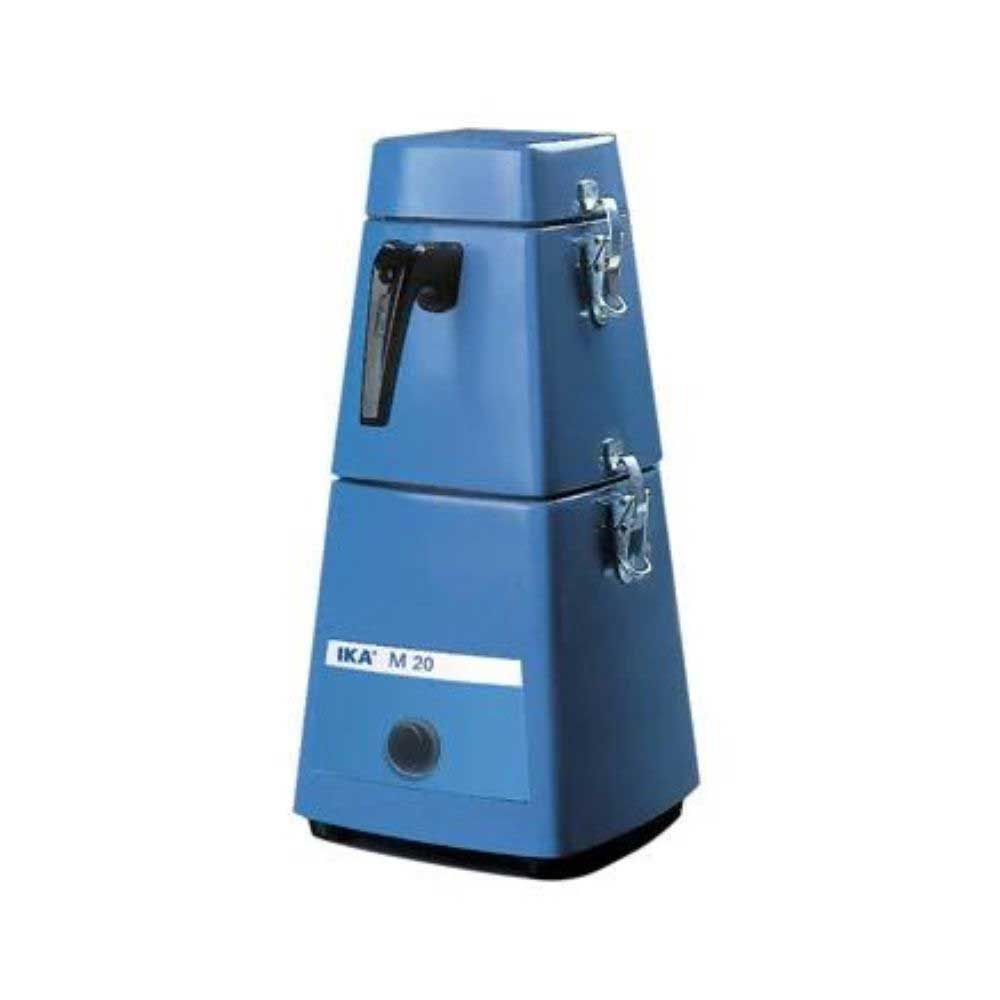

M 20 Universal Mill
M 20 Universal Mill
Enquire for Price
- Process type: batch
- Operating principle: cutting/impact
- Speed max.: 20000 rpm
- Useable volume max.: 250 ml
- Feed hardness max.: 5 Mohs
- Feed grain size max.: 7 mm
- Dimensions (W x H x D): 170 x 350 x 170 mm
- Weight: 6.6 kg
- Note: Optional accessories are available and can be purchased separately.
Availability:On Request
SKU
IIKA1603600
BrandIKA
Batch mill suitable for dry grinding hard and brittle substances up to 250 ml with a fixed speed of 20000 rpm.
Features and Benefits
-
A double-walled grinding chamber can be cooled with water through two hose adapters
-
Removable grinding chamber, easy to clean
-
Two grinding chambers can be alternately operated using one drive
-
M 21 blade included with delivery
| Process type | batch |
| Operating principle | cutting/impact |
| Motor rating input | 450 W |
| Motor rating output | 225 W |
| Speed max. | 20000 rpm |
| Circumferential speed max. | 72 m/s |
| Useable volume max. | 250 ml |
| Feed hardness max. | 5 Mohs |
| Feed grain size max. | 7 mm |
| Material beater/cutter | stainless steel 1.4034 |
| Material milling chamber | stainless steel 1.4301 |
| Power-ON time | 7 min |
| Power-OFF time | 10 min |
| Milling chamber, can be cooled with water | yes |
| Mill feed can be cooled in milling chamber with dry ice | yes |
| Dimensions (W x H x D) | 170 x 350 x 170 mm |
| Weight | 6.6 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 550 W |
| Brand | IKA |
|---|
