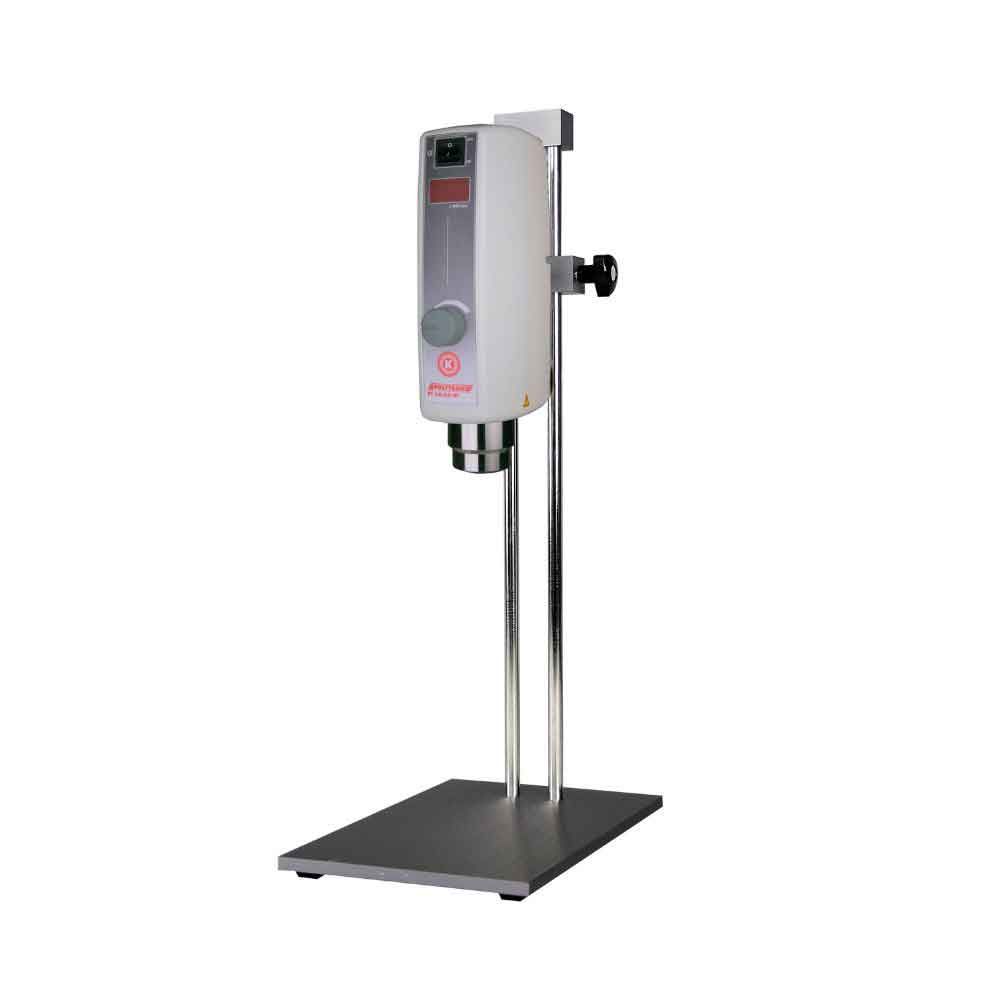

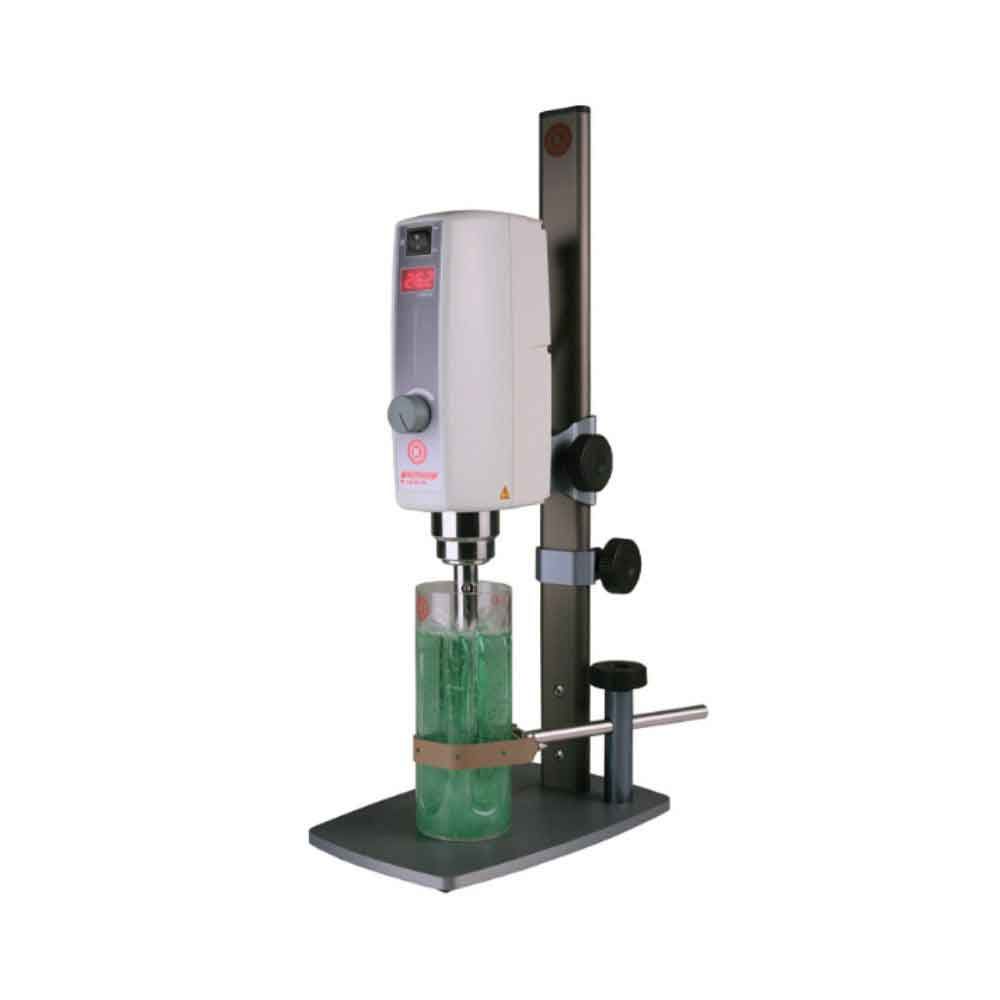

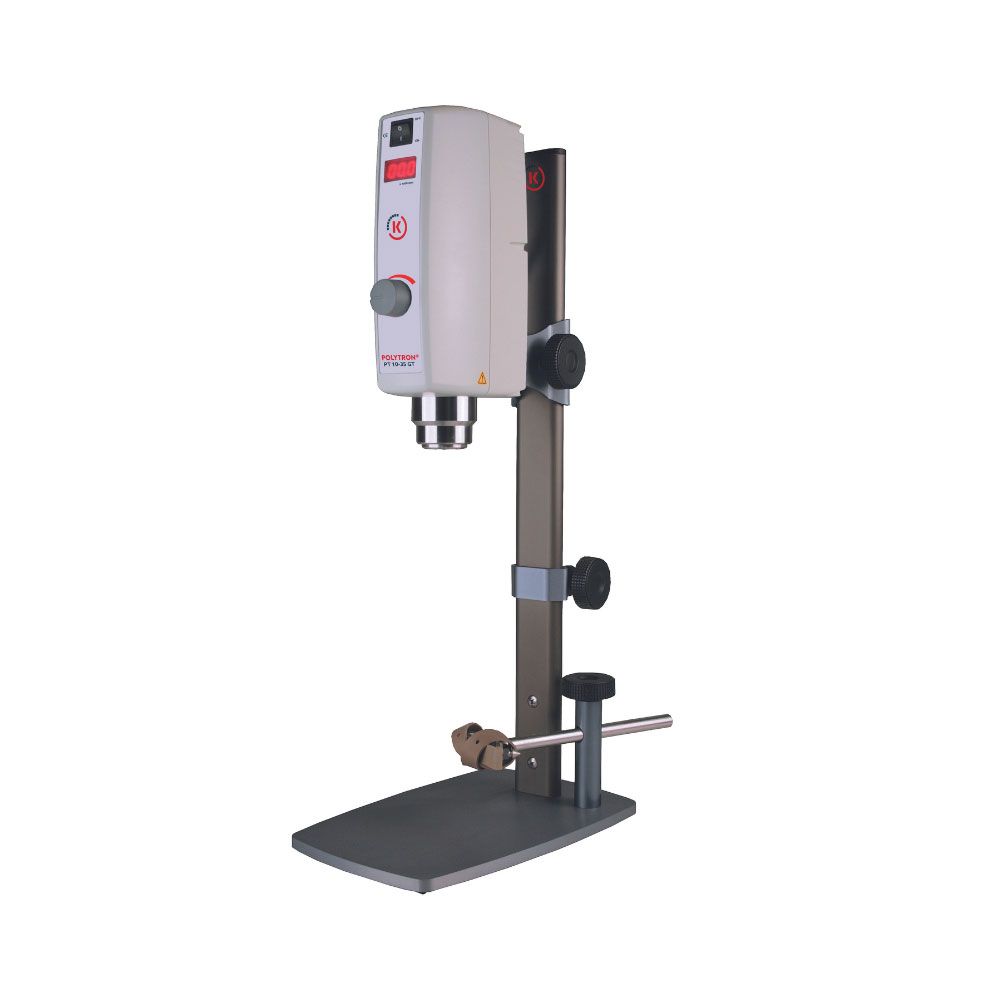

POLYTRON® Powerful Stand-Disperser (Ecoline) with Plate Stand, PT 10-35 GT / ST-P 10/600
Enquire for Price
- Easy operation with an on-off switch and speed control
- Intelligent variable speed control for long equipment life
- Speed stability even with changes in viscosity
- Easy to adjust motor height (depending on the stand)
- Switch aggregate quickly with Click & Go coupling.
- Easy aggregate clean-up with EasyClean Design
- Motor is sold with stand and accessories: PT 10-35 GT, 230 V, EU-Power cord, stand ST-P11/600 with vessel holder and safety ring
Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.
Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.
Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.
Availability:On Request
SKU
IKIN11090070
BrandKinematica

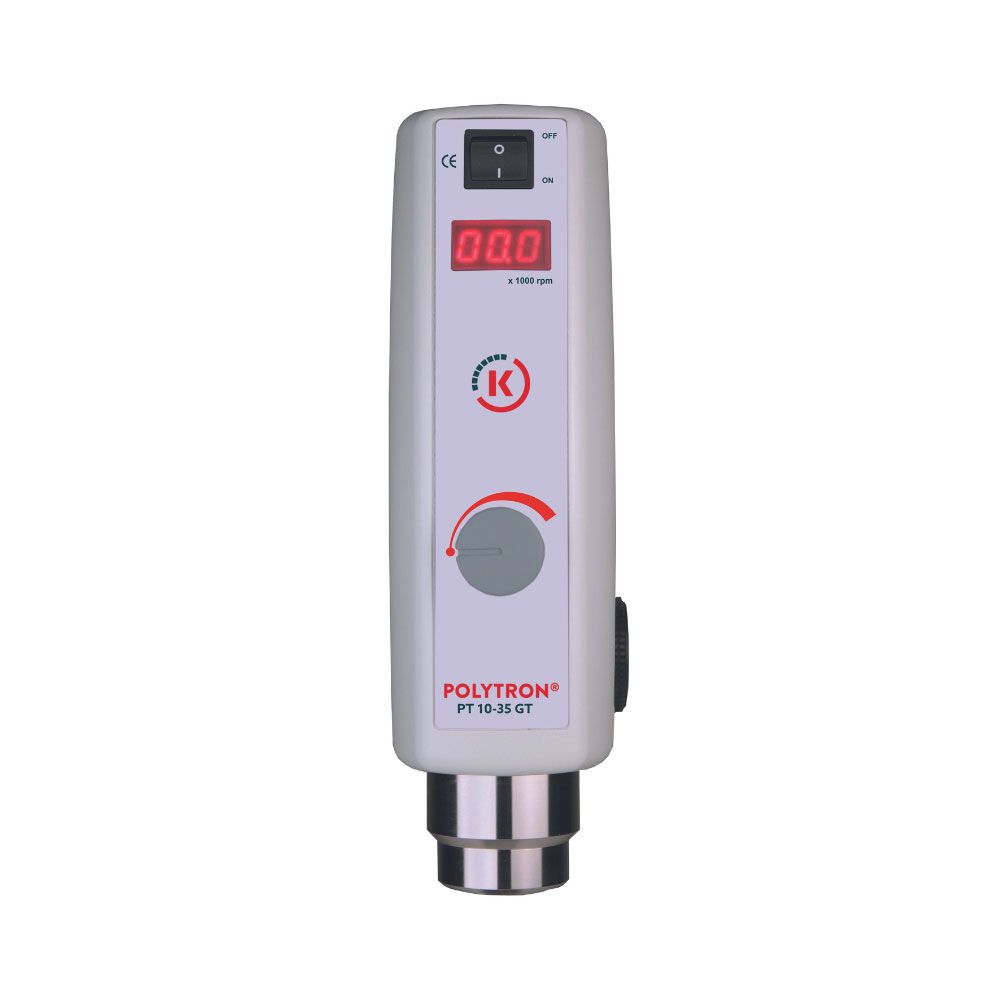

PT 10-35 GT features high drive power and a sleek design. With its large reserve capacity, it can be used for samples with large volumes as easily as preparing samples with small volumes.
The results are convincing
- Smallest sizes of particles or droplets: because precise analysis requires homogeneous samples
- Efficient sample preparation: because fast dispersion saves time.
- Standard or custom-made aggregates: perfected for and in cooperation with the users
- Cleaning and disassembly: EasyClean Design makes it very simple.
- Quick coupling of the aggregates: by using Click & Go
- Best materials available: because without them, we could not call it Swiss Made
- Durability is a Swiss virtue.
Users and application ranges*
- General homogenizer applications
- Dispersions, suspensions, and emulsions
- Dispersion of plant, animal and human tissue samples in various liquids and volumes
- Dissolving solids even at higher viscosities
- Formulation of food products
- Formulation of lotions, creams and foodstuffs
- Extraction of active pharmaceutical ingredients (API) in pills and tablets
- Preparation of samples for quality assurance and control
*This list provides a small selection of possible applications.
| Processing volume (water) | 0.1 up to 10,000 ml |
| Tip speed | Up to max. 34 m/s |
| Applicable aggregates | ø 5 mm to ø 36 mm |
| Speed range | 500 to 30,000 rpm |
| Drive coupling | Aggregates with F coupling |
| Noise level (drive without aggregate) | 75 dB(A) at 25,000 rpm 82 dB(A) at 30,000 rpm |
| Motor | Universal with carbon brushes |
| Drive power | 1200W |
| Connection voltage | 90 - 230 V ± 10%, 50Hz / 60Hz |
| Relative humidity (max.) | 80% during storage 80% during operation |
| Operating temperature | 0 – 40 °C |
| Protection class acc. to DIN | IP 20 |
| Dimensions (L x W x H) | Drive: 95x 210x247 mm |
| Weight | Drive: 3200 g |
| EMC standards | IEC/EN 61000-6-2 / EN 61000-6-3 |
| Safety standard | IEC/EN 61010-2-51 |
| Brand | Kinematica |
|---|
