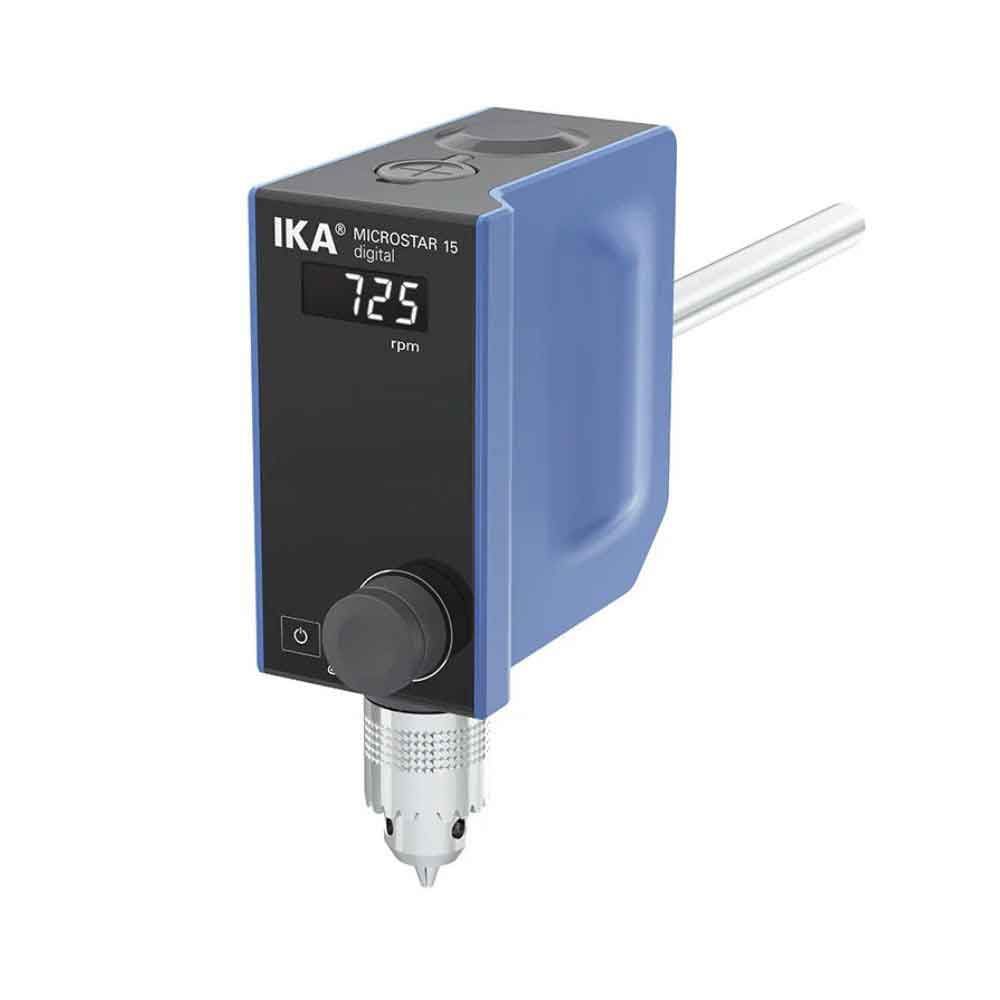

The IKA MICROSTAR series is a space-saving high performer that offers perfect basic functionalities. With its compact design, it not only requires minimal space but is also easy to use.
Features and Benefits
Compact Design: With their streamlined design that emphasises only the essential features, the IKA MICROSTAR stirrers are a reliable companion in the laboratory.
Constant Torque: All models in the MICROSTAR series guarantee consistent torque across the entire RPM range. The MICROSTAR stirrers are available in six different versions, each offering speeds of up to 2,000 RPM and torque of up to 80 Ncm. These versions are available in both digital and control variants.
Ease of Operation: The device is easily operated with a stable rotary knob. On the digital version, the display clearly shows the rotational speed. Meanwhile, the control version's display provides additional details, such as the medium temperature and torque. Additionally, the built-in timer and counter feature allow for precise monitoring of sensitive chemical reactions.
Safety Precautions: The stirrers' display is made of hardened, chemical-resistant glass, ensuring maximum safety. Additionally, the state-of-the-art vibration sensors in the control version detect deviations from permissible thresholds and automatically stop the process. The external, low-voltage power supply unit also contributes to increased safety.
Fast Updates: Periodic software updates can be carried out quickly and easily via the USB interface. Additionally, PC control and documentation of the test parameters is possible via the interface of the control devices.
Stirring quantity max. per stirring position (H2O) | 10 l |
Motor rating input | 32 W |
Motor rating output | 22 W |
Motor principle | Brushless DC |
Speed display | LED |
Speed range | 0/50 - 1000 rpm |
Viscosity max. | 8000 mPas |
Output max. at stirring shaft | 15.7 W |
Permissible ON time | 100 % |
Torque max. at stirring shaft | 15 Ncm |
Speed adjustment | Turning knob |
Setting accuracy speed | ±1 rpm |
Deviation of speed measurement n > 300rpm | ±1 % |
Deviation of speed measurement n < 300rpm | ±3 rpm |
Stirring element fastening | chuck |
Chuck range diameter | 0.5 - 8.2 mm |
Hollow shaft, inner diameter | 8.5 mm |
Hollow shaft (push-through - when stopped) | yes |
Fastening on stand | extension arm |
Extension arm diameter | 13 mm |
Extension arm length | 160 mm |
Nominal torque | 0.15 Nm |
Timer display | none |
Housing material | alu-cast coating / thermoplastic polymer |
Dimensions (W x H x D) | 60 x 173 x 126 mm |
Weight | 1.26 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 54 |
USB interface | yes |
Voltage | 100 - 240 V |
Frequency | 50/60 Hz |
Power input | 32 W |
Power input standby | 0.3 W |
DC Voltage | 24 V= |
Current consumption | 1300 mA |
Brand | IKA |
---|
