This package includes:
Optional rotors and adapters are available and can be purchased separately.
Users: Hospitals, universities and industrial laboratories

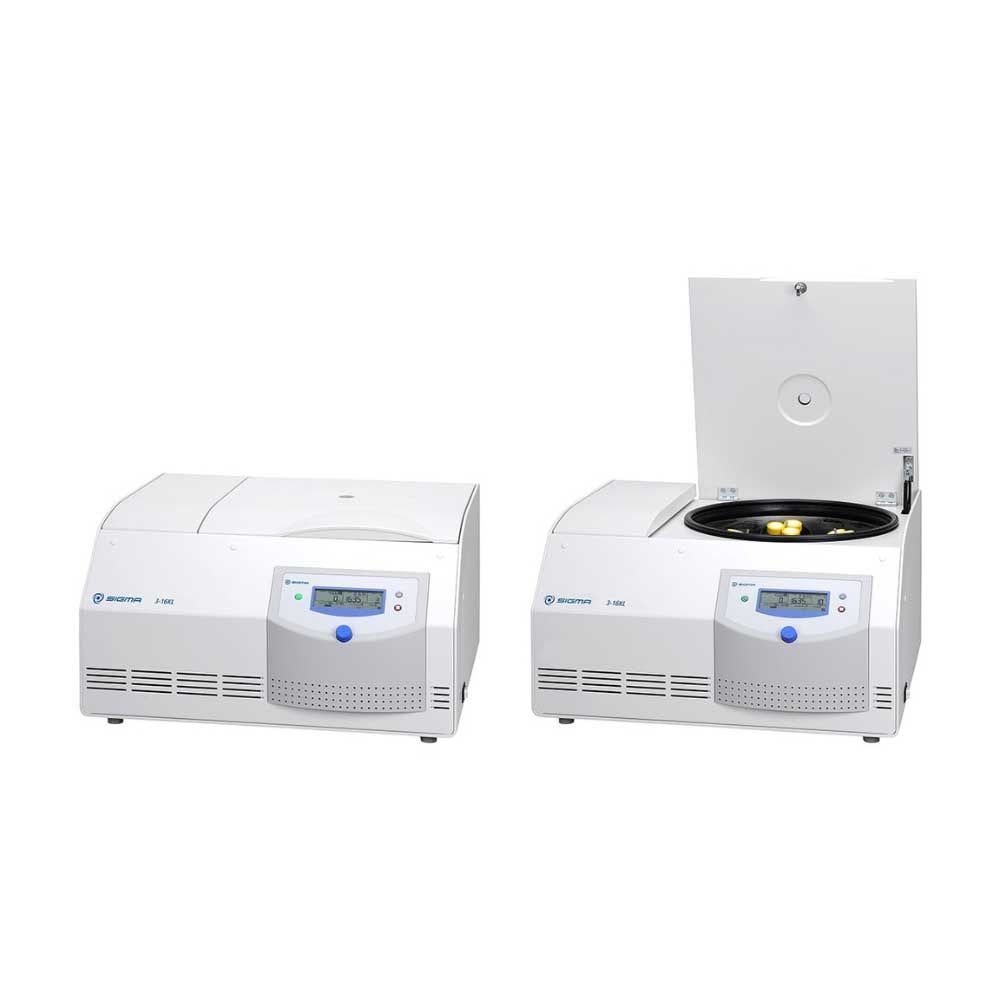

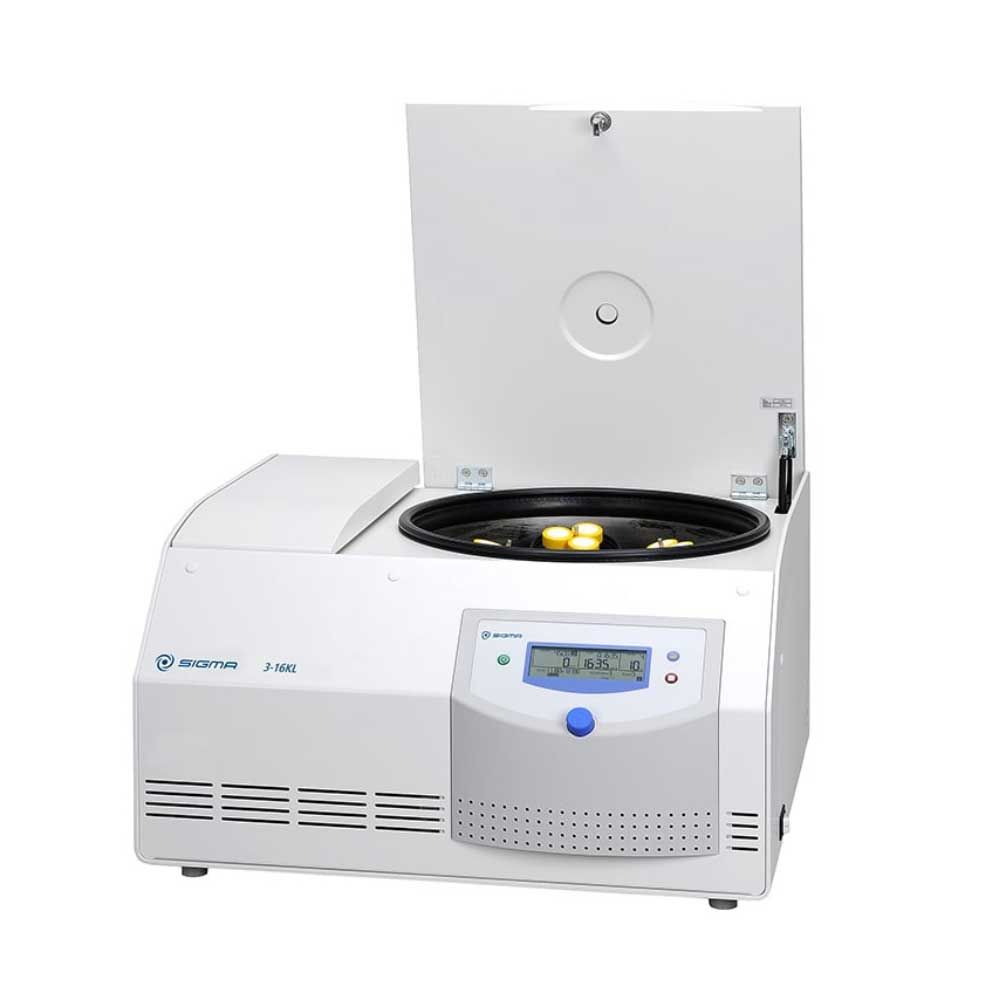

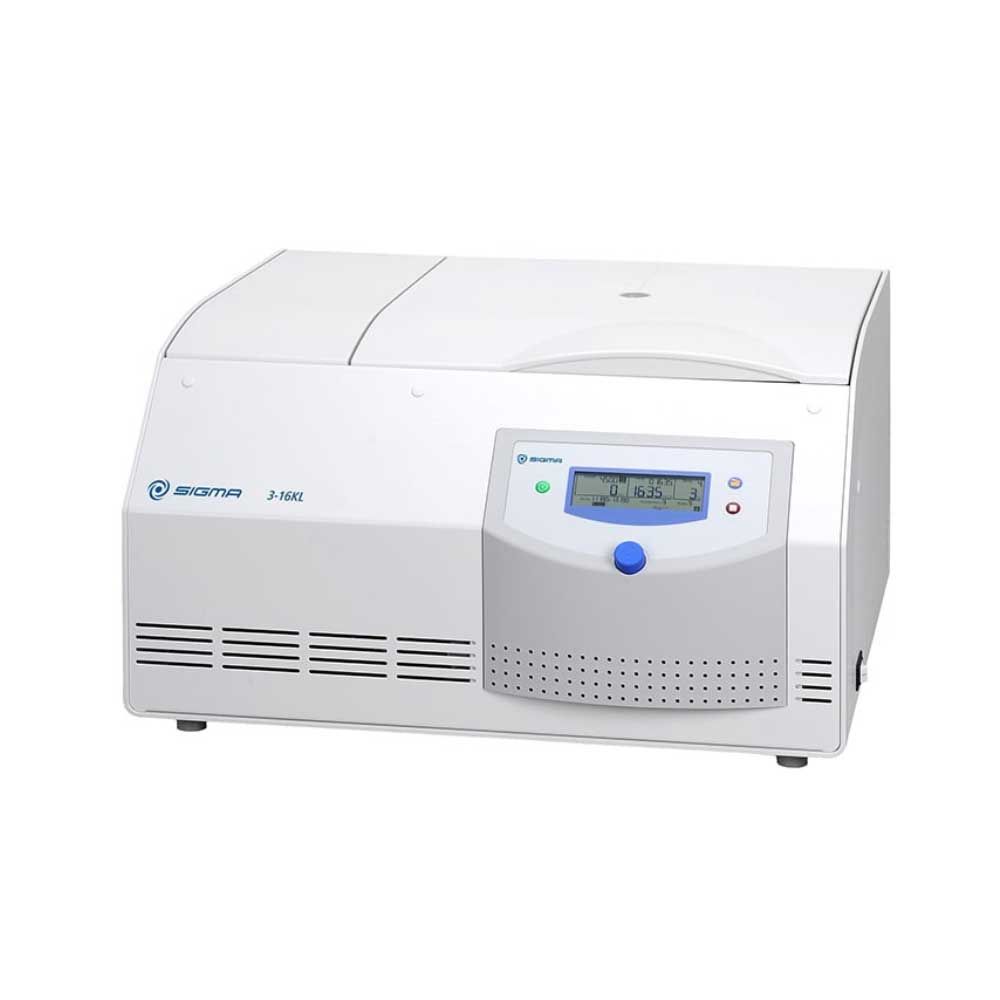

The properties of the Sigma 3-16KL refrigerated benchtop centrifuge make it a classic all-rounder. This practically-oriented laboratory centrifuge is valued for its superior capacity and wide variety of uses. Along with high performance and reliability, it features unmatched versatility. As a well-balanced all-purpose centrifuge with extensive rotor and accessory options, it is suitable for a very wide variety of tasks.
What makes the Sigma 3-16KL refrigerated all-purpose centrifuge so attractive?
The Sigma 3-16KL scores with impressive features: it is pleasantly quiet in use, and the patented one-knob controller and illuminated function keys make operation intuitive. Automatic lid opening can optionally be configured for easy end-of-run indication.
The centrifuge has an extraordinary capacity, with a maximum of 4 x 400 ml. A broad selection of fixed-angle and swing-out rotors is available, along with an extensive range of accessories with buckets and adapters, including many biosafe configurations. The resulting compatibility with a large number of specimen tubes enables high versatility and allows use for a very wide variety of tasks, including high-throughput applications.
The Sigma 3-16KL has a high-performance, precisely adjustable refrigeration system with a temperature range of -10°C to +40°C. The Rapid Temp quick cooling function allows the centrifuge chamber and accessories to be pre-cooled to a defined temperature. This ensures optimal protection of specimens against heating.
Max. capacity [ml] | swing-out rotor: 4 x 400 fixed-angle rotor: 6 x 94 |
Max. RCF | 21.984 |
Max. speed [rpm] | 15.300 |
Min. speed [rpm] | 100 |
Noise level at maximum speed (approximate) [dB(A)] | fixed-angle rotor 12154: ≤ 55 swing-out rotor 11180 with bucket 13190: ≤ 52 |
Max. acceleration time [s] | fixed-angle rotor 12154: ≤ 25 swing-out rotor 11180 with bucket 13190: ≤ 16 |
Max. braking time [s] | fixed-angle rotor 12154: ≤ 40 swing-out rotor 11180 with bucket 13190: ≤ 17 |
Temperature setting range [°C] | -10 – +40 |
Power consumption [W] | 1.010 |
Height x Width x Depth [mm] | 355 x 630 x 600 |
Height with open lid [mm] | 785 |
Weight without rotor [kg] | 78 |
Refrigerant | R134a Charge [kg] / Pressure [bar]: 0,385 / 23 CO2 equivalent [t]: 0,551 |
Brand | Sigma |
---|
