Stereo Microscope

Stereo microscopes, also known as low-magnification or dissecting microscopes, are widely used for applications requiring three-dimensional imaging.

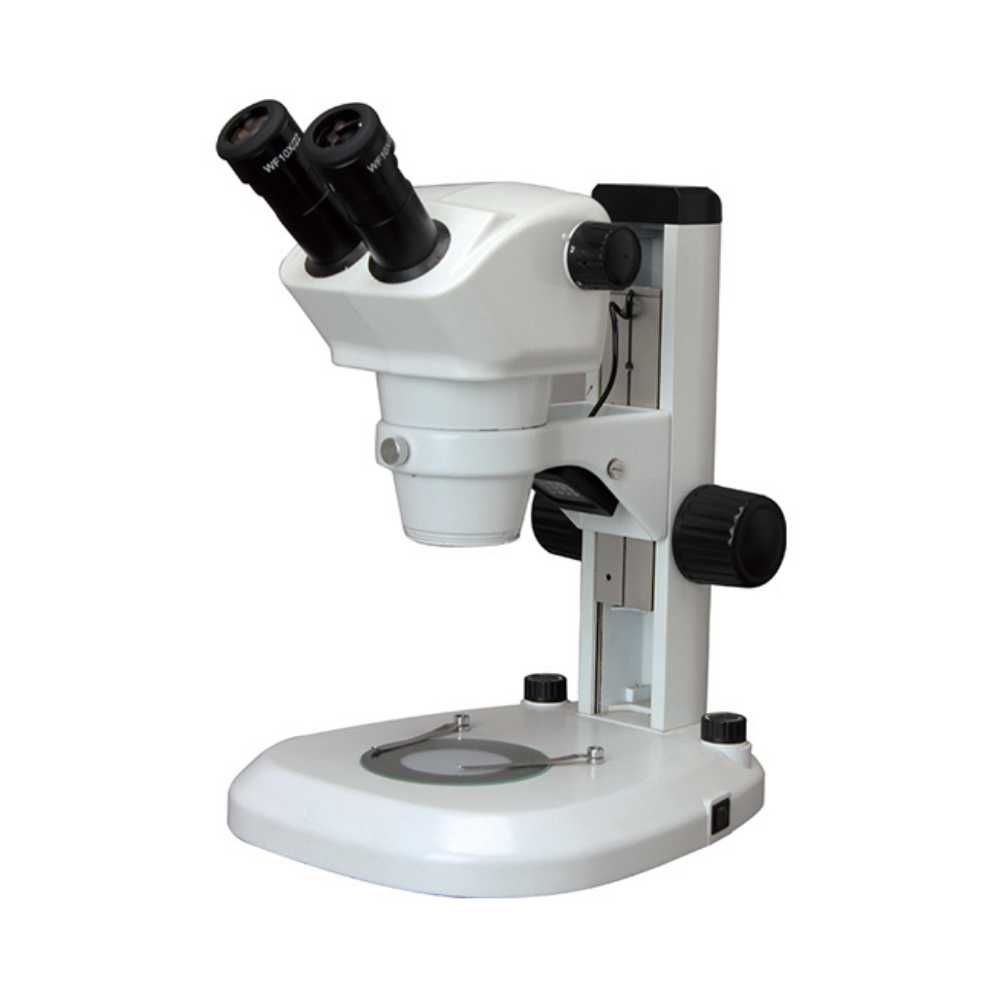

The BS-3040 Zoom Stereo Microscope, mounted on a poststand, provides upright, unreversed 3D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand the magnification range and extend working distances.

The BS-3040 is a highly popular zoom stereo microscope. Optional lighting accessories, including cold light and ring light, are available for this model. A trinocular head can be selected to enable the addition of a digital camera using the appropriate camera adapter.

In summary, the BS-3040 offers a wide range of magnifications, working distances, photographic options, and accessories, making it both versatile and user-friendly.

Features

Equipped with high-quality optical components, the microscope provides sharp and high-contrast images, ensuring a flat image with a large depth of field. Its ergonomic design minimises user fatigue.
Equipped with LED lights for both incident and transmitted illumination, the microscope provides even lighting with a life expectancy of up to 20,000 hours.
Equipped with complete eyepieces, objectives, and accessories, it is an ideal instrument for industrial assembly, inspection, and educational applications.

Application

The BS-3040 Series stereo zoom microscopes are highly valuable for a wide range of applications, including circuit board repair and inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Item	Specification	BS-3040B
Viewing Head	Binocular Viewing Head, Inclined at 45°, Interpupillary Distance 52–75mm	●
	Binocular Viewing Head, Inclined at 60°, Interpupillary Distance 52–75mm	○
	Trinocular Viewing Head, Inclined at 45°, Interpupillary Distance 52–75mm	○
	Digital Binocular Viewing Head, Inclined at 45°, Interpupillary Distance 52–75mm, 3.2MP (2048×1536), ScopeImage 9.0 Software	○
	Extra wide field eyepiece EW10×/22mm	●
Eyepiece	WF15×/Φ16mm	○
	WF20×/Φ12mm	○
	WF30×/Φ8mm	○
Zoom Objective	0.8×–5×	●
Zoom Ratio	6.3:1	●
Working Distance	115mm	●
Auxiliary Objective	0.5×, W.D: 220mm	○
	0.7×, W.D: 125mm	○
	2×, W.D: 45mm	○
Stage Plate	Glass Insert Plate, Diameter 100mm	●
Stage Plate	White and Black round plate, Diameter 100mm	●
Focusing Unit	Coarse Focus Knob with tension adjustable, Moving range 105mm	●
Illumination	Incident Illumination 100V–240V/ LED	●
Illumination	Transmitted Illumination 100V–240V/ LED	●
Attachment	Photo Attachment	○
Attachment	Video Attachment	○
Package	1pc/carton, 36.5cm31cm52cm, 8.5kg	●
