Laboratory Biological Microscope, BS-2080

Be the first to review this product

R 40,136.16

Model: BS-2080
Magnification: 40x-1000x
Eyepiece: EW10×
Objective: 4×, 10×, 40×(S), 100×(S,Oil)
Illumination: Halogen Lamp
Stage: 185×142mm
Viewing Head: Trinocular
Condenser: NA 0.9/ 0.25

Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.

Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.

DISCLAIMER

All product images are for illustrative purposes only. Actual products may vary slightly in terms of colours, controls and visible features.

Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.

Availability:On Request

SKU

IMICBS-2080

BrandBestScope

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BS-2080 laboratory biological microscope with binocular head, rotating nosepiece, and mechanical stage.

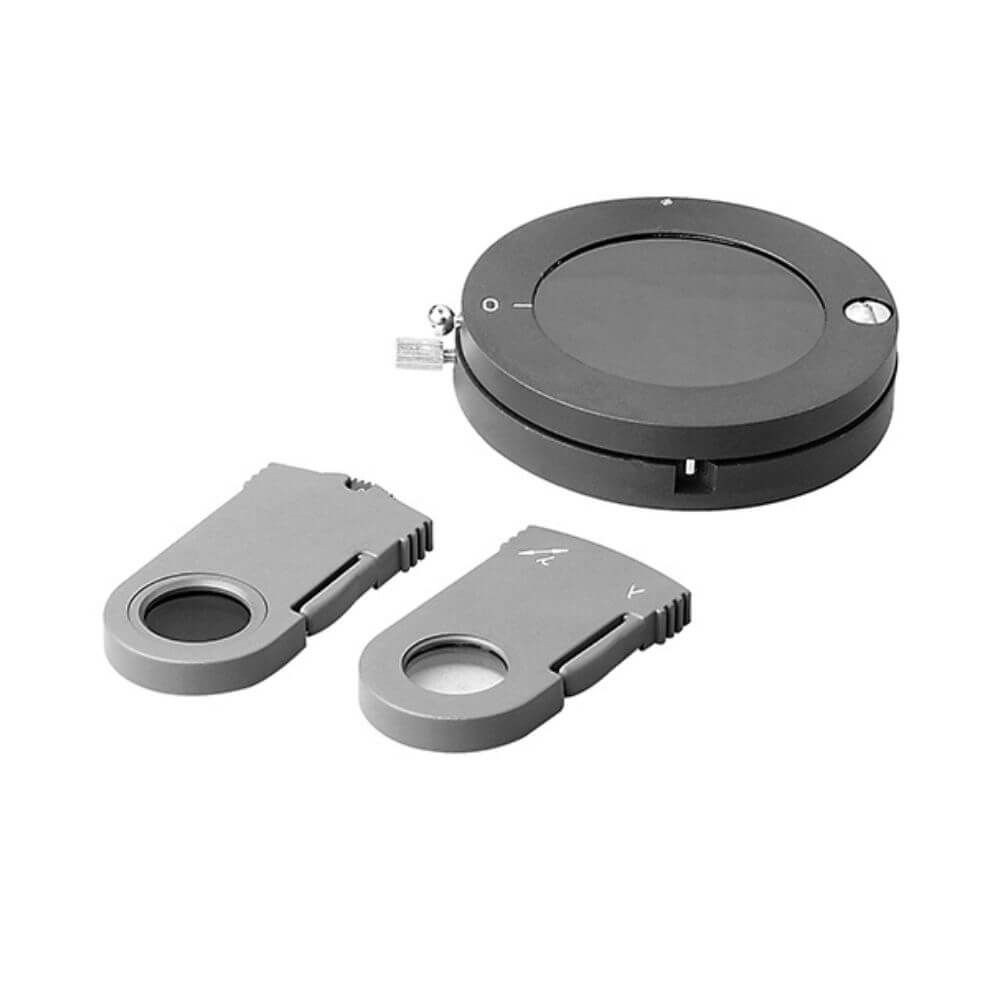

polariser, analyser, and rotating filter accessories for the BS-2080 microscope.

stained tissue section showing layered muscle and dense cell regions under brightfield microscopy.

close-up of densely packed stained cells under brightfield microscopy.

Details

Product Overview

The BS-2080 Laboratory Biological Microscope is a high-level instrument specifically designed for laboratory research. It features an infinity optical system, a well-structured and ergonomic design, and incorporates innovative optical and structural engineering concepts. With excellent optical performance and user-friendly operation, this microscope provides an efficient and comfortable solution for various laboratory applications.

Features

Equipped with an infinity optical system and Köhler illumination, providing excellent optical quality and producing high-clarity, well-defined images.
Features a low and forward-positioned coarse and fine coaxial focusing system, with conveniently located focus and brightness adjustment knobs. The stable, integrated structure and ergonomic design enhance user comfort and operational efficiency.

Applications

This microscope is an ideal instrument for use in the fields of biology, histology, pathology, bacteriology, immunology, and pharmaceutical research. It is widely applicable in medical and healthcare institutions, research laboratories, academic institutes, colleges, and universities.

Technical Specifications

Item	Specification		BS-2080
Optical System	Infinite Optical System		●
Viewing Head	Siedentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm		●
Viewing Head	5°-35° Tiltable Binocular/ Trinocular Head		○
Eyepiece	Extra Wide Field Eyepiece EW10×/ 22mm, Eyepiece Tube Diameter 30mm		●
Nosepiece	Backward Quintuple Nosepiece		●
Nosepiece	Backward Sextuple Nosepiece		○
Objective	Infinite Plan Achromatic Objective	2×/0.05, W.D.=18.3mm	○
		4×/0.10, W.D.=17.3mm	●
		10×/0.25, W.D.=10mm	●
		20×/0.40, W.D.=5.1mm	○
		40×/0.65(S), W.D.=0.54mm	●
		60×/0.8(S), W.D.=0.14mm	○
		100×/1.25(S, Oil), W.D.=0.13mm	●
	Infinite Plan Fluorescent Objective	4×/0.13, W.D.=16.3mm	○
		10×/0.30, W.D.=12.4mm	○
		20×/0.50, W.D.=1.5mm	○
		40×/0.75(S), W.D.=0.35mm	○
		100×/1.3(S, Oil), W.D.=0.13mm	○
Condenser	Swing-out Condenser NA 0.9/ 0.25		●
Focusing	Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm		●
Stage	Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm		●
Illumination	External Illumination, Aspherical Collector with Kohler Illumination, Halogen Lamp 6V/30W, Brightness Adjustable		●
	External Illumination, Aspherical Collector with Kohler Illumination, Halogen Lamp 24V/100W, Brightness Adjustable		○
	3W LED Illumination, Brightness Adjustable		○
	5W LED Illumination, Brightness Adjustable		○
Video Adapter	C-Mount 1×		○
Video Adapter	C-Mount 0.5×		○
Filter	Blue Filter		●
Filter	Green Filter		●
Dark Field Attachment	Dark-field Condenser(Dry)		○
Dark Field Attachment	Dark-field Condenser(Oil)		○
Accessories	Photo Attachment for Nikon or Canon DSLR cameras		○
	Polarization Attachment		○
	Turret Phase Contrast Kit		○
	FL-800 Epi-fluorescent Attachment		○
	FL-LED Epi-fluorescent Attachment		○
	Temperature Control Stage		○
Package	1carton/set, 43.5cm39.5cm59cm, 14kg		●
Note: ●Standard Outfit, ○Optional
