Automated Petri Dish Filler, DISTRIWEL 440

Automated Petri Dish Filler, DISTRIWEL 440

Enquire for Price
  • Walkaway device: Up to 440 dishes in 30 minutes
  • Accuracy
  • High production throughput
  • Compatible with most Petri dishes
  • Built-in Peltier cooling effect
  • Aero biocontamination prevention
  • In-line blood addition (optional)
  • Integrated bubble level
  • Variations for 90mm or 50mm plates
  • Configurations are customisable to include:
    • Second additive/supplement pump
    • Shaker
    • LINX or DOMINO printer
    • Additional tubing
Availability:On Request
SKU
IALLDISW1001

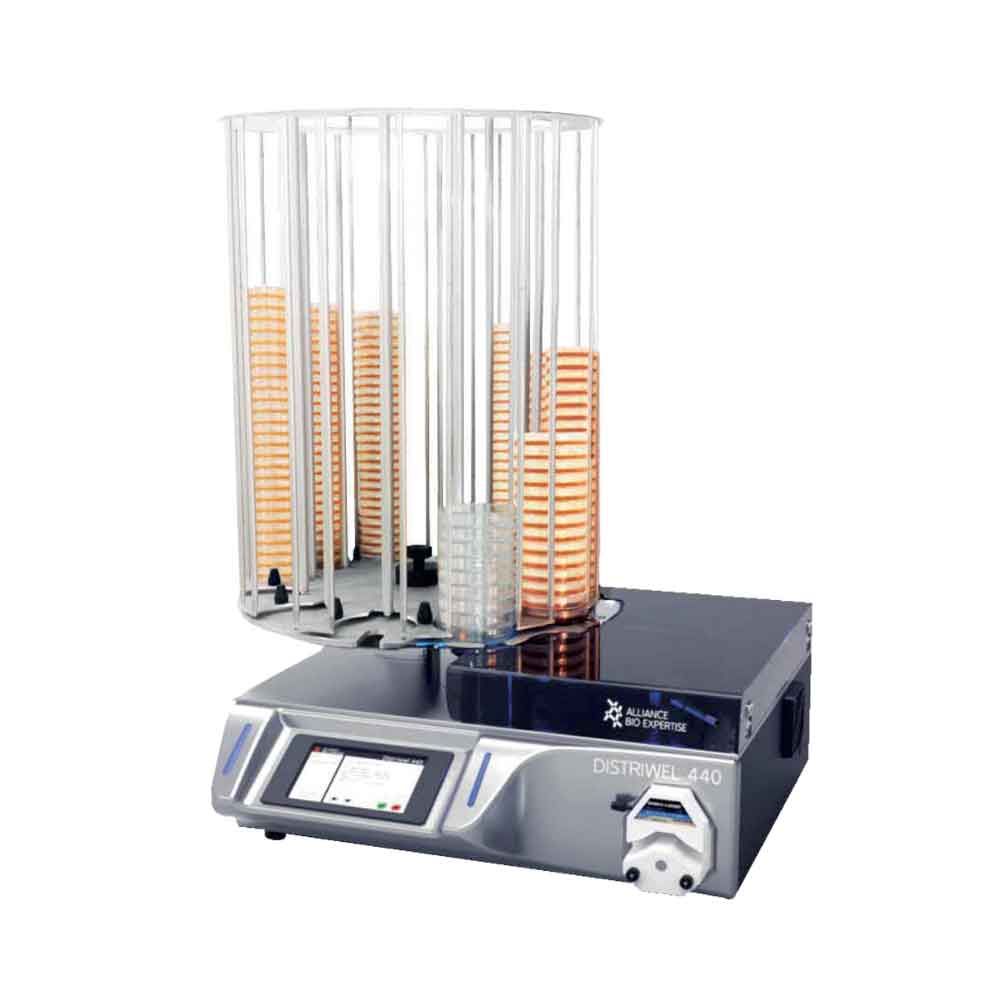

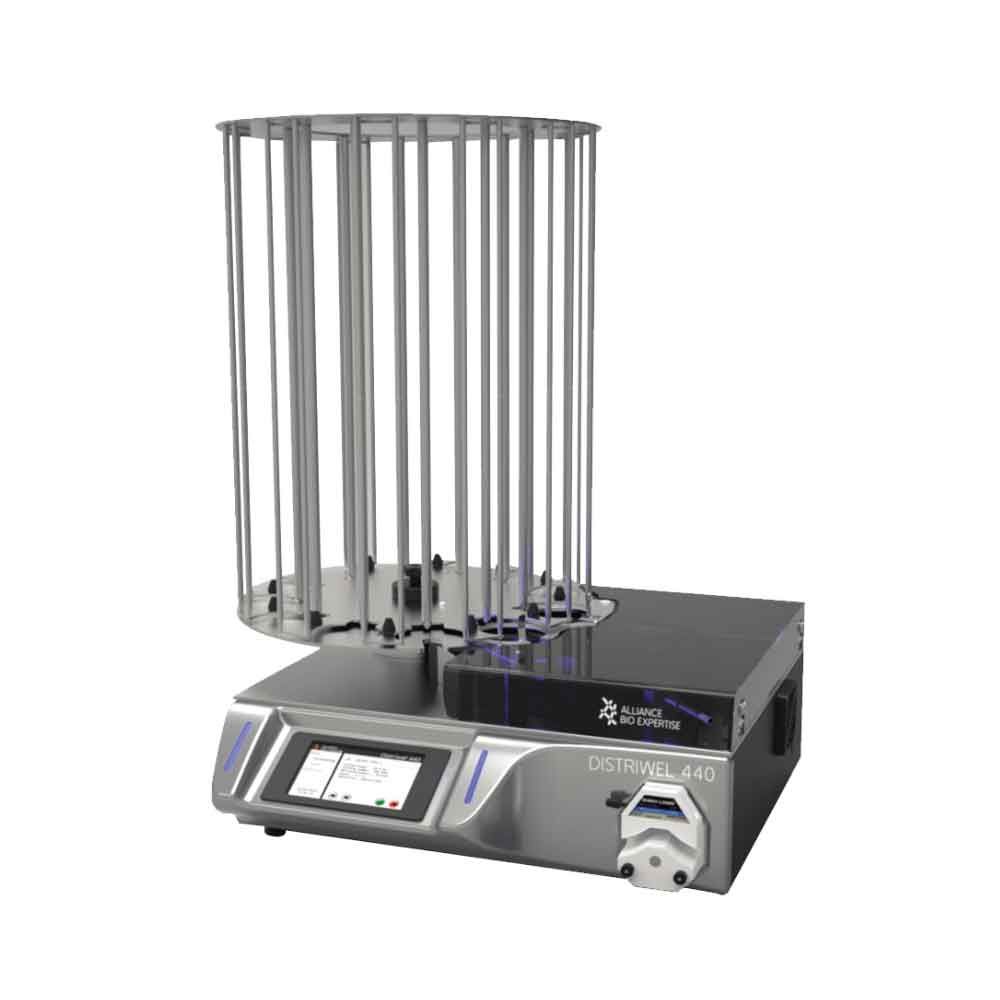

DISTRIWEL 440 is an automatic Petri dish filling and stacking machine that allows you to prepare up to 440 plates (15 ml) within 30 minutes. It features the Masterflex™ Peristaltic Pump, which dispenses media precisely and uniformly across the plates. Additionally, the integrated water cart ensures that the plates are of consistently high quality. A built-in Peltier cooler works to prevent condensation and accelerate the solidification of the medium, ensuring its consistently high quality. The peristaltic pump and the loading system are located at the front of the device for easy, ergonomic access. The DISTRIWEL 440 is further equipped with a Plexiglas protective cover and a UV lamp to minimize the risk of contamination during the filling process. The machine's design includes a compact base, a detachable carousel, and a removable transfer plate, all of which simplify the handling and cleaning processes. For enhanced traceability, the DISTRIWEL 440 can be connected to a Linx 10 Continuous Inkjet Printer. This printer is capable of marking each Petri dish with two lines of text, thereby facilitating easy identification and tracking.

TECHNICAL DATA
Petri dishes per hourUp to 880
Distribution modesAutomatic with carrousel and manual
Capacity440 Petri dishes
Fast coolingBuilt-in Peltier effect
Contamination preventionBuilt-in UV lamp
Distribution speedFrom 30 to 300 RPM
Distribution accuracy± 1ml
Distribution volume1-99ml
Stack plates functionYes
Peristaltic pumpIntegrated pump (double pump is optional)
Programs40

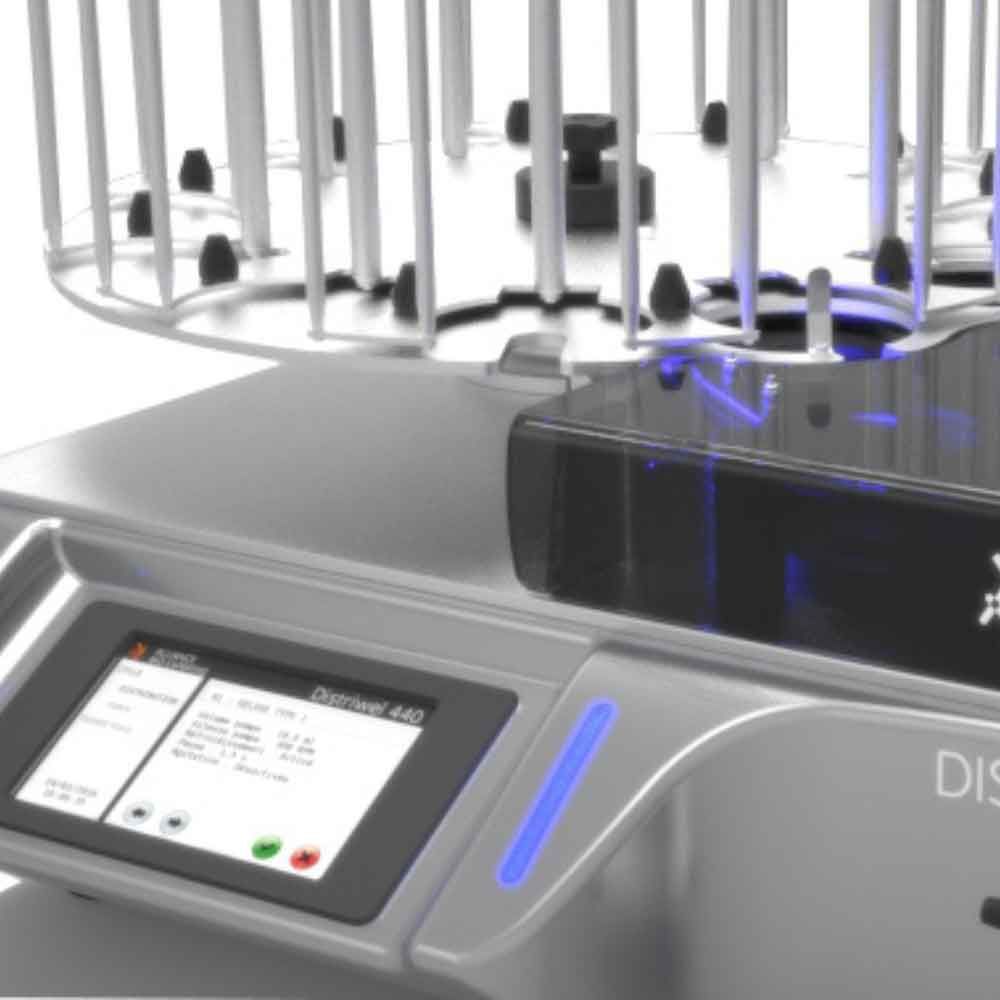

TouchscreenTactile, LCD 7''
TraceabilityInk jet printer on the Petri dish sides (also possible from the bottom of the dish, on demand).
Footswitch (for manual distribution)Yes (optional)
Dimensions (L x l x H)689 x 808 x 940mm
Weight71 kg
Power supply115 or 230 V; +/- 10%; 50/60 Hz; 3A max; 150 W
More Information
Brand Alliance Bio Expertise
