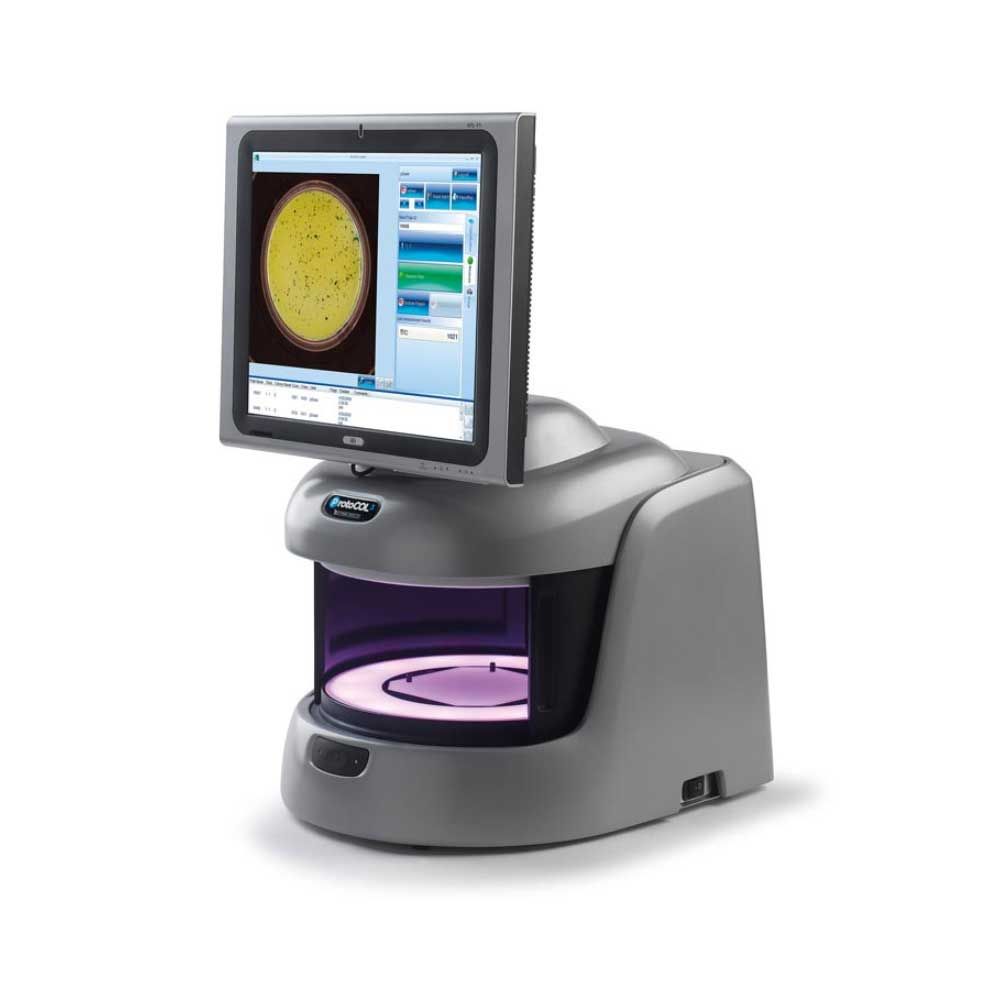

The ProtoCOL 3/ProtoCOL 3 HD are high-tech instruments designed to automate and optimize laboratory processes in colony counting, zone measurements, and various other applications. These systems are particularly adept at handling tasks in inhibition and antibiotic susceptibility testing, as well as accommodating a variety of plate types such as PETRIFILM™, CompactDry™, spiral plates, and more.

Key features include:

Advanced Technology:

The ProtoCOL 3 is capable of counting colonies as small as 43 microns and measuring zones with an accuracy of up to 0.5mm. Its detection limit theoretically extends to 0.1mm.
The ProtoCOL 3 HD variant boasts an ultra-HD 5-megapixel camera, ensuring over 99.9% accuracy in measuring zones, making it ideal for vaccine potency testing and precision-dependent laboratory applications.

User-Friendly Design:

The new design enables plates of up to 150mm diameter to be automatically read at the press of a button.
The ProtoCOL 3 system comes with an integrated touchscreen processor for easy control, and the software is intuitive and user-friendly. Additionally, the system can be connected to a desktop or laptop via USB, with no need for additional PCI cards.

Versatility and Compatibility:

These systems are compatible with a wide range of applications and plate types, including pour plates, multi-well plates, and various assays.
The software supports additional modules for various testing methods, and results can be seamlessly integrated into Excel or a LIMS system.
The devices are equipped with 1D barcode compatibility and ensure data compliance with GLP/GMP/21 CFR Part 11, featuring a complete audit trail.

Comprehensive Reporting and Data Management:

Automatic report generation capabilities are built-in, with options to export data directly to Excel.
All data and reports are fully traceable, meeting rigorous audit and compliance standards.

Enhanced Imaging and Sensitivity:

The device uses high-quality LED lighting and CMOS cameras for clear, full-color imaging.
A variety of sample holders are available to cater to different sample types and backgrounds.

Software Features:

The ProtoCOL 3 software covers a broad range of applications and is compatible with Windows 7 in multiple languages.
It offers features like automatic imaging, colony separation, advanced grid elimination, and a polygonal exclusion tool.
The software allows for full editing of results and supports a built-in database for sharing and archiving data.

External connections for ProtoCOL 3 Plus/ProtoCOL 3 Plus HD:

12th Generation Intel Core i5-12500T (6 Cores/18MB/12T/2.0GHz to 4.4GHz/35W);
8GB (1x8GB) DDR4 Non-ECC Memory;
M.2 2230 256GB PCIe NVMe Class 35 SSD;
Windows 10 Pro (Includes Windows 11 Pro License) English, Dutch, French, German, Italian;
17″ touchscreen monitor featuring 10 touchpoints and PCAP technology. Due to its glass overlay, it guarantees high durability, scratch resistance, and perfect picture performance.
