Measurement range:
Resolution 0,1 / 0,01 pH
Backlit coloured high-definition graphic display.
Automatic and manual temperature compensation
Data logger auto and manual, up to 1000 savings in GLP
WithoutPolymer electrode and magnetic stirrer but with cable S7 / BNC, temperature probe NT 55, support holder with base, coloured pH buffers, and power supply.

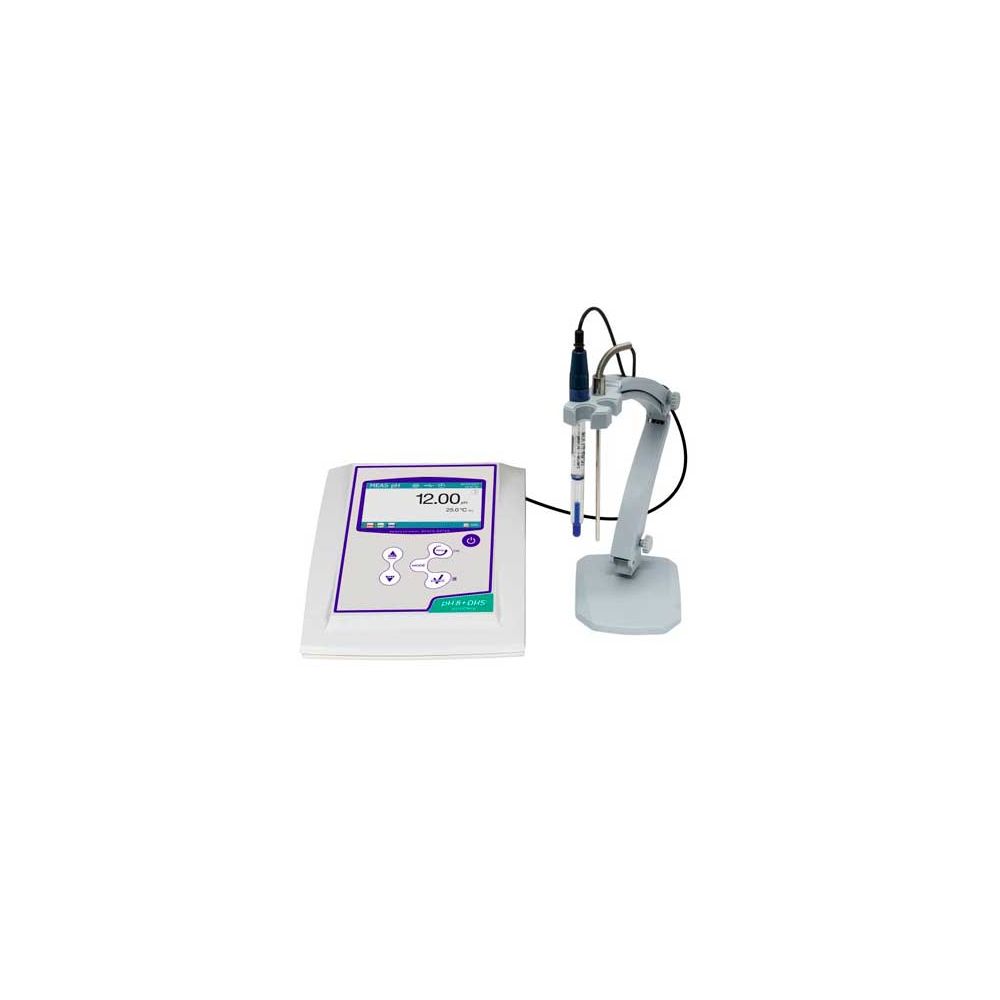

Digital microprocessor-based pH meter, resolution ± 0.1 / 0.01 pH. Large, backlit color graphic display. Manual or automatic temperature compensation with NT 55 probe. Manual and automatic Data Logger function. Memory / recall up to 1000 data with date/time according to GLP. Automatic calibration from 1 to 3 points for pH according to GLP with date and time. Selectable NIST, USA, and user-definable buffers (2 values). Calibration report and innovative graphic representation. Display of the buffers used for calibration on the display. Intuitive management of parameters via icons. Multilingual menu. Alarm setting and display functions in analogue format, "Latch-reading" and "Stability" with titration mode, recalibration alarm, self-diagnosis messages. USB output for PC connection and RS232 port for printer connection. Numerical password for management of calibration and memory cancellation. Magnetic stirrer with independent control (optional). PC software is downloadable for free. IP54 keyboard, warranty on the electronic part of 3 years. Measurement range: pH -2.00 ... 20.00 (0.01 pH); mV -2000 ... + 2000 (1 mV); °C -10 ... 110.0 (0.1 ° C); Without polymer electrode but with cable S7 / BNC, temperature probe NT 55, support holder with base, coloured pH buffers, and power supply.
PERFORMANCE | |
Accuracy (pH) | ± 0,02 |
Accuracy (Temperature) | ± 0,2 °C |
mv measuring range (max.; min.) | 2000; -2000 |
pH measuring range (max.; min.) | 16; -2 |
pH resolution | 0,1 / 0,01 |
Temperature compensation | 0,0...100,0 °C |
Temperature measuring range (max.; min.) | +110,0 °C; -10,0 °C |
Temperature resolution | 0,1 °C |
Working temperature (max.; min.) | +45 °C; 0 °C |
FEATURES | |
Analog view | Yes |
Calibration point indication | Coloured Becker |
Calibration report | Numeric and graphic |

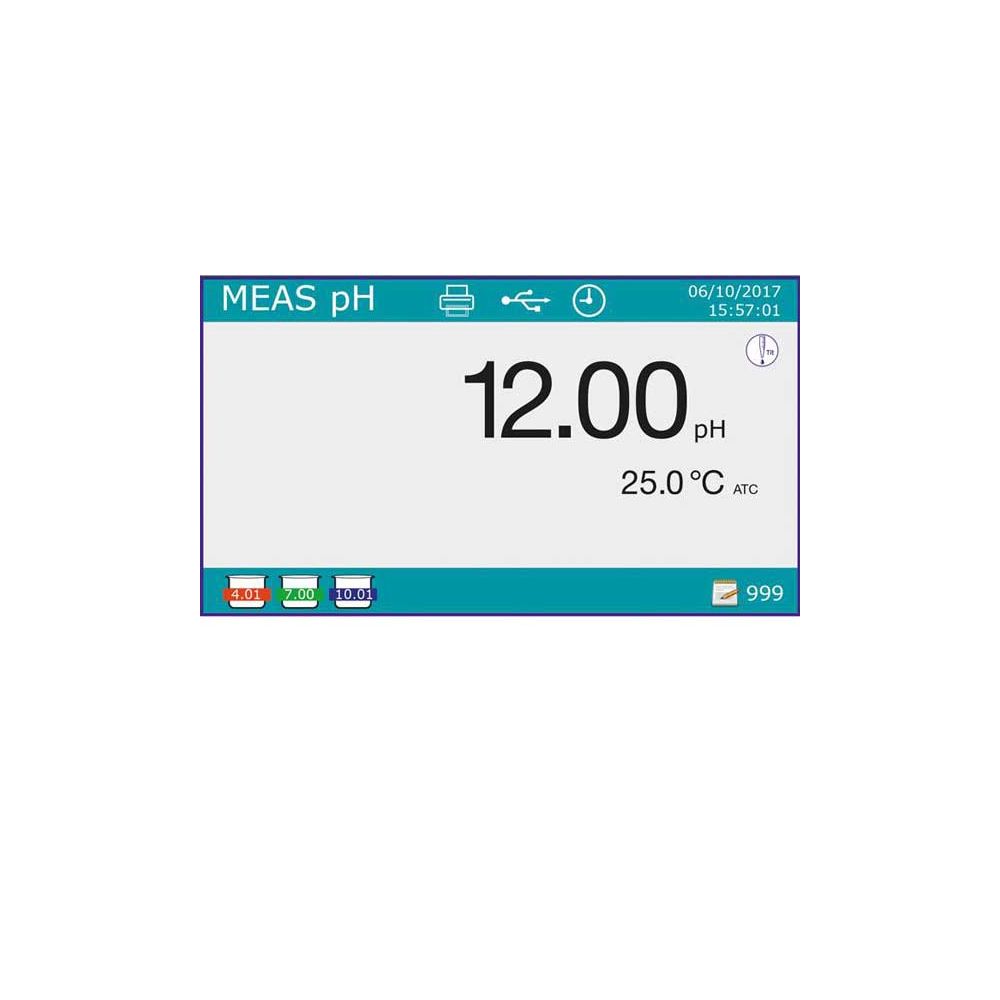

Display | High definition color TFT, backlit |
GLP | Date and time, calibration data display and calibration deadline |

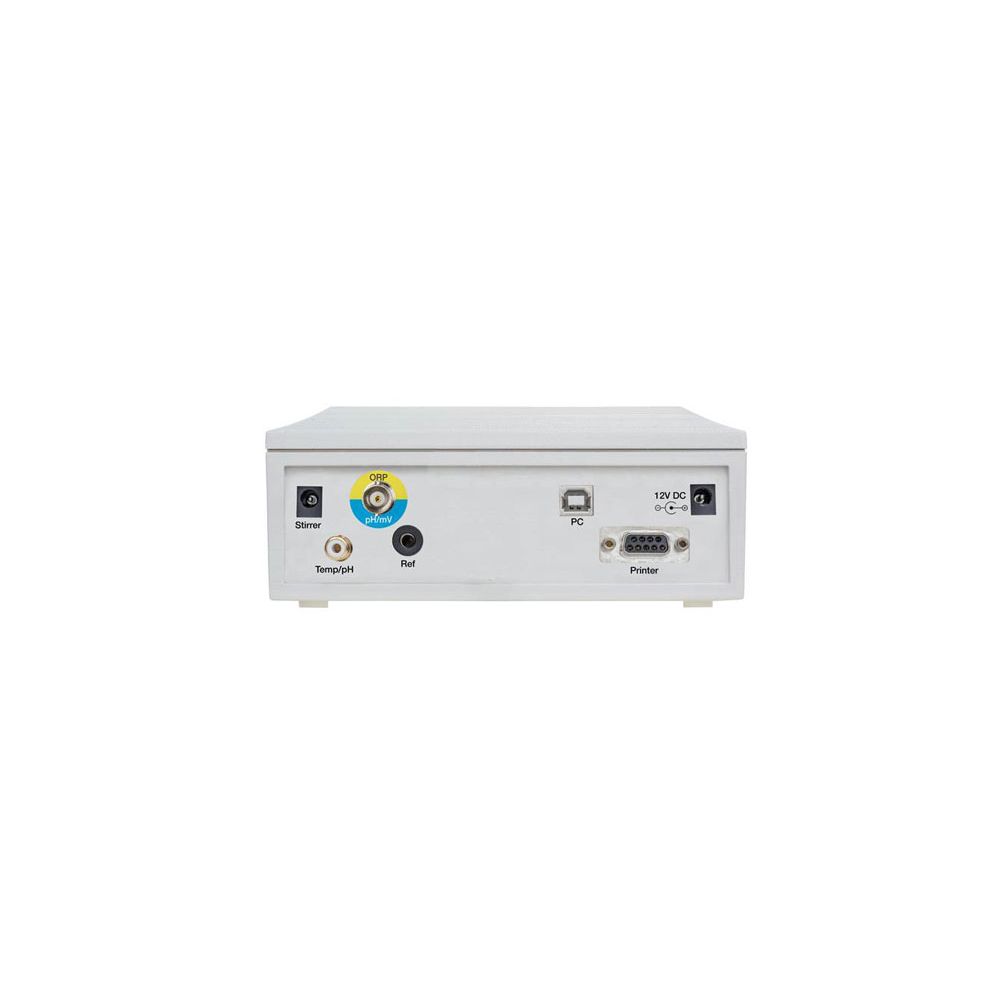

Inputs | BNC - RCA - 4 mm banana |
IP protection | IP 54 |
Languages | Eng - Ita - Deu - Esp - Fra - Cze |
Memory / Datalogger | 1000 GLP data |
Output | USB - USB type B - RS232 |
Password | 4 numeric characters |
PC connection | DataLink+ |
pH alarm range | Min - Max |
Points of calibration pH | 1...3 automatic values / 2 custom values |
Printer connection | RS232 |
Stability criteria | Med - High - Tit |
Standard approved pH | USA - NIST - 2 custom values |
Timer calibration due | Hours / Days |
POWER SUPPLY | |
Power supply | 100 - 240 V / 50 - 60 Hz _ Output: 12 V - 1000 mA |
DIMENSION AND WEIGHT | |
Dimension (LxWxH) | 162 x 185 x 56 mm |
Weight | 709 g |
Brand | Giorgio Bormac s.r.l |
---|
