Measuring range:
Resolution 0,01 μS
Coloured backlit high-definition LCD display
Automatic and manual temperature compensation
Data logger auto and manual, up to 1000 savings in GLP
Online guide multilanguage
Alphanumeric password

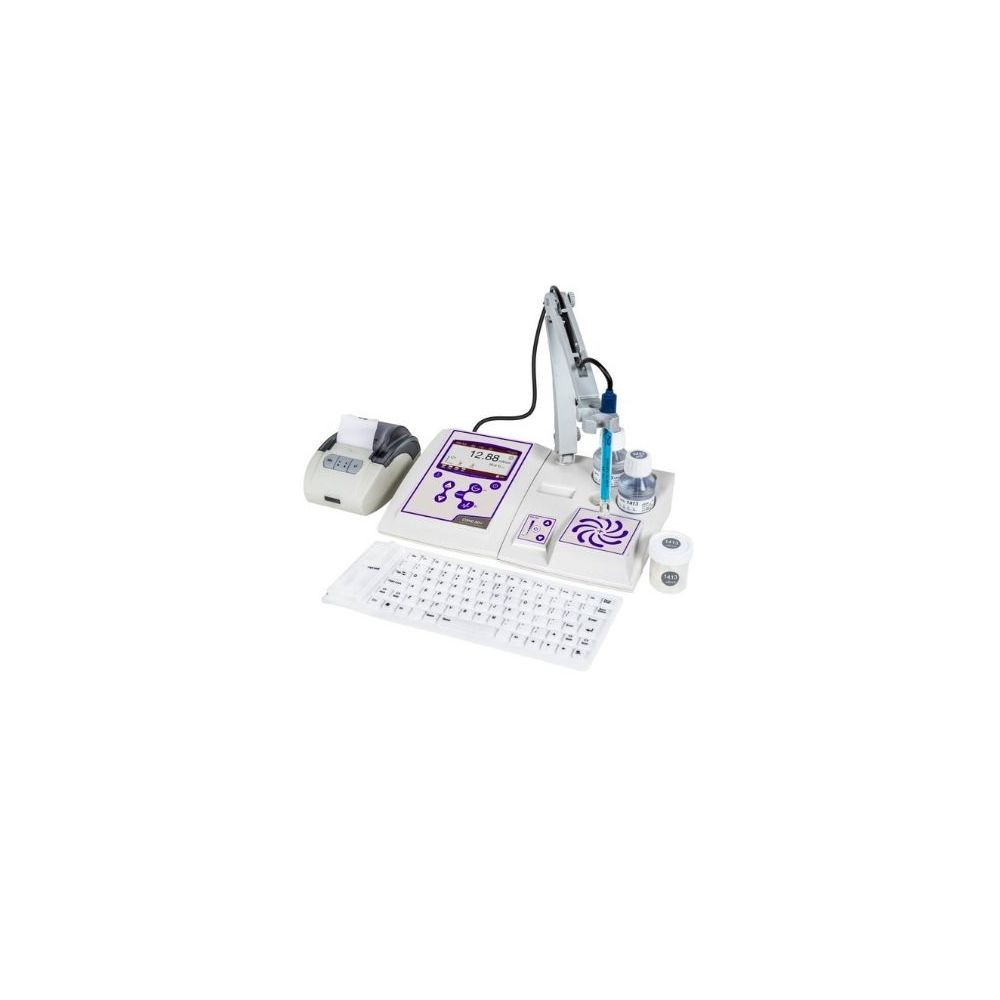

Complete with conductivity cell VPT 80/1 Platinum glass with 2 electrodes (C = 1) with built-in temperature probe, electrode holder, external keyboard, magnetic stirrer with adjustable speed, 2 calibration standards, USB cable, power supply, and user manual.
Description: Digital microprocessor bench-top conductivity meter with large backlit colour graphic display, resolution 0.01 µS. Automatic and manual calibration with recognition of 4 conductivity standards (84; 1413 µS, 12.88, and 111 mS) from 1 to 4 points with the calculation of the different cell constants and a user-defined standard. Automatic scale change, automatic and manual temperature compensation (0 ... 100.0 ° C) with NT 55 probe. Reference temperature (15 ... 30 ° C), Linear temperature coefficient (0.00 ... 10.00%) and non-linear for ultra-pure water. Selectable cell constant (C = 0.1 - 1-10.0). Display of the standards used for calibration. Manual and automatic Data Logger function. Memory / recall up to 1000 data with date/time according to GLP. Self-diagnosis messages, input for cells with 2 electrodes. Intuitive management of parameters via icons. Italian multilingual menu included. Enter company data, operator ID, sample ID, and sensor ID via an external keyboard (included). Indication of the stability of the measurement. Recalibration alarm, self-diagnosis messages. Alphanumeric password for calibration management and memory cancellation. 2 USB outputs for external keyboard connection (included) and PC. RS232 port for printer connection. Magnetic stirrer with independent control (optional). Quick manual online. PC software is downloadable for free. IP54 keyboard.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (Cond) | ± 1 % f.s. |
Accuracy (Resistivity) | ± 1 % f.s. |
Accuracy (Salinity) | ± 1 % f.s. |
Accuracy (TDS) | ± 1 % f.s. |
Accuracy (Temperature) | ± 0.2 °C |
Cond measuring range (max.; min.) | 1000 mS; 0.00 μS |
Cond resolution | 0.01 / 0.1 / 1 μS/cm (automatic scale) |
Reference temperature (max.; min.) | + 30 °C; + 15 °C |
Resistivity measuring range (max.; min.) | 10.00 MOhm*cm; 1.00 Ohm*cm |
Salinity measuring range (max.; min.) | 100 ppt; 0.01 ppm |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 500 g/l; 0.1 mg/l |
Temperature coefficient (max.; min.) | 10.00 % / °C; 0.00 % / °C |
Temperature compensation | 0.0...100.0 °C |
Temperature measuring range (max.; min.) | + 120.0 °C; - 20.0 °C |
Temperature resolution | 0.1 °C |
Working temperature (max.; min.) | + 45 °C; 0 °C |
FEATURES | |
Calibration report | Yes |
Cell type | 2 poles |
Display | Backlight coloured high-definition LCD |
GLP | Yes |
Inputs | BNC - RCA |
IP protection | IP 54 |
Memory | 1000 data |
Multilanguage | Eng - Ita - Deu - Esp - Fra - Cze |
Online help | Yes |
Output | USB - USB type B - RS232 |
Password | Yes - 4 alphanumerical scripts |
PC connection | Yes |
Points of calibration Cond | 1...4 |
Printer connection | Yes |
Selectable Cell constant | 0.1 / 1 / 10 |
Standard approved Cond | 84 μS - 1413 μS – 12.88 mS – 111.8 mS - 1 user value |
Stirring speed control | Stirrer with independent control |
Timer calibration due | Yes |
Ultrapure water compensation | Yes |
POWER SUPPLY | |
Power supply | 100 - 240 V / 50 - 60 Hz |
DIMENSION AND WEIGHT | |
Dimension (instrument) | 324 x 185 x 56 mm |
Instrument weight | 1255 g |
Brand | Giorgio Bormac s.r.l |
---|
