Measuring range:
Resolution 0,01 μS
Coloured backlit high-definition LCD display
Automatic and manual temperature compensation
Data logger auto and manual, up to 1000 savings in GLP
Complete with electrode holder stand, magnetic stirrer with adjustable speed, 2 calibration standards, USB cable, power supply, and user manual. Without conductivity cell.

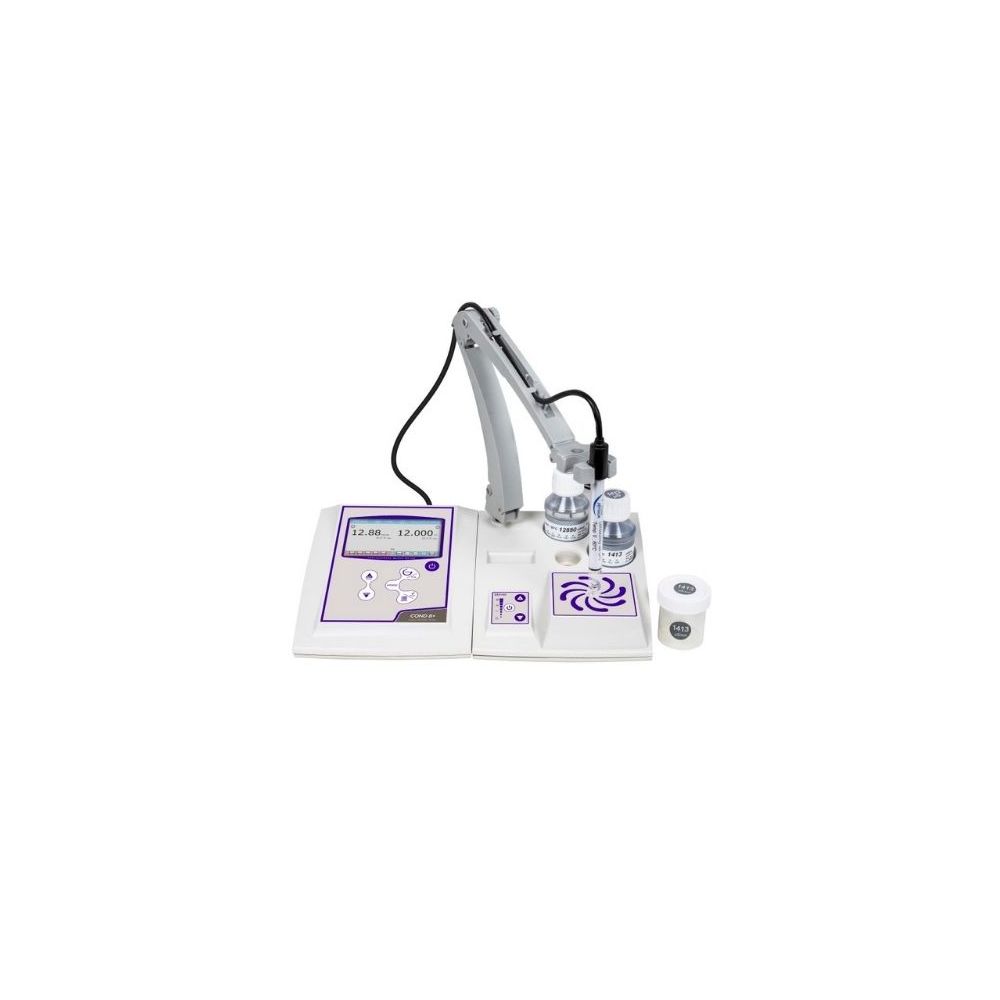

Description: Digital microprocessor benchtop conductivity meter with large backlit colour graphic display, resolution 0.01 µS. Automatic and manual calibration with recognition of 4 conductivity standards (84; 1413 µS, 12.88, and 111 mS) from 1 to 4 points with the calculation of the different cell constants and a user-defined standard. Automatic scale change, automatic and manual temperature compensation (0 ... 100.0 ° C) with NT 55 probe. Reference temperature (15 ... 30 ° C), Linear temperature coefficient (0.00 ... 10.00%), Selectable cell constant (C = 0.1 - 1-10.0). Display of the standards used for calibration. Manual and automatic Data Logger function. Memory / recall up to 1000 data with date/time according to GLP. Self-diagnosis messages, input for cells with 2 electrodes. Intuitive management of parameters via icons. Italian multilingual menu included. Indication of the stability of the measurement. Recalibration alarm, self-diagnosis messages. Numerical password for calibration management and memory cancellation. 1 USB output for PC connection. RS232 port for printer connection. Magnetic stirrer with independent control (optional). PC software is downloadable for free. IP54 keyboard.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (Cond) | ± 1 % f.s. |
Accuracy (Salinity) | ± 1 % f.s. |
Accuracy (TDS) | ± 1 % f.s. |
Accuracy (Temperature) | ± 0.2 °C |
Cond measuring range (max.; min.) | 200 mS; 0.00 μS |
Cond resolution | 0.01 / 0.1 / 1 μS/cm (automatic scale) |
Reference temperature (max.; min.) | + 30 °C; + 15 °C |
Salinity measuring range (max.; min.) | 100 ppt; 0.01 ppm |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 100 g/l; 0.1 mg/l |
Temperature coefficient (max.; min.) | 10.00 % / °C; 0.00 % / °C |
Temperature compensation | 0.0...100.0 °C |
Temperature measuring range (max.; min.) | + 110.0 °C; - 10.0 °C |
Temperature resolution | 0.1 °C |
Working temperature (max.; min.) | + 45 °C; 0 °C |
FEATURES | |
Calibration report | Yes |
Cell type | 2 poles |
Display | Backlight coloured high-definition LCD |
GLP | Yes |
Inputs | BNC - RCA |
IP protection | IP 54 |
Memory | 1000 data |
Multilanguage | Eng - Ita - Deu - Esp - Fra - Cze |
Output | USB - USB type B - RS232 |
Password | Yes - 4 alphanumerical scripts |
PC connection | Yes |
Points of calibration | Cond 1...4 |
Printer connection | Yes |
Selectable Cell constant | 0.1 / 1 / 10 |
Standard approved Cond | 84 μS - 1413 μS – 12.88 mS – 111.8 mS / 1 user value |
Stirring speed control | Stirrer with independent control |
Timer calibration due | Yes |
POWER SUPPLY | |
Power supply | 100 - 240 V / 50 - 60 Hz |
DIMENSION AND WEIGHT | |
Dimension (instrument) | 324 x 185 x 56 mm |
Instrument weight | 1255 g |
Brand | Giorgio Bormac s.r.l |
---|
