Measuring range:
Resolution 0,01 μS
Coloured backlit high-definition LCD display
Automatic and manual temperature compensation
Data logger auto and manual, up to 1000 savings in GLP
PC/Printer connection
Complete with cell 2301T with built-in temperature sensor, 1m fixed cable. Electrode holder stand, conductivity standard, USB cable, power supply, and instructions for use.

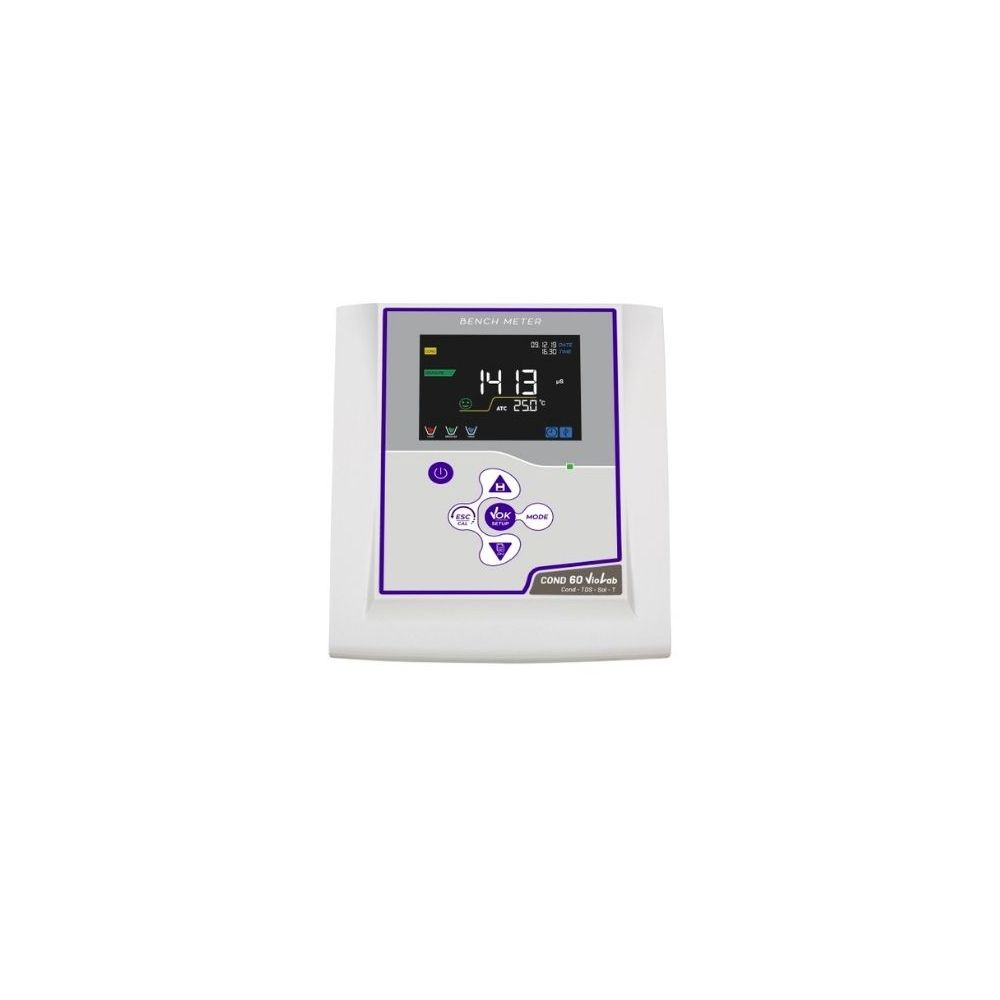

Description: Professional bench conductivity meter with innovative high-definition colour LCD display, with the possibility of brightness adjustment. Conductivity, TDS, and Salinity measurement with temperature display. Possibility to select the parameters you want to see on the display. The online guide in setup and calibration allows simple and immediate use of the device. Automatic calibration of conductivity up to 5 points (84; 147; 1413 μS and 12.88; 111 mS) and a user-defined point. Automatic scale change, selectable reference temperature (15… 30 ° C) and selectable cell constant (C = 0.1; 1; 10). Indication with icons of the calibrated values. Measurement stability indicator and possibility to select 3 stability levels. GLP functions: Date and time, display of calibration, and setting data calibration deadline. Manual and automatic data logger with the possibility of downloading data to PC via micro-USB. Connection to an external printer via RS232 connector. Data-Link software is freely downloadable from www.giorgiobormac.com. All operations are constantly monitored and shown to the operator via the coloured LED above the display and self-diagnosis messages.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (Cond) | ± 2 % f.s. |
Accuracy (Temperature) | ± 0.5 °C |
Cond measuring range (max.; min.) | 200 mS; 0.00 μS |
Cond resolution | 0.01 |
Reference temperature (max.; min.) | + 30 °C; + 15 °C |
Salinity measuring range (max.; min.) | 100 ppt; 0.1 ppm |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 200 g/l; 0.1 mg/l |
Temperature coefficient (max.; min.) | 10.00 % / °C; 0.00 % / °C |
Temperature compensation | 0.0...100.0 °C |
Temperature measuring range (max.; min.) | + 110.0 °C; - 10.0 °C |
Temperature resolution | 0.1 °C |
Working temperature (max.; min.) | + 45 °C; 0 °C |
FEATURES | |
Calibration report | Yes - printable |
Display | Backlight coloured high-definition LCD |
GLP | Yes |
Inputs | BNC – RCA |
IP protection | IP 54 |
Memory | 1000 data |
Output | Micro USB - RS 232 |
PC connection | Yes |
Points of calibration Cond | 1...4 |
Stability filter | 3 levels |
Standard approved Cond | 84 μS - 147 μS - 1413 μS – 12.88 mS – 111.8 mS - 1 user value |
Timer calibration due | Yes |
POWER SUPPLY | |
Power supply | 100 - 240 V / 50 - 60 Hz |
DIMENSION AND WEIGHT | |
Dimension (instrument) | 160 x 140 x 45 mm |
Instrument weight | 380 g |
Brand | Giorgio Bormac s.r.l |
---|
