Measurement range:
Resolution 0,1 / 0,01 / 0,001 pH - 0,01 μS

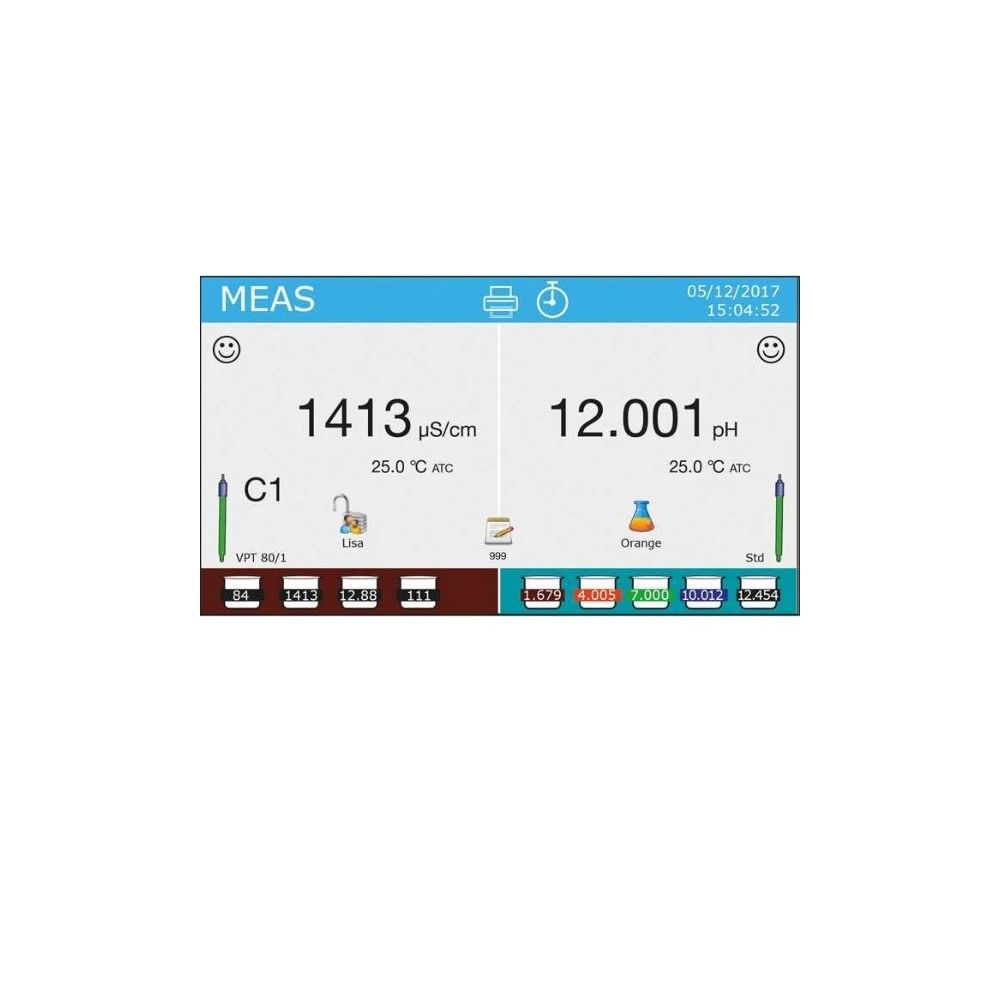

Backlit coloured high-definition graphic display.
Data logger auto and manual, up to 1000 savings in GLP

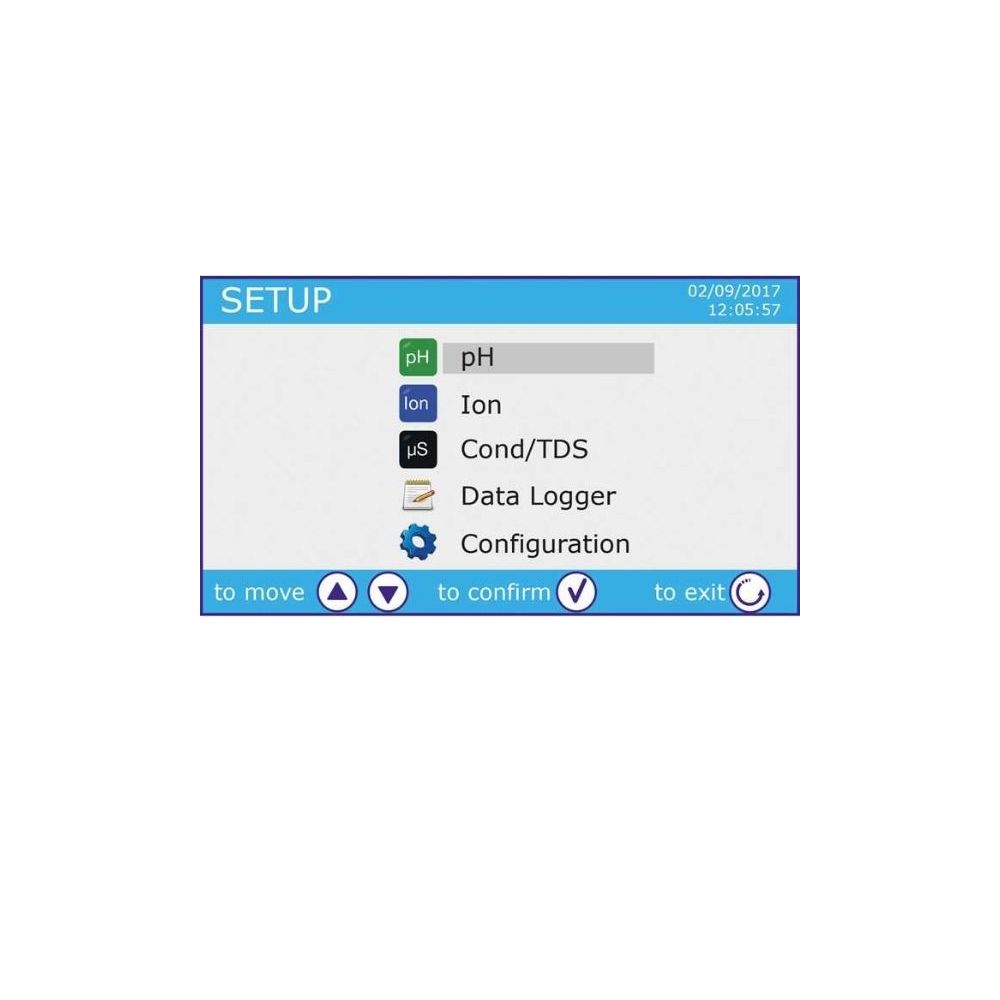

On line guide multilanguage
Alphanumeric password
Graphic calibration report

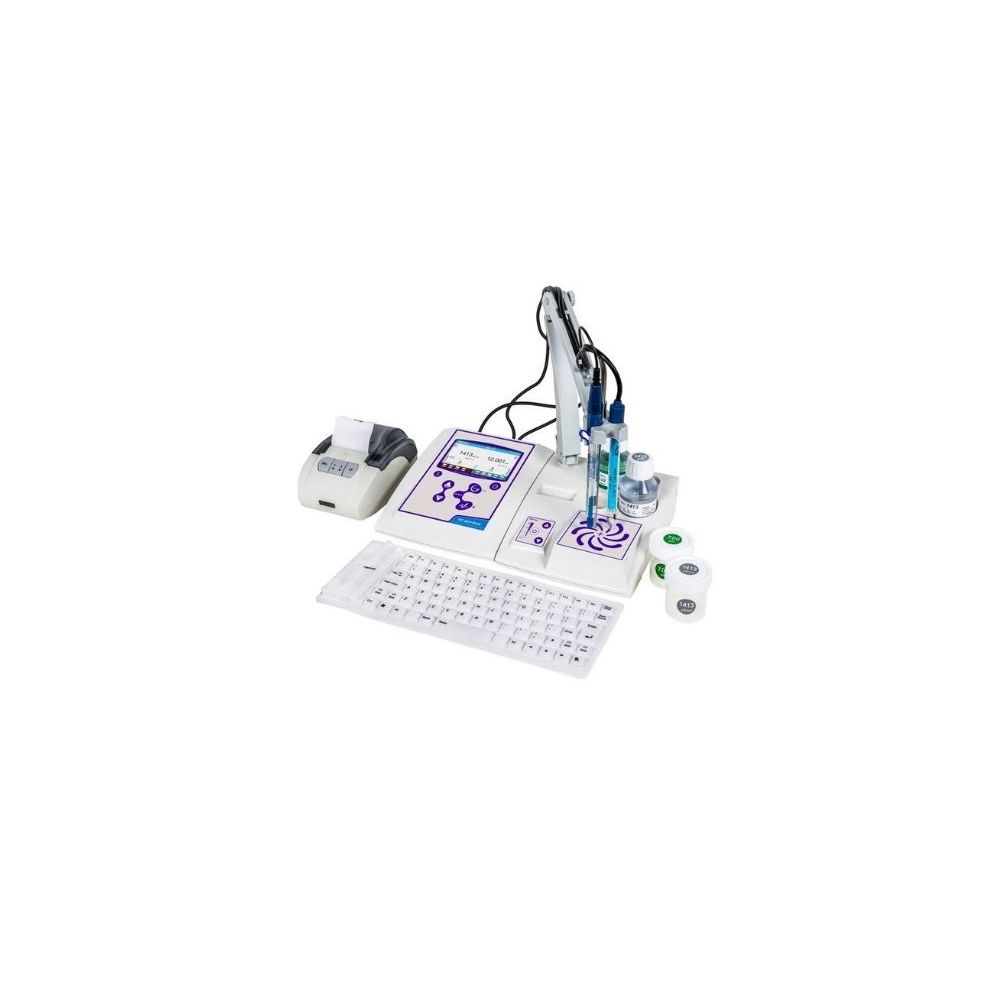

Without pH electrode; cable S7 / BNC, temperature probe NT 55, with cell conductivity VPT 80/1 glass Platinum 2-electrode (C = 1) with temperature probe integrated, support holders, magnetic stirrer with adjustable speed, buffers coloured, glasses for calibration with stirring bars, software for downloading data and power supply.
Description: Multiparameter pH, mV, ION, COND, TDS, Salinity, Resistivity, Microprocessor digital benchtop temperature, resolution ± 0.1 / 0.01 / 0.001 pH / 0.01 µS. Large, backlit color graphic display. Simultaneous vision pH / COND and Temperature. Manual or automatic temperature compensation with NT 55 probe. Manual and automatic data logger function. Memory / recall up to 1000 data with date/time according to GLP. Automatic calibration from 1 to 5 points for pH according to GLP with date and time. Selectable buffer NIST, USA, DIN, or user-definable (5 values). ISE calibration from 2 to 5 points. Calibration report and innovative graphic representation of the sensor conditions. Display of the buffers used for calibration and electrode status. Automatic and manual conductivity calibration with recognition of 4 standards (84; 1413 µS, 12.88, and 111 mS) from 1 to 4 points with the calculation of the different cell constants and a user-defined standard. Automatic scale change, automatic and manual temperature compensation (0 ... 100.0 ° C) with NT 55 probe. Reference temperature (15 ... 30 ° C), Linear temperature coefficient (0.00 ... 10.00%) and non-linear for ultra-pure water. Selectable cell buffer (C = 0.1 - 1-10.0). Display of the standards used for calibration. Intuitive management of parameters via icons. Multilingual menu. Enter company data, operator ID, sample ID, and sensor ID via an external keyboard (included). Alarm setting and display functions in analog format, "Latch-reading" and "Stability" with titration mode and time stability for ISE. Recalibration alarm, self-diagnosis messages. Alphanumeric password for calibration management and memory cancellation. 2 USB outputs for external keyboard connection (included) and PC. RS232 port for printer connection. Magnetic stirrer with independent control. Quick manual online. PC software is downloadable for free. IP54 keyboard.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (Cond) | ± 1% f.s. |
Accuracy (pH) | ± 0.02 |
Accuracy (Resistivity) | ± 1% f.s. |
Accuracy (Salinity) | ± 1% f.s. |
Accuracy (TDS) | ± 1% f.s. |
Accuracy (Temperature) | ± 0.2 °C |
Cond measuring range (max.; min.) | 1000 mS; 0.00 μS |
Cond resolution | 0.01 / 0.1 / 1 μS/cm (automatic scale) |
Ion measuring range (max.; min.) | 19999 mg/l; 0.001 mg/l |
ORP measuring range (max.; min.) | + 2000; - 2000 |
ORP resolution | 1 / 0.1 mV |
pH measuring range (max.; min.) | + 20.00; - 2.00 |
pH resolution | 0.1 / 0.01 / 0.001 |
Reference temperature (max.; min.) | + 30 °C; + 15 °C |
Resistivity measuring range (max.; min.) | 10.00 MOhm*cm; 1.00 Ohm*cm |
Salinity measuring range (max.; min.) | 100 ppt; 0.01 ppm |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 500 g/l; 0.1 mg/l |
Temperature coefficient (max.; min.) | 10.00 % / °C; 0.00 % / °C |
Temperature compensation | 0.0...100.0 °C |
Temperature measuring range (max.; min.) | + 120.0 °C; - 20.0 °C |
Temperature resolution | 0.1 °C |
Working temperature (max.; min.) | + 45 °C; 0 °C |
FEATURES | |
Analog view | Yes |
Calibration report | Yes. printable. For pH parameters also graph report |
Cell type | 2 poles |
DHS compatible | Yes |
Display | Backlight coloured high definition TFT |
Electrode status indication | Yes. with icon |
GLP | Yes |
GLP | calibration Yes |

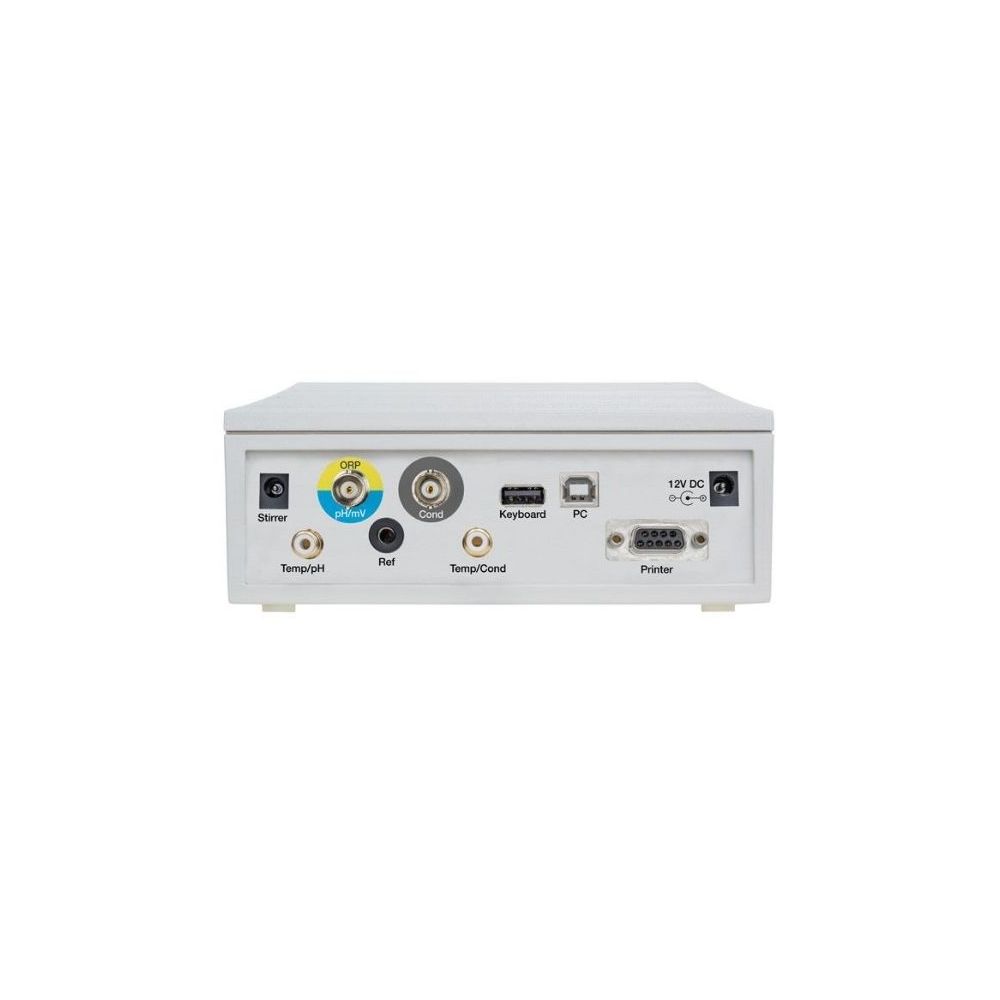

Inputs | 2 x BNC - 2 x RCA - banana 4 mm |
ION calibration points | 2...5 |
ION measuring unit | mg/l - g/l - mol/l |
IP protection | IP 54 |
Memory | 1000 data |
Multilanguage | Eng - Ita - Deu - Esp - Fra - Cze |
Online help | Yes |
Output | USB - USB tipo B - RS232 |
Password | Yes. 4 alphanumerical scripts |
pH alarm range | Yes |
Points of calibration Cond | 1...4 |
Points of calibration pH | 1...5 automatic values / 1...5 user values |
Printer connection | Yes |
Selectable Cell constant | 0.1 / 1 / 10 |
Stability criteria | 3 levels |
Standard approved Cond | 84 μS - 1413 μS - 12.88 mS - 111.8 mS / 1 user value |
Standard approved pH | USA - NIST - DIN 19266 - 5 custom values |
Timer calibration due | Yes |
Ultrapure water compensation | Yes |
POWER SUPPLY | |
Power supply | 100 - 240 V / 50 - 60 Hz |
DIMENSION AND WEIGHT | |
Dimension (LxWxH) | 324 x 185 x 56 mm |
Weight | 1255 g |
Brand | Giorgio Bormac s.r.l |
---|
