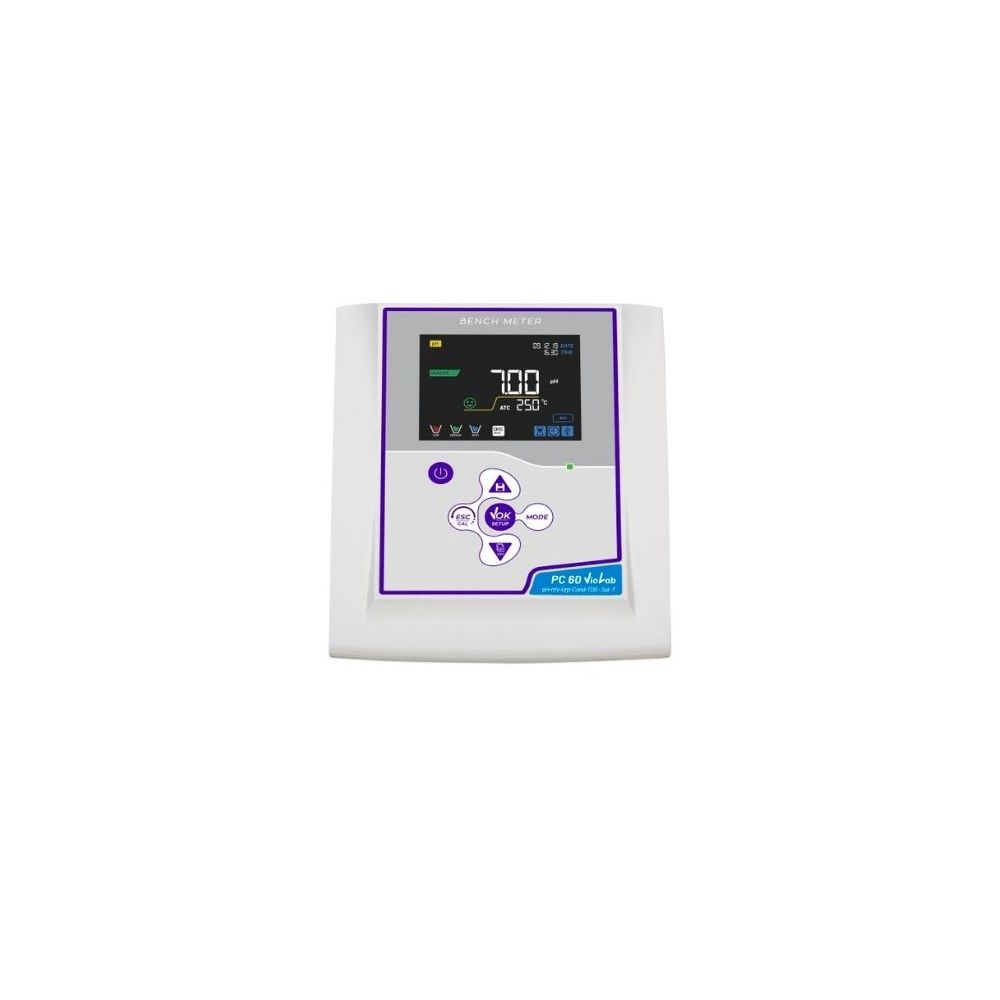

Description: Professional bench-top multiparameter with innovative high-definition color LCD display, with the possibility of brightness adjustment. Measurement of pH, mV, ORP, Conductivity, TDS, Salinity with temperature display. Possibility to select the parameters you want to see on the display. The online guide in setup and calibration allows simple and immediate use of the device. Automatic pH calibration with USA and NIST buffers up to 3 points and 2 points defined by the user. Automatic ORP calibration 1 point. Automatic calibration of conductivity up to 5 points and a user-defined point. Indication with icons of the calibrated points. Measurement stability indicator and possibility to select 3 stability levels. GLP functions: Date and time, display of calibration data, and calibration expiration setting. Manual and automatic Data Logger with the possibility of downloading data to PC via micro-USB. Data-Link software is freely downloadable from www.giorgiobormac.com. Connection to the external printer via RS232 connector. All operations are constantly monitored and shown to the operator via the colored LED above the display and the self-diagnosis messages.

TECHNICAL SPECIFICATIONS

REGULATIONS
Regulations	CE

PERFORMANCE
Accuracy (Cond)	± 2 % f.s.
Accuracy (pH)	± 0.02
Accuracy (Temperature)	± 0.5 °C
Cond measuring range (max.; min.)	200 mS; 0.00 μS
Cond resolution	0.01 / 0.1 / 1 μS/cm (automatic scale)
ORP measuring range (max.; min.)	+ 1900; - 1000
ORP resolution	0.1 / 1
pH measuring range (max.; min.)	+ 16.00; - 2.00
pH resolution	0.1 / 0.01
Reference temperature (max.; min.)	+ 30 °C; + 15 °C
Salinity measuring range (max.; min.)	100 ppt; 0.1 ppm
TDS Factor (max.; min.)	1.00; 0.40
TDS measuring range (max.; min.)	100 g/l; 0.1 mg/l
Temperature coefficient (max.; min.)	10.00 % / °C; 0.00 % / °C
Temperature compensation	0.0...100.0 °C
Temperature measuring range (max.; min.)	+ 110.0 °C; - 10.0 °C
Temperature resolution	0.1 °C
Working temperature (max.; min.)	+ 45 °C; 0 °C

FEATURES
Analog view	Yes
Calibration report	Yes. printable
DHS compatible	Yes
Display	Backlight coloured high-definition LCD
GLP	Yes
GLP calibration	Yes
Inputs	BNC - RCA - banana 4 mm
IP protection	IP 54
Memory	1000 data
Output	Micro USB - RS 232
Points of calibration Cond	1...4
Points of calibration ORP	1
Points of calibration pH	1...3 auto / 2 user values
Printer connection	Yes
Selectable Cell constant	0.1 / 1 / 10
Stability criteria	3 levels
Standard approved Cond	84 μS - 147 μS - 1413 μS - 12.88 mS - 111.8 mS - 1 user value
Standard approved pH	USA - NIST - 2 custom values

POWER SUPPLY
Power supply	100 - 240 V / 50 - 60 Hz

DIMENSION AND WEIGHT
Dimension (LxWxH)	160 x 140 x 45 mm
Weight	380 g

More Information

More Information
Brand	Giorgio Bormac s.r.l
