Measuring range:
Resolution 0,1 / 0,01 pH - 0,01 μS
Automatic and manual temperature compensation
DHS digital sensors management.
Supplied as standard: Electrode holder stand, colored buffer solutions, power supply, and instructions for use. Without pH electrode. With 2301T cell, NT 55 temperature probe, S7-BNC cable, and accessories.

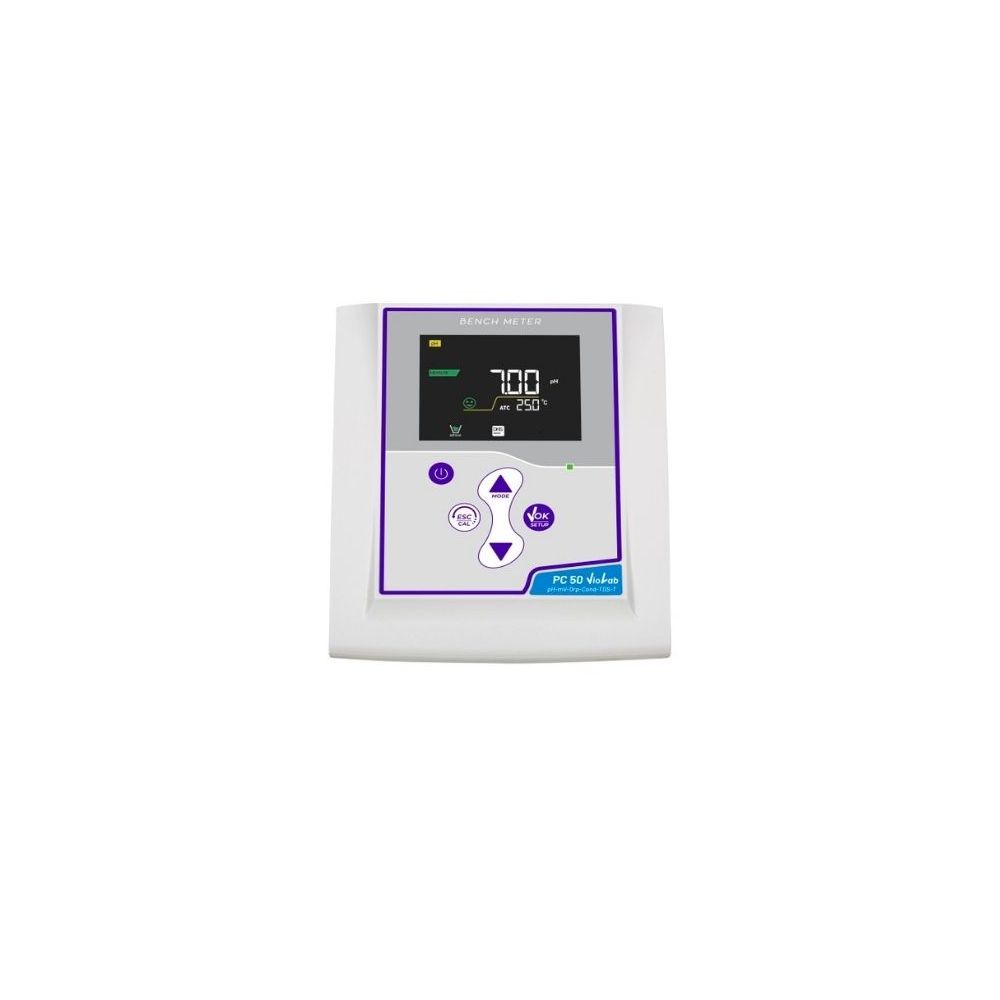

Description: Professional bench meters with innovative backlit high-definition colored LCD display, with the possibility of brightness adjustment. Possibility to select the parameters to show on the display. The step-by-step guide in setup and calibration allows simple and immediate use of the device. Automatic pH calibration with USA and NIST buffers, up to 3 points and 2 points defined by the user. Automatic ORP calibration on 1 point. Automatic conductivity calibration up to 4 points (84; 147; 1413 μS and 12,88; 111,8 mS) and 1 point custom. Automatic resolution, reference temperature from 15 to 30 °C, and selectable cell constant (C= 0,1; 1; 10). Indication of the calibrated points, with icons. Measurement stability indication and the possibility to select 3 stability levels. All operations are constantly monitored and shown to the operator by the colored LED above the display and self-diagnosis messages.
REGULATIONS | |
Regulations | CE |
PERFORMANCE | |
Accuracy (Cond) | ± 2 % f.s. |
Accuracy (pH) | ± 0.02 |
Accuracy (Temperature) | ± 0.5 °C |
Cond measuring range (max.; min.) | 200 mS; 0.00 μS |
Cond resolution | 0.01 / 0.1 / 1 μS/cm (automatic scale) |
ORP measuring range (max.; min.) | + 1000; - 1000 |
ORP resolution | 1 mV |
pH measuring range (max.; min.) | + 14.00; 0 |
pH resolution | 0.01 |
Reference temperature (max.; min.) | + 30 °C; + 15 °C |
TDS Factor (max.; min.) | 1.00; 0.40 |
TDS measuring range (max.; min.) | 200 g/l; 0.1 mg/l |
Temperature coefficient (max.; min.) | 10.00 % / °C; 0.00 % / °C |
Temperature compensation | 0.00...80.0 °C |
Temperature measuring range (max.; min.) | + 100.0 °C; 0.0 °C |
Temperature resolution | 0.1 °C |
Working temperature (max.; min.) | + 45 °C; 0 °C |
FEATURES | |
Calibration report | Yes |
DHS compatible | Yes |
Display | Backlight coloured high-definition LCD |
GLP calibration | Yes |
Inputs | BNC - RCA |
IP protection | IP 54 |
Points of calibration Cond | 1...4 |
Points of calibration ORP | 1 |
Points of calibration pH | 1...3 auto / 2 custom values |
Printer connection | Yes |
Selectable Cell constant | 0.1 / 1 / 10 |
Stability criteria | 3 levels |
Standard approved Cond | 84 μS - 147 μS - 1413 μS - 12.88 mS - 111.8 mS - 1 user value |
Standard approved pH | USA - NIST - 2 custom values |
POWER SUPPLY | |
Power supply | 100 - 240 V / 50 - 60 Hz |
DIMENSION AND WEIGHT | |
Dimension (LxWxH) | 160 x 140 x 45 mm |
Weight | 380 g |
Brand | Giorgio Bormac s.r.l |
---|
