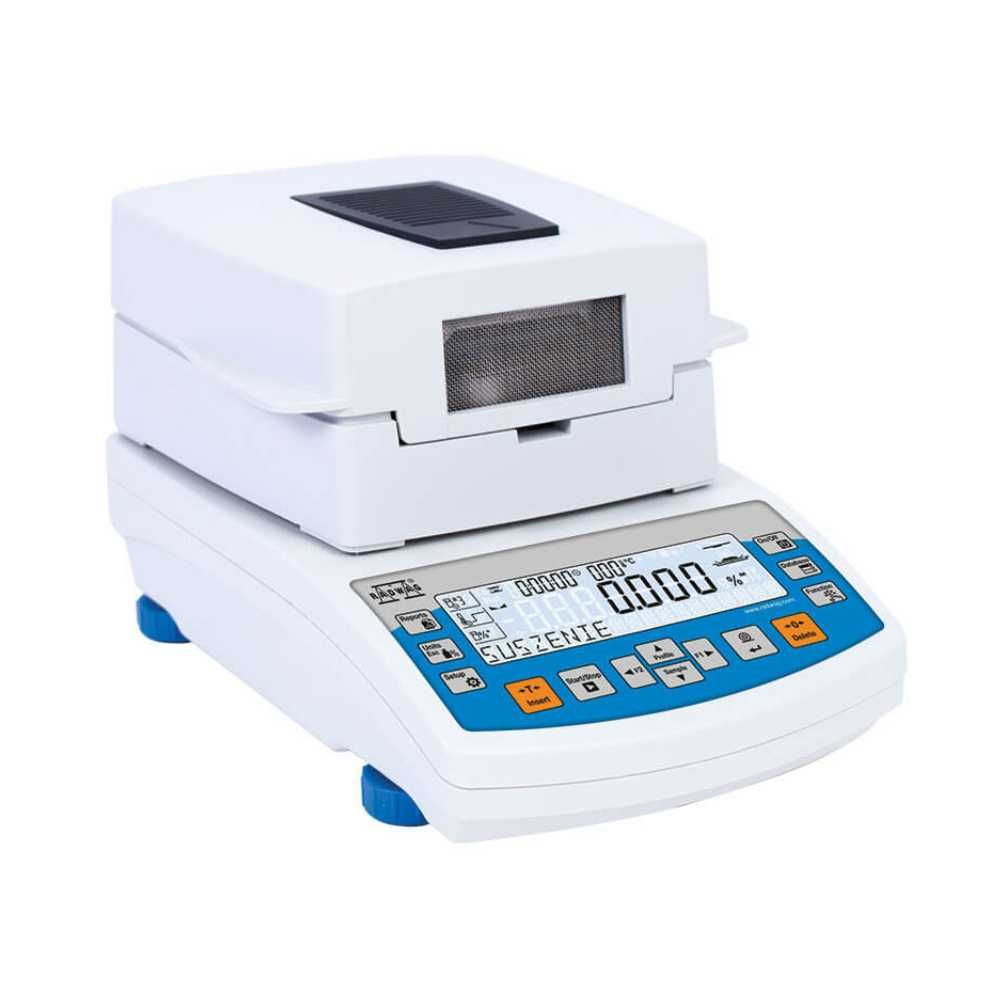

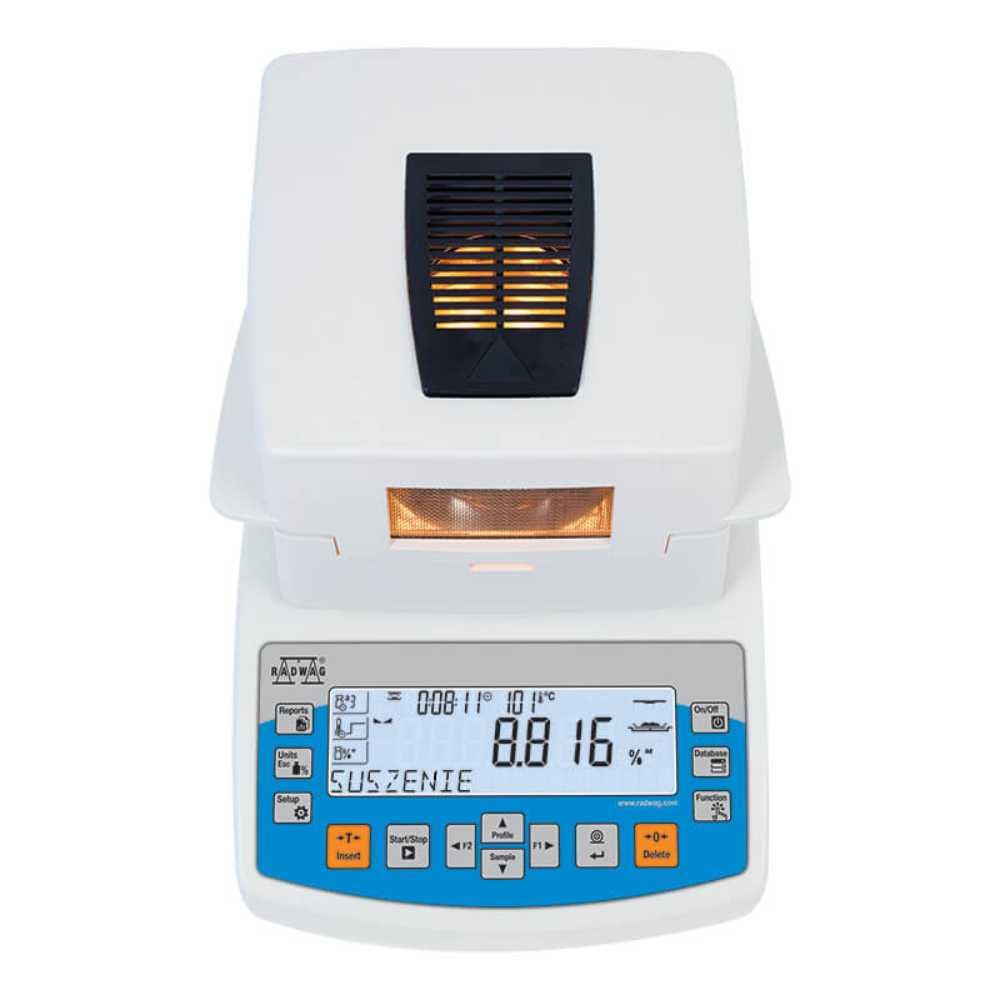

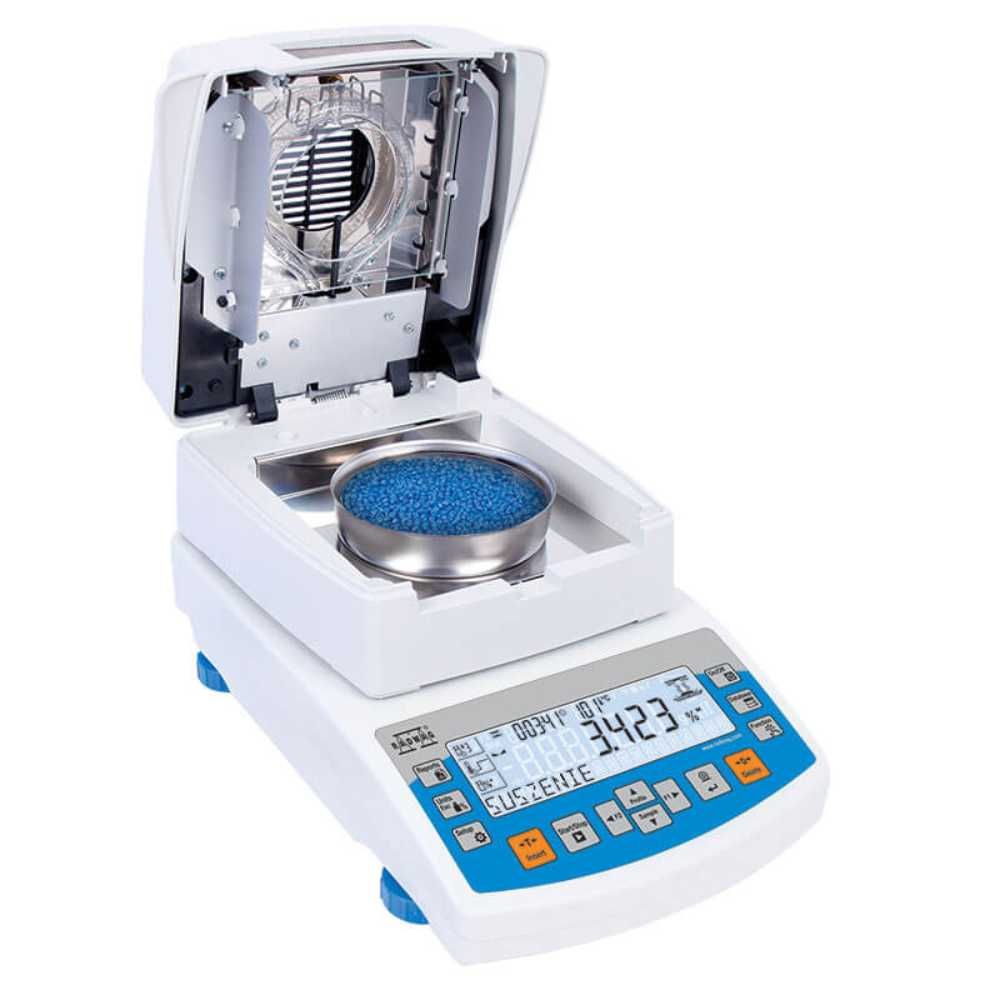

RADWAG MA 210.R Moisture Analyzer
RADWAG MA 210.R Moisture Analyzer
ZAR35,824.71
- Maximum capacity [Max]: 210 g
- Readability [d]: 1 mg
- Functions: Autotest, Statistics, GLP Procedures, Replaceable unit, Statistical Quality Control, ALIBI Memory, Drying modes, Samples drying, Moisture content analysis, Dry mass determination
Availability:On Request
SKU
IRDWMA210.R
BrandRADWAG
MA 210.R Moisture Analyzer
The moisture analyzer is a laboratory instrument designed to measure the relative humidity of small samples from various materials. The MA.R series redefines the standards for moisture analyzers.
The MA.R Series
This series features a brand-new, highly readable LCD display that includes an additional text line for supplementary information, such as messages and data (e.g., product name or tare value).
The moisture analyzer uses pictograms to indicate the currently activated mode, computer connection, and both balance and service functions.
The MA.R series includes various interfaces, such as RS232, USB Type A, USB Type B, and Wi-Fi®. The moisture analyzer is encased in durable plastic.
Databases
The information system of the R series moisture analyzers is based on six databases, allowing multiple operators to manage a product database containing numerous samples. Collected measurements can be analyzed further.
Data is stored in six databases:
- Users: Up to 10 users
- Products: Up to 1,000 products
- Weighings: Up to 1,000 weighings
- Tares: Up to 100 tares
- Programs: Up to 100 drying programs
- Drying Process Reports: Up to 1,000 reports
The Results
The results obtained using the moisture analyzer represent the final outcomes of the drying process and include the following:
- % M: Mass loss in percentage. This value represents the change in mass recorded during the drying process, expressed as a percentage.
- % D: Dry mass in percentage. This value represents the portion of the sample remaining on the weighing pan after the moisture has evaporated.
- % R: Ratio of moisture content to dry mass in percentage. This value represents the portion of the sample that evaporated during the drying process, expressed as a percentage.
- g: Sample mass after drying, expressed in grams.
Information exchange within the system is facilitated through the USB port, supporting bi-directional communication. Databases can be imported and exported using memory sticks.
Direct Access to Information
Functions and databases can be accessed directly using the keyboard's soft keys:
- Database: Provides access to all stored databases.
- Function: Provides access to basic functions.
- F1 and F2: Programmable function keys and menu navigation keys.
- Reports: Provides access to the database of drying process reports.
- Profile: Allows access to parameter settings.
- Sample: Grants access to the products database.
| Metrological Parameters | |
| Maximum capacity [Max] | 210 g |
| Readability [d] | 1 mg |
| Tare range | -210 g |
| Adjustment | External |
| Maximum sample weight | 210 g |
| Heating module | IR emitter |
| Moisture content repeatability | ±0.05 % (sample ~ 2 g), ±0.01 % (sample ~ 10 g) |
| Moisture content readability | 0.001 % |
| Drying temperature range | Max 160 °C |
| Physical Parameters | |
| Leveling system | Manual |
| Display | LCD (backlit) |
| Maximum sample height | 20 mm |
| Weighing pan dimensions | ø90, h=8 mm |
| Packaging dimensions | 476×381×346 mm |
| Net weight | 4.8 kg |
| Gross weight | 6 kg |
| Construction | |
| Protection class | IP 43 |
| Features of Use | |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Additional functions | Sample traceability |
| Communication Interface | |
| Communication interface | RS2321, USB-A, USB-B, Wi-Fi® |
| Electrical Parameters | |
| Power supply | 100 – 120 V AC 50/60 Hz or 200 – 240 V AC 50/60 Hz |
| Power consumption | 4 W |
| Heating module power | 450 W |
| Environmental Conditions | |
| Operating temperature | +10 – +40 °C |
| SOP – Metrological Tests | |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Drying temperature control | One- or two-point adjustment, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Moisture content indication control | Certified MV Test Set |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
1 Barcode scanners, available as weighing instrument accessory, communicate with the instrument via RS232 interface exclusively.
