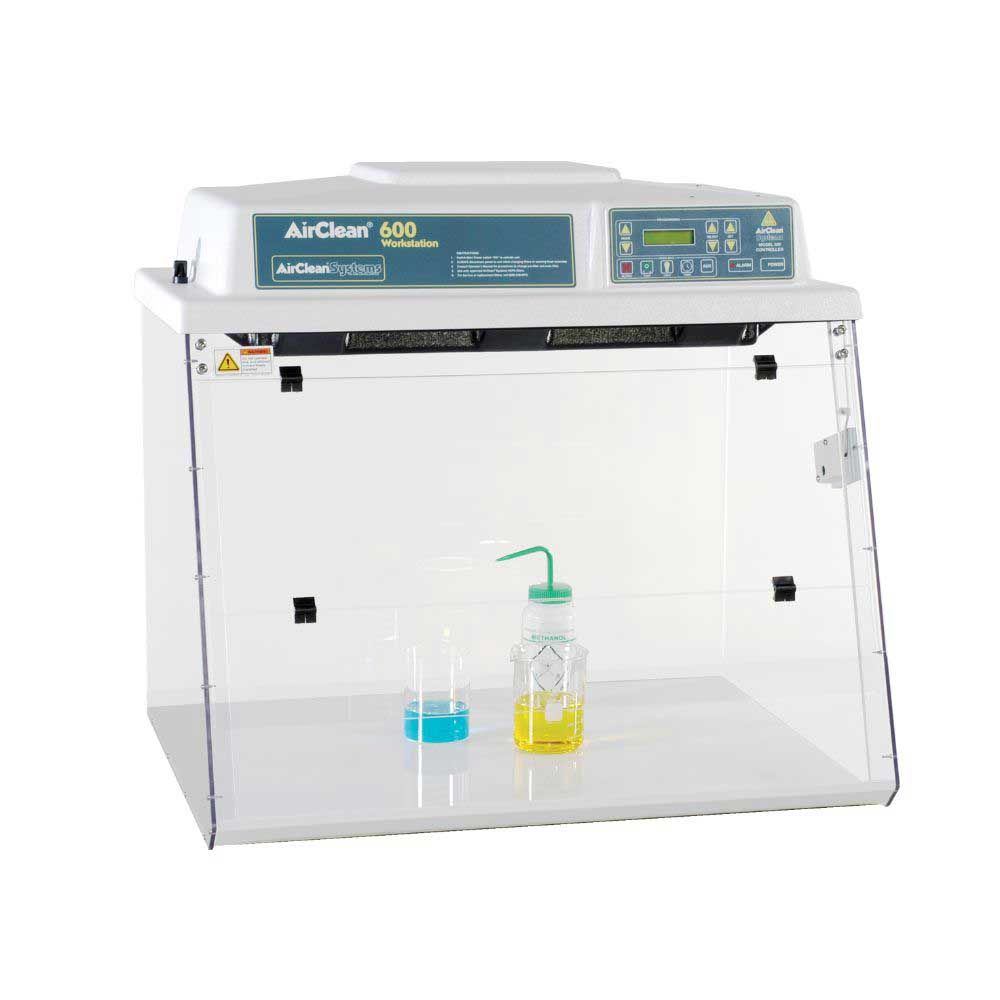

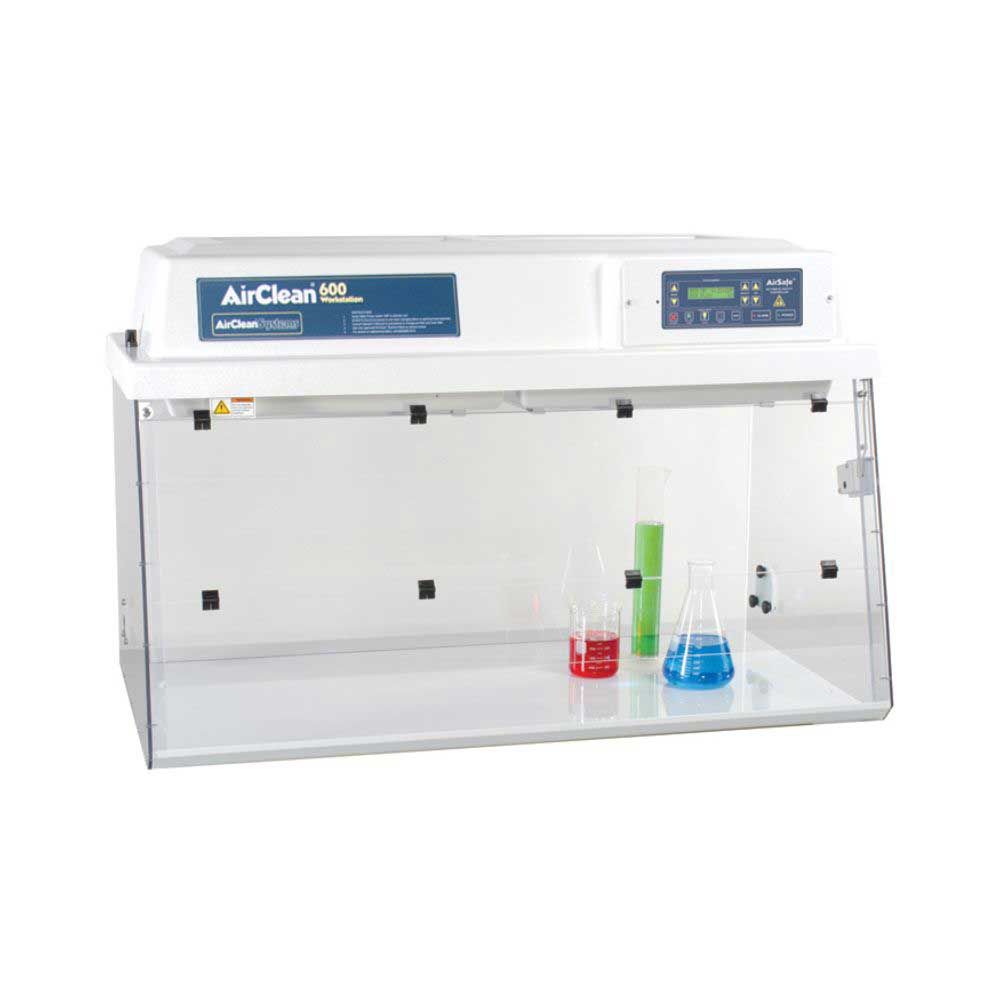

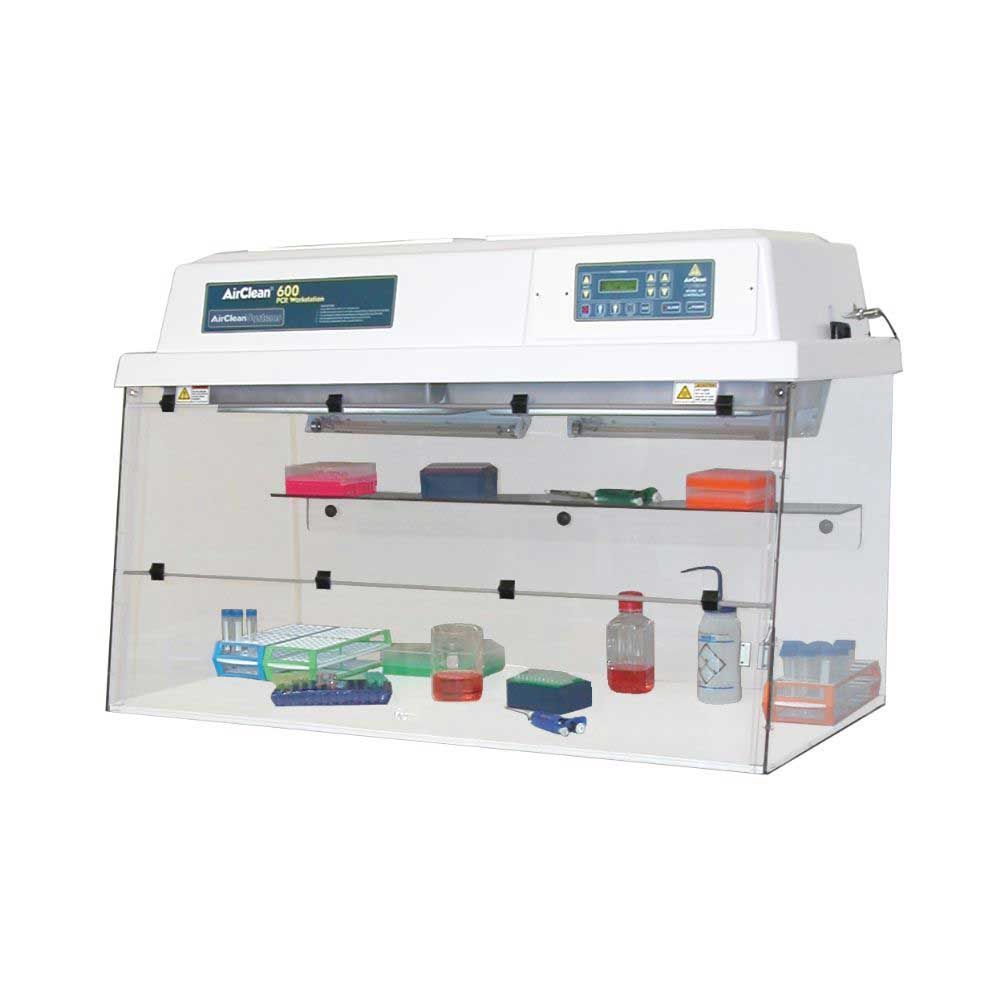

The AC600 Series ductless chemical workstation is a low-cost operator protection product that protects the end user from toxic vapors, gases, fumes, and particulates. Smaller and more mobile than a standard ductless fume hood, AC600 Series ductless chemical workstations are the perfect solution for performing low-volume applications with known chemicals. These products come standard with the same advanced safety features and technology as larger AirClean^® Systems ductless hoods: gas phase-bonded carbon filtration, real-time gas detection, and constant airflow control and monitoring.

AirSafe^® Automatic Safety Controller

AirSafe provides a simple-to-use interface combined with powerful airflow control, filtration monitoring, and gas detection capabilities. A proprietary sensor is used to accurately monitor and display face velocity on the LCD display. Blowers can be controlled manually or in 'automatic' mode, where AirSafe automatically controls blower speed in order to maintain a user-set face velocity. A solid-state hydrocarbon gas detector is linked to the controller for monitoring filtration breakthroughs. Audible and visible alarms alert the user in the event of low airflow or a required filter replacement.

AirSafe® Automatic Safety Controller

Features

AirSafe automatic safety controller
Integral base with deep spill lip
No ductwork required
No installation required; it plugs directly into a standard 110V or 220V electrical outlet
Clear polycarbonate shell for 360° visibility
Extremely quiet operation < 49dBA
Available in standard-height or tall version
Constant monitoring of fume hood face velocity with variable airflow control to user preset value
Lab event timer
Gas phase bonded carbon filtration

Benefits

Filter safety lockout to ensure correct filter replacement
Shipped fully assembled
Electronic gas detection for real-time gas phase filter monitoring
Tested to UL 61010-1, CSA C22.2 No. 61010-1, and EN 61326-1
Brushless, sparkless blower is post-filter
The deep base effectively contains accidental spills
Filter and electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
A low airflow alarm warns the user both visually and audibly
Real-time monitoring of installed filtration bed

GENERAL SPECIFICATIONS
Base/Work Surface	Polypropylene - No Rust
Walls	Clear Polycarbonate
Front Sash	Clear Polycarbonate
Head Assembly/Filtration Housing	Molded ABS
Controls	AirSafe^TM Automatic Safety Controller
Face Velocity - Variable	User Defined; 0.3-0.5 (m/s)
Lighting	Vapor-Proof Fluorescent*
Blowers	Variable-Speed; Brushless-Sparkless
Lab Event Timer	Adjustable Audible / Visual Timer
Low Airflow Alarm	Custom Audible / Visible Alarm
Filter Monitoring Package	Audible / Visible Alarm
Certifications	UL, CSA and CE
DIMENSIONS
External Dimensions (mm)
Width at Base	1213
Max Width	1232
Depth at Base	610
Max Depth	641
Height	749
Internal Dimensions (mm)
Width	1200
Depth	597
Height	495
Sash Opening Dimensions (mm)
Width	1149
Height: Opening	102
Height: Fold 1	241
Height: Fold 2	483
TECHNICAL SPECIFICATIONS
Voltage	220V
Amps	2.0A
Power	230 W
Volume of Filtered Air	8.2 CMM
Prefilters Required	2
Primary Filtration Layer	2 HEPAs or 2 Carbons
Secondary Carbon Filtration Layer	NA
Unit Weight**	100 kg
