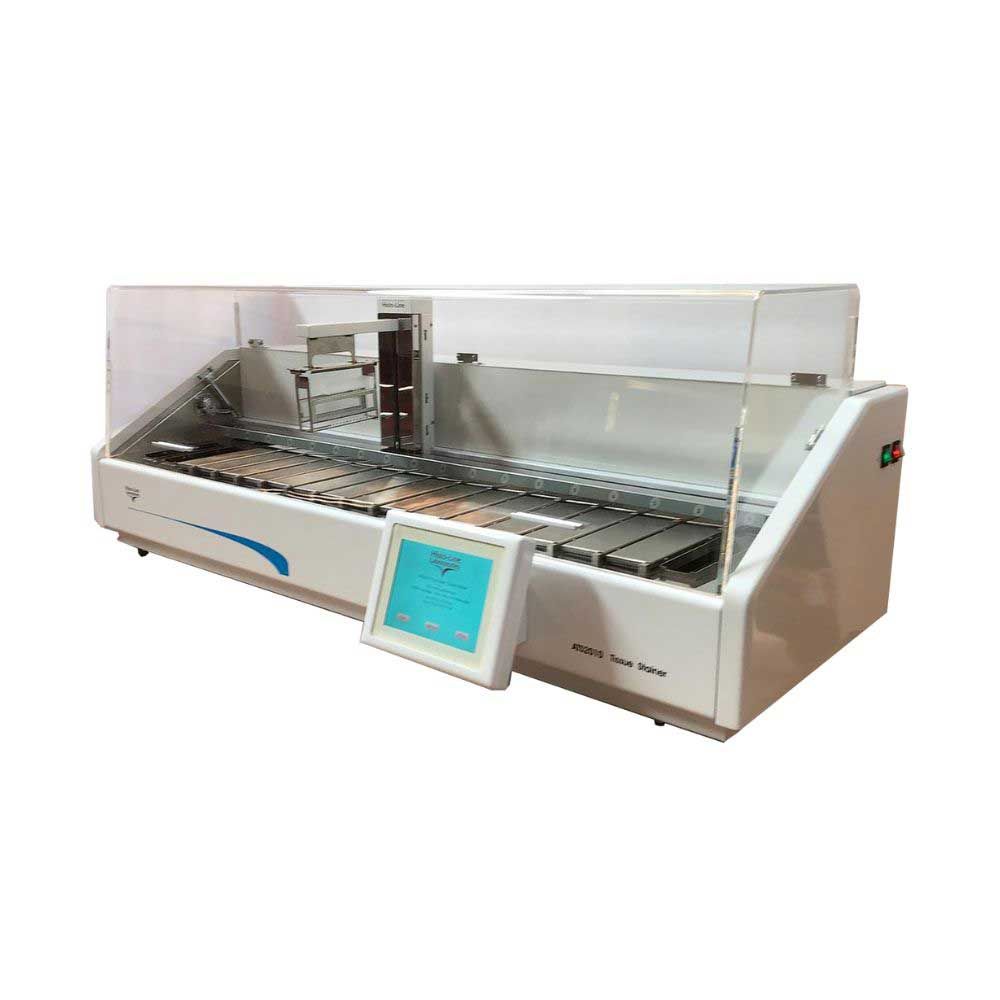

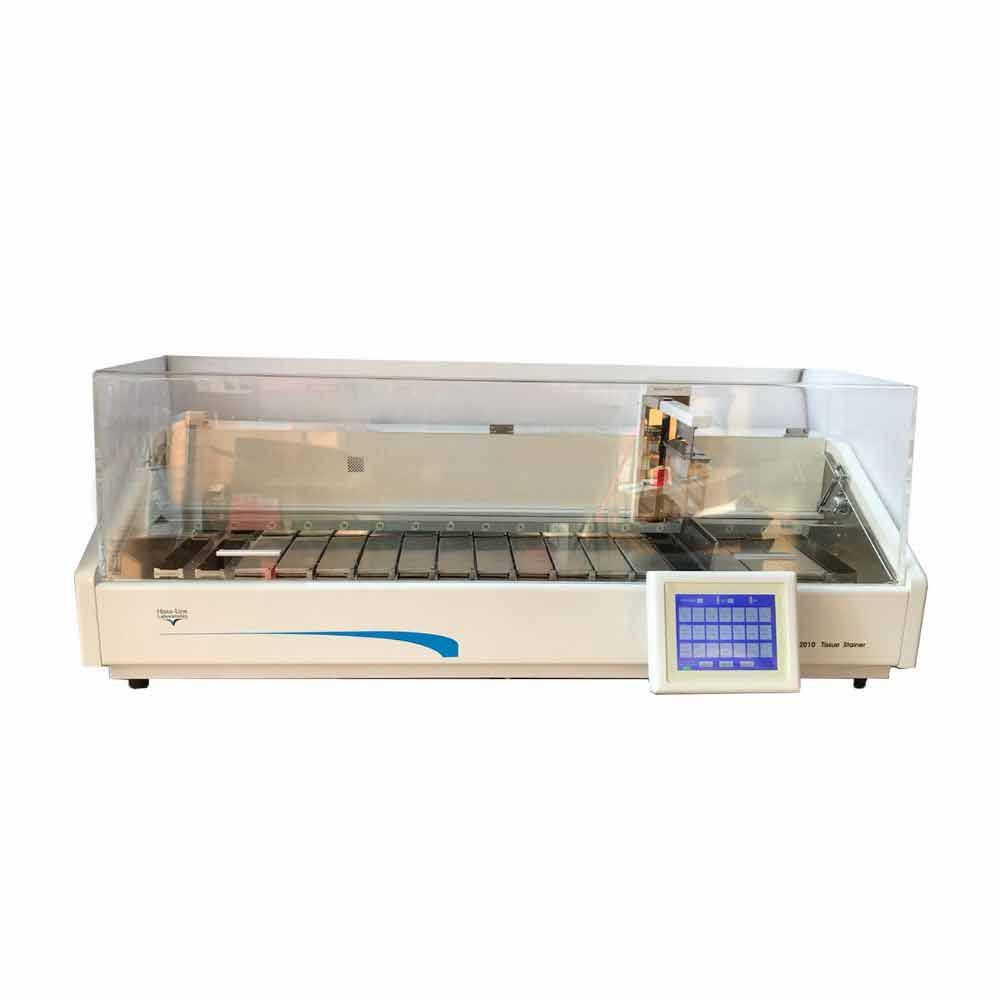

The ATS 2010 is a benchtop automatic linear slide stainer designed for both pathology and research laboratories. It combines precision in staining with versatility and operator safety, all housed in a compact, modern design. Offering exceptional adaptability, the ATS 2010 can accommodate a wide variety of consumer products while also providing the flexibility to utilise different reagents, consumables, and protocols.

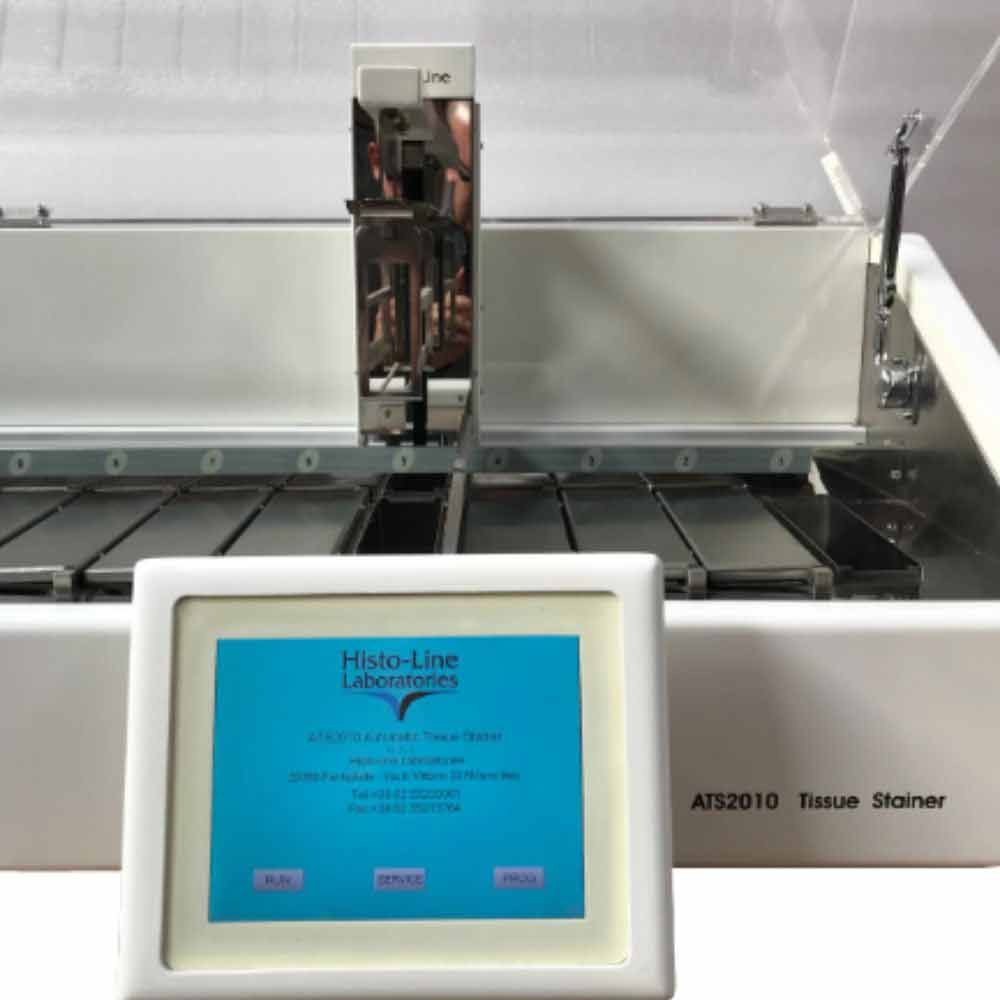

Specifically engineered for seamless integration of multiple staining protocols, the ATS 2010 allows for continuous operation and rack loading without any disruption to the staining process. All key functions, including station time, reagent sequencing, and agitation, are easily programmable and controllable via an intuitive touchscreen panel.

Featuring an ergonomic design, the instrument also includes an integrated oven for slide drying, digital electronic temperature control, and high-precision movement components guided by linear bearings on the axis. The system offers total flexibility with regard to consumables and reagents, ensuring superior staining quality.

Reliability And Precision of The Staining

The Histo-Line ATS 2010 comes equipped with a PLC-based control system, enhancing its functionality.
All functions are freely programmable and controlled by simple, reliable software.
A high-performance, precise transmission belt is implemented to ensure a balanced stroke and noise reduction.
The ATS 2010 has an ergonomic design, featuring an integrated heating station for slide drying and digital temperature controls.
Users can configure up to nine programs to accommodate a diverse range of staining protocols.
An optional UPS backup is available to sustain operations during power outages.

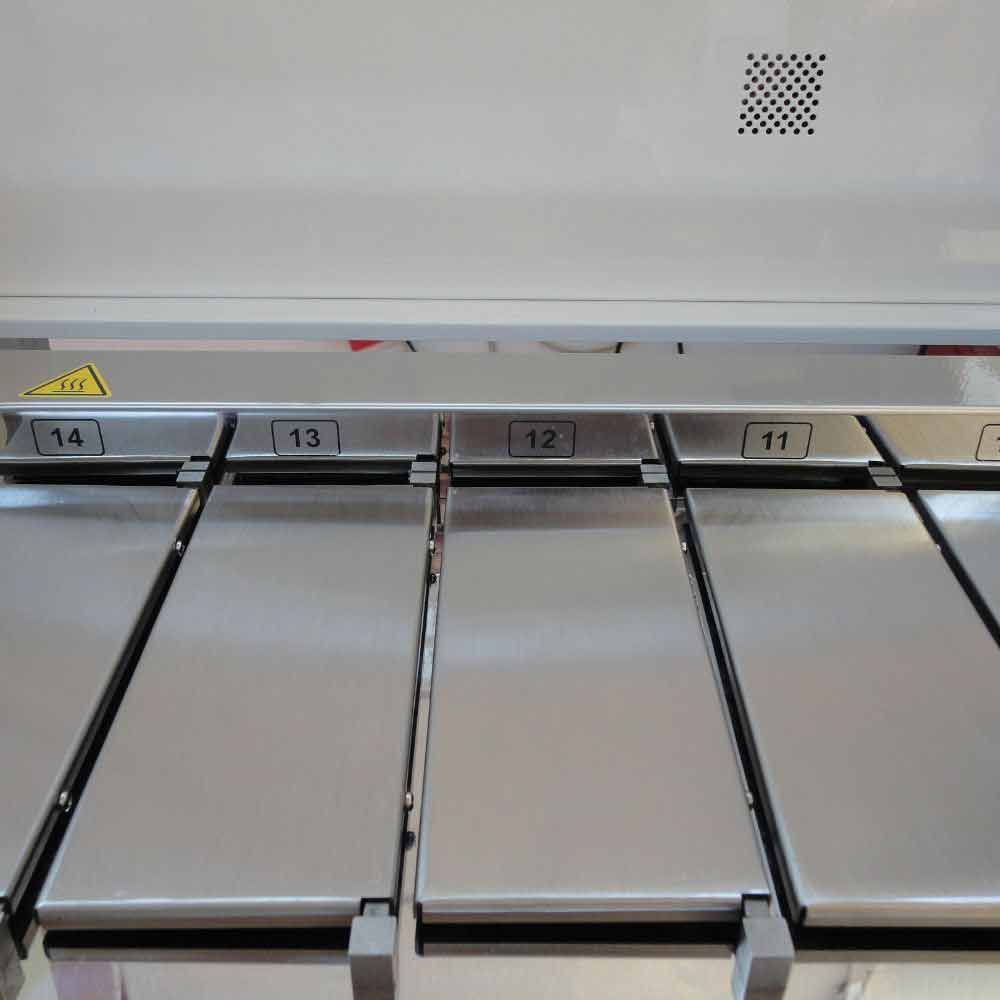

The system offers 18 available stations: 15 for reagents, one for water rinsing, one as a loading/heating station, and one as an exit station for unloading slide racks.

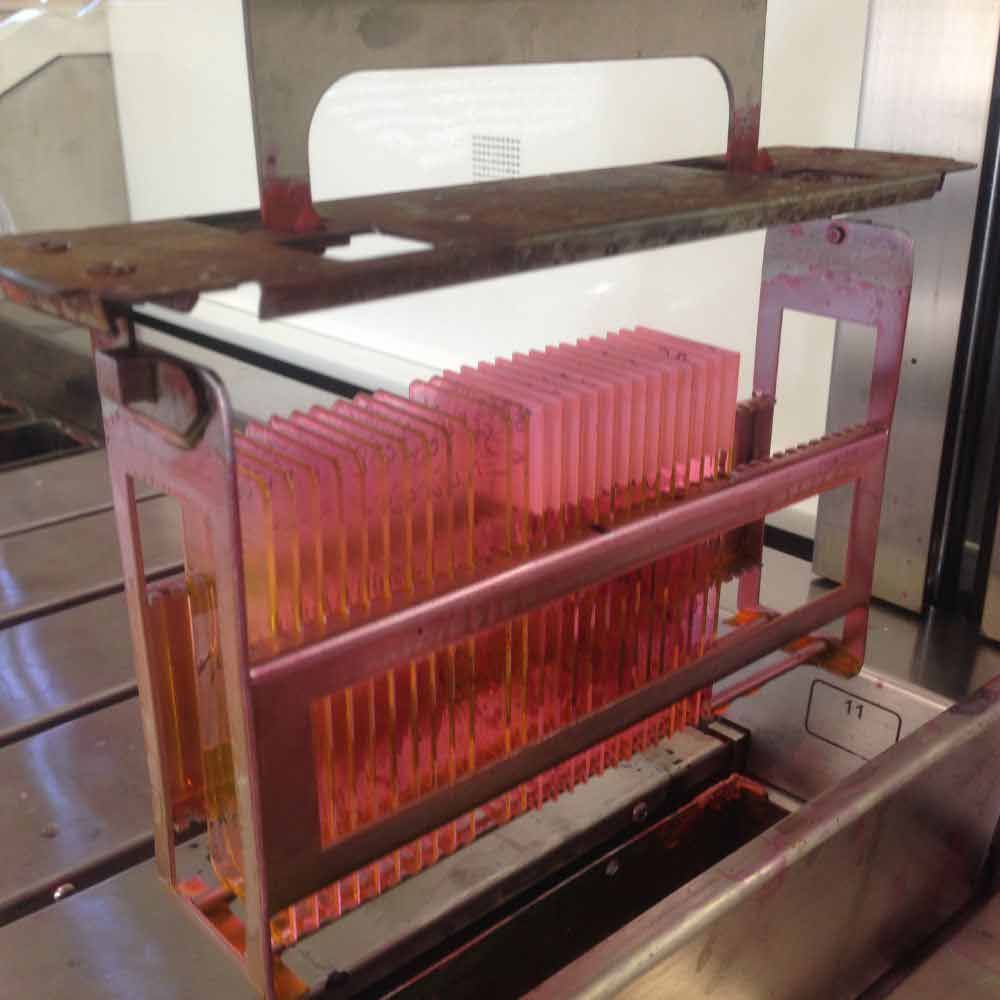

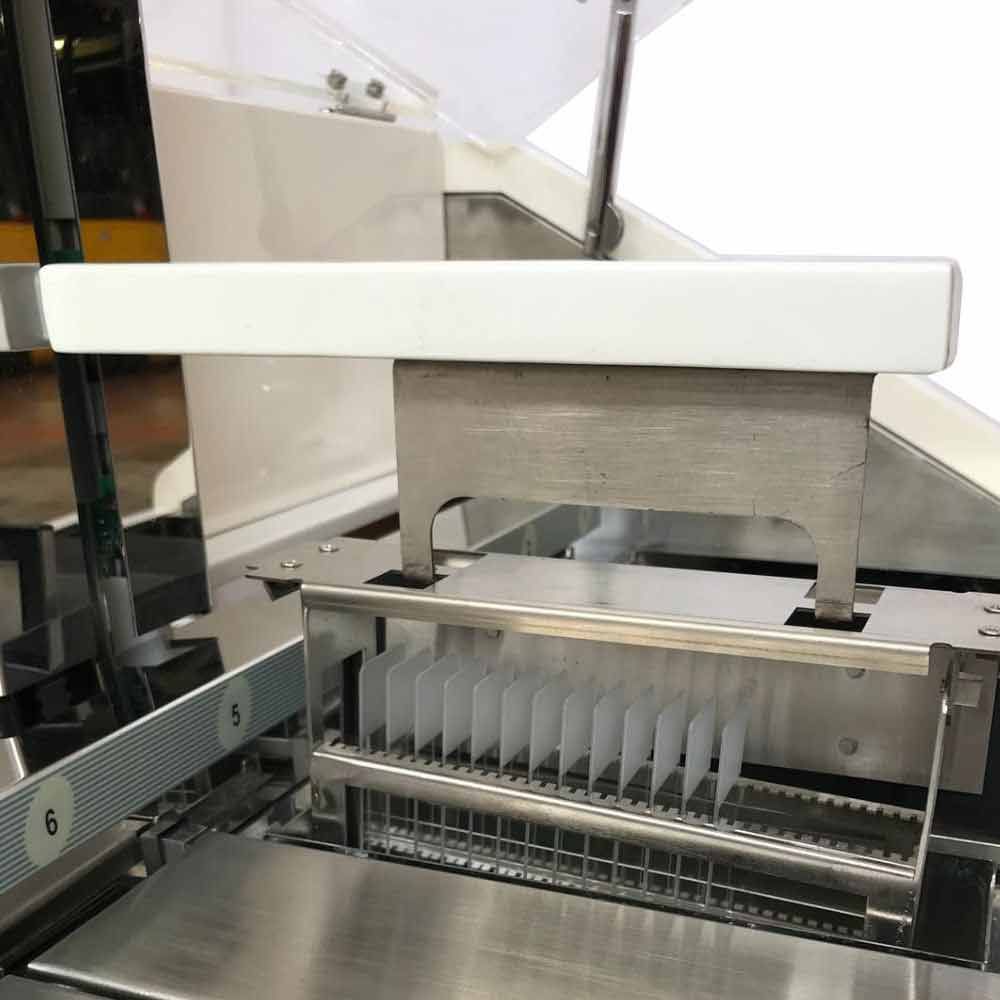

The system accommodates 38 slides per basket, facilitating a continuous workflow.
All reagent and paraffin containers are sealed to prevent evaporation.
An active carbon filter is in place to prevent solvent odors and pollution.
Audible alarms are set to notify operators of ongoing procedures and potential errors.

Productivity
Capacity	38 slides per basket, and work simultaneously with 2 baskets with a maximum capacity of 76 slides
Loading	2 slide rack
Slide rack capacity	38 specimen slides
Oven and temperature	1, from ambient temperature to 70°C
Total reservoirs	18
Reagent capacities
Number of stations	14
Number of reagent stations	15
Reservoir volume	1000 ml
Load/unload stations	1 each
Number of wash stations	1
Fume extraction system	Charcoal filter and smoke
Filling/drain time	up to 5 min
Software
Screen	Large touch-screen liquid crystal display (LCD) 14"
Programs	9 freely settable
Incubation time setting	from 0 sec. up to 9999 sec.
Temperature accuracy	± 1°C
UPS	(Optional) in order to carry out the work during power failure.
Max, delay time	99 hours, 59 minutes
Technical data
Power supply	220V ~ 50Hz or 110V ~ 60Hz
Relative humidity	10 to 80%
Maximum power draw	400 V/A
Size and weight
Width	140 cm
Depth	50 cm
Height	55 cm
Weight	110 kg
Certifications	CE-IVD
