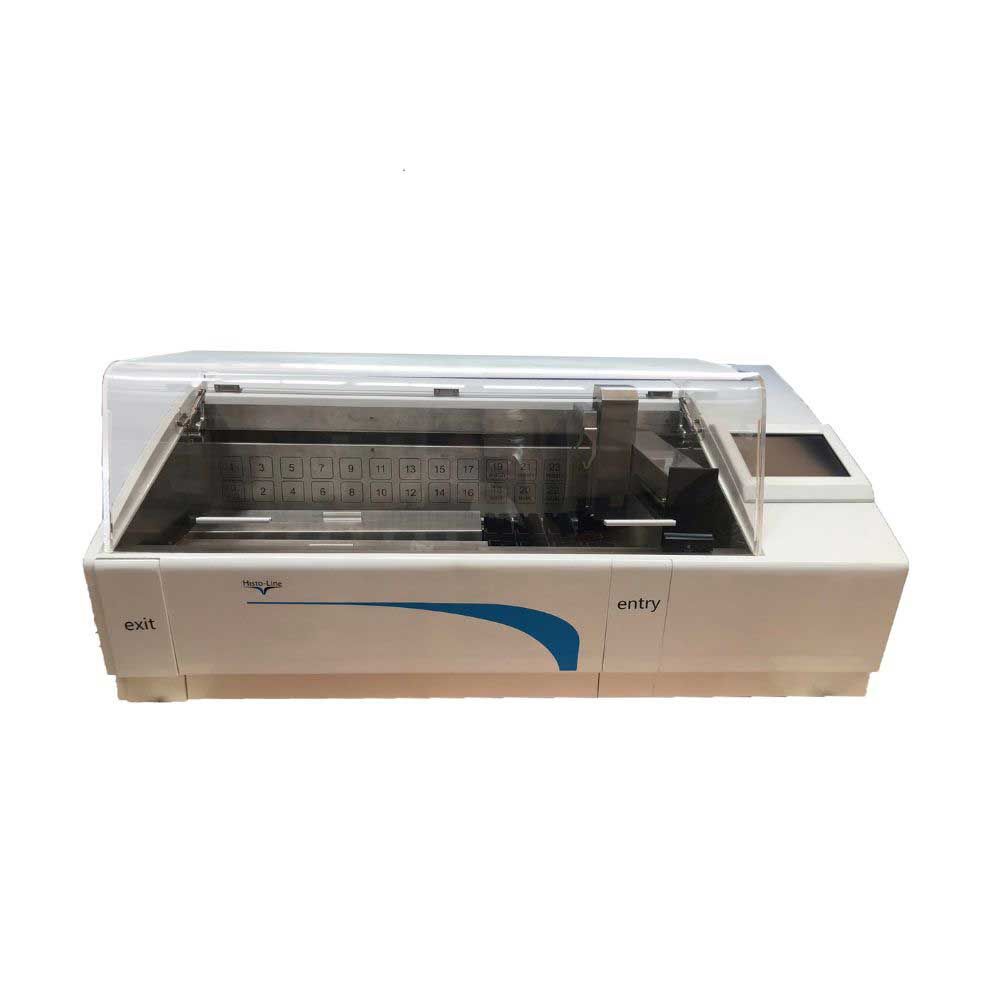

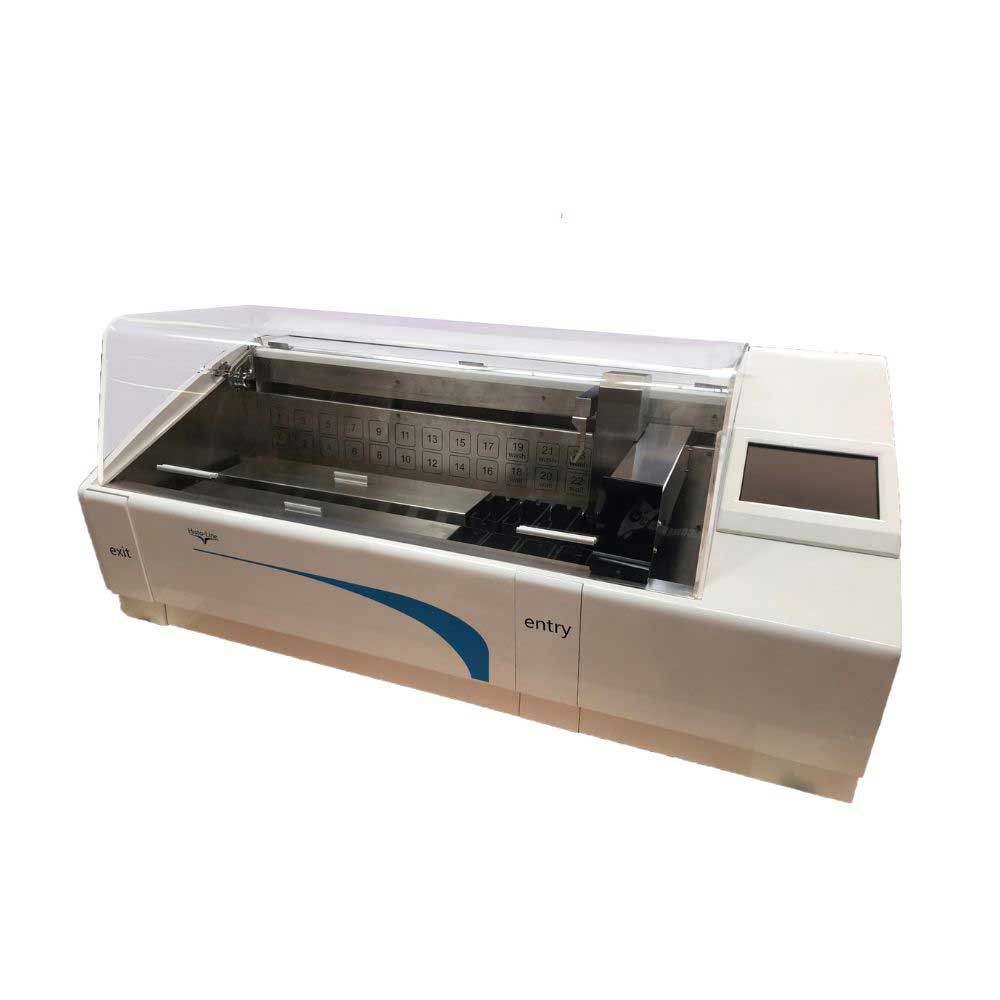

Automatic Multi-Slide Stainer, ATS200

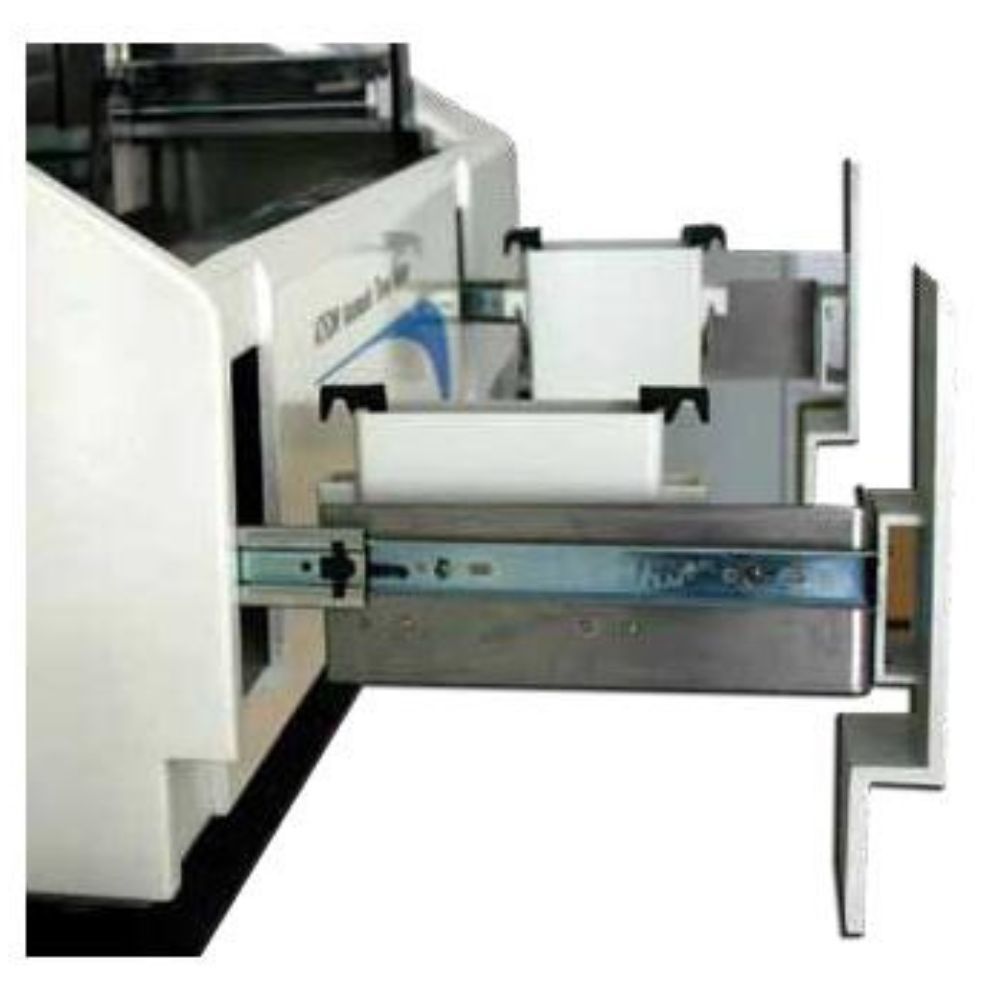

The ATS200 Automatic Slide Stainer is an essential component in the pathology workflow. Specifically designed for staining applications in both pathology and research settings, the ATS200 has the capability to simultaneously perform various staining protocols. Additionally, it allows continuous unloading and reloading without disrupting the ongoing staining cycle.

All functionalities, including menu-driven programming, incubation timings, and the sequence for utilizing reagent stations, are easily programmable. These parameters can be easily controlled through the device's touch-screen panel.

In terms of design and build, the unit offers ergonomic features, an integrated slide-drying oven, and digital temperature controls. The machine's moving parts employ high-precision linear guides to ensure accurate alignment along their axis. Moreover, the device provides complete flexibility by supporting a wide range of consumables and reagents, thereby ensuring exceptional staining quality.

Reliability and Precision of The Staining

• The Histo-Line ATS 200 comes equipped with a PLC-based control system, featuring a variety of functions.
• The system allows for customizable programming of various functions, including the timing for immersion and incubation, agitation settings, and the sequence of stations involved.
• A large, user-friendly LCD touchscreen provides easy navigation and readability.
• The machine incorporates a high-precision stepping motor and a transmission belt to ensure a balanced stroke and noise reduction.
• A fixed-position photoelectric switch is included, capable of memorizing specific locations and automatically restoring associated functions.
• The ergonomic design incorporates an integrated heating station for slide drying and digital temperature controls.
• Users have the capacity to store and execute up to 20 unique staining protocols, each consisting of 50 individual steps.
• An optional UPS backup can be connected, allowing for uninterrupted operation during power outages.

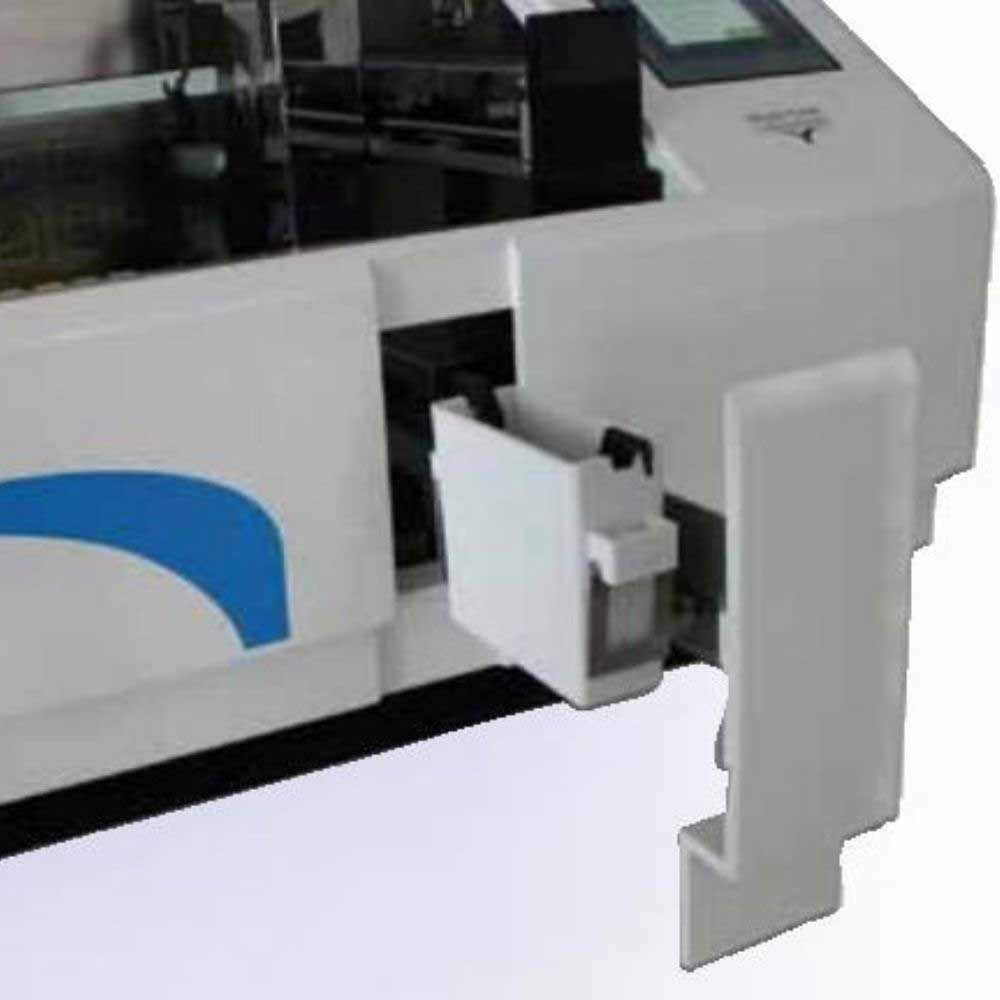

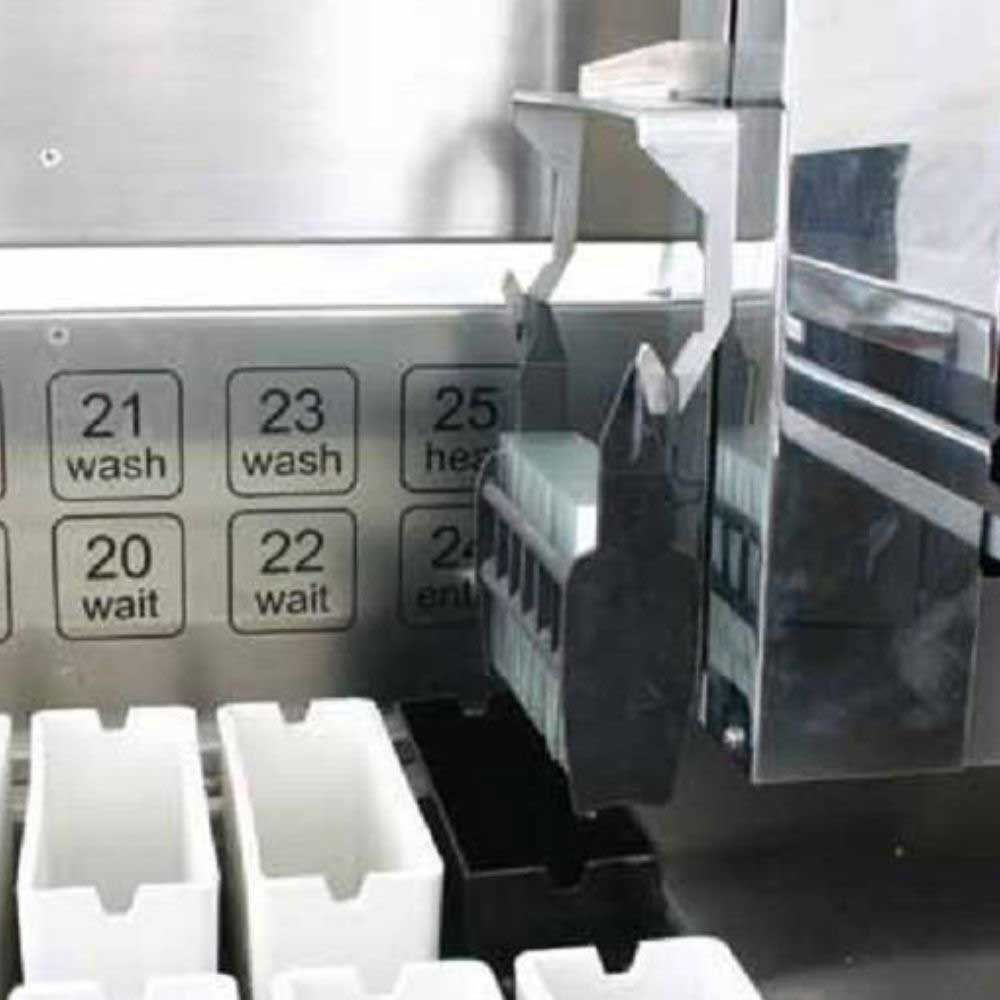

• The ATS 200 offers a total of 26 stations: 18 are designated for reagents, three for water rinsing, three are waiting stations, one is a loading station, one is an unloading station for slide racks, and one is a heating station.
