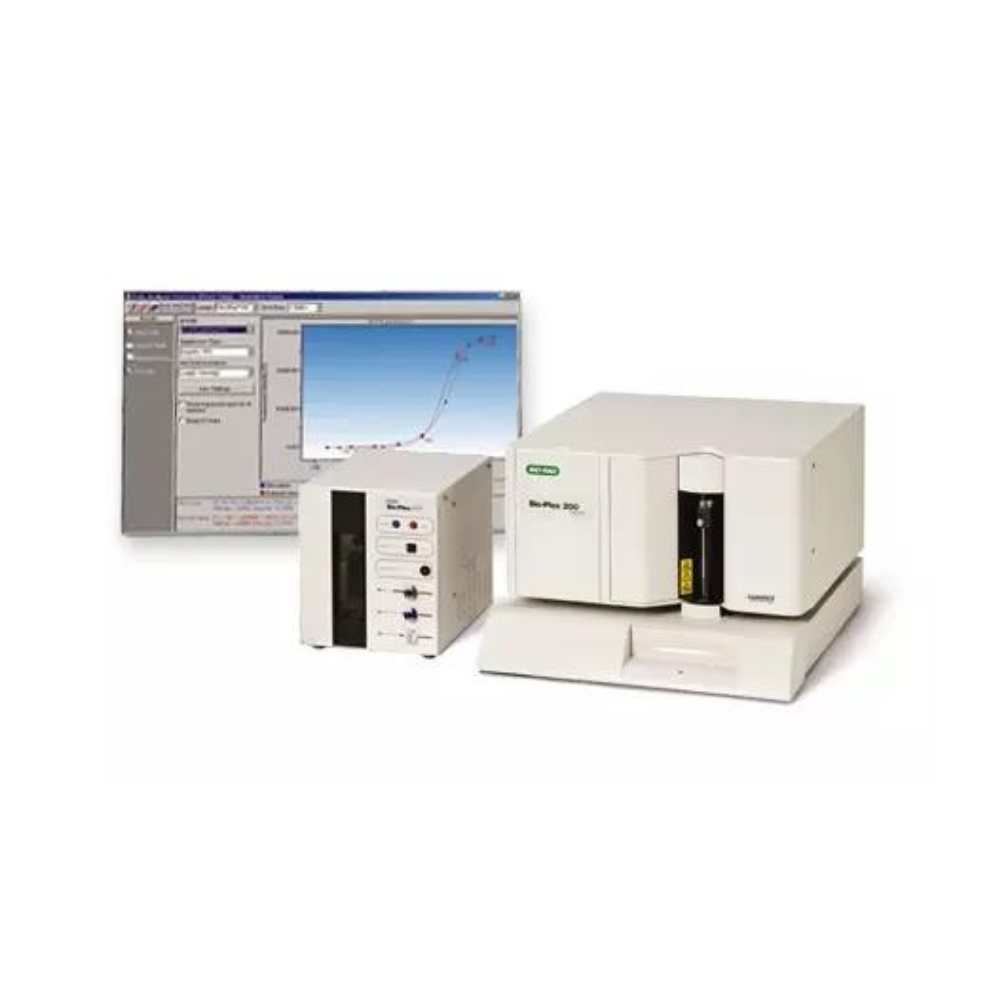

The Bio-Plex 200 system is a suspension array system which offers protein and nucleic acid researchers a reliable multiplex assay solution that permits analysis of up to 100 biomolecules in a single sample.

Included System Components

Array reader - combines 2 lasers, high-throughput fluidics, and real-time digital signal processing to distinguish up to 100 different color-coded bead sets, each representing a different assay
Microplate platform - automates the reading of 96-well plates, yielding up to 9,600 data points in about 35 min
Calibration and validation kits - system tools for daily calibration of signal output and for IQ/OQ and monthly validation of the primary performance parameters of the reader
Bio-Plex MCV plate IV - maintenance, calibration, and validation (MCV) plate customized for hands-free startup, shutdown, and performance testing
PC and monitor - includes Windows 10 operating system, Bio-Plex Manager, Microsoft Office and Adobe Acrobat Reader software, and a 17" flat-screen monitor"
Bio-Plex Manager software - controls the instrument, data acquisition, and data analysis for superior curve fitting, statistics reporting, and charting features, without requiring the exporting or importing of files
Bio-Plex SNP Manager™ data analysis utility - simple-to-use data analysis tool for nucleic acid applications

Bio-Plex Quick Tip Videos

Environment conditions
Operating temperature	15–30°C (59–86°F)
Operating humidity, noncondensing	20–80%
Operating altitude	Designed to operate at up to 2,000 m (6,600') mean sea level
Compensatory range	±2°C
UL installation category	UL Installation Category II, as defined in Annex J of UL 3101–1
Pollution degree	UL Pollution Degree 2, as defined in Section 3.7, 3.2, of UL 3101–1
Bio-Plex Array Reader Specifications
Input voltage range	100–240 V, 1.5 A, 47 – 63 Hz
Physical dimensions (W x D x H), cm	43 x 51 x 23
Weight, kg/lb	23/60
Lasers
Reporter laser	532 nm, >10 mW, frequency-doubled diode; 30 x 60 µm elliptical beam
Classification laser	635 nm, 10 mW, diode; 30 x 60 µm elliptical beam
Fluidics
Sheath flow rate, µl/sec	90
Cuvette	200 µm square flow channel
Sample injection rates, µl/sec	60
Electronics
Reporter channel detection	Photomultiplier tube, A/D resolution 14 bits
Classification and doublet discriminator channel detection	Avalanche photodiodes with temperature compensation, A/D resolution 12 bits
Communication interface	RS–232
Signal Processing
Measurement resolution	15 bits effective
Processor modes	Linear, with logarithmic or linear display option
Dynamic range, dB	70
Bio-Plex Microplate Platform Specifications
Input voltage range	100–240 V, 1.8 A, 47–63 Hz
Physical dimensions (W x D x H), cm	44 x 61 x 8
Weight, kg/lb	14.4 (32)
Communications interface	RS–232
Plate capacity	One 96-well microtiter plate, ≤0.75
