Trinocular Zoom Stereo Microscope, BS-3060CT

Trinocular Zoom Stereo Microscope, BS-3060CT

Be the first to review this product

R 62,616.33

Model: BS-3060CT
Magnification: 8×-80×
Eyepiece: EW10×/22mm
Zoom Objective: 0.8×-8×
Working Distance: 78mm
Illumination: LED
Viewing Head: Trinocular
Zoom Ratio: 1:10

Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.

Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.

DISCLAIMER

All product images are for illustrative purposes only. Actual products may vary slightly in terms of colours, controls and visible features.

Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.

Availability:On Request

SKU

IMICBS-3060CT

BrandBestScope

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BS-3060CT trinocular zoom stereo microscope with adjustable stand and top lighting module.

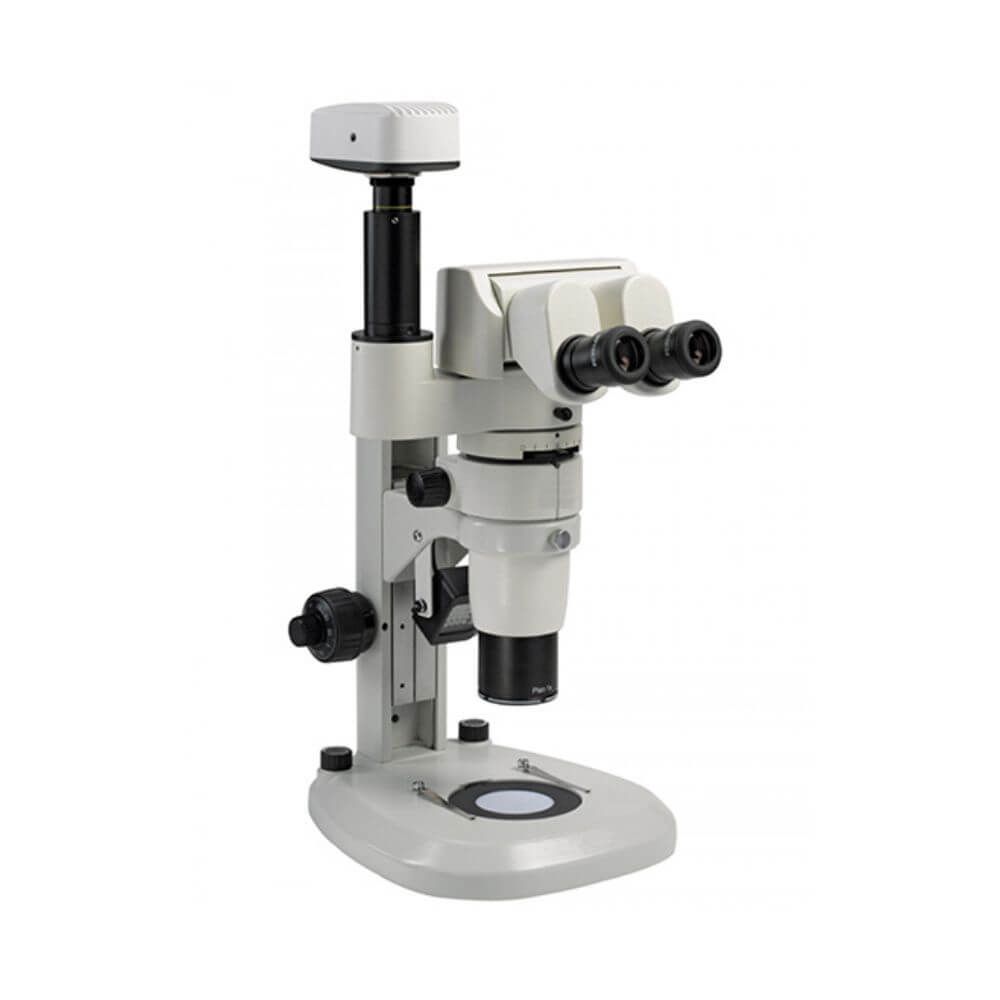

BS-3060CT trinocular zoom stereo microscope shown from an alternative angle with dual eyepieces and height-adjustable stand.

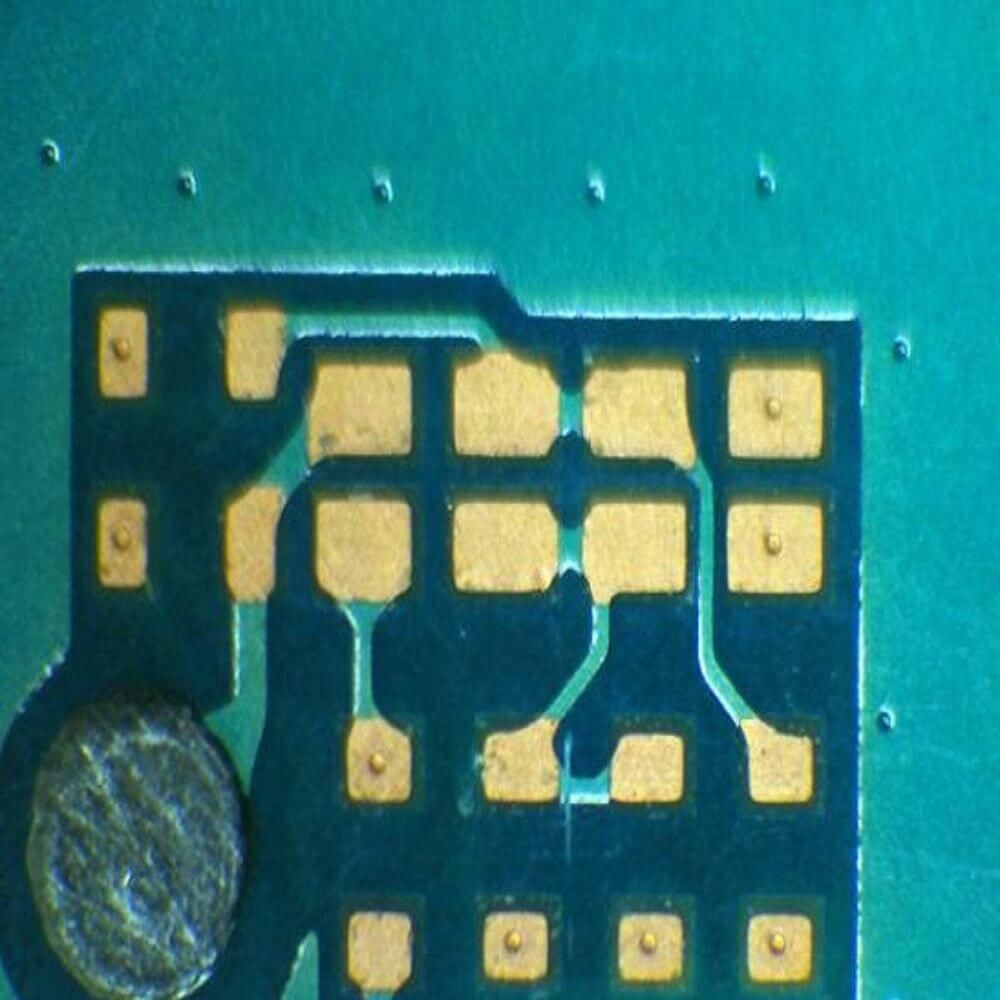

magnified circuit board section showing gold pads and connecting traces.

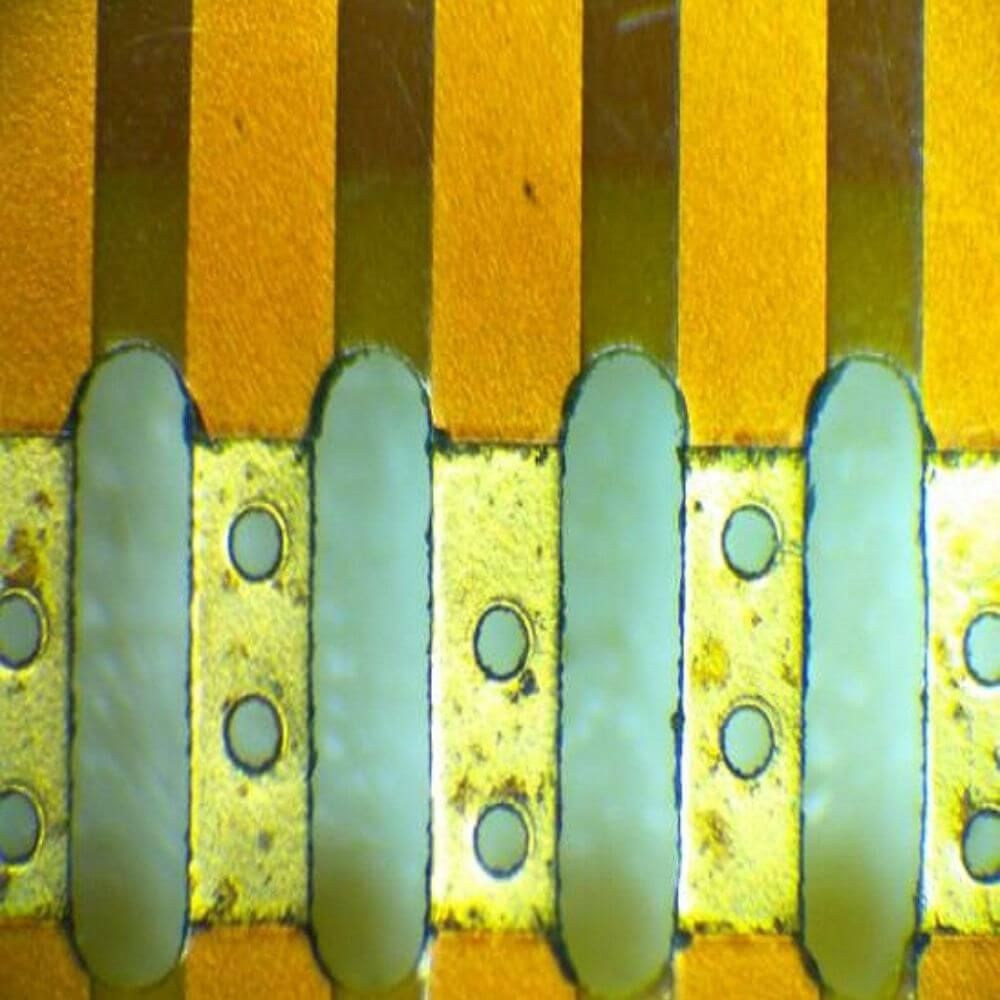

magnified flexible circuit showing plated holes and gold-coloured conductive tracks.

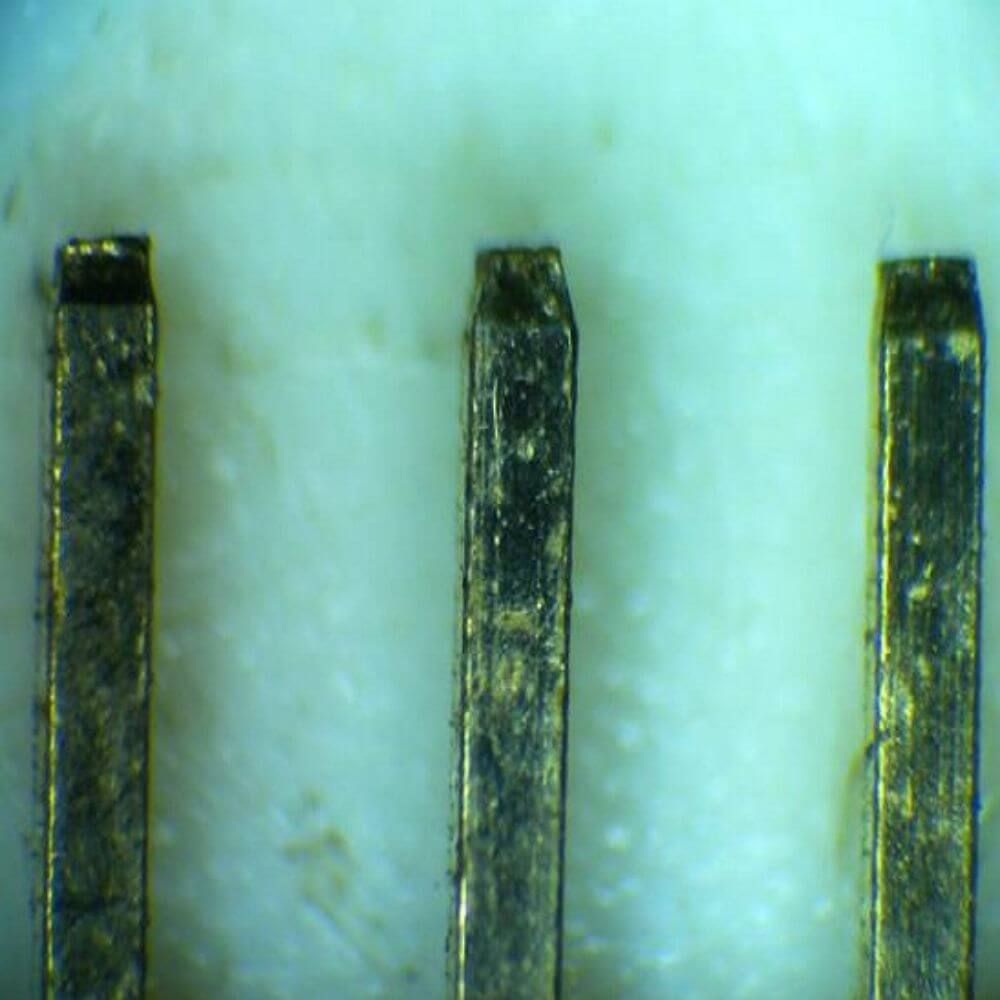

magnified metallic connector pins against a light background.

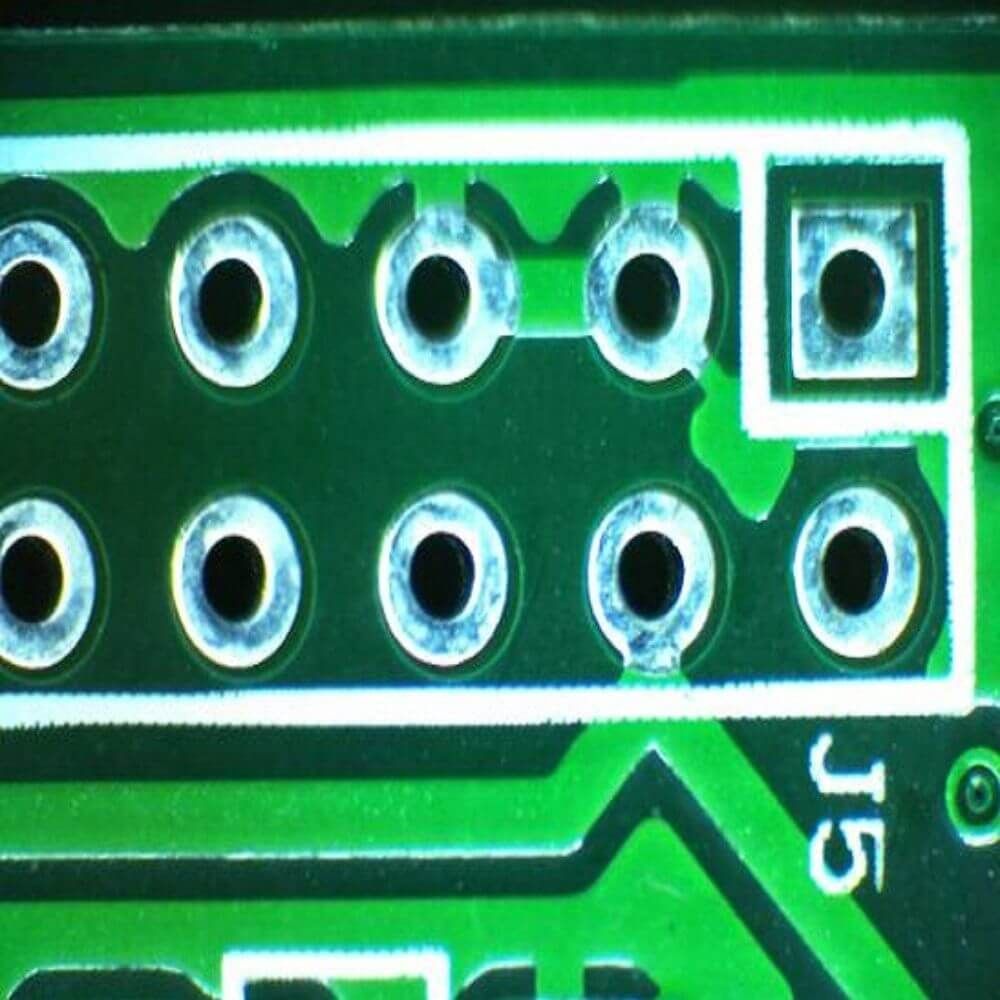

magnified PCB area with multiple plated holes and white alignment markings.

Details

Product Overview

Stereo microscopes, also known as low-magnification or dissecting microscopes, provide three-dimensional imaging suitable for a range of applications. The BS-3060 Series Zoom Stereo Microscope, equipped with an infinity parallel optical system and mounted on a post stand, delivers upright, unreversed 3D images that remain in focus across the entire zoom range. Optional eyepieces and auxiliary objectives are available to expand the magnification range and working distance.

This is a high-level stereo microscope. Optional cold light and ring light sources can be selected to enhance illumination. A trinocular head is also available, allowing for the attachment of a digital camera via a compatible camera adapter.

In summary, the BS-3060 Series Parallel Stereo Microscopes offer an extensive range of magnifications, long working distances, versatile photo options, and a wide array of accessories. Their ease of use and adaptability make them a popular choice among professionals and researchers.

Features

Excellent image quality and optical performance with the infinity parallel optical system.
Comfortable operation based on ergonomic design principles.
Equipped with LED lighting for both incident and transmitted illumination, providing uniform light and a service life of up to 6,000 hours.
A wide range of accessories can be used with the microscope for multi-purpose applications. It is an outstanding tool for industrial, medical, and scientific research fields.

Applications

The BS-3060 series stereo zoom microscopes, equipped with an infinity parallel optical system, offer significant value across a wide range of applications. These include industrial, medical, and scientific research fields, as well as circuit board repair and inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and the repair and inspection of small components.

Technical Specifications

Item	Specification	BS-3060CT
Optical System	Infinite Parallel Zoom Optical System	●
Viewing Head	Trinocular Head, 20°Inclination, Interpupilary Distance 55-75mm	●
Viewing Head	Tilting Trinocular Eyepiece Tube, 5°-35° Inclined, Interpupilary Distance 55-75mm	○
Eyepiece	EW10×/Φ22mm	●
	EW10×/Φ24mm	○
	WF15×/Φ16mm	○
	WF20×/Φ12mm	○
	WF30×/Φ8mm	○
Zoom Objective	0.8×-5×
	0.8×-6.4×
	0.8×-8×	●
Objective	Plan Achromatic Objective 1×, W.D.: 78mm	●
	Achromatic Objective 0.3×, W.D.: 276mm	○
	Achromatic Objective 0.5×, W.D.: 195mm	○
	Plan Apochromatic Objective 0.5×, W.D.: 126mm	○
	Plan Achromatic Objective 2×, W.D.: 32.5mm	○
Zoom Ratio	1: 6
	1: 8
	1: 10	●
Focusing Unit	Coarse Focus Knob with tension adjustable, Moving range 105mm	○
Focusing Unit	Coaxial Coarse & Fine Focus Knob with tension adjustable, Moving range 105mm	●
Illumination	Transmission & Reflection LED Illumination, Brightness Adjustable	●
Optional Accessories	Coaxial Illumination	○
	Epi-Fluorescent Attachment	○
	Dark Field Attachment	○
	Simple Polarization Set	○
	Iris Diaphragm	○
	Beam splitter (one port)	●
	Beam splitter (two ports)	○
	Photography & video attachment	○
	Moveable Stage	○
	Temperature controlled Stage	○
	Universal Table Stand/Table Clamp Stand	○
	Cold light illumination with dual light guide	○
	LCD Attachment	○
Package	1pc/carton, 49cm40cm56cm, 9.5kg	●
Note: ● Standard Outfit, ○ Optional
