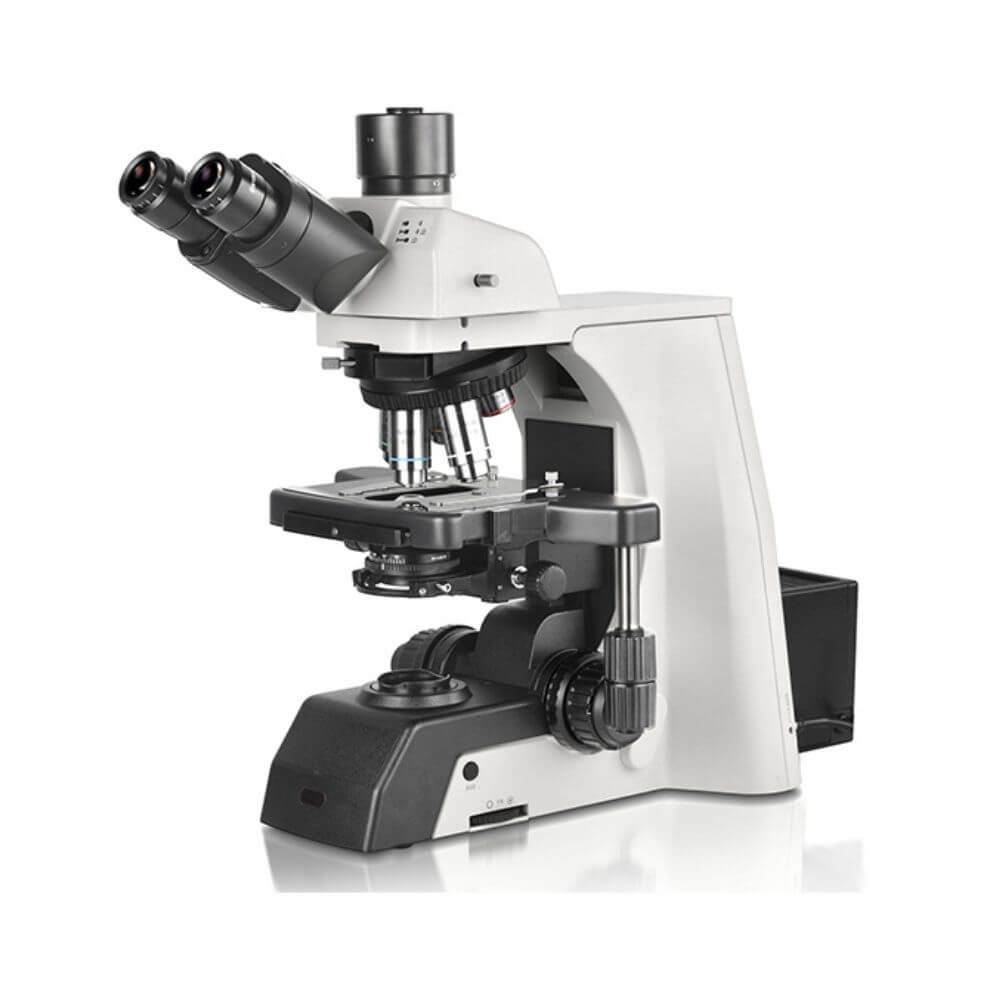

Research Biological Microscope, BS-2081
R 72,864.76
- Model: BS-2081
- Magnification: 40x-1000x
- Eyepiece: SW10x/25mm
- Objective: 4×,10×,20x,40×,100×(Oil)
- Illumination: S-LED
- Stage: 190mm×152mm
- Condenser: N.A. 0.9/0.25
- Viewing Head: Trinocular
- Nosepiece: Backward Sextuple Nosepiece (with DIC slot)
Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.
Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.
- Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.
Availability:On Request
SKU
IMICBS-2081
BrandBestScope
Product Overview
BestScope continues to address the research needs of specialised fields such as pathology, cytology, and virology by continuously optimising and upgrading the BS-2081 series of scientific-grade upright microscopes, offering near-perfect optical performance and mechanical design. The NIS Infinity Optical System delivers precise imaging and excellent chromatic aberration correction. With high colour fidelity illumination, high-quality optics, and comprehensive accessories, these microscopes are ideal for advanced life science research requiring dark-field observation, differential interference contrast (DIC), or high-performance fluorescence imaging.
In addition, a wide range of motorised and intelligent components, combined with powerful imaging software, supports both rapid sample overviews and detailed inspections. This enhances workflow efficiency, reduces user fatigue, and significantly improves comfort and productivity. Whether in clinical or research laboratories, the BS-2081 series provides an optimal microscopy imaging solution.
Features

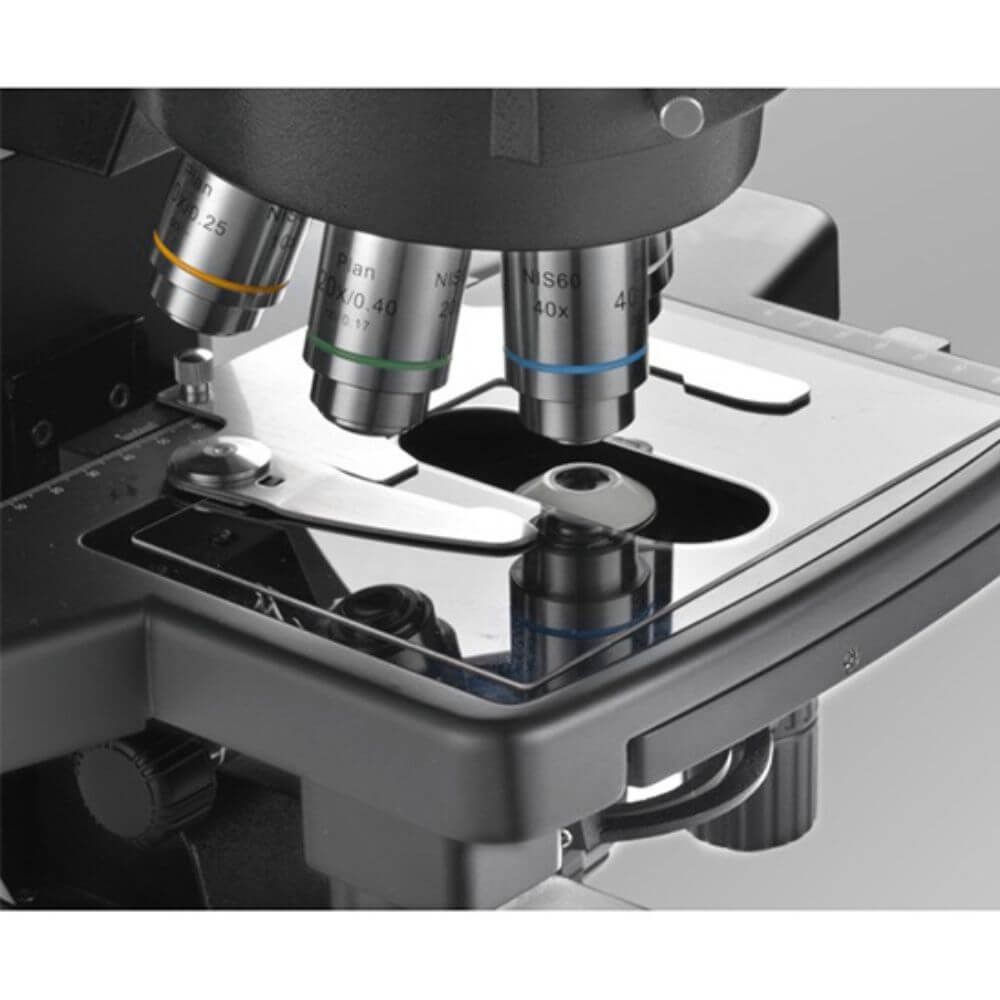

- Sapphire Glass Stage (Optional)
The mechanical stage with a sapphire glass insert is optional. It is highly durable, scratch-resistant, and allows users to clean the stage surface easily. - Single-Handed Slide Placement

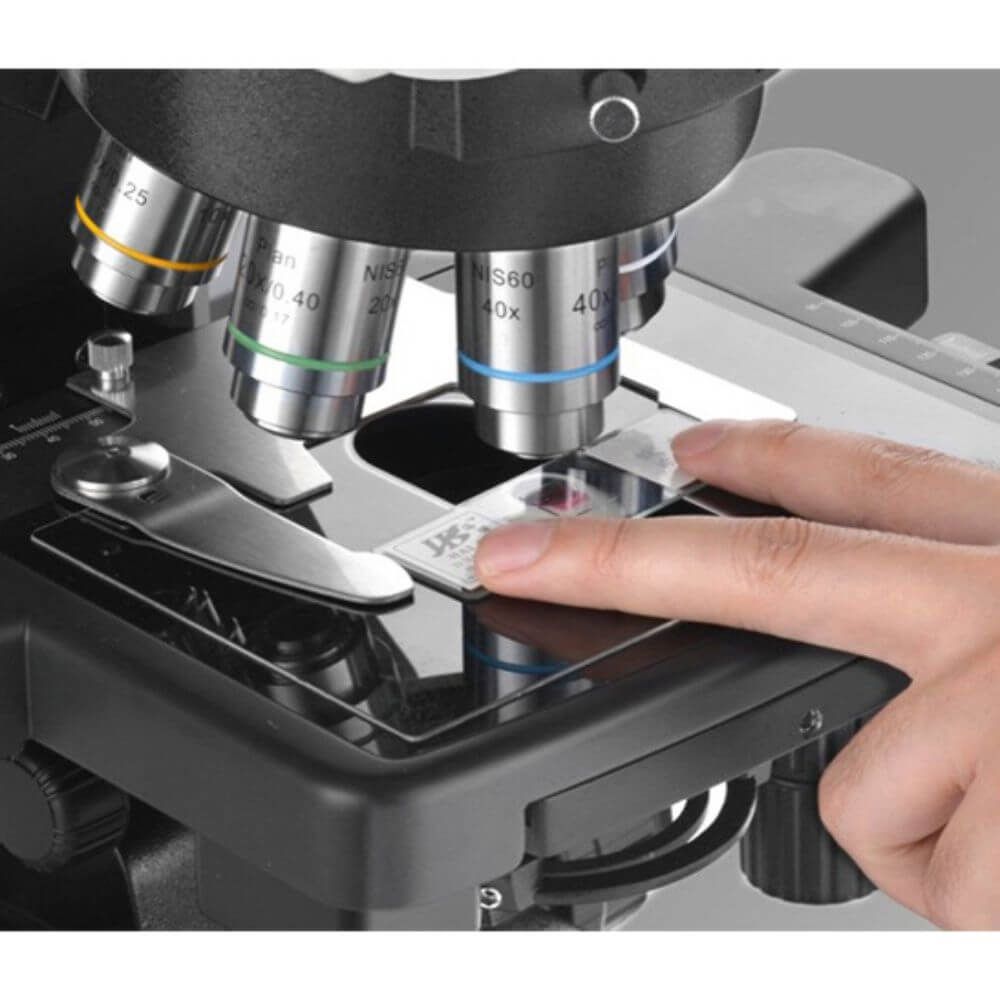

The specially designed slide clip enables users to place slides with one hand, improving convenience and efficiency during operation. - Tilting Trinocular Head (Optional)
The eye tube angle is adjustable from 0° to 35°.
Digital cameras or DSLR cameras can be mounted on the trinocular port.
The beam splitter offers three positions (100:0, 20:80, 0:100) to accommodate different imaging needs.
The splitter bar can be installed on either side, depending on user preference. - ECO Function

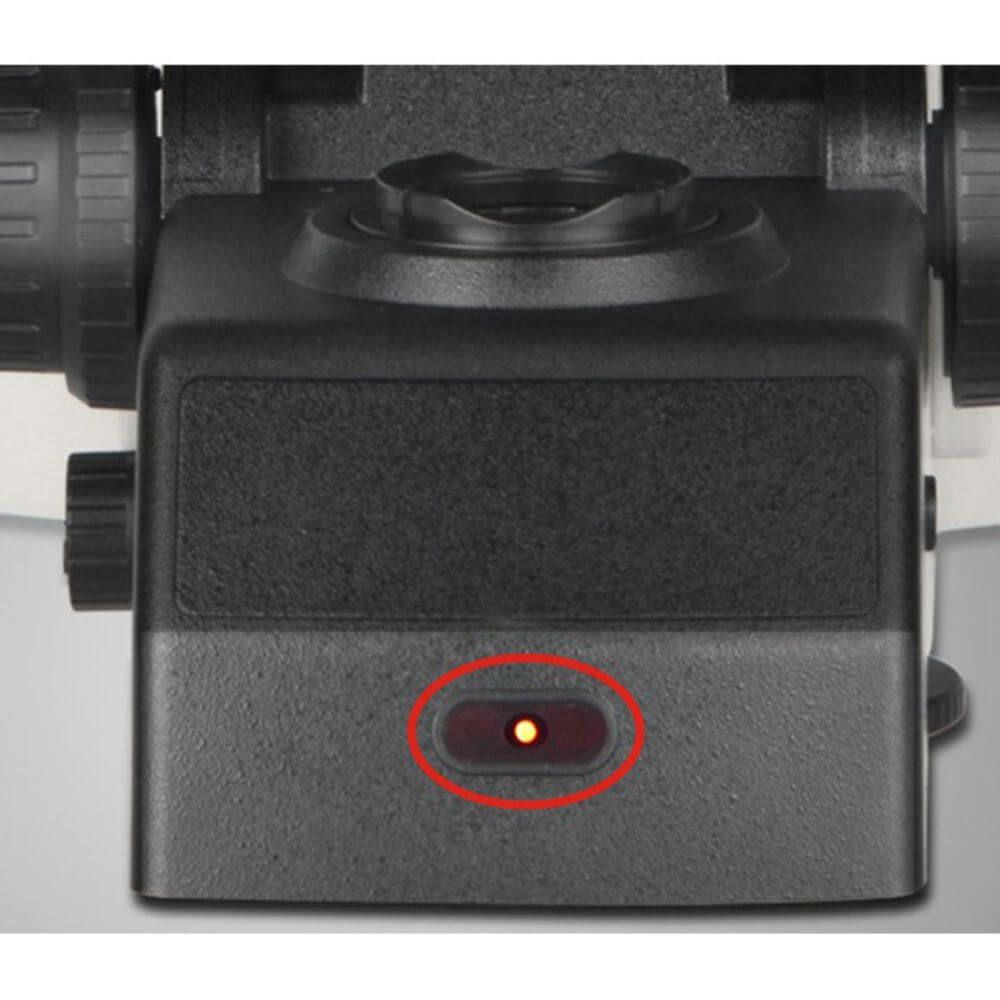

The transmitted light automatically turns off 30 minutes after the operator leaves, helping to conserve energy and extend lamp life. - Low-Position X-Y Knobs
The height of the stage control knobs can be adjusted up or down by 18 mm to ensure a comfortable hand position. The tension of the X-Y control knobs is also adjustable to suit user preferences.
Applications
The BS-2081 research microscope is an ideal instrument for applications in biology, histology, pathology, bacteriology, immunology, and pharmaceutical research. It is widely suitable for use in medical and healthcare institutions, research laboratories, academic institutes, and university teaching laboratories.
| Item | Specification | BS-2081 | |
|---|---|---|---|
| Optical System | NIS60 Infinite Color Corrected Optical System | ● | |
| Viewing Head | Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece: Trinocular=100:0 or 20:80 or 0:100 | ● | |
| Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece: Trinocular=100:0 or 20:80 or 0:100 | ○ | ||
| Seidentopf Binocular Head, 30° inclined, interpupillary distance: 47mm-78mm | ○ | ||
| Eyepiece | Super wide field plan eyepiece SW10X/25mm, diopter adjustable | ● | |
| Super wide field plan eyepiece SW10X/22mm, diopter adjustable | ○ | ||
| Extra wide field plan eyepiece EW12.5X/17.5mm, diopter adjustable | ○ | ||
| Wide field plan eyepiece WF15X/16mm, diopter adjustable | ○ | ||
| Wide field plan eyepiece WF20X/12mm, diopter adjustable | ○ | ||
| Objective | N-PLN Plan Objective | N-PLN 2X/NA=0.06, WD=7.5mm | ○ |
| N-PLN 4X/NA=0.10, WD=30mm | ● | ||
| N-PLN 10X/NA=0.25, WD=10.2mm | ● | ||
| N-PLN 20X/NA=0.40, WD=12mm | ● | ||
| N-PLN 40X/NA=0.65, WD=0.7mm | ● | ||
| N-PLN 100X(Oil)/NA=1.25, WD=0.2mm | ● | ||
| N-PLN 50X(Oil)/NA=0.95, WD=0.19mm | ○ | ||
| N-PLN 60X/NA=0.80, WD=0.3mm | ○ | ||
| N-PLN-I 100X (Oil, with Iris Diaphragm)/ NA=0.5-1.25, WD=0.2mm | ○ | ||
| N-PLN PH Plan Phase Contrast Objective | N-PLN PH 10X/NA=0.25, WD=10.2mm | ○ | |
| N-PLN PH 20X/NA=0.40, WD=12mm | ○ | ||
| N-PLN PH 40X/NA=0.65, WD=0.7mm | ○ | ||
| N-PLN PH 100X(Oil)/NA=1.25, WD=0.2mm | ○ | ||
| N-PLFN Plan Semi-apochromatic Fluorescent Objective | N-PLFN 4X/NA=0.13, WD=17.2mm | ○ | |
| N-PLFN 10X/NA=0.30, WD=16.0mm | ○ | ||
| N-PLFN 20X/NA=0.50, WD=2.1mm | ○ | ||
| N-PLFN 40X/NA=0.75, WD=1.5mm | ○ | ||
| N-PLFN 100X(Oil)/NA=1.4, WD=0.16mm | ○ | ||
| N-PLFN PH Plan Semi-apochromatic Fluorescent Phase Contrast Objective | N-PLFN PH 10X/NA=0.30, WD=15.8mm | ○ | |
| N-PLFN PH 20X/NA=0.50, WD=2.7mm | ○ | ||
| N-PLFN PH 40X/NA=0.75, WD=1.35mm | ○ | ||
| N-PLFN PH 100X(Oil)/NA=1.40, WD=0.18mm | ○ | ||
| N-PLPN Plan Apochromatic Objective | N-PLPN 10X/NA=0.45, WD=4.0mm | ○ | |
| N-PLPN 20X/NA=0.75, WD=1.1mm | ○ | ||
| N-PLPN 40X/NA=0.95, WD=0.21mm | ○ | ||
| N-PLPN 60X(Oil)/NA=1.42, WD=0.25mm | ○ | ||
| N-PLPN 100X(Oil)/NA=1.45, WD=0.13mm | ○ | ||
| Nosepiece | Backward Sextuple Nosepiece (with DIC slot) | ● | |
| Backward Coded Sextuple Nosepiece (with DIC slot) | ○ | ||

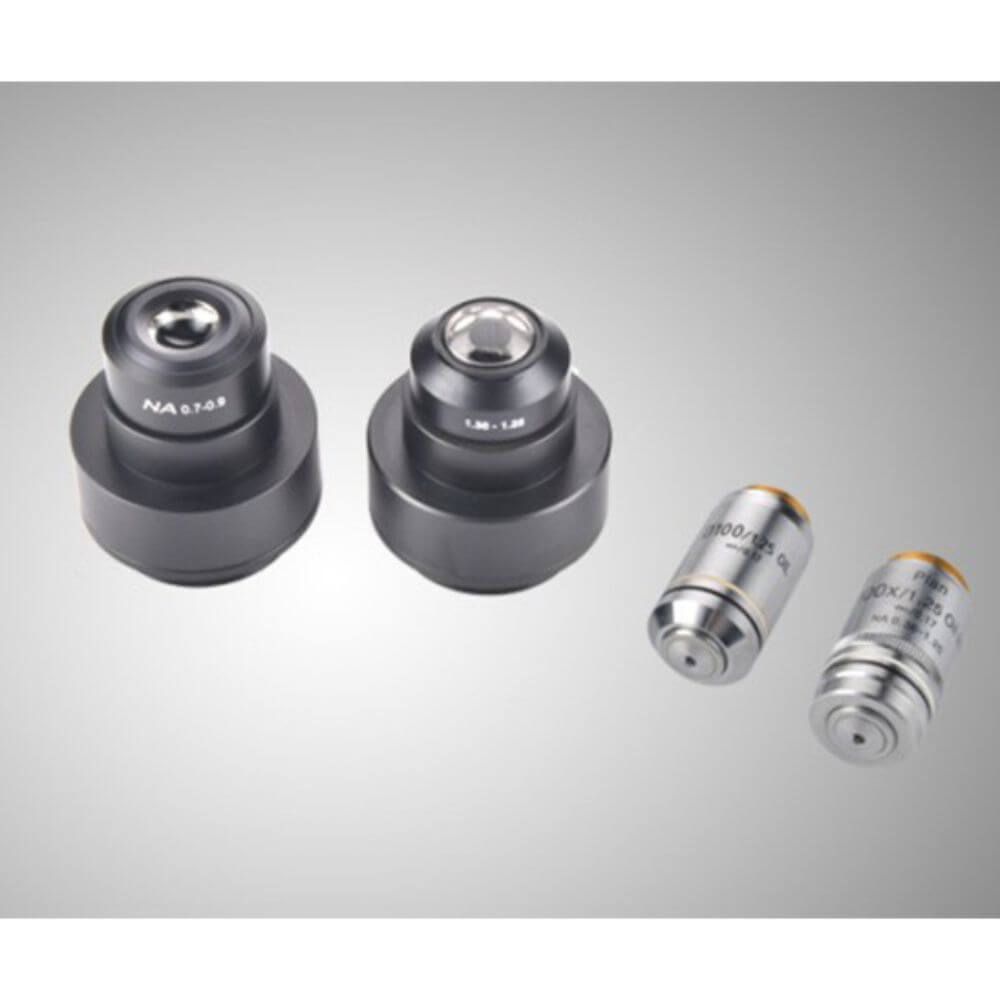

| Condenser | Swing-out type condenser N.A.0.9/0.25 | ● | |
| Turret Phase Contrast Condenser | ○ | ||
| Dark-field Condenser (Dry), used for objectives lower than 100X | ○ | ||
| Dark-field Condenser (Oil), used for 100X objective | ○ | ||
| Transmitted Illumination | 3W S-LED lamp, center pre-set, intensity adjustable | ● | |
| 3W S-LED lamp, center pre-set, intensity adjustable. LCD screen with illumination management system | ○ | ||
| 12V/100W halogen lamp, center pre-set, intensity adjustable | ○ | ||
| Focusing | Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm | ● | |
| Stage | Double layers mechanical stage, size 190mmX152mm; moving range 78mmX54mm (double slide holder, Right or left handle); precision: 0.1mm, with Ultra-hard Glass Insert | ● | |
| Double layers mechanical stage, size 190mmX152mm; moving range 78mmX54mm (double slide holder, Right or left handle); precision: 0.1mm; with Sapphire Crystal Glass Insert | ○ | ||
| DIC Kit | Polarizer for DIC Kit | ○ | |
| DIC insert plate(10X/20X), can be inserted into the DIC slot on nosepiece | ○ | ||
| DIC insert plate(40X/100X) can be inserted into the DIC slot on nosepiece | ○ | ||
| DIC Turret Condenser (10X, 20X/40X, 100X Warrior Prism inside) | ○ | ||
| Reflected Fluorescence Illuminator (with mercury lamp) | Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot; with fluorescence B, G filters | ○ | |
| 100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable. | ○ | ||
| Digital power controller, wide voltage 100-240VAC | ○ | ||
| ND6/ND25 Filter | ○ | ||
| U, V, R, FITC, DAPI, TRITC, Auramine, mCherry, FL-BG fluorescent filters | ○ | ||
| Reflected Fluorescent Attachment (with LED lamps) | LED Reflected Fluorescent Attachment, Turret with 6-position for filter block cubes, including B, G fluorescent filters and B, G, U, R LED lamps (the LED lamps can be used for B, G, U, R, FITC, DAPI, TRITC fluorescent filters), there are 4 positions for the LED lamps | ○ | |
| U, R, FITC, DAPI, TRITC fluorescent filters | ○ | ||
| Filter for Transmitted Illumination | Green Filter 45mm | ○ | |
| Blue Filter 45mm | ○ | ||
| Yellow Filter 45mm | ○ | ||
| Red Filter 45mm | ○ | ||
| ND6 Filter | ○ | ||
| ND25 Filter | ○ | ||
| Other Accessories | 0.5X C-mount Adapter | ○ | |
| 1X C-mount Adapter | ○ | ||
| Dust Cover | ● | ||
| Power Cord | ● | ||
| Cedar Oil 5ml | ● | ||
| Simple Polarizing kit | ○ | ||
| Calibration slide 0.01mm | ○ | ||
| Multi Viewing Attachment for 2/3/5/7/10 person | ○ | ||
| Note: ●Standard Outfit, ○Optional | |||
| Brand | BestScope |
|---|
