Trinocular Biological Microscope, BS-2048T
R 33,404.95
- Model: BS-2048T
- Magnification: 40x-1000x
- Eyepiece: PL10x/22mm
- Objective: 4×, 10×, 40×, 100×
- Illumination: 5W LED
- Stage: 210mm×171mm
- Condenser: N.A. 1.25
- Viewing Head: Trinocular
- Nosepiece: Quintuple Nosepiece
Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.
Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.
- Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.
Availability:In stock
Only 2 left
SKU
IMICBS-2048T
BrandBestScope
Product Overview

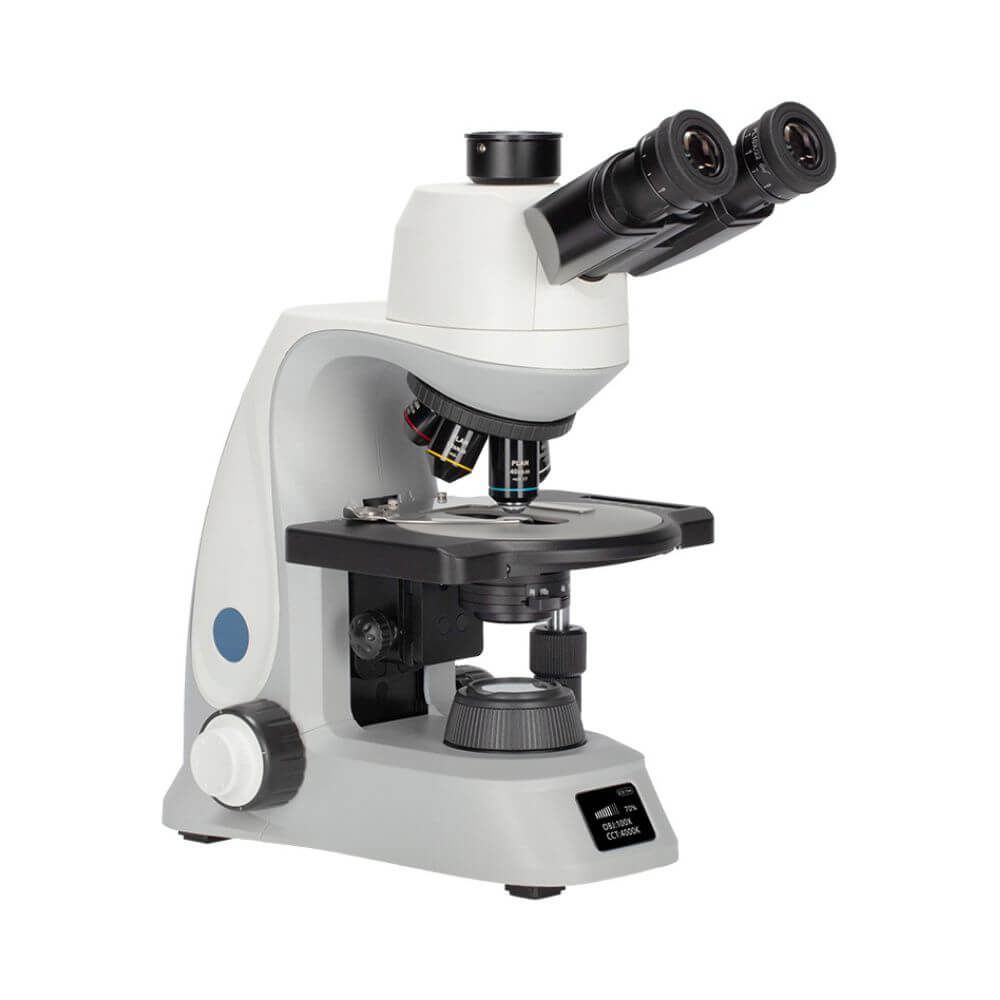

The BS-2048T microscope is a high-quality biological microscope, designed for universities and biomedical laboratories, suitable for teaching experiments and medical testing. Its innovative design, high quality, and user convenience provide a simple and comfortable user experience. With an excellent optical system and complete accessories, you can perform a variety of observations, such as bright-field, dark-field, and phase-contrast microscopy, delivering high-quality images that exceed standard expectations. Equipped with an intelligent lighting management system and ECO function, the microscope enhances workflow efficiency and ease of use.
Features
- Outstanding infinity colour-corrected optical system: The infinity colour-corrected system, professional plan achromatic objectives, and cutting-edge microscopy technology provide microscopic images with high resolution, high definition, and high contrast.
- 22 mm wide field: The BS-2048T biological microscope offers a wide field of view of 22 mm using a 10X eyepiece, improving observational efficiency. Professional high eye-point, wide-field plan eyepieces effectively correct edge distortion and chromatic aberration.
- Rotatable viewing tube: The viewing tube features a 360° rotatable gemel system, with adjustable interpupillary distance and eyepoint height, offering a more flexible and comfortable experience for operators of varying heights.
- Super-large ceramic rackless stage: The double-layer mechanical stage features a large, arc-shaped, non-angular design. Its surface is treated with a ceramic coating for high hardness and corrosion resistance. Damping-type double clips can hold two slides simultaneously for inspection and comparative analysis.
- Super endurance function: The microscope body is equipped with a Type-C interface, allowing it to operate via a portable battery. This enables use in outdoor environments or during power outages. It also includes a standard USB port for charging phones or tablets. The microscope can be charged using a portable battery, and in turn, it can charge mobile devices.
- ECO energy-saving working mode: The built-in ECO function automatically switches the system to standby mode after 30 minutes of inactivity. Users can reactivate the light source by adjusting the dimming knob. The BS-2048T includes a front LCD display that shows the current illumination brightness, colour temperature, and magnification, allowing users to monitor the working status and enhance operational efficiency. The ECO function also prompts users before hibernation, which can be manually cancelled. The hibernation delay is adjustable from 5 to 60 minutes.
- User-friendly design increases comfort and safety: The BS-2048T is equipped with a secure handle for transport. A fully concealed locking mechanism eliminates sharp edges. The low-positioned coarse and fine coaxial focus system is ergonomically designed to maximise user comfort. A storage compartment at the rear of the body maintains cleanliness, saves space, and improves portability.
- Brightness memory function: The BS-2048T can be equipped with a coded nosepiece capable of remembering the illumination brightness settings for each objective. Users can freely adjust the brightness level for each objective, and the system stores the settings automatically, improving efficiency and reducing visual fatigue.
- Body power supply function: The built-in 12V 1A transformer directly powers fluorescent illumination. It is easy to connect and safe to use.
Applications
Various observation methods, such as bright-field, dark-field, and phase-contrast microscopy, meet the requirements of routine teaching and experimental work.
Bright-field observation
The professional plan achromatic objective, used in conjunction with the Köhler illumination system, allows the image to be optimised by adjusting the aperture diaphragm and field diaphragm. High-resolution, high-contrast microscopic images can be obtained at both low and high magnifications.
Phase-contrast observation
Suitable for examining highly transparent specimens such as cells, bacteria, and other fine, translucent structures in biological samples.
Dark-field observation
Insert the dark-field kit into the condenser socket and move the dark-field diaphragm into the optical path to enable basic dark-field microscopy. Without needing to replace the condenser with a dedicated dark-field model, dark-field observation can be performed using any objective from 4X to 40X. This technique is effective for observing protozoa, bacterial flagella, spirochetes, and similar structures.
Accessories
Trinocular tube
The trinocular tube can be fitted with a camera device, allowing the image observed through the binocular eyepieces to be output to a monitor or computer for image analysis, processing, storage, and transmission.
Photographic accessories
By using a specialised C-mount and photo cube, the microscope can be connected to a digital camera to quickly capture and acquire images.
Objectives
- Infinity plan semi-apochromatic objective
Designed specifically for fluorescence observation, the infinity plan semi-apochromatic objective produces vivid and clear images with a pure black background. It offers excellent UV fluorescence performance, making it an ideal choice for professional fluorescence imaging of various cells and pathological tissue sections. - Infinity plan achromatic objective
These objectives enhance image flatness and contrast, with comprehensive correction of chromatic aberration. The large numerical aperture design delivers high-definition, high-contrast microscopic images. - Infinity plan achromatic phase contrast objective
These objectives integrate phase contrast functionality into the bright-field imaging system, providing high-definition, high-contrast images. They are particularly well-suited for observing colourless, transparent, or lightly stained cells.
| Item | Specification | BS-2048T | |
|---|---|---|---|
| Optical System | Infinite Color Corrected Optical System | ● | |
| Viewing Head | 30 degree gemel binocular tube, 360° rotatable, adjustable eye-point height from 375mm to 428.5mm, fixed eyepiece tube, interpupillary distance: 48-76mm | ○ | |
| 30 degree gemel trinocular tube, 360° rotatable, adjustable eye-point height from 375mm to 428.5mm, fixed eyepiece tube, interpupillary distance: 48-76mm, splitting ratio: 50:50 | ● | ||
| Eyepiece | High eye point wide field plan eyepiece PL10X/20mm, with adjustable diopter | ○ | |
| High eye point wide field plan eyepiece PL10X/20mm, with adjustable diopter and micrometer | ○ | ||
| High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter | ● | ||
| High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter and micrometer | ○ | ||
| High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter, micrometer and grid plate | ○ | ||
| Objective | Infinity Plan Achromatic Objectives | 2×, NA=0.06, WD=5.00mm (should work with frosted filter) | ○ |
| 4×, NA=0.10, WD=15.00mm | ● | ||
| 10×, NA=0.25, WD=10.80mm | ● | ||
| 20×, NA=0.4, WD=1.50mm | ○ | ||
| 40×, NA=0.65, WD=0.80mm | ● | ||
| 60×, NA=0.85, WD=0.30mm | ○ | ||
| 100×, NA=1.25, WD=0.21mm | ● | ||
| Infinity Plan Phase Contrast Objective | 10×, NA=0.25, WD=10.80mm | ○ | |
| 20×, NA=0.40, WD=1.50mm | ○ | ||
| 40×, NA=0.65, WD=0.80mm | ○ | ||
| 100×, NA=1.25, WD=0.21mm | ○ | ||
| Infinity Plan Semi-Apochromatic Objective | 4x, NA=0.13, WD=16.4mm | ○ | |
| 10x, NA=0.3, WD=8.1mm | ○ | ||
| 20x, NA=0.5, WD=2.0mm | ○ | ||
| 40x, NA=0.75, WD=0.74mm | ○ | ||
| 100x, NA=1.28, WD=0.14mm | ○ | ||
| Nosepiece | Quintuple Nosepiece | ● | |
| Stage | Double layers mechanical ceramic paint stage, 210mm*171mm, precision: 0.1mm (X-axis rackless). Clips for double sliders, moving range: 78mm*51mm. | ● | |
| Condenser | N.A. 1.25 Koehler illuminator condenser (with slot for phase contrast and dark field accessories) with aperture diaphragm. | ● | |
| Focusing | Low hand coarse and fine coaxial focus system, with elastic adjustment device and upper limit device. Coarse adjustment range is 27mm. Fine tuning accuracy is 2 μm. | ● | |
| Transmitted Illumination | 100V -240V external transformer, 3W LED with continuous intensity control, cool color temperature from 4750K to 5500K. Type-C interface allows portable battery as a power source. With ECO function. | ● | |
| 100V -240V external transformer, 3W LED with continuous intensity control, cool color temperature from 4750K to 5500K. Type-C interface allows portable battery as a power source. With ECO function. With contact type digital power supply device. | ○ | ||
| Microscope Body | For non-fluorescent microscope | ● | |
| Dark Field Accessories | Dark Field Insert Plate (used for 4×-40× objectives) | ○ | |
| Centering Telescope | Centering Telescope Φ30mm (used with phase contrast plate and objective) | ○ | |
| Phase Contact Accessories | Phase Contrast Insert Plate (used for 10×, 40× phase contrast objectives) | ○ | |
| Phase Contrast Insert Plate (used for 20×, 100× phase contrast objectives) | ○ | ||
| C-mount Adapter | 0.35× C-mount adapter, adjustable | ○ | |
| 0.5× C-mount adapter, adjustable | ○ | ||
| 0.65× C-mount adapter, adjustable | ○ | ||
| 1× C-mount adapter, adjustable | ○ | ||
| Other Accessories | Frosted glass accessories (used with 2X Infinity Plan Achromatic Objectives) | ○ | |
| Micrometer | ○ | ||
| Internal hexagonal Spanner M4 | ● | ||
| Note: ●Standard Outfit, ○Optional | |||
| Brand | BestScope |
|---|
