Trinocular Biological Microscope, BS-2036CT
R 15,862.70
- Model: BS-2036CT
- Magnification: 40x-1000x
- Eyepiece: WF10x/20mm
- Objective: 4×, 10×, 40×, 100×
- Illumination: 3W LED
- Stage: 145mm×140mm
- Condenser: N.A. 1.25
- Viewing Head: Trinocular
- Nosepiece: Backward Quadruple Nosepiece
Need a customised solution?
Optional accessories are available for purchase separately. If your order needs a customised configuration, our technical specialists will follow up with full details before your order is finalised. Contact us via the enquiry form or sales@lasec.com.
Installation, training and special delivery
Some products require installation, training, or special delivery (such as tail-lift trucks, extra labour, or hazardous material packaging). If your order needs this, we'll contact you with the additional cost before dispatch, so your final invoice may differ from the listed price.
Ordering from outside South Africa
Online ordering is currently limited to South African customers, but our full range is still available. Log an enquiry or email international@lasec.com and our international sales team will assist you through our traditional sales channels.
DISCLAIMER: All product images are for illustrative purposes only. Actual products may vary slightly in colours, controls, and visible features.
Availability:In stock
Only 2 left
SKU
IMICBS-2036CT
BrandBestScope
Product Overview
The BS-2036CT microscope is a mid-level microscope specially designed for college education, medical, and laboratory studies. It adopts a high-quality optical system, a beautiful structure, and an ergonomic design. With an innovative optical and structural design, excellent optical performance, and an easy-to-operate system, this biological microscope makes your work enjoyable.
Features
- Excellent optical system: Excellent optical system, outstanding image quality with high resolution and definition.
- Ergonomic design: Comfortable operating with ergonomic design. The back handle and observing hole are convenient for carrying and operation.
- Unique aspheric illumination system: The Unique aspheric illumination system provides bright and comfortable lighting.
- Colour for optional: White colour is standard, blue colour is optional for a lively environment and a happy mood.
- Viewing head: Brand new and humanised butterfly binocular head-tubes can be 360° rotated to raise observing height by 44mm above normal tubes, to be more convenient for users of different heights.
- Power supply: Built-in LED illumination system, which can be powered with a power bank, a laptop and a vehicle power supply, ensures being used anywhere and in any condition.

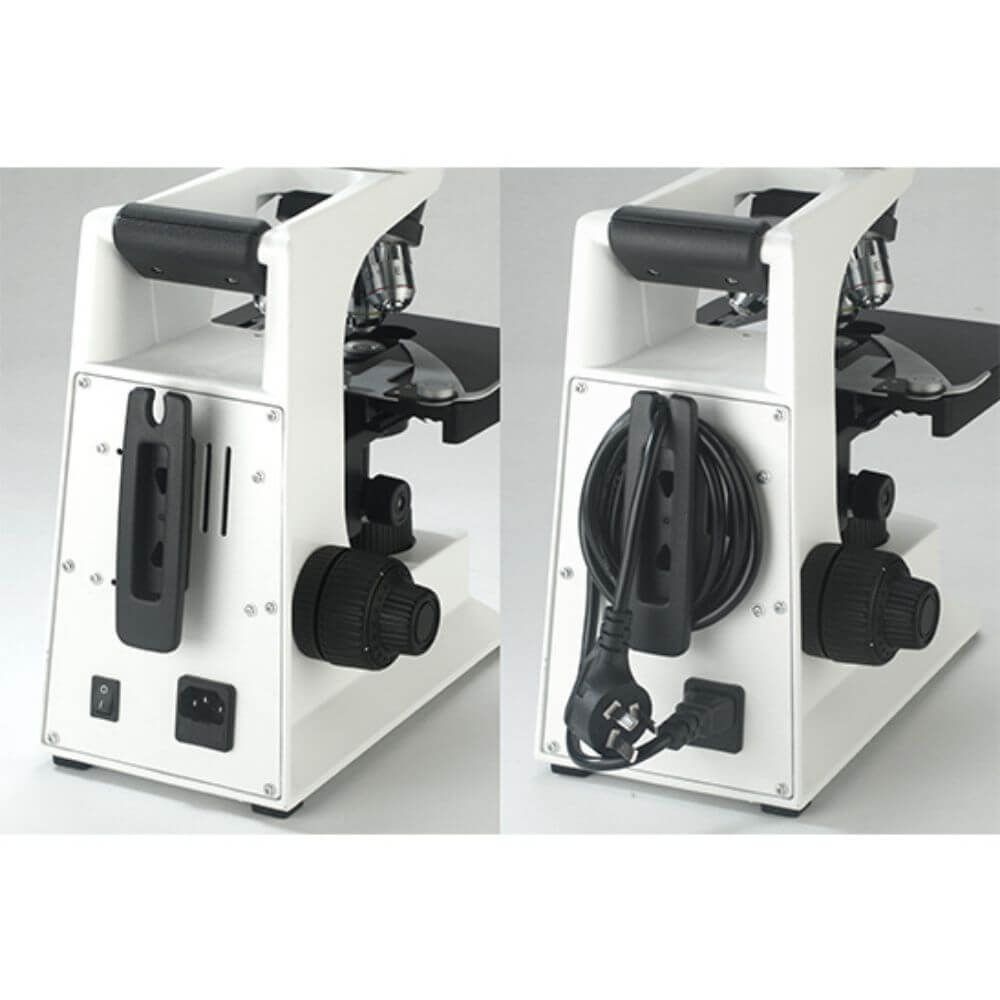

- Various accessories for upgrading: Wire winding device convenient for carrying and storage (optional).
- Phase contrast unit, independent phase contrast unit (optional, applies to infinite optical system).
- Simple polarising unit with polariser and analyser (optional).
- Dry / Oil Dark Field Condenser (optional).
- Fluorescent attachment (optional, with LED or mercury light source)
Applications
The BS-2036CT microscope is an ideal instrument for biological, histological, pathological, bacteriological, immunological, and pharmaceutical fields. It can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges, and universities.
| Item | Specification | BS-2036CT |
|---|---|---|
| Optical System | Finite Optical System | |
| Infinite Optical System | ● | |
| Viewing Head | Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48~75mm | ○ |
| Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48~75mm, splitting ratio: eyepiece: trinocular=20:80 | ● | |
| Eyepiece | Wide field eyepiece WF10X/18mm | |
| High eyepoint wide field eyepiece WF10X/20mm | ● | |
| WF16X/13mm | ○ | |
| Reticule eyepiece WF10X/18mm (0.1mm) | ||
| Reticule eyepiece WF10X/20mm (0.1mm) | ○ | |
| Achromatic Objective | 4X, 10X, 40X(S), 100X/NA 1.25 (Oil) (S) | |
| 20X, 60X (S) | ||
| Plan Achromatic Objective | 4X, 10X, 40X/NA 0.65 (S), 100X/NA 1.25 (Oil) (S) | |
| 20X, 60X (S) | ||
| Infinite Achromatic Objective | E-Plan 4X, 10X, 40X (S), 100X (Oil) (S) | ● |
| Plan 4X, 10X, 40X (S), 100X (Oil) (S) | ||
| Plan 20X, 60X (S), 100X (Water) (S) | ○ | |
| Infinity Plan Semi-Apochromatic Fluorescent Objectives | 4X/NA=0.16, WD=17.5mm | ○ |
| 10X/NA=0.30, WD=7.68mm | ○ | |
| 20X/NA=0.50, WD=1.98mm | ○ | |
| 40X/NA=0.75, WD=0.78mm | ○ | |
| 40X/NA=0.75, WD=0.78mm (for TB, no correction of slide cover) | ○ | |
| (Oil) 100X/NA=1.3, WD=0.15mm | ○ | |
| Nosepiece | Backward Quadruple Nosepiece | ● |
| Backward Quintuple Nosepiece | ○ | |
| Focusing | Coaxial coarse and fine focusing knobs, travel range: 26mm, Scale: 2μm | ● |
| Stage | Double layers mechanical stage, size: 145mm×140mm, cross travel 76mm×52mm, scale 0.1mm, two slide holders | ● |
| Rackless double layers mechanical stage, size: 140mm×135mm, cross travel 75mm×35mm, scale 0.1mm, two slide holders | ○ | |
| Condenser | Abbe condenser NA1.25 with iris diaphragm | ● |
| Illumination | 3W LED lamp, brightness adjustable | ● |
| 6V/20W Halogen lamp, brightness adjustable | ○ | |
| 6V/30W Halogen lamp, brightness adjustable | ○ | |
| Field Diaphragm | Field diaphragm | ○ |
| Dark Field Condenser | NA 0.9 (Dry) Dark field condenser (for 10X–40X objectives) | ○ |
| NA 1.3 (Oil) Dark field condenser (for 100X objective) | ○ | |
| Polarizing Set | Analyzer and Polarizer | ○ |

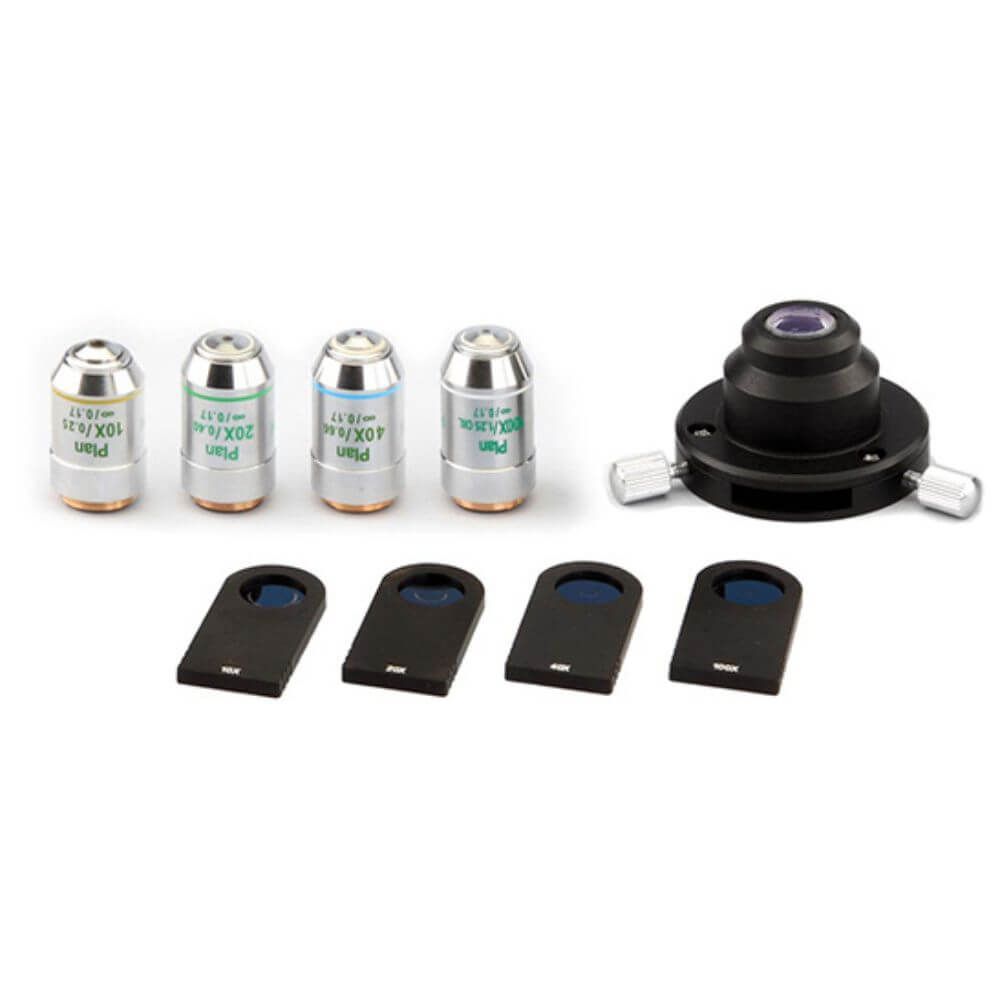

| Independent Phase Contrast Unit | Infinite Plan Phase Contrast 10X | ○ |
| Infinite Plan Phase Contrast 20X | ○ | |
| Infinite Plan Phase Contrast 40X | ○ | |
| Infinite Plan Phase Contrast 100X | ○ | |
| Phase contrast slide | ○ | |
| Condenser | ○ | |
| Telescope | ○ | |
| Green filter | ○ | |
| Fluorescence Attachment | B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp. | ○ |
| UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp. | ○ | |
| B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp. | ○ | |
| UV/V/B/G Epi fluorescence unit ( six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp. | ○ | |
| B or G fluorescence unit, 5W-LED fluorescence lamp. | ○ | |
| Auramine long pass fluorescence unit, with 5W LED fluorescence lamp | ○ | |
| B/G fluorescence unit, 5W-LED fluorescence lamp. | ○ | |
| Filter | Blue filter (Φ45) | ○ |
| Green filter (Φ45) | ○ | |
| Yellow filter (Φ45) | ○ | |
| Photo Adapter | Used to Connect Nikon/Canon/Sony/Olympus DSLR camera to the microscope | ○ |
| Video Adapter | 0.5X C-mount adapter, adjustable focus | ● |
| 0.75X C-mount adapter, adjustable focus | ○ | |
| 1X C-mount adapter, adjustable focus | ○ | |
| Trinocular digital eyepiece interface | ○ | |
| Mirror | Reflect Mirror | ○ |
| Cable Winding Device | Used to wind cable on back of the microscope | ○ |
| Rechargeable Battery | 3pcs AA rechargeable Nickel-metal hydride battery | ○ |
| Package | 1pc/carton, 42cm*28cm*45cm, Gross Weight 8kg, Net Weight 6.5kg | ○ |
| Note: ●Standard Outfit, ○Optional | ||
| Brand | BestScope |
|---|
