Monocular Biological Microscope, BS-2005M

Monocular Biological Microscope, BS-2005M

Be the first to review this product

R 3,472.67

Model: BS-2005M
Magnification: 40x-1000x
Eyepiece: WF10x,25x
Objective: 4×, 10×, 40×
Illumination: LED
Stage: 95×95mm
Condenser: N.A. 0.65
Viewing Head: Monocular
Nosepiece: Triple Nosepiece

Optional accessories are available for purchase separately. If you require a customised solution, please contact our technical specialists by selecting the "Add to enquiry" button and using our enquiry form or at sales@lasec.com.

Installation, training and special delivery requirements, such as the need for tail-lift trucks and additional labour and installation for large equipment and hazardous material (Hazmat) packaging, are chargeable in addition to standard freight and will be quoted separately before dispatch.

DISCLAIMER

All product images are for illustrative purposes only. Actual products may vary slightly in terms of colours, controls and visible features.

Online ordering is currently limited to South African customers, but our full range is still available. If you are ordering from outside South Africa, please log an enquiry or email internationallabsales@lasec.com, and our international sales team will gladly assist you through our traditional sales channels.

Availability:In stock

SKU

IMICBS-2005M

BrandBestScope

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BS-2005M monocular biological microscope with LED illumination and precision focusing for laboratory and educational use.

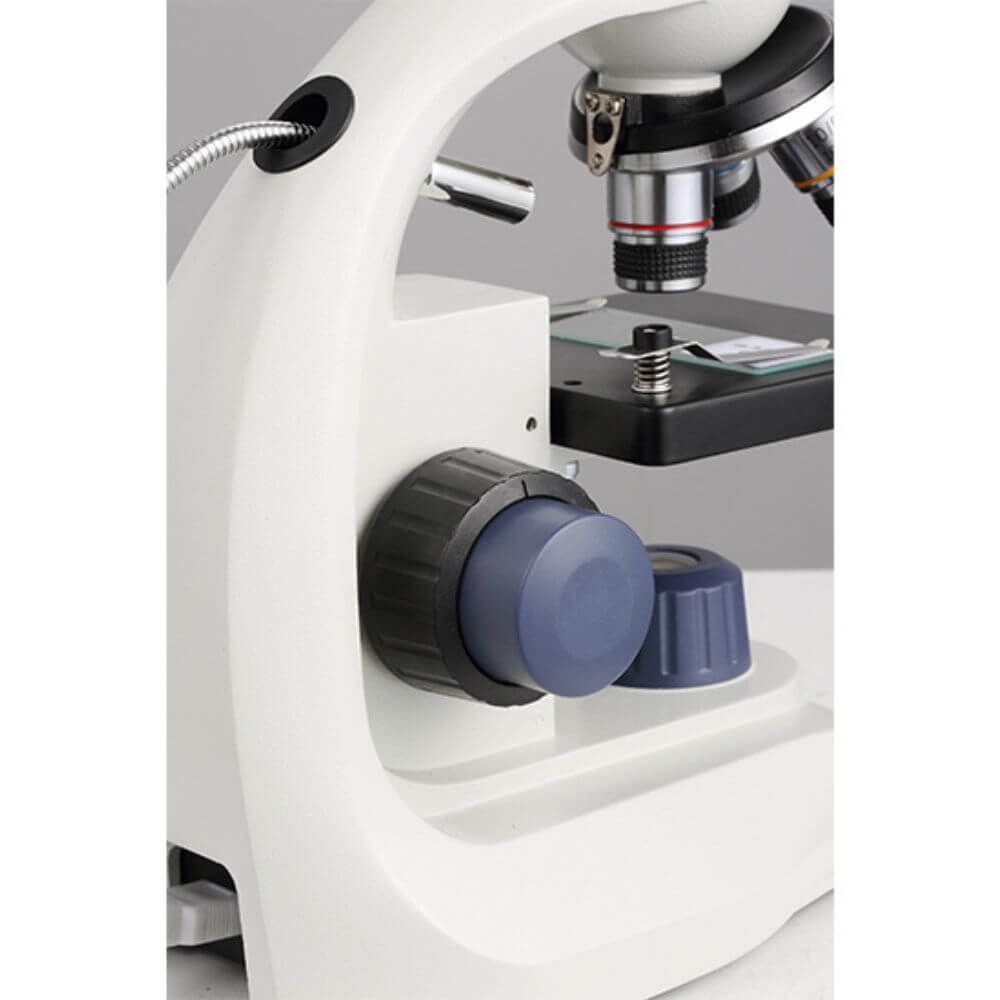

Close-up of coarse and fine focus adjustment knobs on the BS-2005M monocular biological microscope.

Battery compartment of the BS-2005M microscope showing rechargeable AA batteries for portable operation.

Microscopic image captured using the BS-2005M biological microscope showing detailed specimen structure.

Details

Product Overview

The BS-2005 series of biological microscopes are economical microscopes with basic features for educational applications in elementary and middle school. With the high-quality material and optics, the microscopes can ensure you get high-definition images. They are perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.

Features

Monocular head, 360° Rotatable, users can view from any angle.
Maximum magnification can be up to 2500× with an optional eyepiece and objectives.
The battery compartment comes with the microscope; 3pcs AA batteries can be used as the power supply, easy for outdoor work.

Applications

The BS-2005 series of biological microscopes can be used for educational applications in elementary and middle schools. They can also be used as a hobby for biological applications and small items identification.

Technical Specifications

Item	Specification	BS-2005M
Viewing Head	Monocular viewing head, Inclined at 45°, 360° Rotatable	●
Viewing Head	Binocular viewing head, Inclined at 45°, 360° Rotatable, Interpupillary distance 54~77mm
Eyepiece	WF10×/16mm	●
	WF16×/11mm	○
	WF20×/9.5mm	○
	WF25×/6.5mm	●
Nosepiece	Triple Nosepiece	●
Objective	Achromatic Objective 4×(185)	●
	Achromatic Objective 10×(185)	●
	Achromatic Objective 40×(185)	●
	Achromatic Objective 60×(185) (The performance is not good, not recommend)	○
	Achromatic Objective 100×(185) (The performance is not good, not recommend)	○
Stage	Plain Stage with Slide Clips 95×95mm	●
Stage	Plain Stage with Mechanical ruler 95×95mm/60×30mm	○
Focusing	Coaxial Coarse and Fine Adjustment	●
Condenser	Single Lens NA 0.65 with Disc Diaphragm	●
Illumination	0.1W LED Illumination, Brightness Adjustable	●
Spare Parts	Dust Cover	●
Power Supply	AC100~220V power adapter, microscope input voltage DC5V	●
Power Supply	Battery compartment (can use 3pcs AA batteries as the power supply)	●
Package	Styrofoam & Carton, Dimension 28×19×40 cm, 3kg	●
Note: ● Standard Outfit, ○ Optional
