UB-T-90 Safety Storage Under-Bench Cabinet, Light Grey (RAL 7035), Shelf, Perforated Insert and Bottom Collecting Sump, with Castors, Model UB90.060.059.T
R 49,423.01
- Model: UB90.060.059.T (IASE30481-2)
- Type: asecos UB-T-90 Safety Storage Under-Bench Cabinet
- Fire resistance: 90 minutes (EN 14470-1)

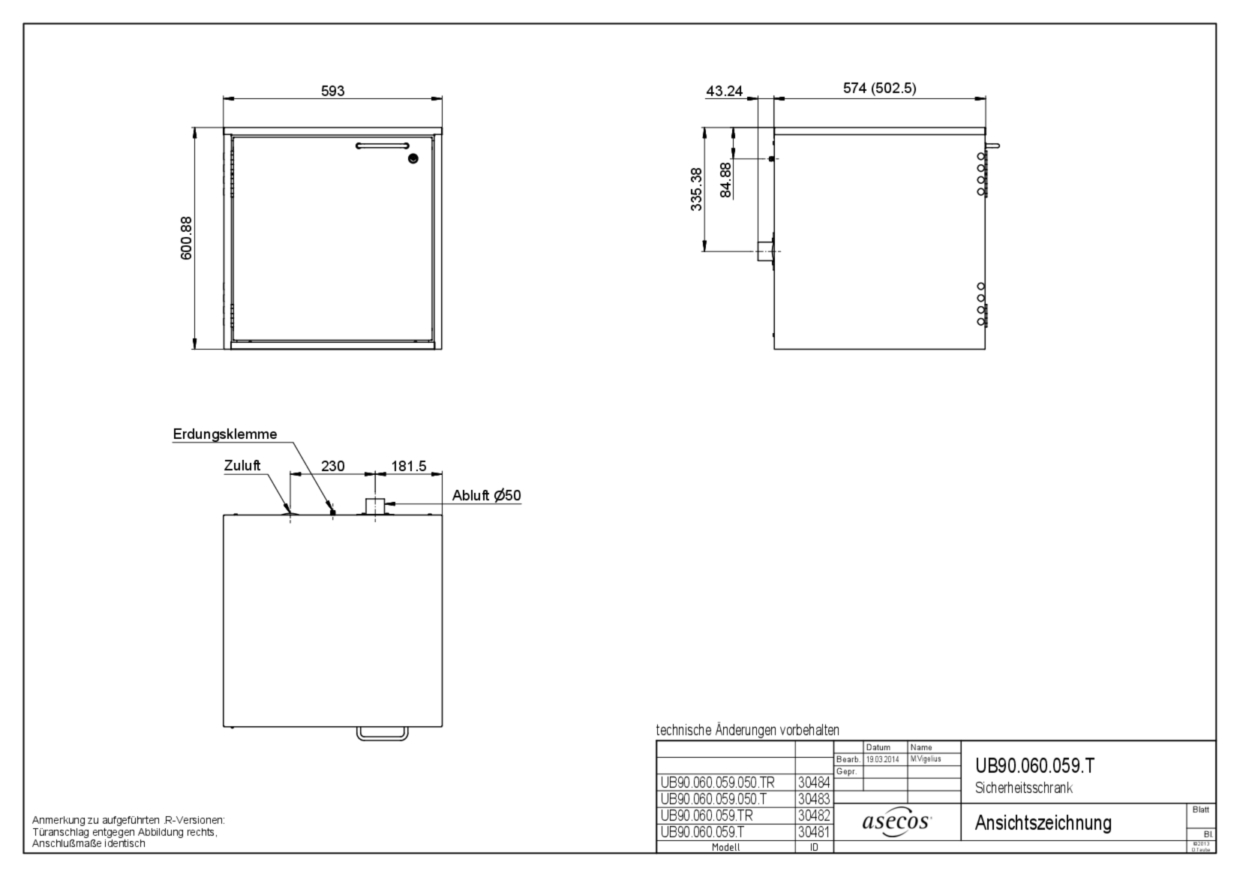

- External dimensions (W × D × H): 593 × 574 × 600 mm
- Internal dimensions (W × D × H): 470 × 452 × 502 mm
- Weight: 121.5 kg
- Number of storage levels: 2
- Number of doors: 1 (wing door)
- Extraction air connection: DN 50
- Interior equipment: 1 × shelf (30 kg max load), 1 × perforated insert (75 kg max load), 1 × bottom collecting sump (12 L capacity)
- Colour/finish: Light grey, RAL 7035, powder-coated
- Certifications: EN 14470-1, EN 16121, EN 16122, GS certified, CE compliant
- Includes: Castors with plinth (HF.FT.21399_N, fitted for this cabinet’s width)
- Intended use: Under-bench storage of flammable liquids beneath a fume cupboard or workstation
NOTE: When choosing a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the Lasec® asecos experts will be happy to help you further.
DELIVERY AND PRICE INFORMATION: The item price does not include installation and delivery costs. When separate or additional orders of accessories and cabinet interiors (e.g. shelves, perforated metal plate) are placed, the purchase price is ex works plus packaging, freight costs and VAT (the shipping method is chosen based on size and weight). All prices are subject to a surcharge for remote areas.
Need a customised solution?
Optional accessories are available for purchase separately. If your order needs a customised configuration, our technical specialists will follow up with full details before your order is finalised. Contact us via the enquiry form or sales@lasec.com.
Installation, training and special delivery
Some products require installation, training, or special delivery (such as tail-lift trucks, extra labour, or hazardous material packaging). If your order needs this, we'll contact you with the additional cost before dispatch, so your final invoice may differ from the listed price.
Ordering from outside South Africa
Online ordering is currently limited to South African customers, but our full range is still available. Log an enquiry or email international@lasec.com and our international sales team will assist you through our traditional sales channels.
DISCLAIMER: All product images are for illustrative purposes only. Actual products may vary slightly in colours, controls, and visible features.
Availability:In stock
Only 1 left
SKU
IASE30481-2
Brandasecos
Product Overview
asecos UB-LINE Under-Bench Safety Storage Cabinets for Flammable Liquids
Type 90 fire-resistant storage built to fit beneath fume cupboards and hazardous materials workstations
The UB-LINE range is designed for laboratories and industrial working areas where flammable liquids need to be kept close to the point of use rather than in a separate storage room. Each cabinet fits beneath a fume cupboard, hazardous materials workstation, or standard work surface, making use of space that would otherwise go unused while keeping stored liquids within a fire-resistant enclosure.
Cabinets in the range are type-tested to 90 minutes of fire resistance (type 90) in accordance with EN 14470-1 and are GS-tested. They also meet the requirements of EN 16121 and EN 16122. Selected cabinets within the UB-LINE range are additionally tested to the Underwriters Laboratories UL/ULC 1275 standard, which supports use in installations that require UL-recognised fire ratings alongside the European classification.
The range is built around 2 cabinet heights, 4 widths, and 3 depths, allowing a configuration to be matched to the available under-bench space and to the volume of flammable liquid being stored.
Key Features
- Ventilation: integrated air ducts with a DN 50 connection point for a technical exhaust system, allowing extraction of hazardous vapours and reducing the risk of an explosive atmosphere forming inside the cabinet.
- Recirculating air filtration option: a recirculating air filter system sized for the pressure ratios and volume flows of under-bench cabinets, available on a console mount or in an enclosed housing unit where a connection to a technical exhaust system is not available.
- Space-saving fit: dimensions designed to make full use of the space under a fume cupboard or workstation.
- Cylinder lock with status indicator: doors close with a cylinder lock, and a red/green indicator shows the current locking status of the cabinet.
- Drawer or wing door interior: drawers stay open in any position for full visibility and access to stored containers, with an optional second-level drawer for smaller containers; wing door variants open to a wide angle for full-height access to the storage area.
- Mobility: optional castors with a plinth for repositioning, and attachment covers that allow the cabinet height to be matched to different laboratory furniture systems.
Typical Applications
- Under-bench storage beneath fume cupboards
- Hazardous materials workstations
- Laboratory and industrial working areas requiring on-site storage of flammable liquids
Configuration Options
- 2 heights, 4 widths, 3 depths
- Drawer interior or wing door interior
- Optional second-level drawer
- Optional castors with plinth
- Optional recirculating air filter system, console-mounted or in an enclosed housing
A separate disposal variant (type 90) is available within the range for the collection of flammable waste rather than for active storage. This is a distinct product listing rather than a standard UB-LINE storage configuration.
Safety storage under bench cabinet UB-T-90 Model UB90.060.059.T
| External dimensions W x D x H | 593 x 574 x 600 mm |
| Internal dimensions W x D x H | 470 x 452 x 502 mm |
| Extraction air connection | 50 DN |
| Number of storage levels | 2 piece |
| CE compliant | yes (1) |
| Differential pressure (10 times air change EK5/AK4) | 1 Pa |
| ecl@ss 14.0 | 40-06-01-04 |
| Fire resistance level | 90 minutes |
| Depth with open doors | 1.044,00 mm |
| GTIN | 4054923137875 |
| GS certified | yes (1) |
| Minimum exhaust air quantity 10 times | 1 m3/h |
| Net weight configuration | 113,50 kg |
| According to standard | EN 14470-1 |
| According to standard | EN 16121/16122 |
| Max. load of shelves | 30.00 kg |
| Max. load of perforated insert | 75.00 kg |
| Automatic door closing system | No (0) |
| Door open arrest system | No (0) |
| Door opening angle | 93 ° |
| UL 1275 listed | no |
| UNSPSC code | 24112402 |
| Capacity of bottom collecting sump | 12.00 litres |
| Customs tariff number | 94032080 |
| Weight | 121,5 kg |
| Material of storage levels | sheet steel |
Castors with plinth
| Weight | 1,5 kg |
| Material | sheet steel |
| Surface | powder-coated plain |
| ecl@ss 11.0 | 21-10-10-14 |
| Customs tariff number | 94039910 |
| GTIN | 4250101179990 |
Frequently Asked Questions (FAQs)
Q: What is the asecos UB-T-90 Safety Storage Under-Bench Cabinet UB90.060.059.T?
A: The asecos UB90.060.059.T is a Type 90 under-bench safety storage cabinet designed for storing flammable liquids beneath fume cupboards, hazardous materials workstations and laboratory work surfaces.
Q: What is the fire resistance rating of the UB90.060.059.T?
A: The cabinet provides 90 minutes of fire resistance and is type-tested in accordance with EN 14470-1.
Q: What are the external dimensions of the UB90.060.059.T?
A: The external dimensions are approximately 593 × 574 × 600 mm (W × D × H).
Q: What are the internal dimensions of the cabinet?
A: The internal dimensions are approximately 470 × 452 × 502 mm (W × D × H).
Q: How much does the UB90.060.059.T weigh?
A: The specified total weight for this configuration is approximately 121.5 kg. The technical data separately lists a net configuration weight of 113.5 kg.
Q: How many storage levels does the cabinet have?
A: This configuration provides 2 storage levels.
Q: What interior equipment is supplied with this cabinet?
A: The specified configuration includes 1 shelf, 1 perforated insert and 1 bottom collecting sump.
Q: What is the maximum load of the shelf?
A: The shelf has a specified maximum load capacity of 30 kg.
Q: What is the maximum load of the perforated insert?
A: The perforated insert has a specified maximum load capacity of 75 kg.
Q: What is the capacity of the bottom collecting sump?
A: The bottom collecting sump has a capacity of 12 litres.
Q: What material is used for the storage levels?
A: The specified material for the cabinet’s storage levels is sheet steel.
Q: What type of door does the UB90.060.059.T have?
A: This model is equipped with one wing door, providing access to the cabinet’s internal storage area.
Q: What is the door opening angle?
A: The specified door opening angle is 93°.
Q: Does the UB90.060.059.T have an automatic door-closing system?
A: No. The technical specifications state that this particular configuration does not have an automatic door-closing system.
Q: Does the cabinet have a door-open arrest system?
A: No. A door-open arrest system is not specified for the UB90.060.059.T configuration.
Q: What is the depth of the cabinet with the door open?
A: The specified depth with the door open is approximately 1,044 mm.
Q: Can the UB90.060.059.T be connected to a technical exhaust system?
A: Yes. The cabinet incorporates ventilation provisions with a DN 50 extraction air connection for connection to an appropriate technical exhaust system.
Q: What is the specified minimum exhaust air quantity?
A: The technical specifications state a minimum exhaust air quantity of 1 m3/h for 10 air changes.
Q: What is the differential pressure for 10 air changes?
A: The specified differential pressure is 1 Pa for 10 air changes under the stated EK5/AK4 condition.
Q: Can a recirculating air filtration system be used with UB-LINE cabinets?
A: The UB-LINE range offers an optional recirculating air filter system where connection to a technical exhaust system is unavailable. It can be configured as a console-mounted system or in an enclosed housing, but it is not listed as standard equipment for this specific cabinet configuration.
Q: Does this cabinet include castors?
A: Yes. This product configuration includes castors with plinth, reference HF.FT.21399_N, fitted for the cabinet’s width to support repositioning.
Q: What are the castors with plinth made from?
A: The castors-with-plinth assembly is specified as sheet steel with a plain powder-coated surface and has a listed weight of approximately 1.5 kg.
Q: What colour is the UB90.060.059.T?
A: This configuration has a light grey RAL 7035 powder-coated finish.
Q: What standards does the UB90.060.059.T comply with?
A: The supplied specifications identify compliance with EN 14470-1 and EN 16121/EN 16122. The cabinet is also stated to be GS certified and CE compliant.
Q: Is the UB90.060.059.T GS certified?
A: Yes. The technical specifications identify this particular cabinet as GS certified.
Q: Is the UB90.060.059.T CE compliant?
A: Yes. The supplied technical specifications state that the cabinet is CE compliant.
Q: Is this specific cabinet UL 1275 listed?
A: No. Although selected cabinets within the wider UB-LINE range may be tested to UL/ULC 1275, the technical specifications explicitly state that the UB90.060.059.T is not UL 1275 listed.
Q: Where is the UB90.060.059.T typically installed?
A: Typical installations include beneath fume cupboards, hazardous materials workstations and laboratory or industrial work surfaces where flammable liquids need to be stored close to the point of use.
Q: Is the UB90.060.059.T intended for flammable waste collection?
A: This model is specified as a safety storage cabinet for flammable liquids. A separate Type 90 disposal variant is available within the wider range for collecting flammable waste and is a distinct product configuration.
Q: Are delivery and installation included in the cabinet price?
A: No. The supplied product information states that the item price does not include installation or delivery costs. Additional packaging, freight, VAT and remote-area surcharges may also apply as specified.
Q: Should local regulations be considered when selecting this safety cabinet?
A: Yes. Selection and use of a safety storage cabinet should comply with the applicable national rules and regulations governing the storage of hazardous substances.
Q: What is the GTIN for the UB90.060.059.T cabinet?
A: The specified GTIN for the cabinet is 4054923137875.
Q: What is the SKU for this asecos safety storage cabinet configuration?
A: The listed SKU is IASE30481-2, corresponding to asecos model UB90.060.059.T.
| Range | UB-T-90 |
|---|---|
| Model | UB90.060.059.T |
| Brand | asecos |
