UB-T-90 Safety Storage Under-Bench Cabinet, Light Grey (RAL 7035), Perforated Insert and Bottom Collecting Sump, with Castors, Model UB90.060.059.T
R 50,935.65
- Model: UB90.060.059.T
- Type: asecos UB-T-90 Safety Storage Under-Bench Cabinet
- Fire resistance: 90 minutes (EN 14470-1)

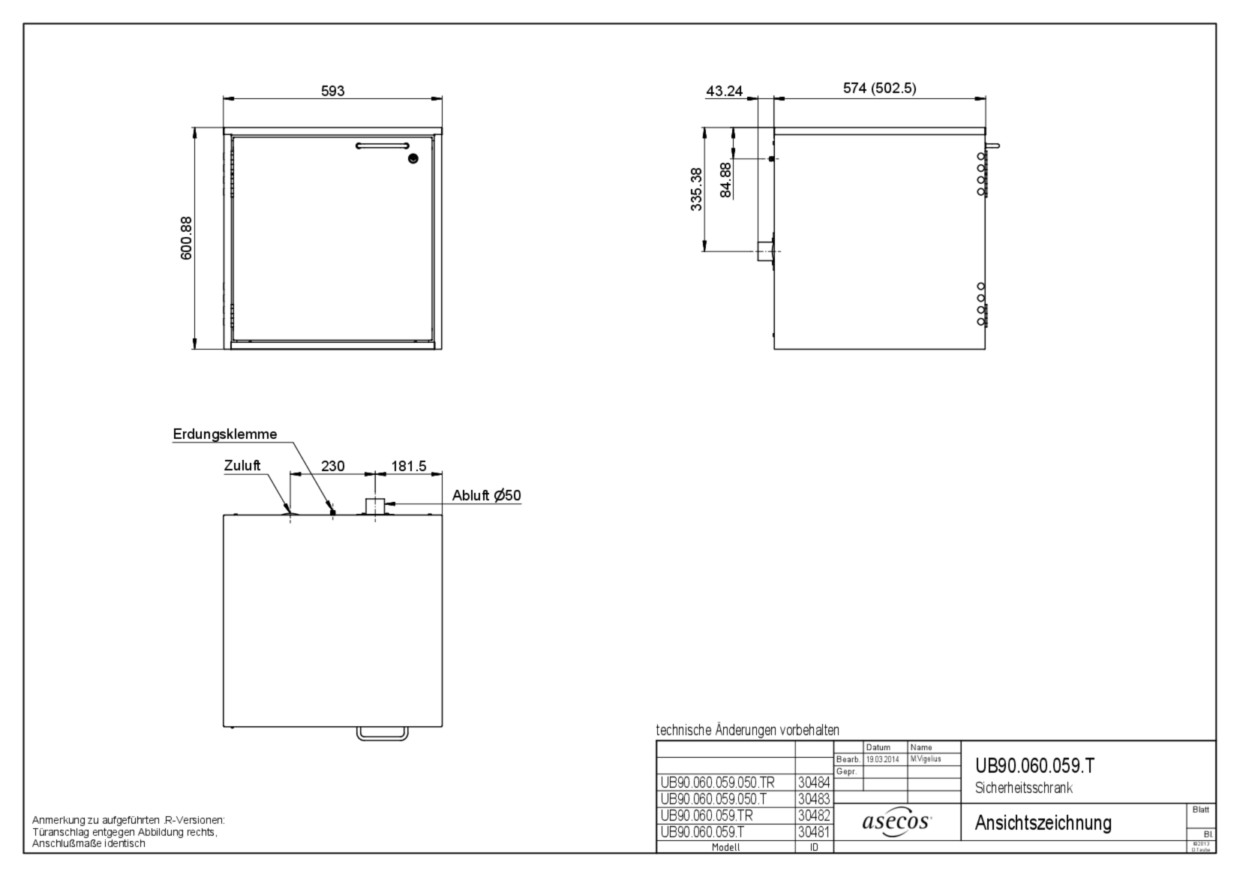

- External dimensions (W × D × H): 593 × 574 × 600 mm
- Internal dimensions (W × D × H): 470 × 452 × 502 mm
- Weight: 119 kg
- Maximum load: 300 kg
- Number of doors: 1 (wing door)
- Extraction air connection: DN 50
- Interior equipment: 1 × perforated insert, 1 × bottom collecting sump (12 L capacity)
- Colour/finish: Light grey, RAL 7035, powder-coated
- Certifications: EN 14470-1, EN 16121, EN 16122, GS certified, CE compliant
- Includes: Castors with plinth (fitted for this cabinet’s width)
- Intended use: Under-bench storage of flammable liquids beneath a fume cupboard or workstation
NOTE: When choosing a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the Lasec® asecos experts will be happy to help you further.
DELIVERY AND PRICE INFORMATION: The item price does not include installation and delivery costs. When separate or additional orders of accessories and cabinet interiors (e.g. shelves, perforated metal plate) are placed, the purchase price is ex works plus packaging, freight costs and VAT (the shipping method is chosen based on size and weight). All prices are subject to a surcharge for remote areas.
Need a customised solution?
Optional accessories are available for purchase separately. If your order needs a customised configuration, our technical specialists will follow up with full details before your order is finalised. Contact us via the enquiry form or sales@lasec.com.
Installation, training and special delivery
Some products require installation, training, or special delivery (such as tail-lift trucks, extra labour, or hazardous material packaging). If your order needs this, we'll contact you with the additional cost before dispatch, so your final invoice may differ from the listed price.
Ordering from outside South Africa
Online ordering is currently limited to South African customers, but our full range is still available. Log an enquiry or email international@lasec.com and our international sales team will assist you through our traditional sales channels.
DISCLAIMER: All product images are for illustrative purposes only. Actual products may vary slightly in colours, controls, and visible features.
Availability:On Request
SKU
IASE30481-1
Brandasecos
Product Overview
asecos UB-LINE Under-Bench Safety Storage Cabinets for Flammable Liquids
Type 90 fire-resistant storage built to fit beneath fume cupboards and hazardous materials workstations
The UB-LINE range is designed for laboratories and industrial working areas where flammable liquids need to be kept close to the point of use rather than in a separate storage room. Each cabinet fits beneath a fume cupboard, hazardous materials workstation, or standard work surface, making use of space that would otherwise go unused while keeping stored liquids within a fire-resistant enclosure.
Cabinets in the range are type-tested to 90 minutes of fire resistance (type 90) in accordance with EN 14470-1 and are GS-tested. They also meet the requirements of EN 16121 and EN 16122. Selected cabinets within the UB-LINE range are additionally tested to the Underwriters Laboratories UL/ULC 1275 standard, which supports use in installations that require UL-recognised fire ratings alongside the European classification.
The range is built around 2 cabinet heights, 4 widths, and 3 depths, allowing a configuration to be matched to the available under-bench space and to the volume of flammable liquid being stored.
Key Features
- Ventilation: integrated air ducts with a DN 50 connection point for a technical exhaust system, allowing extraction of hazardous vapours and reducing the risk of an explosive atmosphere forming inside the cabinet.
- Recirculating air filtration option: a recirculating air filter system sized for the pressure ratios and volume flows of under-bench cabinets, available on a console mount or in an enclosed housing unit where a connection to a technical exhaust system is not available.
- Space-saving fit: dimensions designed to make full use of the space under a fume cupboard or workstation.
- Cylinder lock with status indicator: doors close with a cylinder lock, and a red/green indicator shows the current locking status of the cabinet.
- Drawer or wing door interior: drawers stay open in any position for full visibility and access to stored containers, with an optional second-level drawer for smaller containers; wing door variants open to a wide angle for full-height access to the storage area.
- Mobility: optional castors with a plinth for repositioning, and attachment covers that allow the cabinet height to be matched to different laboratory furniture systems.
Typical Applications
- Under-bench storage beneath fume cupboards
- Hazardous materials workstations
- Laboratory and industrial working areas requiring on-site storage of flammable liquids
Configuration Options
- 2 heights, 4 widths, 3 depths
- Drawer interior or wing door interior
- Optional second-level drawer
- Optional castors with plinth
- Optional recirculating air filter system, console-mounted or in an enclosed housing
A separate disposal variant (type 90) is available within the range for the collection of flammable waste rather than for active storage. This is a distinct product listing rather than a standard UB-LINE storage configuration.
Safety storage under bench cabinet UB-T-90 Model UB90.060.059.T
| External dimensions W x D x H | 593 x 574 x 600 mm |
| Internal dimensions W x D x H | 470 x 452 x 502 mm |
| Extraction air connection | 50 DN |
| Number of storage levels | 1 piece |
| CE compliant | yes (1) |
| Differential pressure (10 times air change EK5/AK4) | 1 Pa |
| ecl@ss 14.0 | 40-06-01-04 |
| Fire resistance level | 90 minutes |
| Depth with open doors | 1,044.00 mm |
| GTIN | 4054923137868 |
| GS certified | yes (1) |
| Minimum exhaust air quantity 10 times | 1 m3/h |
| Net weight configuration | 111.00 kg |
| According to standard | EN 14470-1 |
| According to standard | EN 16121/16122 |
| Max. load of perforated insert | 75.00 kg |
| Automatic door closing system | No (0) |
| Door open arrest system | No (0) |
| Door opening angle | 93 ° |
| UL 1275 listed | no |
| UNSPSC code | 24112402 |
| Capacity of bottom collecting sump | 12.00 litres |
| Customs tariff number | 94032080 |
| Weight | 119 kg |
| Material of storage levels | sheet steel |
Castors with plinth
| Weight | 1.5 kg |
| Material | sheet steel |
| Surface | powder-coated plain |
| ecl@ss 11.0 | 21-10-10-14 |
| Customs tariff number | 94039910 |
| GTIN | 4250101179990 |
Frequently Asked Questions (FAQs)
Q: What is the asecos UB-T-90 Model UB90.060.059.T?
A: The asecos UB90.060.059.T is a Type 90 under-bench safety storage cabinet designed for storing flammable liquids beneath fume cupboards, hazardous materials workstations or other suitable work surfaces.
Q: What fire resistance does the UB90.060.059.T provide?
A: The cabinet provides 90 minutes of fire resistance and is classified as Type 90 in accordance with EN 14470-1.
Q: What are the external dimensions of the UB90.060.059.T?
A: The external dimensions are 593 × 574 × 600 mm (W × D × H).
Q: What are the internal dimensions of the cabinet?
A: The internal dimensions are 470 × 452 × 502 mm (W × D × H).
Q: How much space is required when the cabinet door is open?
A: The specified cabinet depth with the door open is approximately 1 044 mm.
Q: What type of door does the UB90.060.059.T have?
A: This configuration has one wing door with an opening angle of approximately 93° for access to the storage compartment.
Q: Does the cabinet have an automatic door-closing system?
A: No. The technical specifications state that this model does not have an automatic door-closing system or a door-open arrest system.
Q: Can the UB90.060.059.T be locked?
A: Yes. The UB-LINE cabinet design incorporates a cylinder lock with a red/green locking-status indicator.
Q: What interior equipment is supplied with this cabinet?
A: This configuration includes one perforated insert and one bottom collecting sump. The perforated insert provides the cabinet’s storage level.
Q: What is the maximum load of the perforated insert?
A: The perforated insert has a specified maximum load of 75 kg.
Q: What is the capacity of the bottom collecting sump?
A: The bottom collecting sump has a capacity of 12 litres.
Q: What is the maximum load of the cabinet?
A: The supplied product information specifies a maximum cabinet load of 300 kg. The perforated insert itself has a separate maximum load of 75 kg.
Q: What material is used for the storage level?
A: The storage level is manufactured from sheet steel.
Q: What colour is the UB90.060.059.T?
A: This configuration has a light grey RAL 7035 powder-coated finish.
Q: Does the UB90.060.059.T have a ventilation connection?
A: Yes. The cabinet has a DN 50 extraction air connection for connection to a suitable technical exhaust system.
Q: Why can the cabinet be connected to an exhaust system?
A: The UB-LINE incorporates ventilation ducts so hazardous vapours can be extracted through a technical exhaust system, helping reduce the risk of an explosive atmosphere developing inside the cabinet.
Q: What exhaust airflow is specified for this model?
A: The specified minimum exhaust air quantity for 10 air changes is 1 m3/h, with a differential pressure of 1 Pa under the stated EK5/AK4 conditions.
Q: Is a recirculating air filtration system available?
A: Yes. The UB-LINE offers an optional recirculating air filter system for situations where connection to a technical exhaust system is not available. It can be configured on a console mount or in an enclosed housing.
Q: Is the UB90.060.059.T supplied with castors?
A: Yes. This specific configuration includes castors with a plinth fitted for the cabinet width, supporting repositioning of the cabinet.
Q: What are the castors and plinth made from?
A: The castors-with-plinth assembly is specified with sheet-steel construction and a plain powder-coated surface. The assembly weighs approximately 1.5 kg.
Q: How much does the UB90.060.059.T weigh?
A: The listed overall weight is approximately 119 kg. The technical data separately states a net configuration weight of approximately 111 kg.
Q: Where is the UB90.060.059.T intended to be installed?
A: The cabinet is designed for under-bench installation beneath fume cupboards, hazardous materials workstations and suitable laboratory or industrial work surfaces.
Q: What is the intended use of the UB90.060.059.T?
A: It is intended for fire-resistant storage of flammable liquids close to the point of use in laboratory and industrial working areas.
Q: What standards does the UB90.060.059.T comply with?
A: The supplied specifications identify compliance with EN 14470-1 and EN 16121/16122. The cabinet is also stated to be GS certified and CE compliant.
Q: Is the UB90.060.059.T GS certified?
A: Yes. The supplied technical specifications identify this cabinet as GS certified.
Q: Is the UB90.060.059.T CE compliant?
A: Yes. The supplied technical specifications identify the cabinet as CE compliant.
Q: Is this specific cabinet UL 1275 listed?
A: No. Although selected cabinets within the broader UB-LINE range may be tested to UL/ULC 1275, the technical specifications state that UB90.060.059.T is not UL 1275 listed.
Q: Are other configurations available in the asecos UB-LINE range?
A: Yes. The broader UB-LINE range includes two cabinet heights, four widths and three depths, with drawer or wing-door interiors and various optional equipment configurations. A separate Type 90 disposal variant is also available for collecting flammable waste.
Q: What is the GTIN for the UB90.060.059.T cabinet?
A: The listed cabinet GTIN is 4054923137868.
Q: What is the SKU for this asecos UB-T-90 safety storage cabinet configuration?
A: The listed SKU is IASE30481-1.
| Range | UB-T-90 |
|---|---|
| Model | UB90.060.059.T |
| Brand | asecos |
