SL-CLASSIC-UB Safety Storage Under-Bench Cabinet for Acids and Alkalis, Light Grey, 4 Shelves, with Castors, Model SL.060.110.UB.2T
R 40,234.75
- Model: SL.060.110.UB.2T
- Type: asecos SL-CLASSIC-UB Safety Storage Under-Bench Cabinet for Acids and Alkalis
- External dimensions (W × D × H): 1 100 × 570 × 600 mm
- Internal dimensions, per compartment (W × D × H): 489 × 531 × 562 mm
- Number of doors: 2 (wing doors, 93° opening)
- Weight: 88.5 kg
- Extraction air connection: DN 50
- Interior equipment: 4 × pull-out shelves (panel/PP melamine resin-coated), 11 L sump per shelf, 25 kg max. load per shelf
- Storage capacity: 40 × 1 L glass bottles, 40 × 1 L PE bottles, or 16 × 2.5 L glass bottles
- Locking: Cylinder lock with red/green locking status indicator
- Colour/finish: Light grey, micropearl finish
- Certifications: EN 16121, EN 16122, GS certified, CE compliant
- Fire resistance: Not applicable (non-flammable substances)
- Includes: Castors with plinth (HF.FT.21044_N, fitted for this cabinet’s width)
NOTE: When choosing a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the Lasec® asecos experts will be happy to help you further.
DELIVERY AND PRICE INFORMATION: The item price does not include installation and delivery costs. When separate or additional orders of accessories and cabinet interiors (e.g. shelves, perforated metal plate) are placed, the purchase price is ex works plus packaging, freight costs and VAT (the shipping method is chosen based on size and weight). All prices are subject to a surcharge for remote areas.
Need a customised solution?
Optional accessories are available for purchase separately. If your order needs a customised configuration, our technical specialists will follow up with full details before your order is finalised. Contact us via the enquiry form or sales@lasec.com.
Installation, training and special delivery
Some products require installation, training, or special delivery (such as tail-lift trucks, extra labour, or hazardous material packaging). If your order needs this, we'll contact you with the additional cost before dispatch, so your final invoice may differ from the listed price.
Ordering from outside South Africa
Online ordering is currently limited to South African customers, but our full range is still available. Log an enquiry or email international@lasec.com and our international sales team will assist you through our traditional sales channels.
DISCLAIMER: All product images are for illustrative purposes only. Actual products may vary slightly in colours, controls, and visible features.
Availability:On Request
SKU
IASE30619-1
Brandasecos
Product Overview
asecos SL-LINE Safety Storage Cabinets for Acids and Alkalis
Corrosion-resistant cabinets with separately divided compartments for the safe, on-site storage of acids and alkalis
The SL-LINE range is built for the storage of aggressive, non-flammable hazardous materials directly in the working area. Each cabinet has a body of powder-coated sheet steel with an interior of melamine resin and flame-retardant special plates, giving a corrosion-resistant storage environment for acids and alkalis kept close to the point of use.
Acids and alkalis are kept safely separated in two hermetically divided storage compartments, with a dividing wall available in either a vertical or horizontal orientation depending on the configuration. An integrated aeration and venting system, with metal-free air ducts for corrosion resistance, supports the safe handling of vapours from the stored substances.
Cabinets in the range are GS-tested and conform to the requirements of EN 16121 and EN 16122.
Key Features
- Safe, separate storage: two hermetically divided storage compartments keep acids and alkalis apart, with a vertical or horizontal dividing wall and an integrated aeration and venting system using corrosion-resistant, metal-free air ducts.
- Pull-out shelves: shelves pull out complete with a highly resistant plastic sump, giving a quick overview of stored hazardous substances; in the event of a leak, the tray lifts out for emptying and cleaning.
- Ventilation: integrated air ducts with a DN 75 connection point for a technical exhaust system, supporting the extraction of hazardous vapours before they can build up inside the cabinet.
- Separately lockable storage box: an optional storage box for hydrofluoric acid, including a corrosion-resistant polypropylene sump, is available as its own lockable compartment.
- Cylinder lock: the door locks with a cylinder lock that can be integrated into an existing site locking system.
- Mobility and fit: optional castors with a plinth allow the cabinet to be repositioned, and attachment covers allow the cabinet height to be matched to different laboratory furniture systems, including fitting beneath a fume cupboard.
- Metal cladding option: available with metal cladding for uniform integration alongside existing laboratory furniture and fittings.
Typical Applications
- On-site storage of acids and alkalis in laboratory and industrial working areas
- Under-bench storage beneath fume cupboards
- Storage of hydrofluoric acid in a separately lockable compartment
Configuration Options
- Vertical or horizontal dividing wall between acid and alkali compartments
- Optional hydrofluoric acid storage box with polypropylene sump
- Interior storage levels as PE tray shelves (33 L capacity) or bottom collecting sumps (68 L capacity) for bulk packs
- Optional castors with plinth
- Optional metal cladding

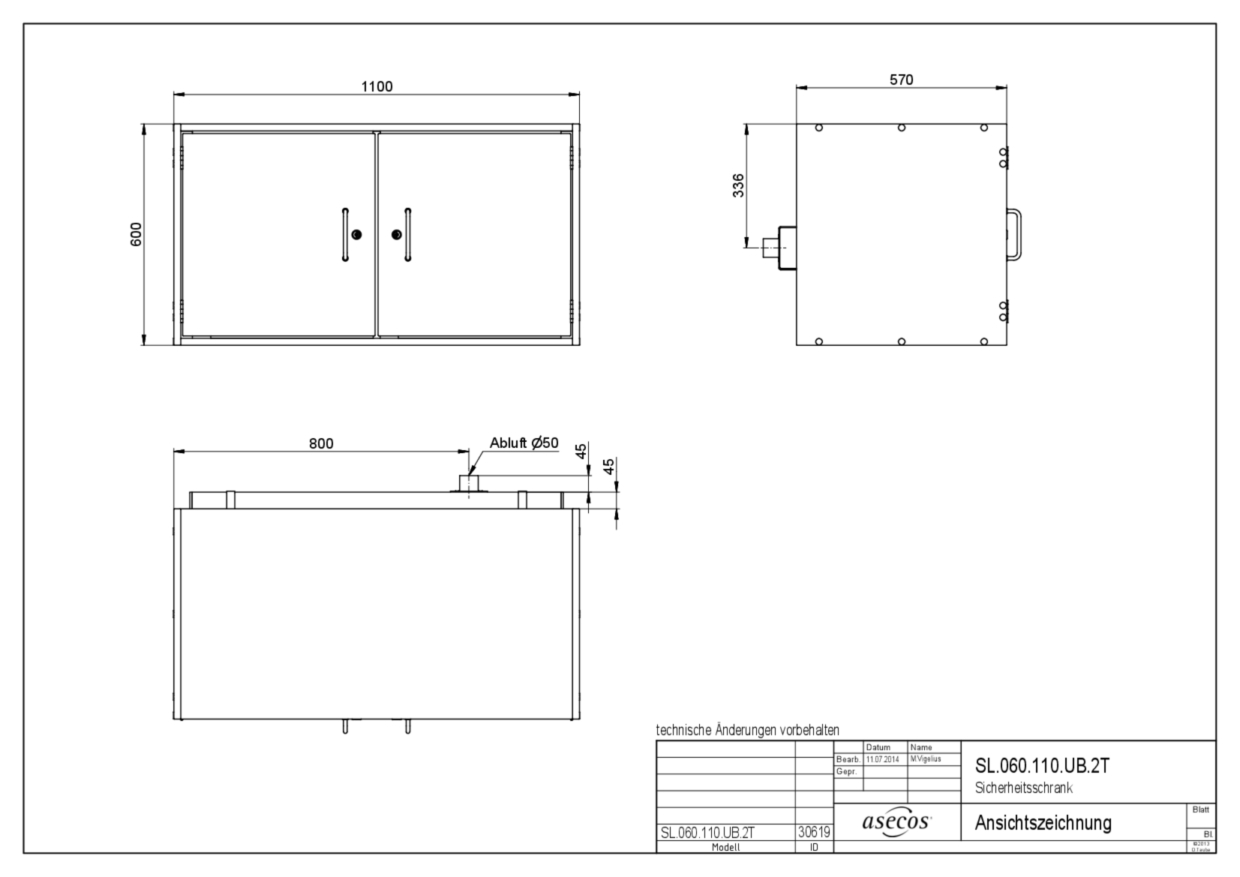

Under bench cabinet for acids and alkalis SL-CLASSIC-UB Model SL.060.110.UB.2T
| External dimensions W x D x H | 1100 x 570 x 600 mm |
| Internal dimensions W x D x H | all compartments: 489 x 531 x 562 mm |
| Extraction air connection | 50 DN |
| Number of storage levels | 4 piece |
| CE compliant | yes (1) |
| Differential pressure (30 times air change) | 2 Pa |
| ecl@ss 14.0 | 40-06-01-07 |
| Recom. exhaust air quantity 30 times | 9 m3/h |
| Fire resistance level | No fire resistance |
| Total storage capacity of 1 L laboratory glass bottles | 40 piece |
| Total storage capacity of 1 L laboratory PE bottles | 40 piece |
| Total storage capacity of 2.5 L laboratory glass bottles | 16 piece |
| Depth with open doors | 1,094.00 mm |
| GTIN | 4054923210790 |
| GS certified | yes (1) |
| Net weight configuration | 74.00 kg |
| According to standard | EN 16121/16122 |
| Max. load of drawers | 25 kg |
| Automatic door closing system | No (0) |
| Door open arrest system | No (0) |
| Door opening angle | 135 ° |
| UNSPSC code | 24112402 |
| Volume of pull-outs | 11.00 litres |
| Customs tariff number | 94032080 |
| Weight | 88.5 kg |
| Material of storage levels | metal free |
Castors with plinth
| Weight | 2 kg |
| Material | sheet steel |
| Surface | powder-coated plain |
| ecl@ss 11.0 | 21-10-10-14 |
| Customs tariff number | 94039910 |
| GTIN | 4250101179969 |
Frequently Asked Questions (FAQs)
Q: What is the asecos SL-CLASSIC-UB SL.060.110.UB.2T?
A: The asecos SL.060.110.UB.2T is an under-bench safety storage cabinet designed for acids, alkalis and other appropriate non-flammable hazardous substances. Its divided storage arrangement allows acids and alkalis to be kept separately close to the point of use.
Q: What are the external dimensions of the SL.060.110.UB.2T?
A: The external dimensions are approximately 1100 × 570 × 600 mm (W × D × H).
Q: What are the internal dimensions of each compartment?
A: Each compartment has internal dimensions of approximately 489 × 531 × 562 mm (W × D × H).
Q: Is the SL.060.110.UB.2T designed to keep acids and alkalis separate?
A: Yes. The SL-LINE design provides two hermetically divided storage compartments so that acids and alkalis can be stored separately within the cabinet.
Q: How many storage levels does this cabinet have?
A: The SL.060.110.UB.2T provides 4 storage levels in the form of pull-out shelves.
Q: What type of shelves are supplied with the cabinet?
A: This configuration includes 4 pull-out shelves with highly resistant plastic sumps. The storage levels are specified as metal-free and use a melamine resin-coated panel/polypropylene construction.
Q: What is the maximum load of each pull-out shelf?
A: Each pull-out shelf has a specified maximum load of 25 kg.
Q: What is the containment volume of each pull-out shelf?
A: Each pull-out has a specified sump volume of 11 litres, providing containment in the event of a leak or spill.
Q: Can the pull-out sump be removed for cleaning?
A: Yes. The shelf design incorporates a removable plastic sump that can be lifted out for emptying and cleaning if a leak occurs.
Q: How many 1 L glass bottles can the SL.060.110.UB.2T accommodate?
A: The specified total storage capacity is up to 40 × 1 L laboratory glass bottles.
Q: How many 1 L PE bottles can the cabinet accommodate?
A: The specified total storage capacity is up to 40 × 1 L laboratory PE bottles.
Q: How many 2.5 L glass bottles can the cabinet accommodate?
A: The specified total storage capacity is up to 16 × 2.5 L laboratory glass bottles.
Q: Is the SL.060.110.UB.2T fire resistant?
A: No. The technical specifications state no fire resistance. This cabinet is intended for appropriate non-flammable hazardous substances such as acids and alkalis rather than for the fire-resistant storage of flammable liquids.
Q: Is the SL.060.110.UB.2T suitable for storing flammable liquids?
A: This model is specified for acids, alkalis and other appropriate non-flammable hazardous substances and has no stated fire-resistance rating. Flammable liquids require a cabinet appropriate to the applicable storage regulations and substance classification.
Q: What ventilation connection does the SL.060.110.UB.2T have?
A: The technical specifications for this model list an extraction air connection of DN 50 for connection to an appropriate technical exhaust system.
Q: What is the recommended exhaust air quantity?
A: The specified recommended exhaust air quantity is 9 m3/h for 30 air changes.
Q: What is the differential pressure at 30 air changes?
A: The specified differential pressure is 2 Pa at 30 air changes.
Q: How does the SL-LINE ventilation system support corrosion resistance?
A: The SL-LINE incorporates an aeration and venting system with metal-free air ducts, supporting corrosion resistance when storing appropriate acids and alkalis.
Q: How does the SL.060.110.UB.2T lock?
A: The cabinet uses a cylinder lock with a red/green locking status indicator. The cylinder lock can also be integrated into an existing site locking system.
Q: How many doors does the cabinet have?
A: The cabinet is configured with 2 wing doors.
Q: What is the door opening angle of the SL.060.110.UB.2T?
A: The technical specifications list a door opening angle of 135°.
Q: What is the depth of the cabinet with the doors open?
A: The specified depth with the doors open is approximately 1094 mm.
Q: Does the SL.060.110.UB.2T have an automatic door-closing system?
A: No. The technical specifications state that this configuration does not have an automatic door-closing system.
Q: Does the cabinet have a door-open arrest system?
A: No. A door-open arrest system is not specified for this configuration.
Q: Does the SL.060.110.UB.2T include castors?
A: Yes. This product configuration includes castors with plinth, reference HF.FT.21044_N, fitted for the cabinet’s width to support repositioning.
Q: What are the castors with plinth made from?
A: The castors-with-plinth assembly is specified as sheet steel with a plain powder-coated surface and has a listed weight of approximately 2 kg.
Q: What colour and finish does the cabinet have?
A: The cabinet is supplied in light grey with a micropearl finish.
Q: How much does the SL.060.110.UB.2T weigh?
A: The specified total weight is approximately 88.5 kg. The technical specifications separately list a net configuration weight of 74 kg.
Q: What standards does the SL.060.110.UB.2T meet?
A: The supplied specifications identify conformity with EN 16121 and EN 16122. The cabinet is also stated to be GS certified and CE compliant.
Q: Is the SL.060.110.UB.2T GS certified?
A: Yes. The technical specifications identify this model as GS certified.
Q: Is the SL.060.110.UB.2T CE compliant?
A: Yes. The supplied technical specifications state that the cabinet is CE compliant.
Q: Can hydrofluoric acid be stored in the SL-LINE range?
A: The SL-LINE range offers an optional separately lockable storage box for hydrofluoric acid with a corrosion-resistant polypropylene sump. This is an optional configuration and is not listed as standard equipment for the SL.060.110.UB.2T.
Q: Where is the SL.060.110.UB.2T typically installed?
A: Typical applications include under-bench installation beneath fume cupboards and on-site storage of acids and alkalis in laboratory and industrial working areas.
Q: Are delivery and installation included in the cabinet price?
A: No. The supplied product information states that the item price excludes installation and delivery costs. Packaging, freight, VAT and remote-area surcharges may also apply as specified.
Q: Should local regulations be considered when selecting this acids and alkalis cabinet?
A: Yes. Cabinet selection, installation and use should comply with the applicable national rules and regulations governing the storage of hazardous substances.
Q: What is the GTIN for the SL.060.110.UB.2T?
A: The specified cabinet GTIN is 4054923210790.
Q: What is the SKU for the asecos SL.060.110.UB.2T?
A: The listed SKU is IASE30619-1, corresponding to asecos model SL.060.110.UB.2T.
| Range | SL-CLASSIC |
|---|---|
| Model | SL.060.110.UB.2T |
| Brand | asecos |
