SL-CLASSIC-UB Safety Storage Under-Bench Cabinet for Acids and Alkalis, Light Grey, 2 x Pull-Out Shelves, with Castors, Model SL.060.059.UB.T
R 33,093.19
- Model: SL.060.059.UB.T
- Type: asecos SL-CLASSIC-UB Safety Storage Under-Bench Cabinet for Acids and Alkalis
- External dimensions (W × D × H): 590 × 570 × 600 mm
- Internal dimensions (W × D × H): 488 × 531 × 562 mm
- Number of doors: 1 (left-hinged wing door, 135° opening)
- Weight: 53.5 kg
- Extraction air connection: DN 50
- Interior equipment: 2 × pull-out shelves (panel/PP melamine resin-coated), 11 L sump per shelf, 25 kg max. load per shelf
- Storage capacity: 40 × 1 L glass bottles, 40 × 1 L PE bottles, or 16 × 2.5 L glass bottles
- Colour/finish: Light grey
- Certifications: EN 16121, EN 16122, GS certified
- Fire resistance: Not applicable (non-flammable substances)
- Includes: Castors with plinth (fitted for this cabinet’s width)
NOTE: When choosing a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the Lasec® asecos experts will be happy to help you further.
DELIVERY AND PRICE INFORMATION: The item price does not include installation and delivery costs. When separate or additional orders of accessories and cabinet interiors (e.g. shelves, perforated metal plate) are placed, the purchase price is ex works plus packaging, freight costs and VAT (the shipping method is chosen based on size and weight). All prices are subject to a surcharge for remote areas.
Need a customised solution?
Optional accessories are available for purchase separately. If your order needs a customised configuration, our technical specialists will follow up with full details before your order is finalised. Contact us via the enquiry form or sales@lasec.com.
Installation, training and special delivery
Some products require installation, training, or special delivery (such as tail-lift trucks, extra labour, or hazardous material packaging). If your order needs this, we'll contact you with the additional cost before dispatch, so your final invoice may differ from the listed price.
Ordering from outside South Africa
Online ordering is currently limited to South African customers, but our full range is still available. Log an enquiry or email international@lasec.com and our international sales team will assist you through our traditional sales channels.
DISCLAIMER: All product images are for illustrative purposes only. Actual products may vary slightly in colours, controls, and visible features.
Availability:On Request
SKU
IASE30622-1
Brandasecos
Product Overview
asecos SL-LINE Safety Storage Cabinets for Acids and Alkalis
Corrosion-resistant cabinets with separately divided compartments for the safe, on-site storage of acids and alkalis
The SL-LINE range is built for the storage of aggressive, non-flammable hazardous materials directly in the working area. Each cabinet has a body of powder-coated sheet steel with an interior of melamine resin and flame-retardant special plates, giving a corrosion-resistant storage environment for acids and alkalis kept close to the point of use.
Acids and alkalis are kept safely separated in two hermetically divided storage compartments, with a dividing wall available in either a vertical or horizontal orientation depending on the configuration. An integrated aeration and venting system, with metal-free air ducts for corrosion resistance, supports the safe handling of vapours from the stored substances.
Cabinets in the range are GS-tested and conform to the requirements of EN 16121 and EN 16122.
Key Features
- Safe, separate storage: two hermetically divided storage compartments keep acids and alkalis apart, with a vertical or horizontal dividing wall and an integrated aeration and venting system using corrosion-resistant, metal-free air ducts.
- Pull-out shelves: shelves pull out complete with a highly resistant plastic sump, giving a quick overview of stored hazardous substances; in the event of a leak, the tray lifts out for emptying and cleaning.
- Ventilation: integrated air ducts with a DN 75 connection point for a technical exhaust system, supporting the extraction of hazardous vapours before they can build up inside the cabinet.
- Separately lockable storage box: an optional storage box for hydrofluoric acid, including a corrosion-resistant polypropylene sump, is available as its own lockable compartment.
- Cylinder lock: the door locks with a cylinder lock that can be integrated into an existing site locking system.
- Mobility and fit: optional castors with a plinth allow the cabinet to be repositioned, and attachment covers allow the cabinet height to be matched to different laboratory furniture systems, including fitting beneath a fume cupboard.
- Metal cladding option: available with metal cladding for uniform integration alongside existing laboratory furniture and fittings.
Typical Applications
- On-site storage of acids and alkalis in laboratory and industrial working areas
- Under-bench storage beneath fume cupboards
- Storage of hydrofluoric acid in a separately lockable compartment
Configuration Options
- Vertical or horizontal dividing wall between acid and alkali compartments
- Optional hydrofluoric acid storage box with polypropylene sump
- Interior storage levels as PE tray shelves (33 L capacity) or bottom collecting sumps (68 L capacity) for bulk packs
- Optional castors with plinth
- Optional metal cladding

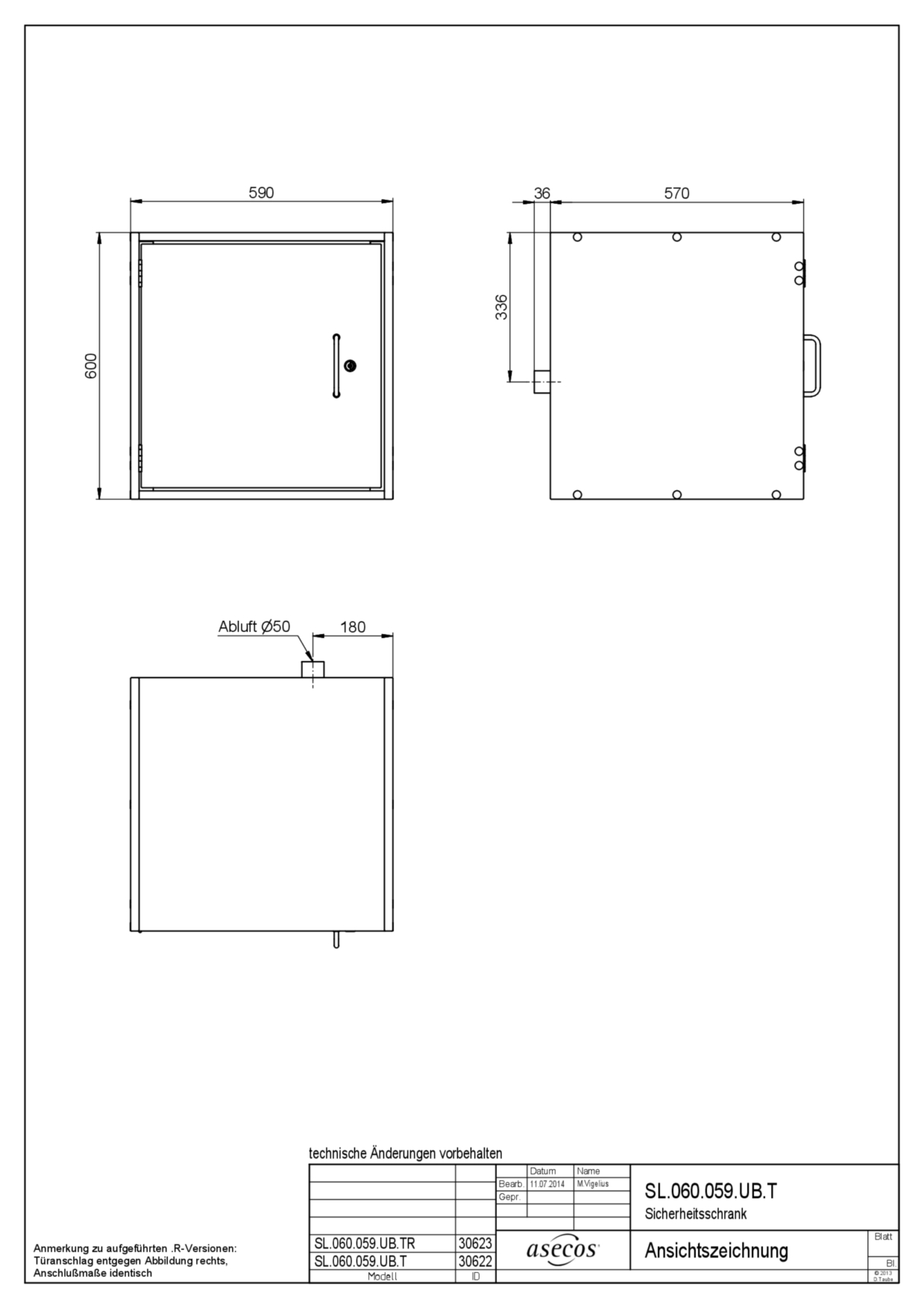

Under bench cabinet for acids and alkalis SL-CLASSIC-UB Model SL.060.059.UB.T
| External dimensions W x D x H | 590 x 570 x 600 mm |
| Internal dimensions W x D x H | 488 x 531 x 562 mm |
| Extraction air connection | 50 DN |
| Number of storage levels | 2 piece |
| CE compliant | No (0) |
| Differential pressure (30 times air change) | 1 Pa |
| ecl@ss 14.0 | 40-06-01-07 |
| Recom. exhaust air quantity 30 times | 4 m3/h |
| Fire resistance level | No fire resistance |
| Total storage capacity of 1 L laboratory glass bottles | 40 piece |
| Total storage capacity of 1 L laboratory PE bottles | 40 piece |
| Total storage capacity of 2.5 L laboratory glass bottles | 16 piece |
| Depth with open doors | 1,112.00 mm |
| GTIN | 4054923210820 |
| GS certified | yes (1) |
| Net weight configuration | 45.50 kg |
| According to standard | EN 16121/16122 |
| Max. load of drawers | 25 kg |
| Automatic door closing system | No (0) |
| Door open arrest system | No (0) |
| Door opening angle | 135 ° |
| UNSPSC code | 24112402 |
| Volume of pull-outs | 11.00 litres |
| Customs tariff number | 94032080 |
| Weight | 53.5 kg |
| Material of storage levels | metal free |
Castors with plinth
| Weight | 1.5 kg |
| Material | sheet steel |
| Surface | powder-coated plain |
| ecl@ss 11.0 | 21-10-10-14 |
| Customs tariff number | 94039910 |
| GTIN | 4250101179990 |
Frequently Asked Questions (FAQs)
Q: What is the asecos SL-CLASSIC-UB SL.060.059.UB.T?
A: The asecos SL.060.059.UB.T is a compact under-bench safety storage cabinet for acids, alkalis and other appropriate non-flammable hazardous substances. It is designed for use in laboratory and industrial working areas, including installation beneath fume cupboards.
Q: What are the external dimensions of the SL.060.059.UB.T?
A: The external dimensions are approximately 590 × 570 × 600 mm (W × D × H).
Q: What are the internal dimensions of the cabinet?
A: The internal dimensions are approximately 488 × 531 × 562 mm (W × D × H).
Q: How many storage levels does the SL.060.059.UB.T have?
A: This configuration provides 2 storage levels in the form of pull-out shelves.
Q: What type of shelves are supplied with this cabinet?
A: The cabinet includes 2 pull-out shelves with highly resistant plastic sumps. The storage levels are specified as metal-free, with a panel/polypropylene and melamine resin-coated construction.
Q: What is the maximum load of each pull-out shelf?
A: Each pull-out shelf has a specified maximum load capacity of 25 kg.
Q: What is the containment volume of each pull-out shelf?
A: Each pull-out has a specified sump volume of 11 litres.
Q: Can the pull-out sump be removed for cleaning?
A: Yes. The pull-out shelf incorporates a removable plastic sump that can be lifted out for emptying and cleaning in the event of a leak.
Q: How many 1 L glass bottles can the SL.060.059.UB.T accommodate?
A: The technical specifications state a total storage capacity of up to 40 × 1 L laboratory glass bottles.
Q: How many 1 L PE bottles can the cabinet accommodate?
A: The specified total storage capacity is up to 40 × 1 L laboratory PE bottles.
Q: How many 2.5 L glass bottles can the cabinet accommodate?
A: The specified total storage capacity is up to 16 × 2.5 L laboratory glass bottles.
Q: Is the SL.060.059.UB.T fire resistant?
A: No. The technical specifications state no fire resistance. This cabinet is intended for appropriate non-flammable hazardous substances such as acids and alkalis rather than fire-resistant storage of flammable liquids.
Q: Is the SL.060.059.UB.T suitable for storing flammable liquids?
A: This model is specified for acids, alkalis and other appropriate non-flammable hazardous substances and does not have a stated fire-resistance rating. Flammable substances require storage appropriate to their classification and the applicable regulations.
Q: What type of door does the SL.060.059.UB.T have?
A: The cabinet is configured with 1 left-hinged wing door.
Q: What is the door opening angle?
A: The specified door opening angle is 135°.
Q: What is the depth of the cabinet with the door open?
A: The specified depth with the door open is approximately 1112 mm.
Q: Does the SL.060.059.UB.T have an automatic door-closing system?
A: No. The technical specifications state that this configuration does not have an automatic door-closing system.
Q: Does the cabinet have a door-open arrest system?
A: No. The technical specifications state that the SL.060.059.UB.T does not have a door-open arrest system.
Q: Can the SL.060.059.UB.T be connected to a technical exhaust system?
A: Yes. The technical specifications for this particular model list a DN 50 extraction air connection for connection to an appropriate technical exhaust system.
Q: What is the recommended exhaust air quantity?
A: The specified recommended exhaust air quantity is 4 m3/h for 30 air changes.
Q: What is the differential pressure at 30 air changes?
A: The specified differential pressure is 1 Pa at 30 air changes.
Q: How does the SL-LINE ventilation design support corrosion resistance?
A: The SL-LINE incorporates an aeration and venting system with corrosion-resistant, metal-free air ducts to support the handling of vapours associated with stored acids and alkalis.
Q: Does the SL.060.059.UB.T include castors?
A: Yes. This configuration includes castors with a plinth fitted for the cabinet’s width, allowing the cabinet to be repositioned when required.
Q: What are the castors with plinth made from?
A: The castors-with-plinth assembly is specified as sheet steel with a plain powder-coated surface and has a listed weight of approximately 1.5 kg.
Q: What colour is the SL.060.059.UB.T?
A: This configuration is supplied in light grey.
Q: How much does the SL.060.059.UB.T weigh?
A: The specified total weight is approximately 53.5 kg. The technical specifications separately list a net configuration weight of 45.5 kg.
Q: What standards does the SL.060.059.UB.T meet?
A: The supplied specifications identify conformity with EN 16121 and EN 16122. The cabinet is also stated to be GS certified.
Q: Is the SL.060.059.UB.T GS certified?
A: Yes. The technical specifications identify this particular model as GS certified.
Q: Is the SL.060.059.UB.T CE compliant?
A: No. The technical specifications for this specific model state CE compliant: No.
Q: Can hydrofluoric acid be stored in the SL-LINE range?
A: The wider SL-LINE range offers an optional separately lockable storage box for hydrofluoric acid with a corrosion-resistant polypropylene sump. This is an optional configuration and is not listed as standard equipment for the SL.060.059.UB.T.
Q: Where is the SL.060.059.UB.T typically installed?
A: Typical applications include under-bench installation beneath fume cupboards and on-site storage of appropriate acids and alkalis in laboratory and industrial working areas.
Q: Are delivery and installation included in the cabinet price?
A: No. The supplied product information states that the item price excludes installation and delivery costs. Packaging, freight, VAT and remote-area surcharges may also apply as specified.
Q: Should local regulations be considered when selecting this acids and alkalis cabinet?
A: Yes. Selection, installation and use should comply with the applicable national rules and regulations governing the storage of hazardous substances.
Q: What is the GTIN for the SL.060.059.UB.T?
A: The specified cabinet GTIN is 4054923210820.
Q: What is the SKU for the asecos SL.060.059.UB.T?
A: The listed SKU is IASE30622-1, corresponding to asecos model SL.060.059.UB.T.
| Range | SL-CLASSIC |
|---|---|
| Model | SL.060.059.UB.T |
| Brand | asecos |
