Lactoscan Combo Milk Analyser | Somatic Cell Count & Composition Testing System
Enquire for Price
- Combined Somatic Cell Counter (SCC) and Chemical Analyser (W)
- High-speed, accurate fluorescent microscopy for somatic cell counting
- Embedded Windows tablet and integrated printer
- Results in just 20-60 seconds
- Supports milk analysis for cow, sheep, goat, buffalo, and human milk
- Detects clinical and subclinical mastitis
- User-friendly interface: simple operation, calibration, and maintenance
- Automatic software updates and cloud-based data storage
- No hazardous chemicals, minimal milk required, low power consumption
- Compact size (290x300x330 mm) and lightweight (<5 kg) for easy portability

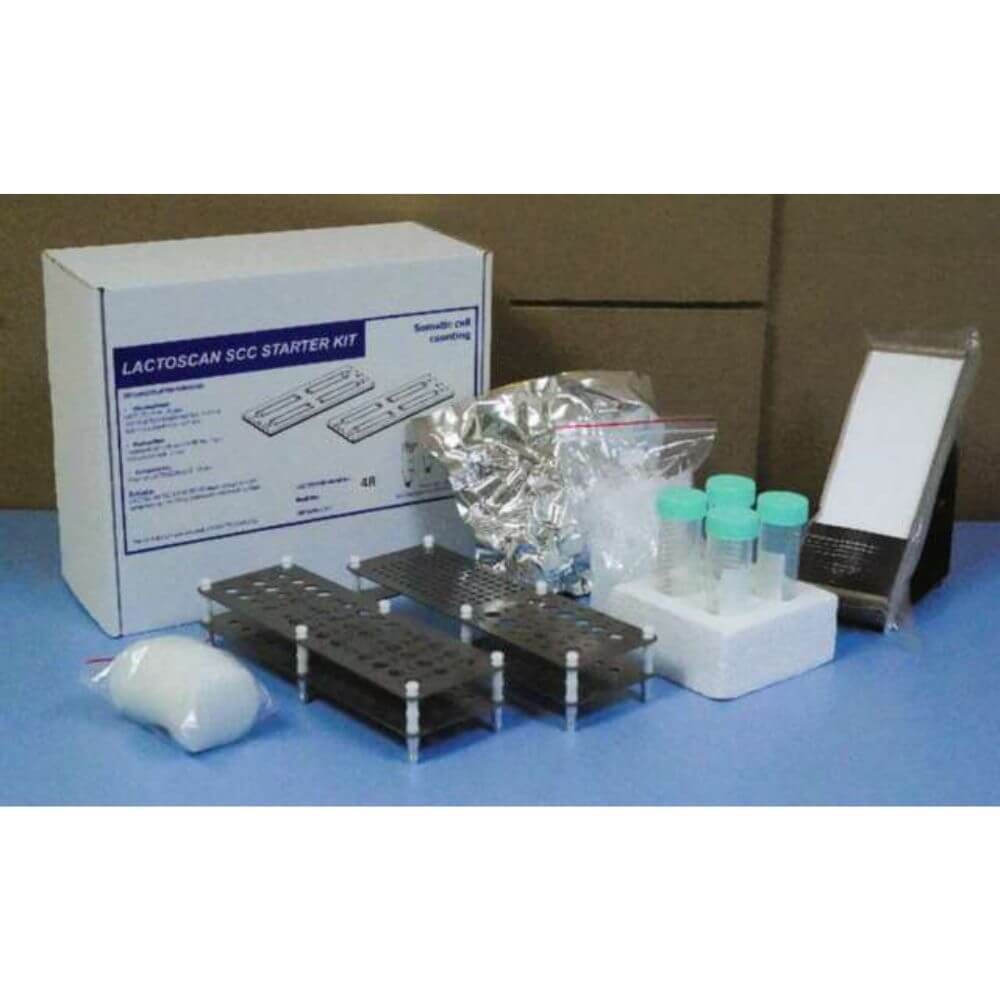

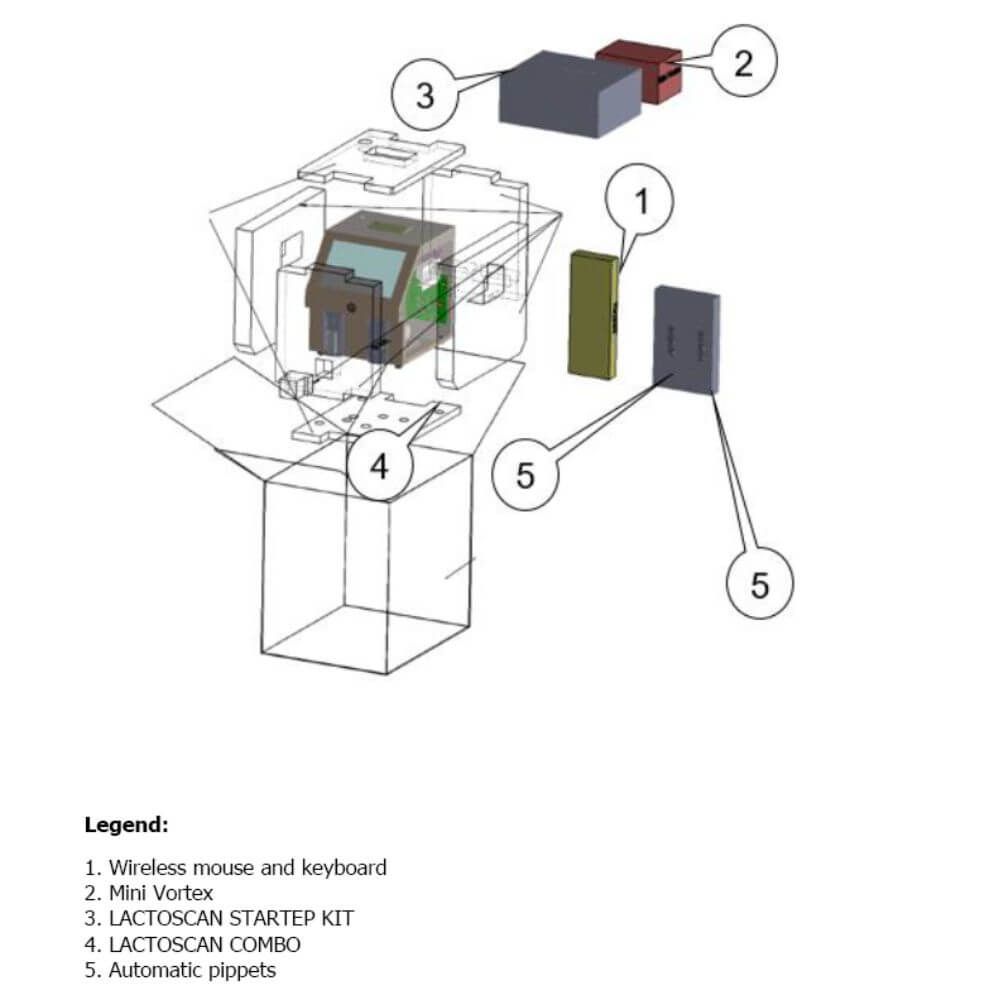

- Accessories: Wireless mouse and keyboard, Mini vortex mixer, Lactoscan Starter Kit for 100 tests, Automatic pipettes
Availability:On Request
SKU
ILASSCCUMA
BrandLactoscan
Lactoscan Combo Integrated Milk Analysis System
Product Overview
The Lactoscan Combo is an advanced, multifunctional milk analysis instrument designed to provide rapid, precise, and reliable analysis of milk from various sources, including cow, sheep, goat, buffalo, and human milk. This system integrates cutting-edge fluorescent microscopy, robust analysis software, and user-friendly operational features to deliver comprehensive somatic cell counting and detailed chemical composition analysis. Ideal for laboratories and dairy industry stakeholders, it significantly enhances milk quality control processes.
Key Features
- Integrated System: Combines the functionalities of Lactoscan SCC (Somatic Cell Counter) and Lactoscan W (Chemical Composition Analyser).

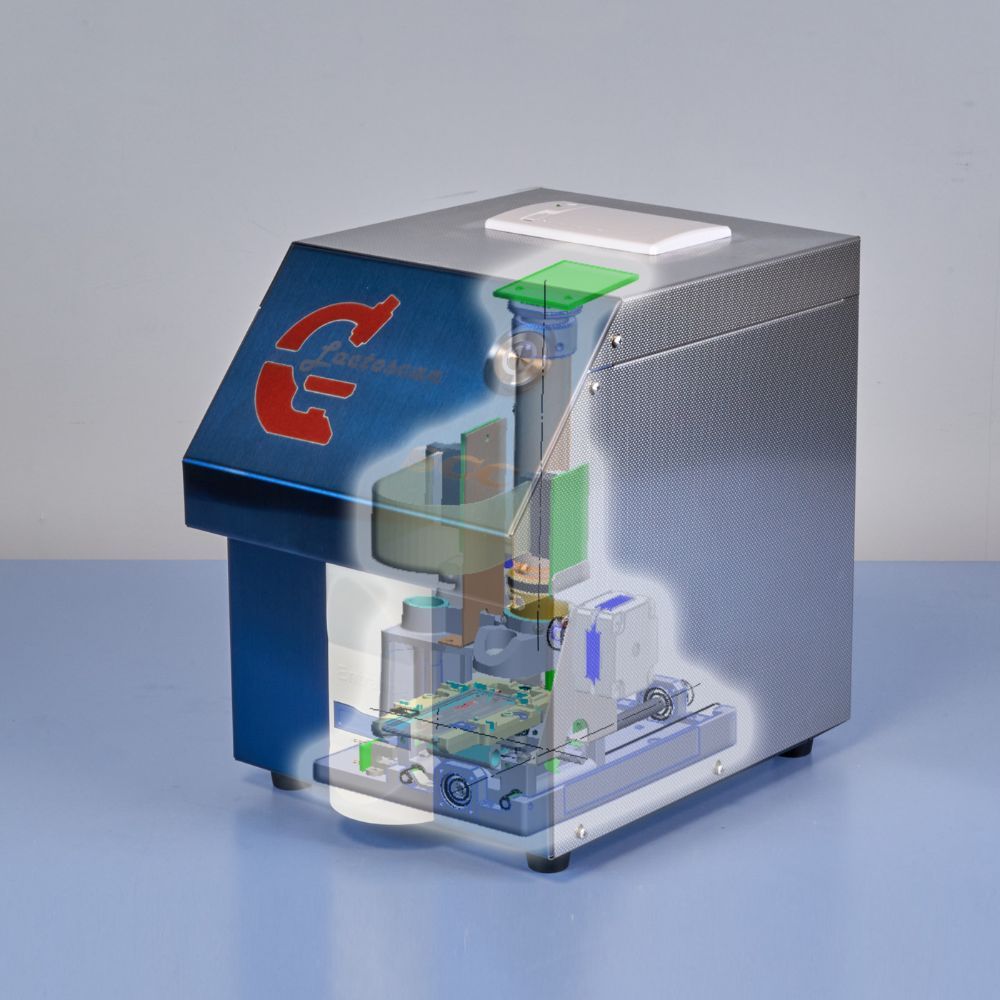

- Advanced Microscopy: High-end direct fluorescent microscopy with fast autofocus capabilities.
- Embedded Technology: Equipped with an embedded Windows tablet and printer for streamlined operation and immediate result documentation.
- Fast & Reliable Results: Delivers accurate somatic cell count results in 20 to 60 seconds, aiding early mastitis detection (clinical and subclinical).
- User-Friendly Interface: Simple operation, minimal maintenance, easy calibration, and quick installation.
Environmental & Electrical Conditions
- Operating Temperature (Ambient): 10°C – 40°C (with optional extension up to 43°C)
- Milk Temperature Range: 1°C – 40°C
- Relative Humidity: 30% – 80%
- Electrical Supply: AC Voltage: 220V/110V, DC Voltage: 12V – 14.2V
- Power Consumption: Maximum 30W
Mechanical Parameters
- Dimensions: 290 mm (W) x 300 mm (D) x 330 mm (H)
- Weight: Less than 5 kg for easy handling and portability.
Operational Advantages
- Cost Efficiency: Offers the lowest cost per somatic cell count test on the market.
- Data Management: Capable of storing an unlimited number of records with automatic software updates, remote service capabilities, and Internet Cloud integration.
- Remote Notifications: Email and SMS alert support available.
Environmental & Safety Features
- Low milk sample volume required, reducing waste.
- No hazardous chemicals are involved, ensuring safety and sustainability.
- Energy-efficient design with low power consumption.
Warranty & Support
- Comprehensive one-year warranty covering all parts and services.
- Accessible customer support for calibration, maintenance, and troubleshooting.
Applications
- Dairy farms and milk producers for quality assurance.
- Laboratory settings for precise milk analysis and mastitis detection.
- Research institutions conducting dairy product research and development.
| Parameter | Measuring Range | Accuracy |
|---|---|---|
| Fat | 0.01% – 45% | ±0.06% |
| Solids-Non-Fat (SNF) | 3% – 40% | ±0.15% |
| Density | 1000 – 1160 kg/m³ | ±0.3 kg/m³ |
| Protein | 2% – 15% | ±0.15% |
| Lactose | 0.01% – 20% | ±0.2% |
| Added Water | 0% – 70% | ±3% |
| Milk Sample Temperature | 5°C – 40°C | ±1% |
| Freezing Point | -0.4°C – -0.7°C | ±0.005°C |
| Salts | 0.4% – 4% | ±0.05% |
| pH | 0 – 14 | ±0.05 |
| Conductivity | 2 – 14 mS/cm | ±0.05 mS/cm |
| Kg (Mass) | 0 – 150 kg | ±0.10 kg |
| Total Solids | 0 – 50% | ±0.17% |
Frequently Asked Questions
Q: What types of milk can the Lactoscan Combo analyse?
A: It can analyse milk from cows, sheep, goats, buffalo, and even human milk with accurate results.
Q: What is the test duration per sample?
A: Test results are delivered within 20 to 60 seconds, enabling rapid decision-making.
Q: Does the device detect mastitis?
A: Yes, it detects both subclinical and clinical mastitis through somatic cell count analysis.
Q: How much milk is needed per test?
A: Only a very small quantity of milk is required, minimising waste and preparation time.
Q: Is the system easy to use?
A: Absolutely! The interface is intuitive, and the system is simple to operate, calibrate, and maintain.
Q: Does it require any chemicals or reagents?
A: No hazardous chemicals are used, making it safer for the user and the environment.
Q: How is data stored and managed?
A: The system can store an unlimited number of records, supports cloud backup, and allows email/SMS alerts.
Q: Can it be used in mobile or remote setups?
A: Yes, with its compact size, light weight, and low power consumption, it's ideal for mobile labs or field use.
Q: What support is included with the purchase?
A: It includes a full one-year warranty and access to remote software updates and customer support.
Q: Can I connect it to external devices?
A: Yes, it features an RS-232 Interface and supports a wireless keyboard and mouse for expanded usability.
